Sia Programable 72V Mid Drive Motor Controller EM150SP for Electric motorcycle
- 230.00 piece
| Item name: | VOTOL Controller; | Package: | Package in carton; |
| Brand Name: | SiAECOSYS; | Voltage: | 24V-72V; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Motor type: | DC Motor; |
| Application: | Eletric bicycle/electric scooter; | Features: | High power, programable; |
| Packaging Detail: | Packed in carton box; | Place of Origin: | Zhejiang China; |
| Payment Terms: | T/T,Western Union,Paypal; | Port: | Ningbo; |
| Model Number: | VOTOL; | Production time: | 3-10 working days; |
Sia Programable 72V Mid Drive Motor Controller EM150SP for Electric motorcycle
Lande VOLT is designed for our mid drive motor which can match sucessfully.
Generally, we adjust the parameters before the delivery, if you want to modify the parameters pls. be careful, and free to contact us.
Pls note, for this controller we do not sell it seperatelly, because it needs debug with motor, unless could not use.
Key Features
1). Very Easy connect
2). Can match with QS mid drive motor and hub motor(Suggest buy the motor and controller together)
3). Soft start can be adjusted
4). Programmable by USB
5). Support CAN-BUS
6). Support Flux Weakening
Specification

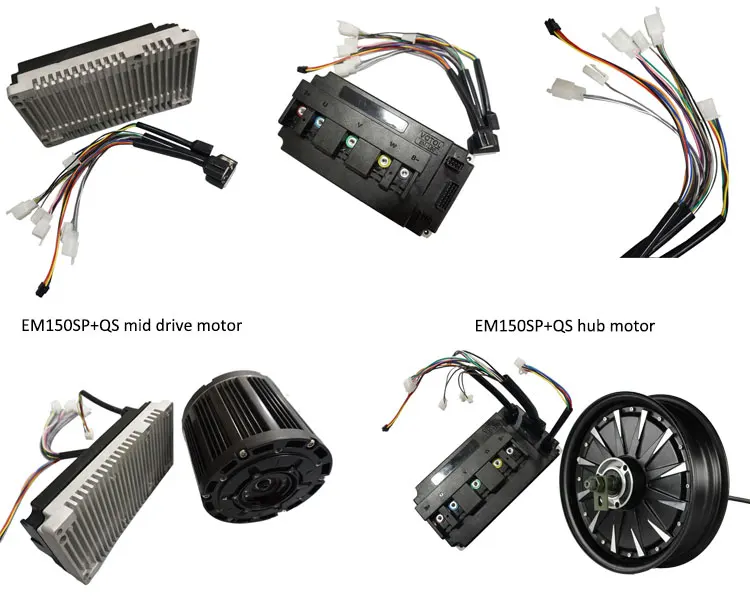

Pictures

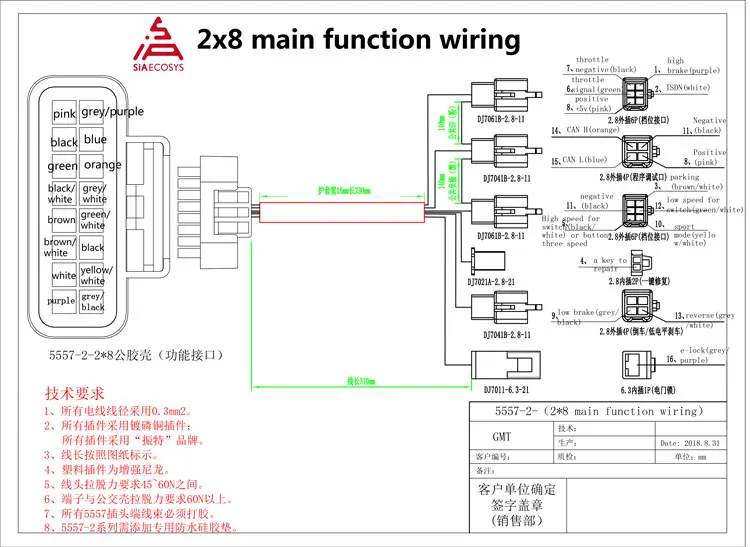

Drawing Diagram

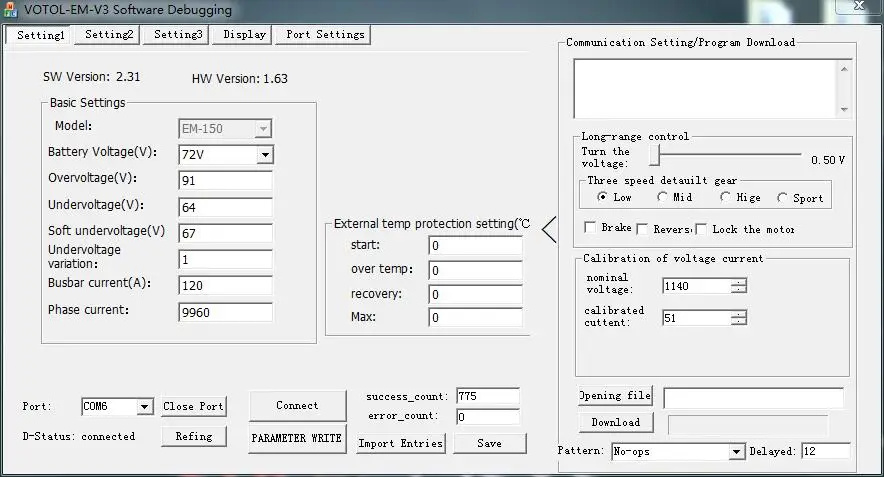

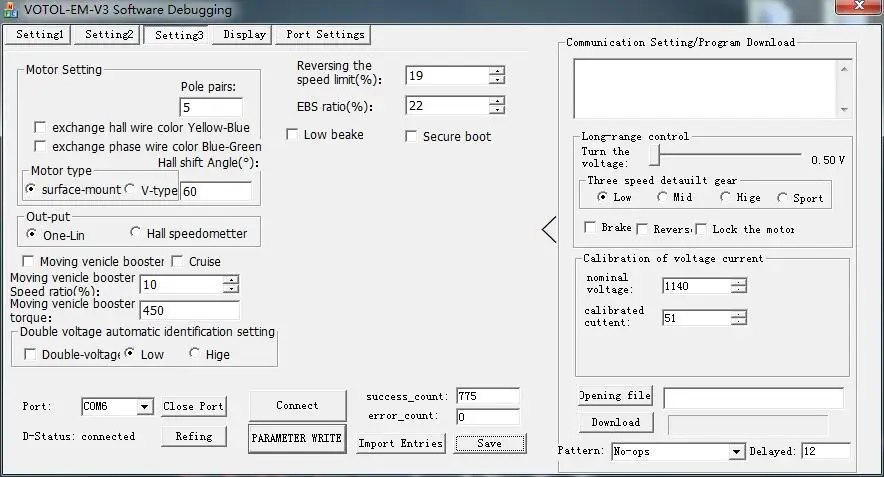

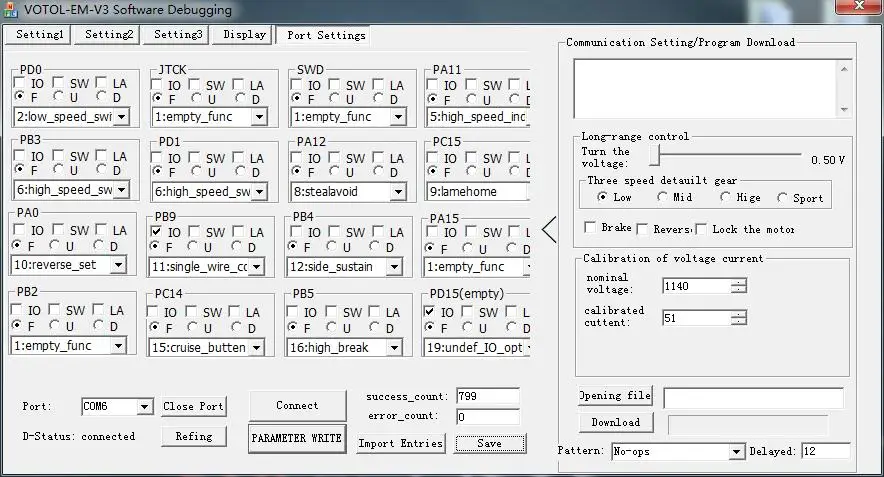

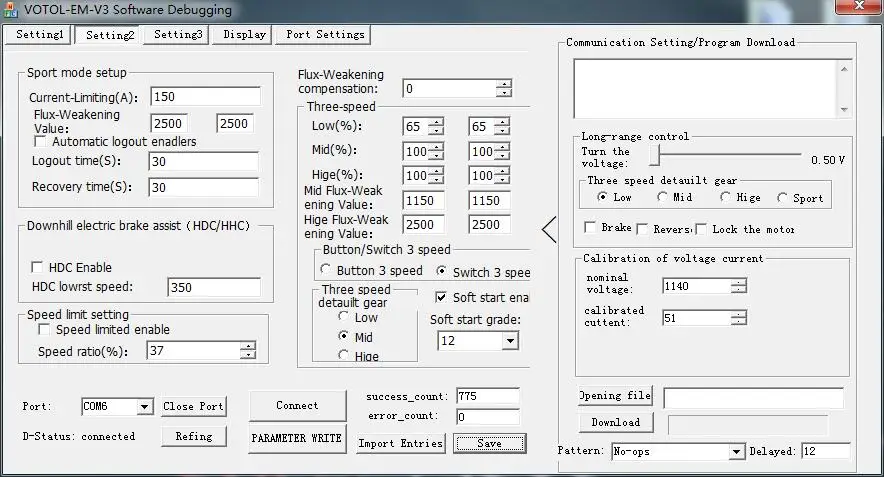

PC Surface
In order to recommend the suitable controller for you and send you the quotation accordingly, could you kindly inform me below points?
1. What's your application, e-bike, e-scooter, e-car?
2. Sine Wave or Square Wave?
3. The Voltage of controller, Peak Phase Current(10 seconds), Continuous Phase Current Limit?
Or which motor would you use (Wattage, RPM/Speed)?
Thank you for your understanding in advance.
About US
SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.
Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.
SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.
Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.
SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
