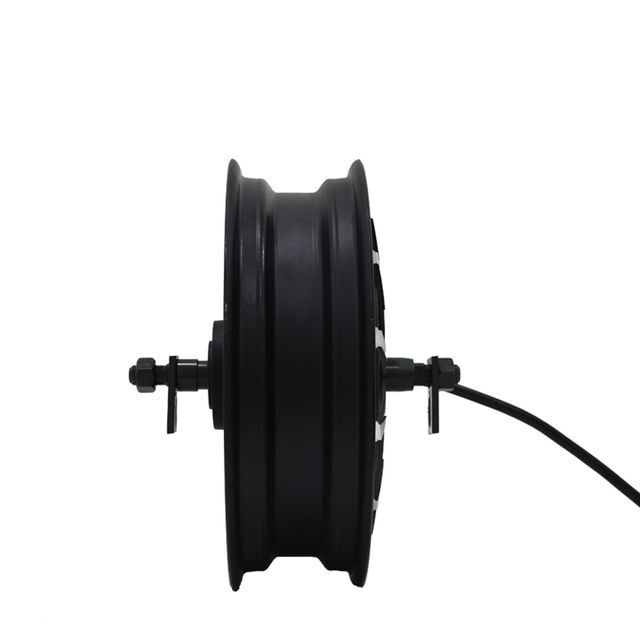

13 Inch 5000W 260 V3 Electric BLDC Hub Electric Scooter Motor

The 13-inch E-Scooter hub motor can be used for electric scooters and electric motorcycles.

Wheels are available in four widths, 13X3.5 inches (800w-6000w), 13X4.25 inches (800w-6000w).

We offer wide tires, the default is 13X3.5 inches.

feature

1). Simplified to make an electric scooter. No gearbox, drive shaft, clutch required. save space.

2). It can be mounted on the rear to save more space for the battery.

3). Support regenerative braking

4). High efficiency: 84~92%

QS Motor Specifications

• Motor type: BLDC outer rotor hub motor with hall sensor
• Brand: QS Motor, QSMOTOR
• Motor Design: Dual Axle with 13" Moped Rim (Integrated)
• Rim size: 13x3.5 inches (default), matching tires: 1230/70-13 etc.

• Magnet height: 50mm, 16 pole pairs
• Stator: Aluminum core
• Rated power: 5000W
• Speed ​​(customizable): Default 30KPH-100KPH, 72V 100KPH.
• Operating voltage range: 48V-96V, default 72V.

• The maximum torque is about 246N.m
• Thermal probe: KTY83-122 (default, optional)
• The maximum efficiency is about 84%
• Brake type: Disc brake (default), PCD3*80mm-M8, CB 58mm
• Drop: 200mm

• Double hall with waterproof connector
• 16mm² phase wire
• Waterproof grade: IP54
• Color: black (default), yellow or white/luminous

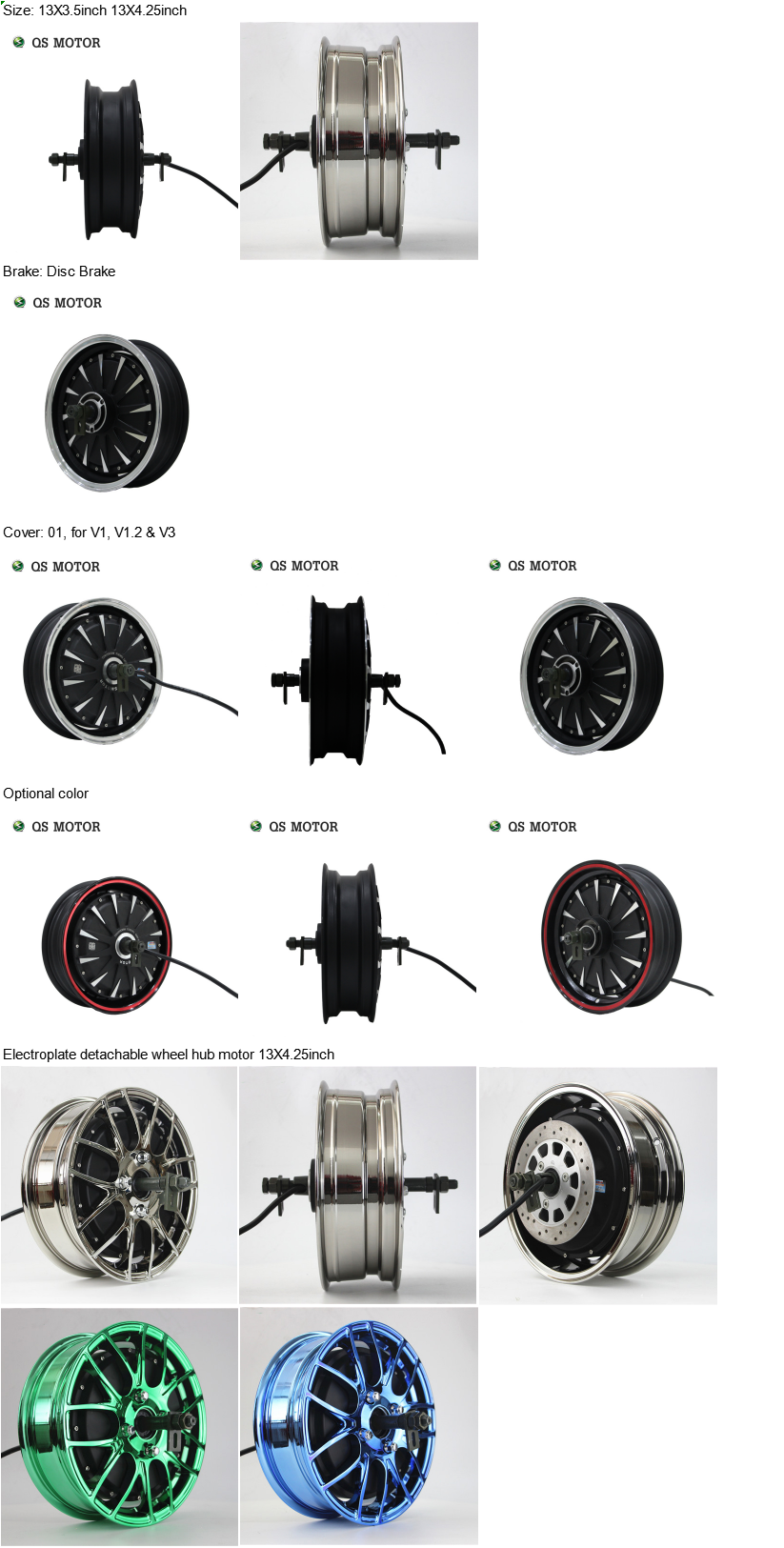

picture display

painting

13*3.5 inch 260 disc brake

to do

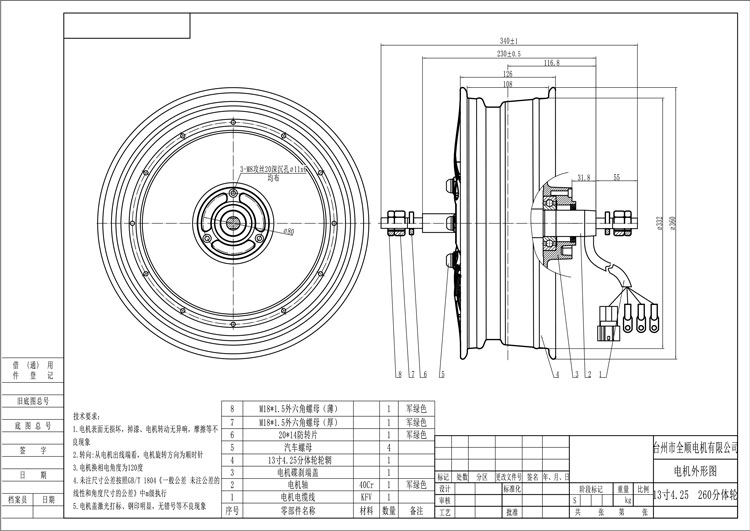

13*4.25 inch 260 disc brake

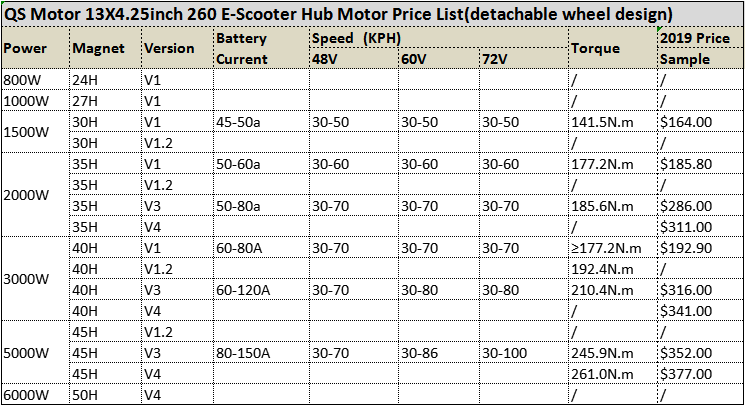

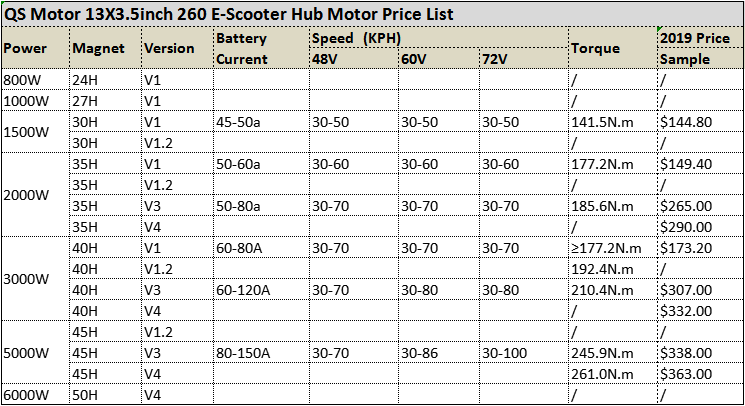

QS Motor 13inch 800W-6000W 260 E-scooter/Motorcycle List

How can I recommend the right motor for you?

First, customizing the right electric hub motor for your vehicle, can you advise on the following points?

1. Electric bike, electric scooter, electric tricycle or electric car?

2. Vehicle weight with battery, load weight (weight with load only)?

3. Tire model/diameter?

4. Motor rated voltage and power, nominal speed/max speed, climb angle or torque @ what speed?

5. What is the nominal voltage, peak voltage, capacity and cruising range of the battery?

6. What is the chainstay/chainstay width of your frame?

In your details, we can carry out the corresponding assessments and calculations for your project
