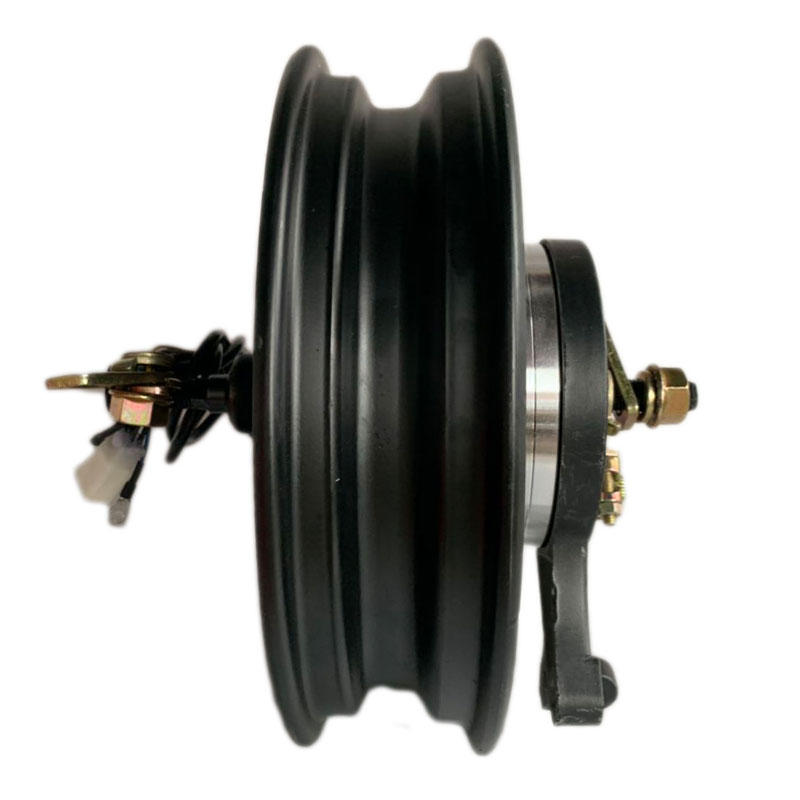

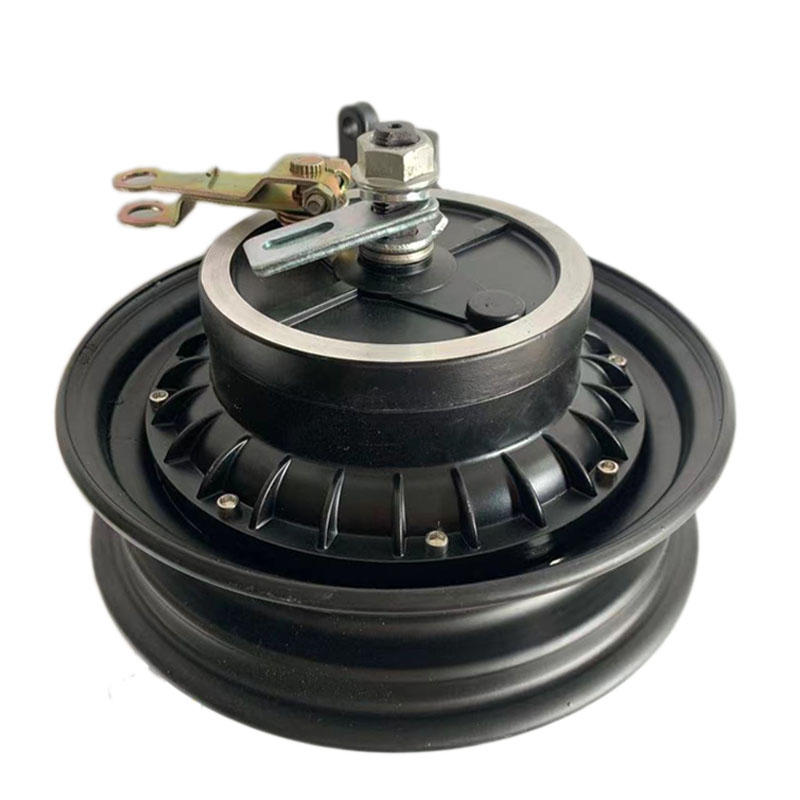

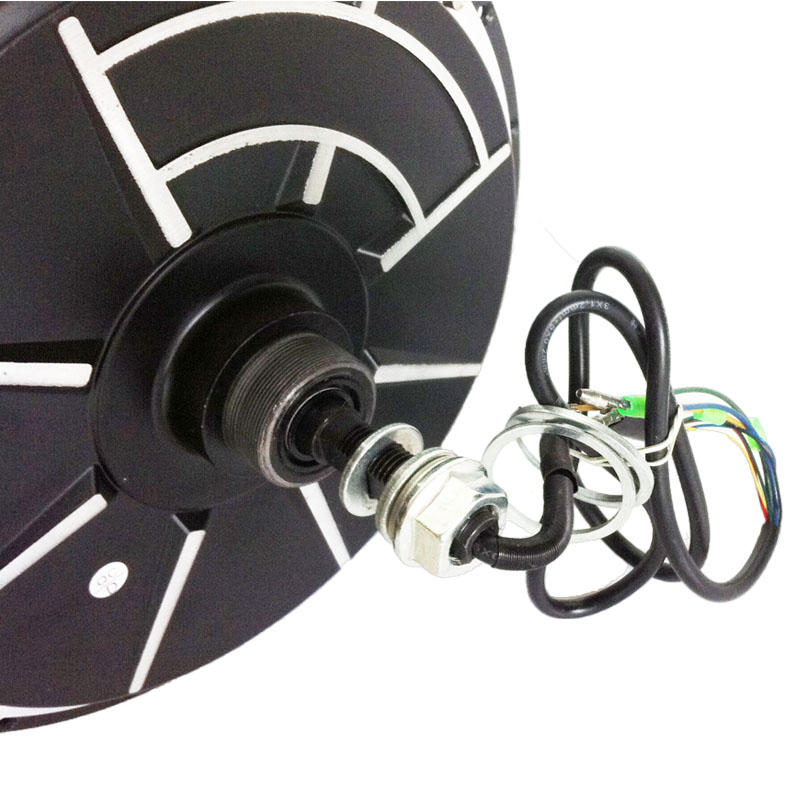

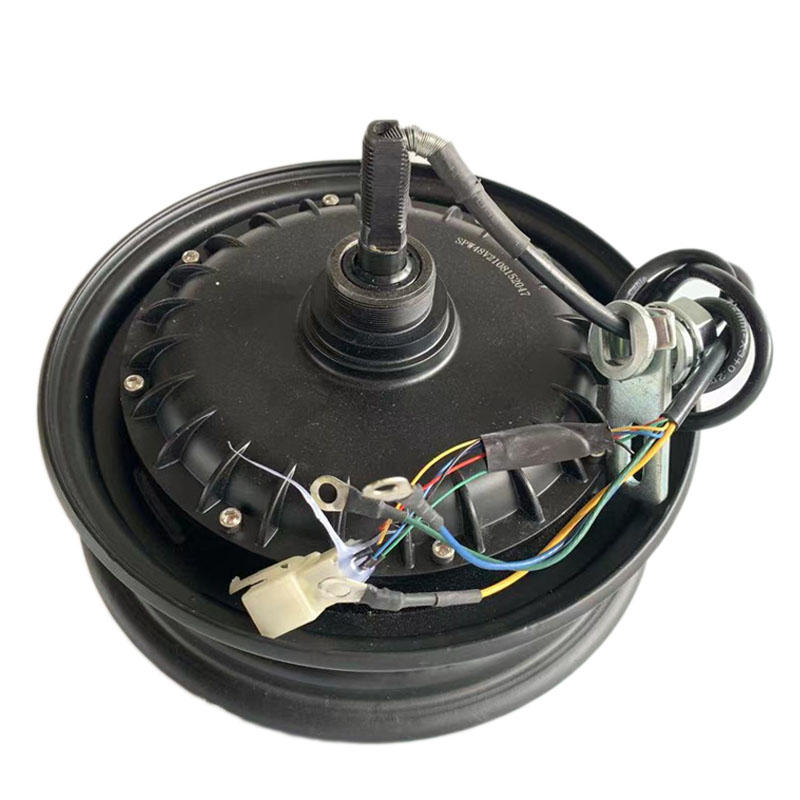

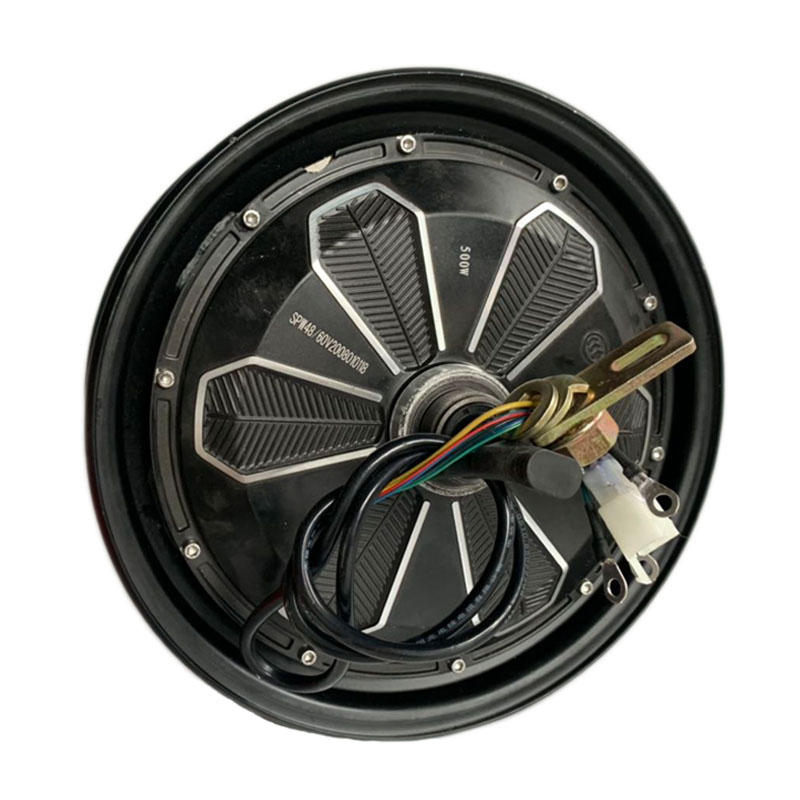

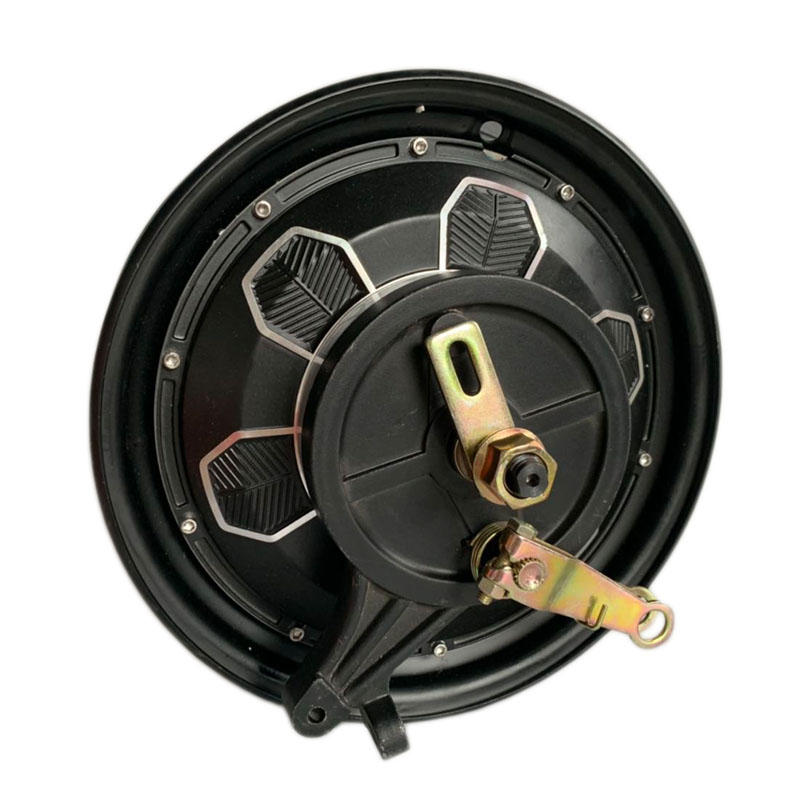

DC Brushless Electric Vehicle Motor 14 Inch 48V60V Brake Motor Ancient Scooter Motor
- 44.19 10 - 99 pieces
- 36.43 100 - 499 pieces
- 33.33 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | SPW14 | Certification: | CCC,CE |
| open a file: | 170mm | Torque: | 40-50Nm |
| Supply capacity: | 18000 pieces per week | Packaging Details: | Foam and carton |
| Hall induction stage: | 120° | No-load speed: | 30-50km/h |
| brand: | Sinusoidal power | Output Power: | 350W-800W |
| Number of motor phases: | three phase | payment terms: | wire transfer |
| Wheel diameter: | 272mm | port: | Zhejiang |
| Rim width: | 50mm | Warranty: | one year |
| place of origin; place of origin: | Jiangsu, China | Magnet Height: | 20-27mm |
| Brake system: | Disc brake / ancient brake / upper brake |
Product Specifications
Motor type | Brushless DC Motor (BLDC Motor) | |||||
axis configuration | 14mm | |||||
rim | 14X2.5 | |||||
Rated speed | 30-50km/h | |||||
Voltage | 48V-60V-72V | |||||
Magnet height | 20-27mm | |||||
Rotating speed | 400-550 | |||||
Brake system | Ancient brake/disc brake/upper brake | |||||
Hall sensor | 3 | |||||
Hall sensor phase | 120° | |||||
Number of motor phases | 3 | |||||
efficiency | ≥88% | |||||
Rated output power | 350w | |||||
Number of pole pairs | 26 | |||||
Phase conductor cross section | 1.5 square | |||||
waterproof level | IP67 | |||||
color | Black | |||||
diameter | 270mm | |||||
Rim width | 50mm | |||||
open a file | 170mm | |||||
custom order | Can be customized according to customer requirements | |||||
