HOT Sale In Progress Special Mining Tunnel Mucking Machine/muck loader bucket loader
- 9900.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| The inside track width (mm): | 1000; | Port: | Shanghai Qingdao Ningbo; |
| Motor(KW): | 18.5/22; | excavating depth(mm): | >=450; |
| Coverage(mm): | >=1600; | Condition: | New; |
| Applicable Industries: | Construction works ,mining and turnnel; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| excavator widthmm): | >=4200; | Payment Terms: | L/C,T/T,Western Union,alibaba trading assurance; |
| Product: | Mining Tunnel Mucking Machine; | excavating height (mm): | 1800-2700; |
| Max roation angle: | 40; | Loading capacity (m3/h): | 60; |
| Brand Name: | Chinacoal; | Supply Ability: | 1000 Piece/Pieces per Month tunnel mucking loader; |
| Model: | STB-60L; | Place of Origin: | Shandong China; |
| Packaging Detail: | HOT Sale In Progress Special Mining Tunnel Mucking Machine/muck loader bucket loader/small tunnel wheel loaderl: Export packing,; |
Product Description
Introduction of P15B Special Mining Tunnel Mucking Machine/muck loader bucket loader/small tunnel wheel loader
Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction. It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, you can also digging on both sides of the roadway ditch.
1) Load sensing hydraulic priority to, stable and reliable, energy conservation and significant.
2) Durable, each gear ratio reasonable matching, reduce the power consumption.
3) Reduce the power consumption.
4) Simple structure and reliable performance.
5) Semi-enclosed assembling,easy to maintain.
Parameter
Main Parameter of P15B Special Mining Tunnel Mucking Machine/muck loader bucket loader/small tunnel wheel loader
| Model | STB-60L | STB-80 |
| excavator widthmm) | >=4200 | >=4800 |
| Coverage(mm) | >=1600 | >=1850 |
| excavating height (mm) | 1800-2700 | >=2800 |
| excavating depth(mm) | >=450 | >=500 |
| Uninstall height(mm) | 1350-1750 | 1350 |
| Uninstal distance(mm) | 1100 | 1700 |
| Max roation angle | 50 | 50 |
| Weight (t) | 6.2 | 8.2 |
| Dimension (L*W*H mm) | 5800*1650*1700 | 6100*1700*1800 |
| Loading capacity (m3/h) | 60 | 80 |
| Min turning radius(mm) | 4500 | 5500 |
| Ground clearance (mm) | 230 | |
| Woring pressure (Mpa) | 16/25 | 25 |
| Traveling speed (km/h) | 4.5/2 | 2.1/3.8 |
| Motor(KW) | 18.5/22 | 30/37 |
| Max.material by size | 600*700*650 | |
| The inside track width (mm) | 1000 | 1000 |
| Transport form of scarper | Double chain double drive/Single chain single drive |
Detailed Images

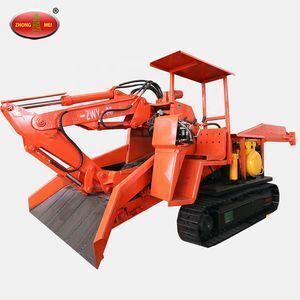

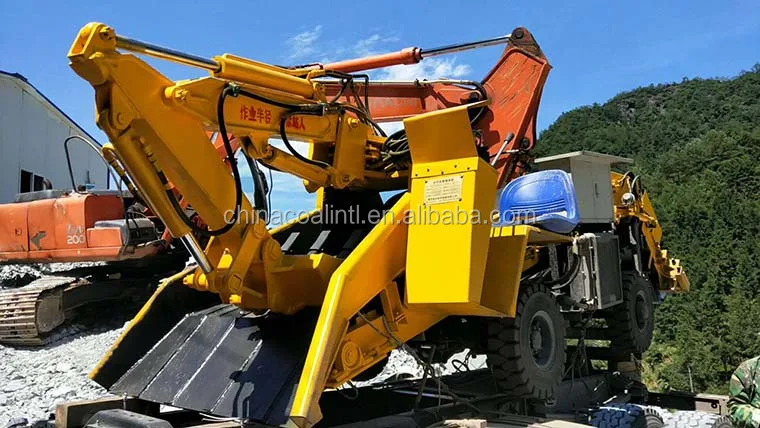

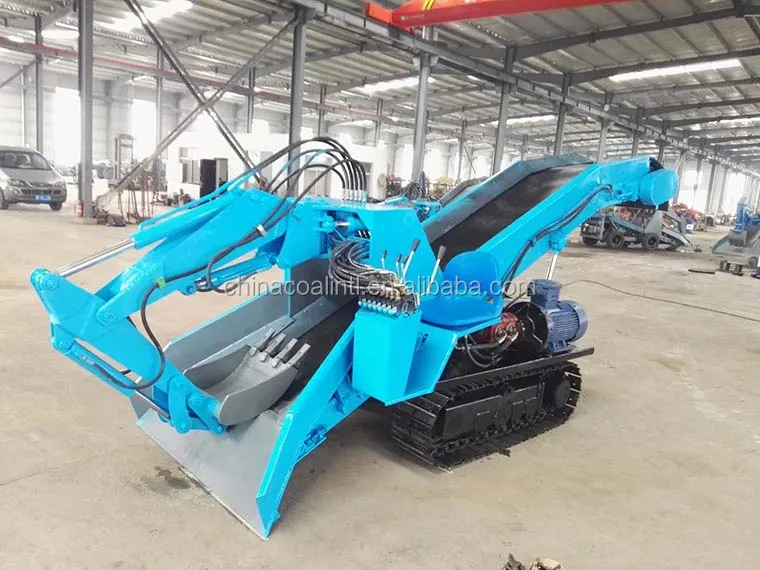

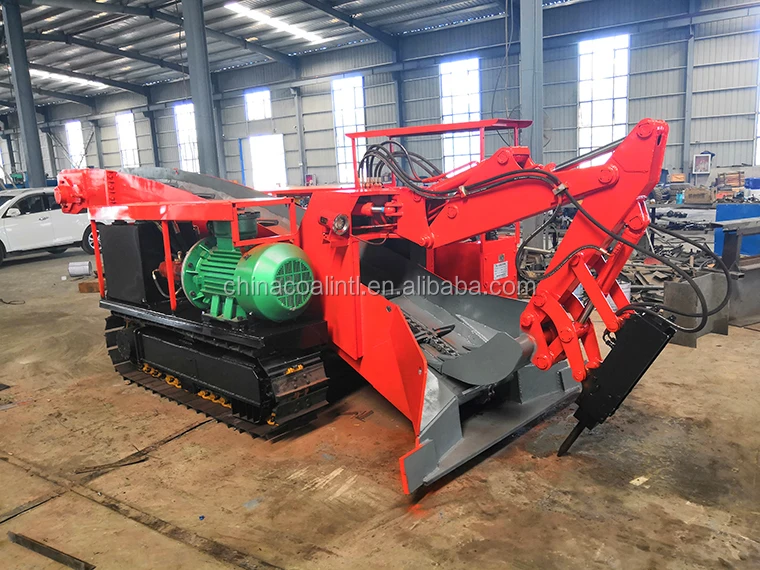

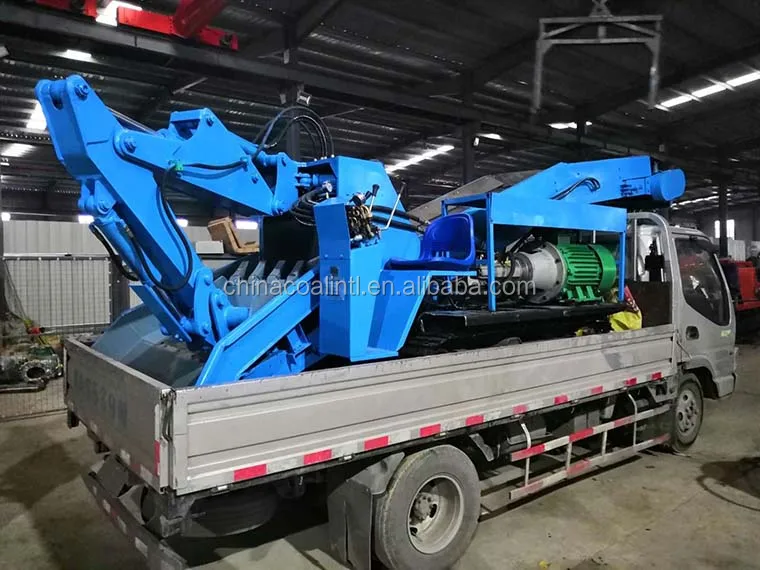

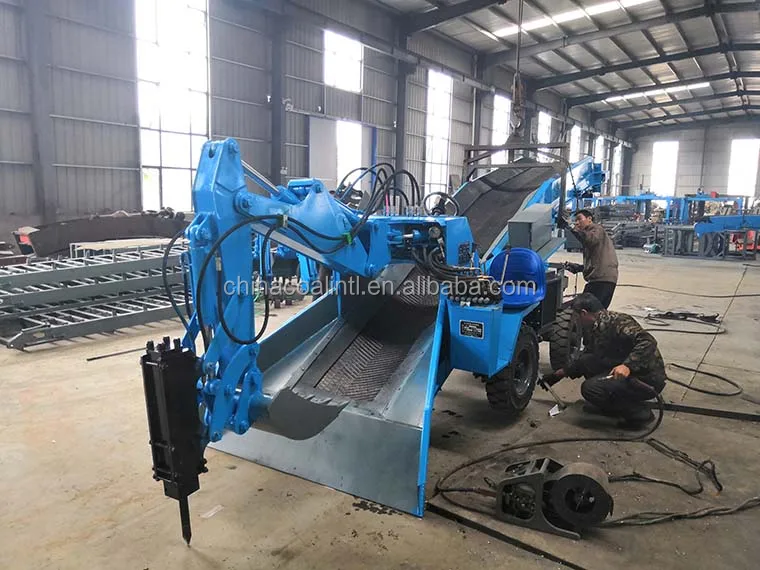

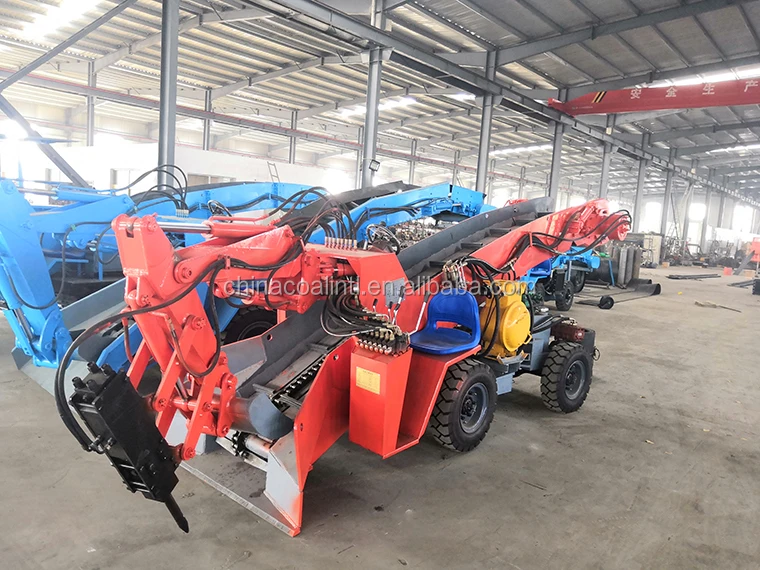

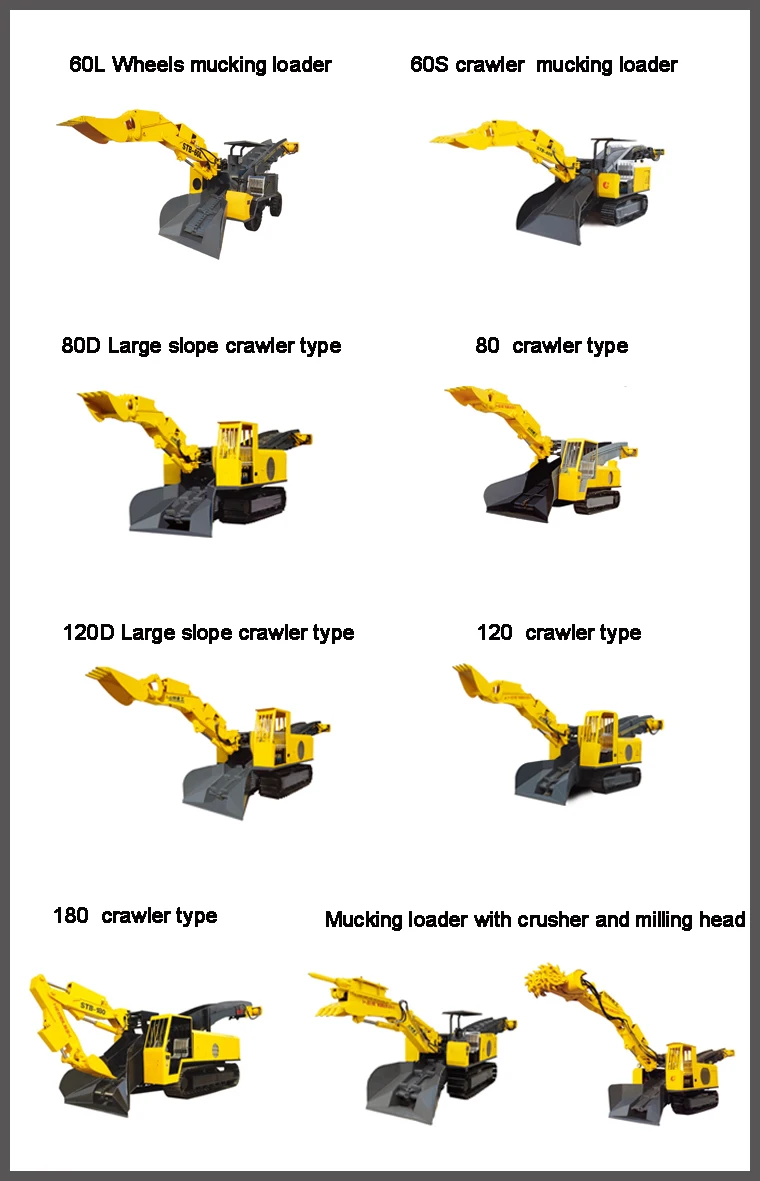

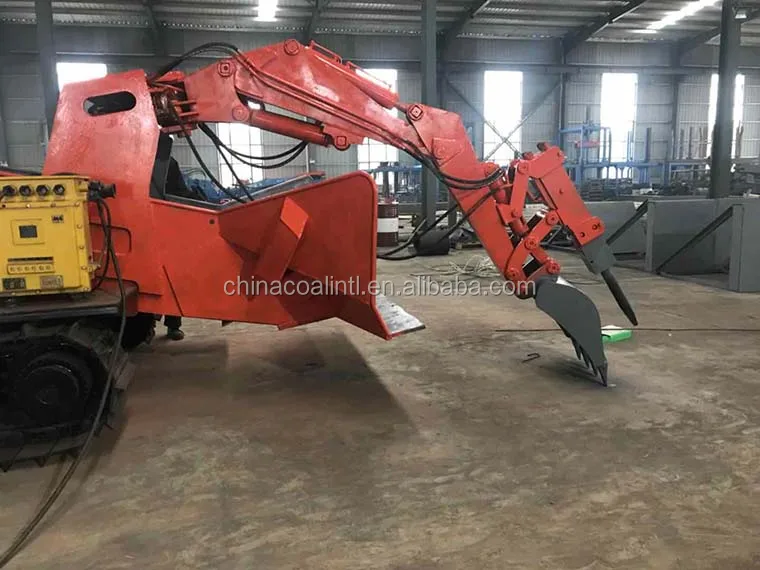

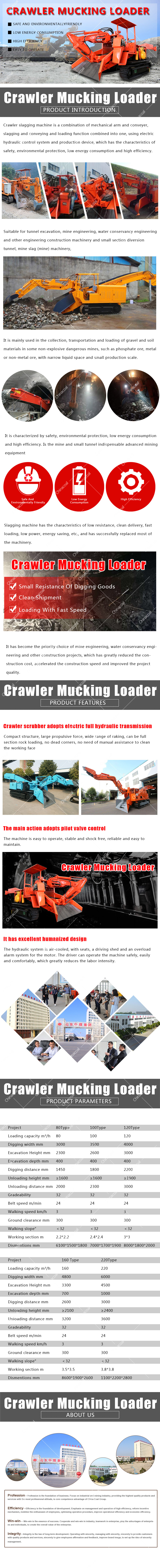

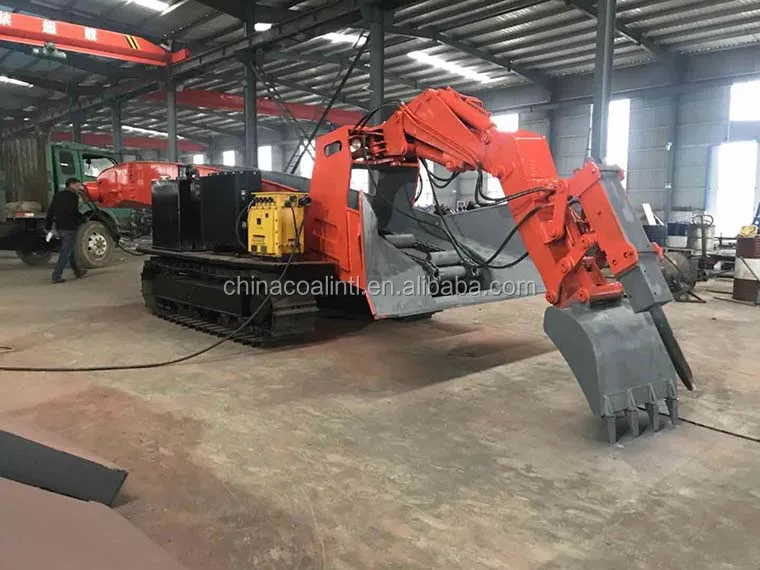

Figure Images of P15B Special Mining Tunnel Mucking Machine/muck loader bucket loader/small tunnel wheel loader
