Cost-effective light mining dump truck 3 tons Products from Shandong Beijun Heavy Industry Co., Ltd.

Product Details

Warranty:	1.5 years	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
brand:	northern army	Origin:	Shandong Province, China
Weight (kg):	8000	Drive mode:	4x2
Tire Model:	"700x16-ply tire, rear single tire side,"	Video outbound inspection:	if
Packaging Details:	wood packaging	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
cooling system:	Standard water cooling system	Steering type:	Hydraulic Power Steering System
Supply capacity:	100 sets per month	load capacity:	3 tons
Driving position:	left hand drive	Applicable industries:	Hotel, clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, print shop, construction, energy and mining, food and beverage store, other, advertising agency
cabin:	canopy	Marketing Type:	normal product
Core component warranty:	1 year	Type of unloading:	Hydraulic double top self-unloading
port:	Qingdao	Health status:	new
Bucket steel plate thickness:	Bottom 6mm side 4mm	Braking type:	air brake
Showroom location:	not any	Mechanical test report:	if

Product Description

Features:

Good passability: The cab, suspension, frame, cargo compartment, and lifting mechanism of the Beijun underground tunnel dump truck are all specially designed, with compact structure, small turning radius, and extremely flexible, suitable for flexible operation in a narrow space . Space inside a road ramp. High safety: According to the characteristics of damp air, insufficient light, and slippery road surface in the underground, the lamps and electrical components of the tunnel dump truck have been improved, and special anti-skid tires have been adopted to enhance the waterproof and moisture-proof performance, and have strong obstacle-crossing ability and safety. high sex. Strong power: large power torque, excellent gradeability and starting performance. Strong carrying capacity: The whole vehicle is scientifically configured and designed according to the design concept of mining vehicles, and its carrying capacity is 1.5 times that of ordinary road vehicles.

Product parameters

Model	UQ-3

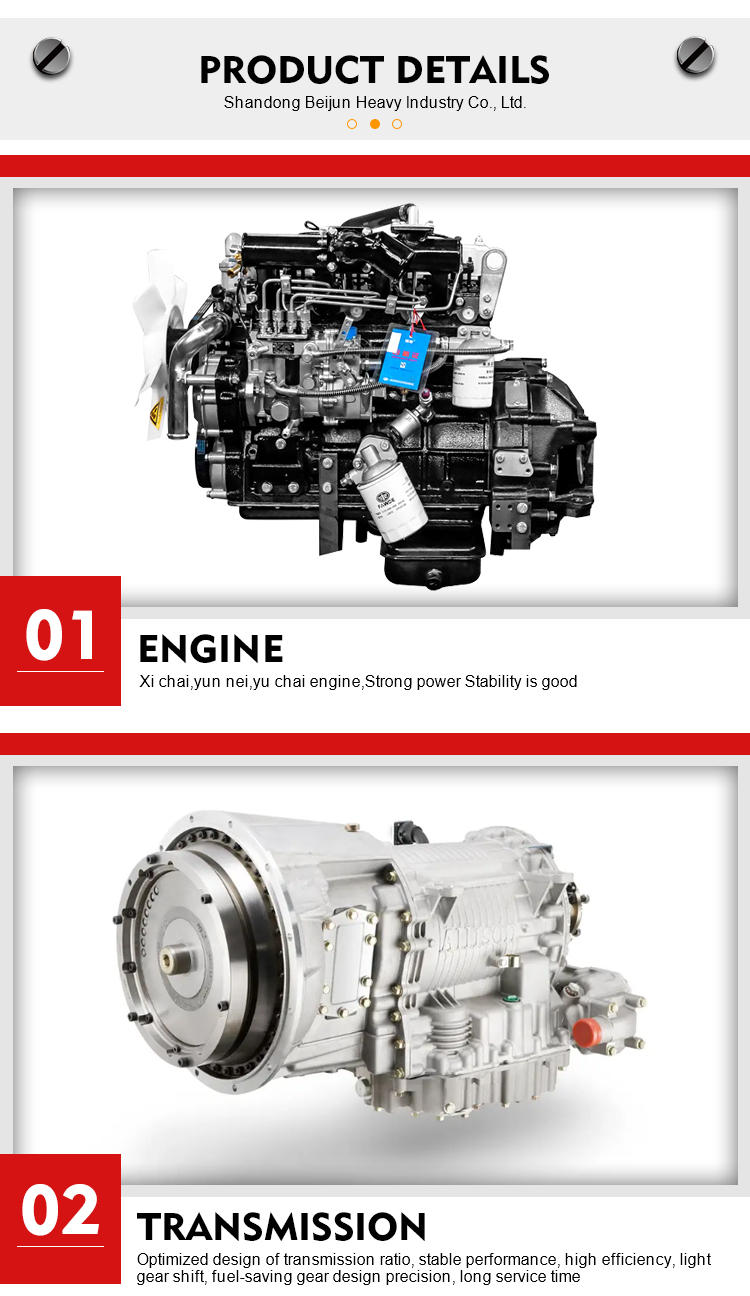

engine model	Changchai 490
engine power	63 hp
overall size
transmission model	Serenity 130
Transmission gear	4 forward gears, 1 rear gear, rear high speed controller
drive mode	4x2
Front axle model	Chitong Isuzu Axle
rear axle model	Chitong Isuzu Axle
tire model	700x16 thread tires, rear single tire side,
Number of lower spring plates	Front 7PCS, rear 8PCS, spare 6PCS
Bottom spring plate size	70mm long and 10mm wide
Bucket size: length x width x height	U-shaped barrel 2400mm1300mm450mm
bucket type
Bucket steel plate thickness	Bottom 6mm side 4mm
discharge type	Hydraulic double top self-unloading
steering type	Hydraulic Power Steering System
brake type	air brake
cabin	canopy
driving position	left hand drive
cooling system	Standard water cooling system
loading capacity	4 tons
