PZ-5 Dry Mix Gunite Diesel Engine Shotcrete Machine Concrete Shotcrete Machine

Product details
Supply Ability:300 Piece/Pieces per Month PZ-5 dry mix gunite diesel engine shotcrete machine concrete spr;Rotor diameter:438MM;
Air Consumption:9~10m3/min;Name:PZ-5 Concrete Spray Machines;
Rotor Volume:9L;Warranty:1 Year;
Certification:ISO 9001:2008;Power(W):5.5 KW;
Dimension(L*W*H):1040X550X940;Usage:Dome Building;
Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ;Max Aggregate Size:20mm;
UNIQUE SELLING POINT:High operating efficiency;Weight:260kg;
After-sales Service Provided:Overseas service center available;Rotor Speed:11r/min;
Place of Origin:Shandong China;Hose Inner Diameter:350 mm;
After-sales Service Provided:Free spare parts;Payment Terms:L/C,T/T,Western Union;
Drive mode:Air Motor Driven;Port:any port in China;
Max. Conveying Distance:20m;Type:Dry Mix;
Voltage:380v;Condition:New;
Product name:PZ - 7 Concrete Shotcrete Machine;Brand Name:china coal;
Packaging Detail:wooden cases for PZ-5 dry mix gunite diesel engine shotcrete machine concrete sprayer;Capacity:3~8m3/h (continuous Speed Change);

Product Introduction of PZ-5 Dry Mix Gunite Diesel Engine Shotcrete Machine Concrete Shotcrete Machine

Shotcrete machine Application

Shot Blasting Concrete are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc. It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc.

Main Parameter of PZ-5 Dry Mix Gunite Diesel Engine Shotcrete Machine Concrete Shotcrete Machine

Item No.

                              PZ-5

Output:

5m3/h

Max. convey dis:

Horizontal:200m Vertical: 20m

Water cement ratio:

≤0.4

Max. Aggregate. Size:

20mm

Hose inner size:

51mm

Operating air pressure:

0.4~0.6MPa

Air consumption:

7-8 m3/min

Motor power:

Y132-6-5.5kw

 Rotor  Speed

11r/min

 Rotor Volume

9L

Rotor  diameter



438mm

Voltages:

380V or as your request

Dimension:

1280x700x1280

Net Weight:

600KGS

Wheel:

Nylon wheel ;Rubber wheel ;skid wheel ;Rail whee

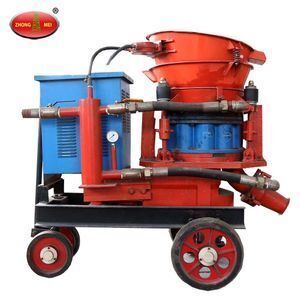

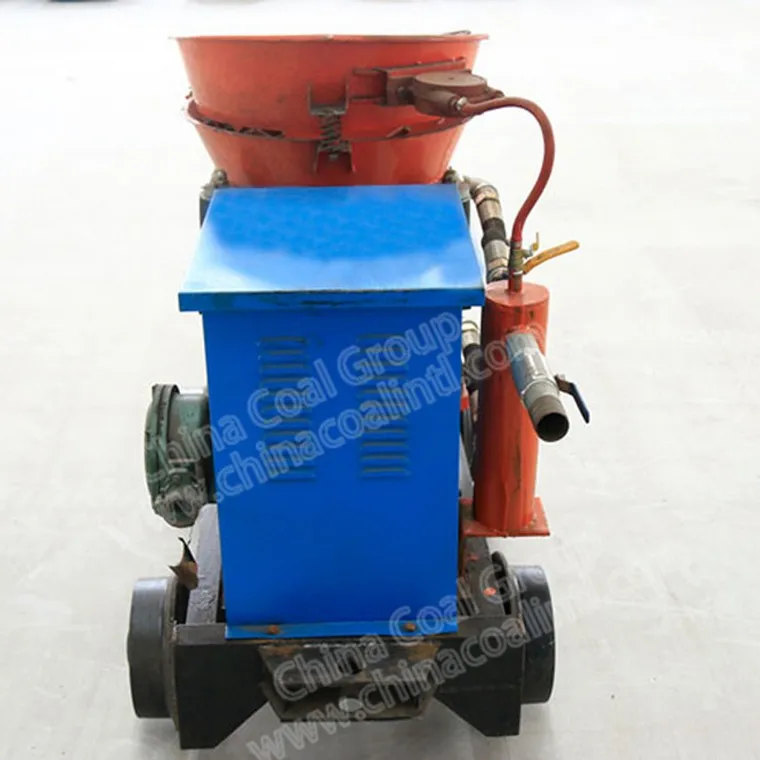

Figure Photos of PZ-5 Dry Mix Gunite Diesel Engine Shotcrete Machine Concrete Shotcrete Machine
