Top Selling Concrete Railway Sleepers / Railway Concrete Sleeper Price

Supplier: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Region: Shandong, China
Contact: Mr Steven Zhang
Price: $15.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Material:	concrete;	Supply Ability:	1000 Piece/Pieces per Day Concrete Rail Tie Railway Sleeper;
Port:	Ninbo Shanghai Shenzhen Qingdao;	length:	2500mm;
size:	2202500160mm;	Name:	Concrete sleeper;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal;	Place of Origin:	Shandong China;
Packaging Detail:	Carton with Pallent for Top Selling Concrete Railway Sleepers / Railway Concrete Sleeper Price;	Type:	Sleepers;
Brand Name:	China coal;	Usage:	rail turnout/bridge;
Type:	Normal sleepers;	Dimensions (L x W x H) (mm):	220x2500x160mm;
Width:	220mm;	Material:	concrete;
thickness:	160mm;

Introduction of Top Selling Concrete Railway Sleepers / Railway Concrete Sleeper Price

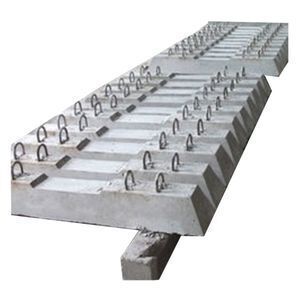

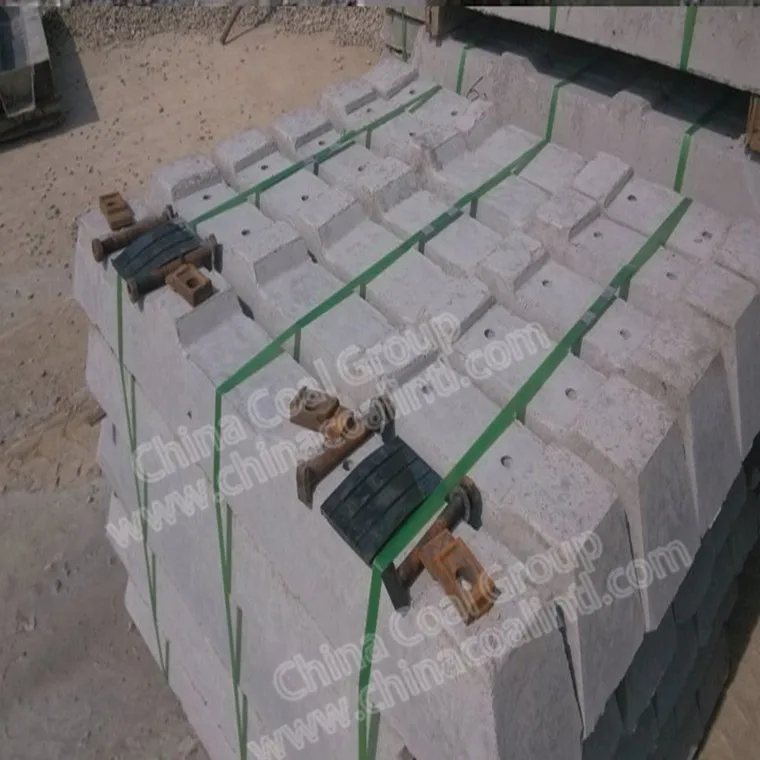

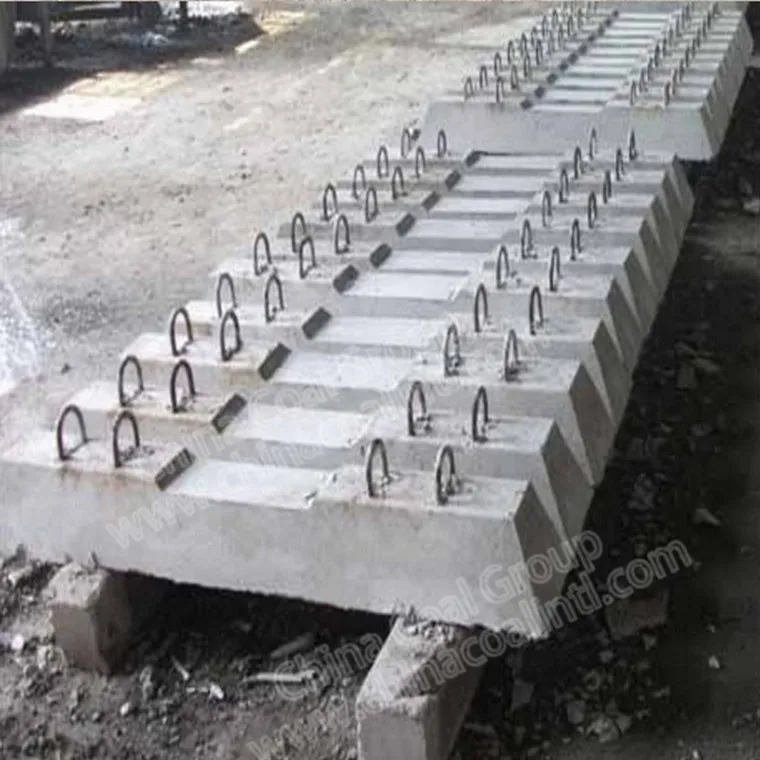

Concrete sleeper is also called concrete pillow, pillow, also known as concrete. Made of concrete, reinforcement, combination and become, appearance is hard, long service life. Concrete sleepers in accordance with the installation can be divided into U-shaped ring and pressure plate bolts. U-shaped concrete sleepers ring easy to install, simply put the rail between two U-rings, rubber pad underneath it, and then using a sledgehammer spending a U-shaped loop to suppress rail. Concrete sleepers bolt plate is to use T-bolt holes from piercing reserved sleeper following fixed platen press and hold the rail above, a sleeper requires four sets of bolts, 4 plate, two rubber pads, this sleeper easy maintenance , can be reused. zmwm06

Parameter of Top Selling Concrete Railway Sleepers / Railway Concrete Sleeper Price

1.Normal sleepers	Width 220mm; thickness 160mm; length 2500mm;
2.Turnout sleepers (Normal)	Width 220mm; thickness 160mm; length 2600 ~ 4850mm, with 150mm carry a total of 16 lengths;
3.Turnout sleepers (Standard)	Width 240mm; thickness 160mm; length 2600 ~ 4800mm, with 200mm carry a total of 12 lengths;
4.Bridge sleepers	Width 220mm; thickness 240,260,280,300 mm; length 3000mm.
