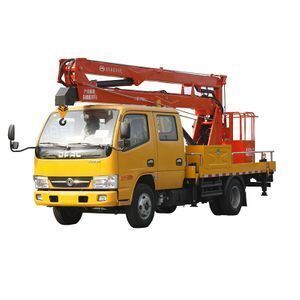

16 Meters Aerial Working Platform Truck

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Truck type:	Lift Bucket Truck;
Name:	Aerial Lift Bucket Trucks;	Description:	Vehicle Platform Truck;
Place of Origin:	Hubei China (Mainland);	Port:	Shanghai or other port;
Product name:	Aerial Manlift Work Platform Truck;	Max working height:	16m;
Chassis brand:	DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman;	Packaging Detail:	Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request.;
Driving type:	Left Hand Drive;	Emission Standard:	Euro 4;
Brand Name:	Optional;	Fuel Type:	Diesel;
Weight:	5ton;	Supply Ability:	1000 Unit/Units per Year;
Dimensions (L x W x H) (mm):	1010025003800;	Condition:	New;
Transmission Type:	Manual;	Color:	Yellow;
Brand:	DONGFENG FOTON JMC JAC;

Product Description

Item	Descriptions	Specifications and types
General	Chassis Brand	Dongfeng
	Approx. Dimension	1010025003800 mm
	GVW./Kerb Wt.	11050 /10855kg
Cab	Cab Capacity	2+3 persons' seat
Cab	Air Conditioner	Air Conditioner is optional
Chassis	Drive Type	4X2,LHD or RHD
	Fuel Type	Diesel
	Engine Make & Model	Dongfeng engine
	Power	170-190HP
	Displacement	6700 ml
	Emission Standard	EURO II or EURO III or Euro IV
	Wheelbase/No.of axle	4700,5000mm / 2
	Tyre Specfication	9.00-20,9.00R20,255/70R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Automative metallic paint
Superstructure	Max working height	20M 22M 24M
		200kg capacity
	Beam	Hydraulic control
	Slewing	360 continuous rotation
Equipments	Four hydraulic outriggers are equipped, stable and reliable
	Dual control system both in the working cage and on the deck.
	Safety device: relief valve, balance valve, double way hydraulic lock ,motor emergency system
