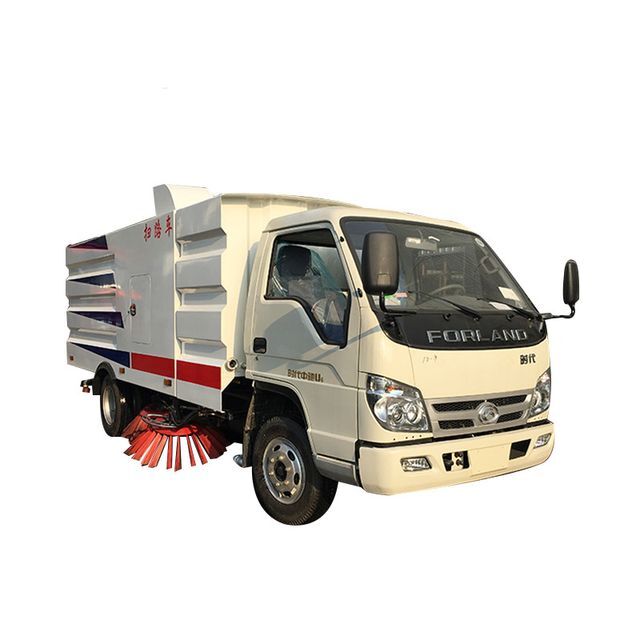

4 Brush Diesel Road Sweeper Cleaner Truck

Product details
Local service location:not anyengine:cummins diesel engine
Dimensions (L*W*H):5650*1980*2450weight:5790
port:Shanghai or other portsPackaging Details:Naked/Ro-Ro/Bulk Shipping/Container Packing/SKD, etc., can be provided according to your requirements.
product name:road sweeperCore components:PLC, engine
Mechanical test report:iftype:Mounted road sweeper
Chassis brand:Dongfeng Foton Howo FAWCertification:ISO CCC
Key words:street washing machineHealth status:new
Packaging Preview:After-sales service provided:Engineers can go overseas to service machinery, video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support
Marketing Type:New Products 2020Other names:road sweeper cleaning vehicle
color:whiteapplication:street cleaning
Showroom location:not anySupply capacity:5000 units per year
Core Components Warranty:1 yearplace of origin; place of origin:Hubei, China
Applicable industries:Manufacturing, Farms, Energy and MiningVideo external inspection:if
Warranty:1 yearName:water tank sweeper
payment terms:L/C,Western Union,T/T,MoneyGramAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services

4 Brush Diesel Road Sweeper Cleaner Truck

Product Description



thing   scope unit
working performance Maximum scan width 3 Meter
Scan speed 3-20 km/h
Maximum sweep capacity 60000 sqm/hour
Maximum inhalation particle size ≥110 mm
discharge angle ≥45
Tank volume 1500 large
trash can volume 4000 large
drivability Maximum speed 90 km/h
Maximum gradeability 30 %
Braking distance ≤10 Meter
Minimum turning diameter ≤13.6 Meter
fuel performance Fuel consumption (driving) ≤12 L/100km
Fuel consumption (8km/h sweeping work) 6.5 l/h
2.7 liters/10000 square meters
Quality parameters Curb weight 4950 Kilogram
Rated Capacity 2270 Kilogram
Volkswagen 7350 Kilogram
Size parameters Dimensions 6950*1990*2500 mm
wheelbase 3800 mm
front track 1504 mm
back track 1530 mm
front suspension 1070 mm
rear suspension 1580 mm
approach angle twenty four
departure angle 13
Minimum ground clearance 190 mm
