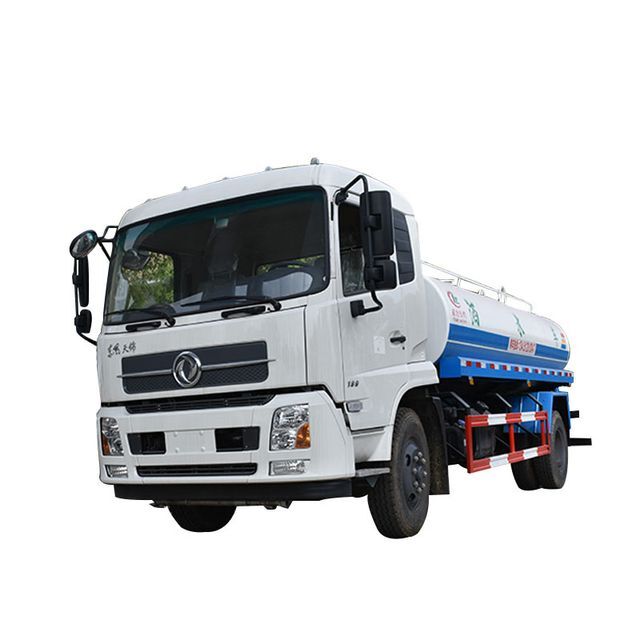

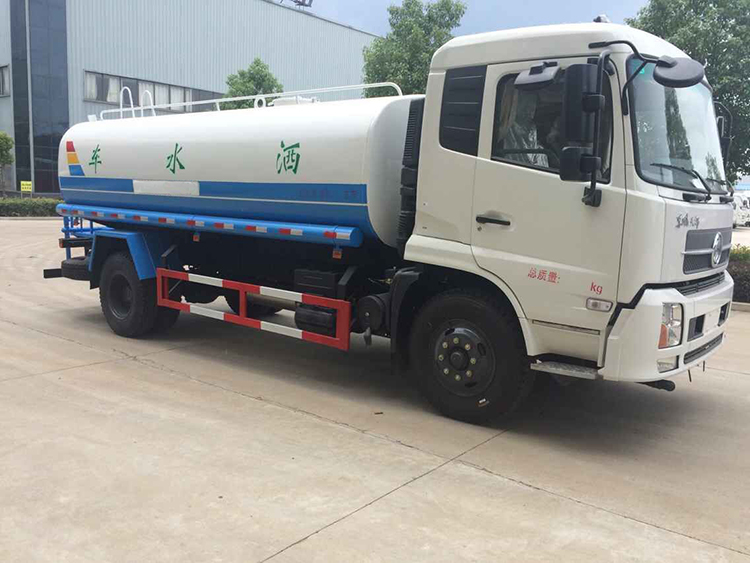

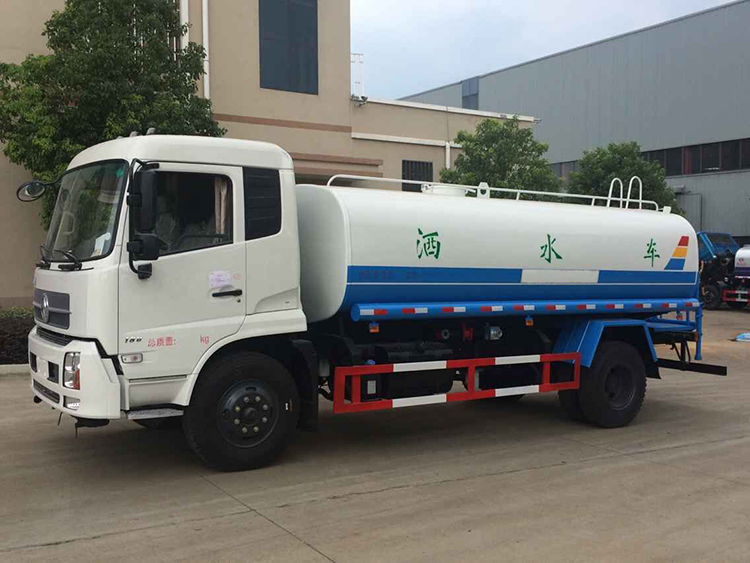

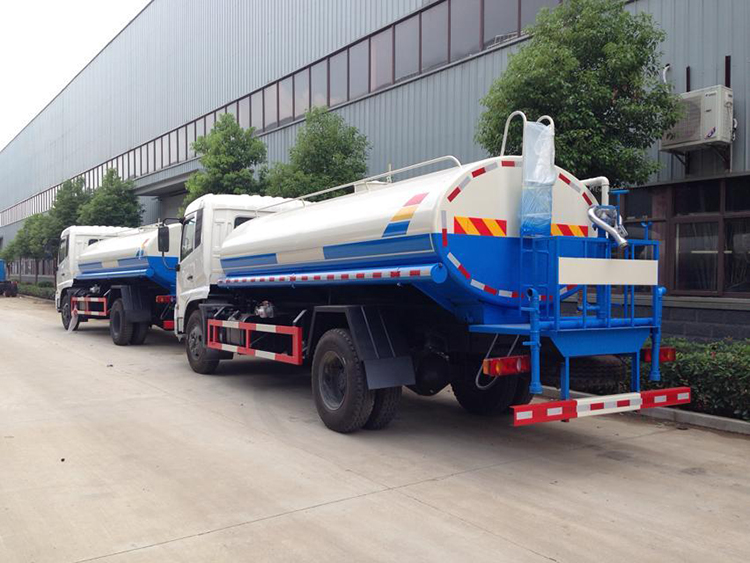

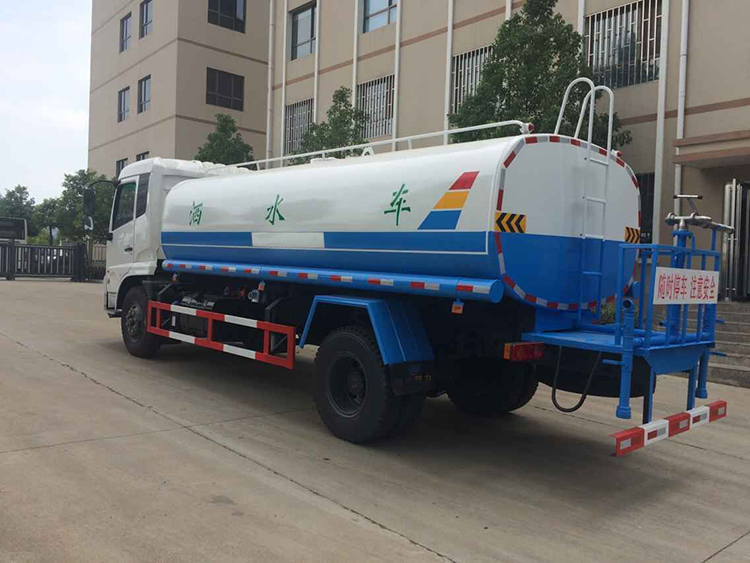

Dongfeng 4000 gallon sprinkler

Click here to contact

Product details

Packaging Details:	Standard export packaging	After-sales service provided:	Video technical support, online support
volume:	9000 liters	Emission Standards:	Euro 3
product name:	water bowser	Gross vehicle weight:	11450
Supply capacity:	300 sets per month	Chassis brand:	emotional intelligence
payment terms:	letter of credit, wire transfer	Health status:	new
Sprinkling area (m):	12 - 16m	port:	FOB Shanghai or Wuhan
Transmission type:	manual	brand:	XDR
Dimensions (L x W x H) (mm):	7050/2100/2700	Emission Standards:	Euro 3
color:	blue and white	Warranty:	1 year
place of origin; place of origin:	Hubei, China	Drive Wheel:	4X2
Type of driving:	4*2	gasoline:	diesel engine
Tank Material:	Carbon steel	Card:	XDR
horsepower:	120 hp	taxi:	2

Product Description

XDR New Water Bowser
vehicle parameters
general	car model	YZR5110GSSA
	Vehicle Brands	XDR
	Chassis brand	Dongfeng
	Dimensions (mm)	7050×2100×2700
	GVW/curb weight (kg)	11450/4695
Chassis parameters
taxi	cab seat	2
	Air conditioner	optional
engine	Type of gasoline	diesel engine
	engine model	YC4E120-33
	engine brand	Yuchai
	Emission Standards	Euro 3
chassis	drive type	4*2
	Wheelbase(mm)	3800
	Tire specifications	7.50R16
	Tire size (pcs)	6
	top speed (km/h)	103
	leaf spring	8/10+7
	axle load	4360/7090kg
	Front/rear tread	1745/1620 kg
	front/rear overhang	1130/2120mm
superstructure
tank	Fuel tank capacity	9000 liters
	Tank material	Carbon steel
equipment	Equipped with front (rear, side) sprinklers (sprinkler width>14m)
	Equipped with rear working platform with water cannon (range > 28m)
	Equipped with XDR pump (suction lift>6m)
	Equipped with fire dampers, water valves and filters
