Elecnova energy management LCD Display RS485 harmonics 3 phase Din rail power analyzer meter

Supplier: Jiangsu Sfere Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sally W
Price: $129.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Display:	LCD;	Display Type:	LCD Display;
Port of loading:	Shanghai;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	300 Piece/Pieces per Week power analyzer;	Delivery time:	15days after confirmation;
Accuracy Class:	0.5S;	Measuring Energy Range:	0~9999999999;
Power quality:	Hamonics up to 31st;	Phase:	Three Phase;
Brand Name:	Elecnova;	Installation:	Din-rail mounted;
Dimensions:	90mm72mm63.5mm;	Port:	Shanghai, or any port of China;
Frequency:	45HZ~65HZ;	Product Name:	power analyzer;
Operating Temperature:	-25℃~70℃;	Networks:	TN, TT, IT networks;
Model Number:	PD194Z-E20;	Auxiliary power supply:	AC 80~270V 50/60Hz, DC 100~350V;
Communication interface:	RS485;	Packaging Detail:	Each unit with air bag protection, each bag in inner box, 24units in carton box as for power analyzer;
Place of Origin:	Jiangsu China (Mainland);

Product Description

Elecnova 3 phase power analyse meter PD194Z-E20 brings multi-function and easy use experience to our customers. The user could achieve energy metering, measuring and power quality analyse in this single device.

Product Name	Elecnova energy management LCD Display RS485 harmonics 3 phase Din rail power analyzer meter
Installation	Din-rail mounted
Accuracy	V/A: 0.2% P/Q/S/PF: 0.5% F: ±0.01Hz ±kwh: 0.5S ±Kvarh:2
Power Quality	THD Harmonics up to 31st Sequence component Unbalance Crest factor and K factor
Storage Temperature	-30℃~70℃
Relative Humidity	Less than 93% RH
Optional Module	Digital inputs/Relay outputs
Consumption	Less than 5VA

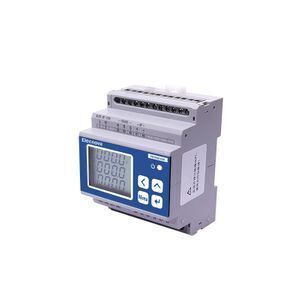

Products Show

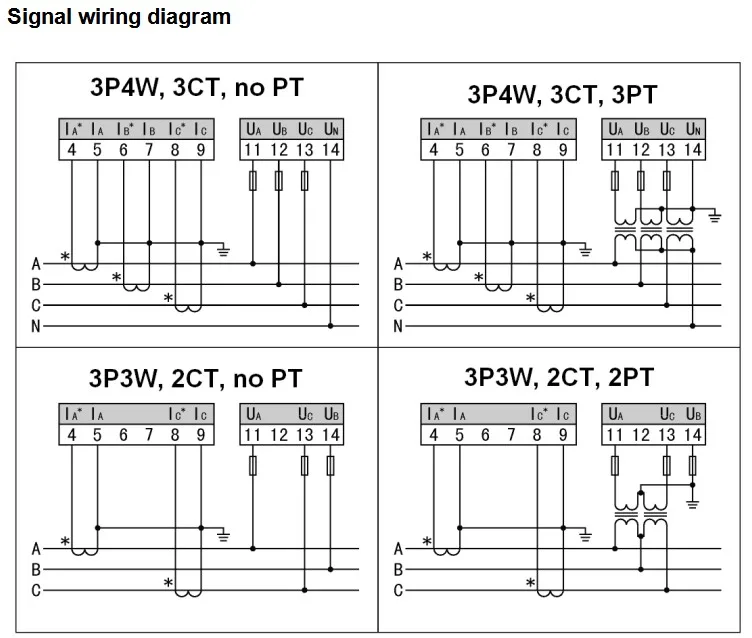

Wiring

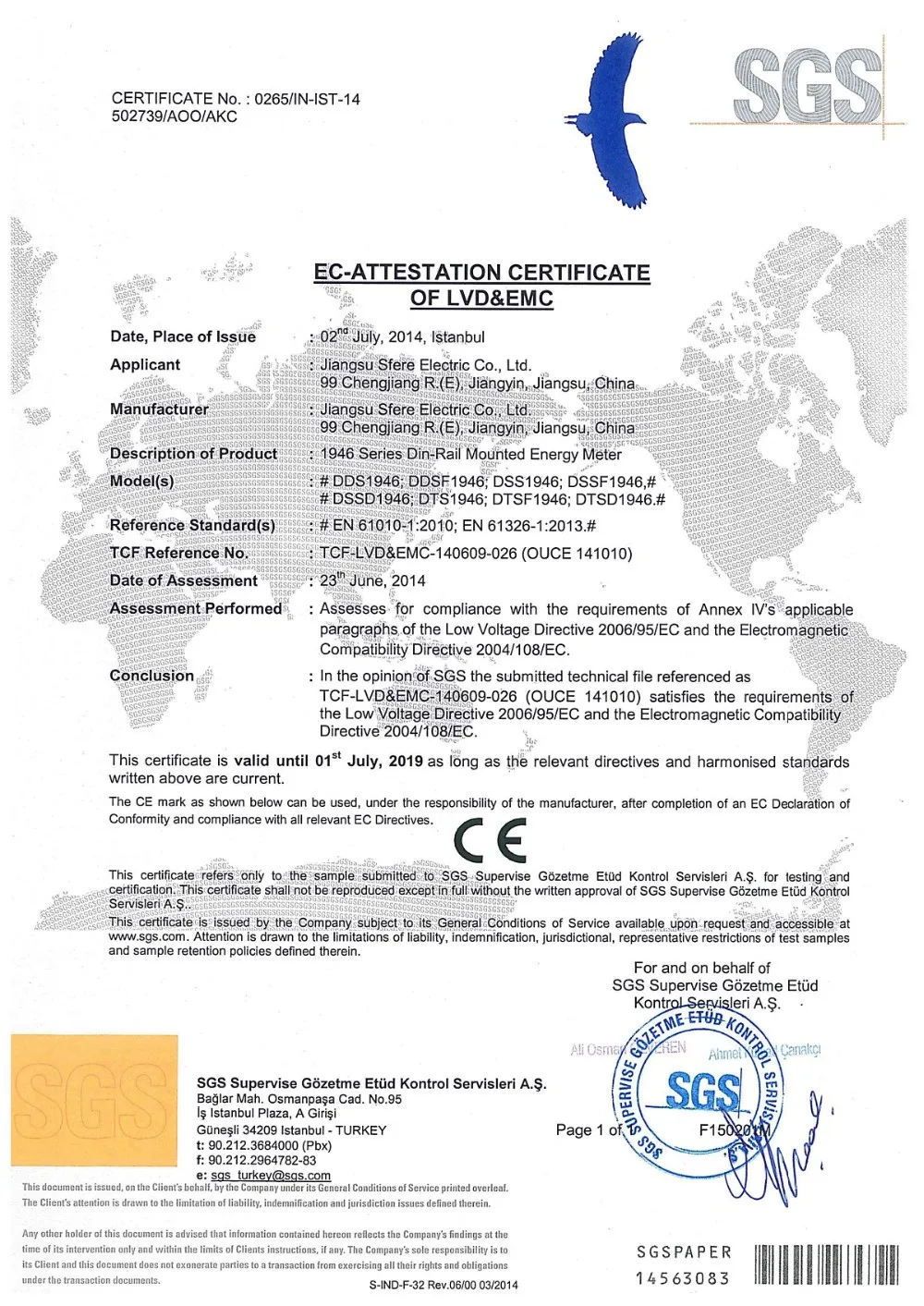

Certifications

Air bag protection

Inner box for each

Master carton box

Delivery and Shipment

Delivery time: 5-7days after sales confirmation

Transportation: By Air or by Sea

Port of laoding: Shanghai port, or Any port of China

Product guaranty: 2 years

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin Jiangsu Province

Q: How long is your delivery time?

A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? is it free or extra ?

A: We provide free samples but freight collect.

Q: What is your terms of payment ?

A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
