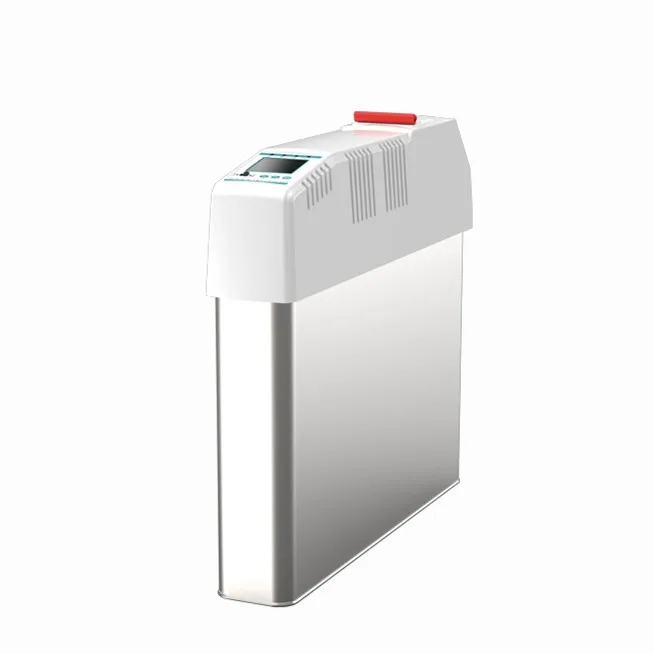

Elecnova SFR-L series power quality improvement 0.4KV compensation module power capacitor

Supplier: Jiangsu Sfere Electric Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sally W
Price: $111.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	General Purpose;	Package Type:	Surface Mount;
Voltage Accuracy:	≤0.5 %;	Certificate:	CE, UL, MID;
Switching Mode:	Zero cross switching;	Capacitance:	5~50Kvar;
Product Name:	power capacitor;	Warranty:	2 Years;
Place of Origin:	Jiangsu China;	Standard:	GB/T 15576-2008;
Payment Terms:	L/C,T/T,Western Union;	Model Number:	SFR-L;
Current Accuracy:	≤0.5 %;	Type:	Super Capacitor;
Supply Ability:	20000 Piece/Pieces per Month power capacitor;	Packaging Detail:	1 pc/ctn, standard export packing as power capacitor;
Port:	Shanghai;	Brand Name:	Elecnova;
Operating Temperature:	-15~45℃;	Storage Temperature:	25℃~55℃;
Service:	OEM ODM;	Altitude:	<2000m;

Product Description

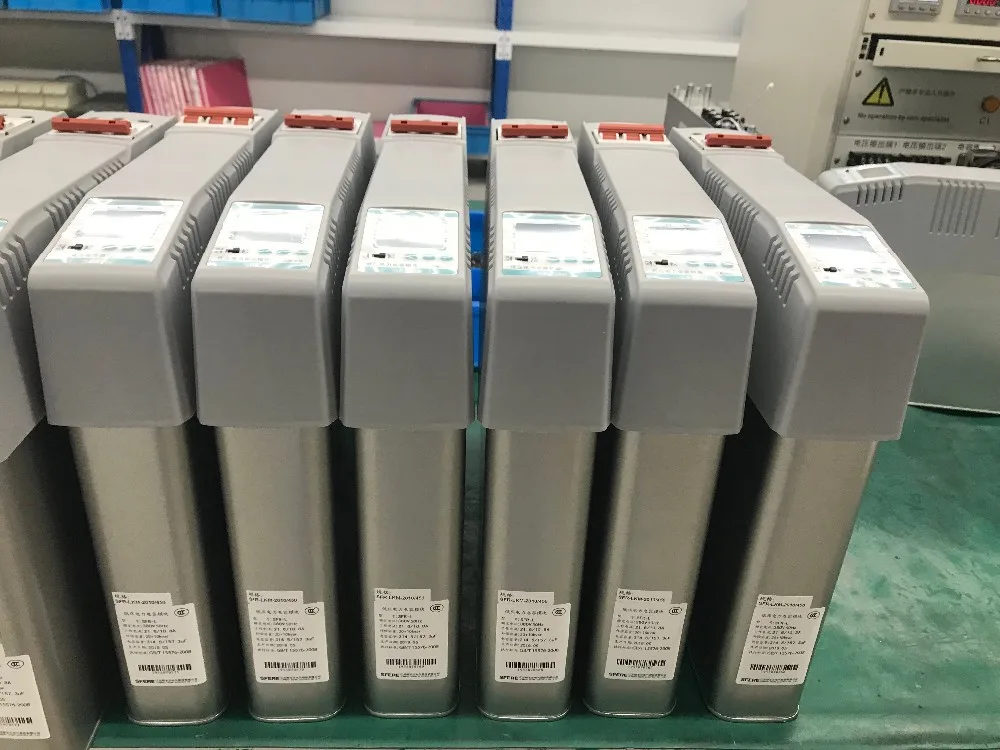

SFR-L series LV power capacitor module is designed for 0.4kV voltage distribution network. It is used as a new generation of compenstation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality.

Product Name	Elecnova SFR-L series power quality improvement 0.4KV compensation module power capacitor
Type	Capacitor
Switching mode	Zone-crow switching
Standard	GB/T 15576-2008
Working temperature	-15C~45C
Altitude	less than 2000m
Thread	coarse, fine
Certification	CE,UL,MID

Function	Specification
Measurement accuracy	Current	≤1.0%(5%~120%In)
	Voltage	≤0.5%(80%~120%Un)
	Power	≤2%
	Power factor	≤±0.01
Compensation operation	Working voltage	AC 380V±20%, distortion rate≤5%
	Consumption	≤5VA
	Max. working current	1.35*In
	Switching inrush current	≤3*In
Host protection	Over voltage	430V(can be set)
	Under voltage	300V(can be set)
	Harmonic exceeding	0%~100%(can be set)
Local protection	Over current	0~100A(can be set)
	Over temperature	55°C(can be set)
	Unbalance	50%(can be set)
