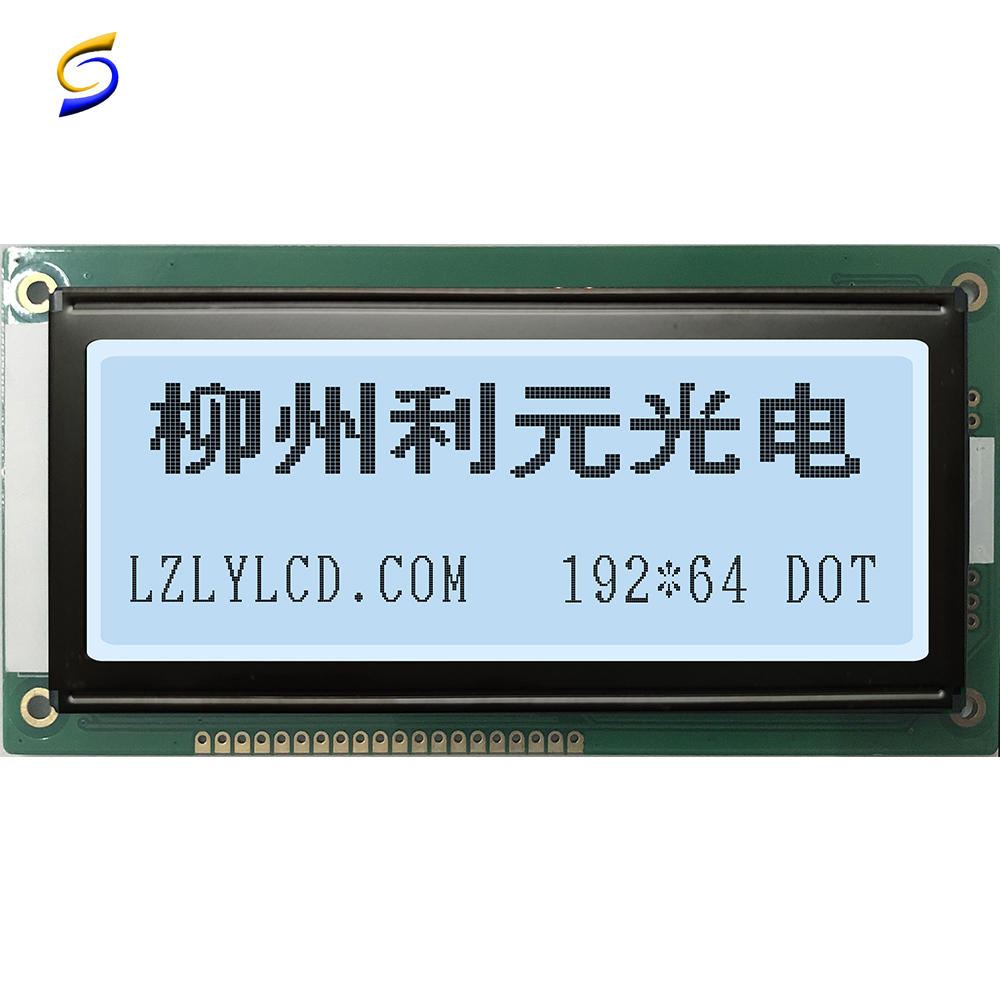

L19264A0-318DPHCV 192*64 FFSTN Transceiver Graphics Module LCD Black
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Product Description
Product name | L19264A0-318DPH 192*64 FFSTN black negative transmissive graphic LCD module |
model | L19264A0-318DWH |
application | Industrial-grade industrial control, medical equipment, power systems, 3D printers, measuring instruments, vending machines, coffee Machines, elevators, audio, vehicles, POS systems, household appliances, communication equipment, automation equipment, etc. Product application |

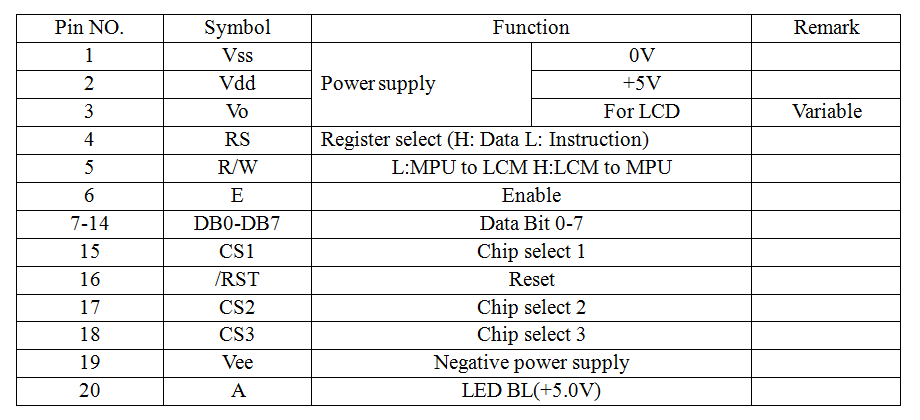

Advantages and features | 4.1-inch 19264 with controller, high cost performance, working voltage 3.3V or 5.0V, monochrome 192X64 graphic LCD module, Built-in SBN6400G controller, supports 6800/80808-bit parallel interface, The module contains 20 pins, Working temperature is -20℃~+70℃, The storage temperature is -30℃~+80℃. All materials comply with environmental protection Rohs standards and EU REACH regulations. |
pack | Inside the foam pallet + outside the standard carton, the packaging quantity is based on the specific size and shape. Packaging includes plastic bags, foam boxes and cartons. |
Product performance description
*General
*Cost-performance advantage
*Fixed voltage 3V or 5V
*Operating temperature -20 °C~+70 °C *Special offer
*Adhesive process
*Main control chip SBN6400G
Product parameters

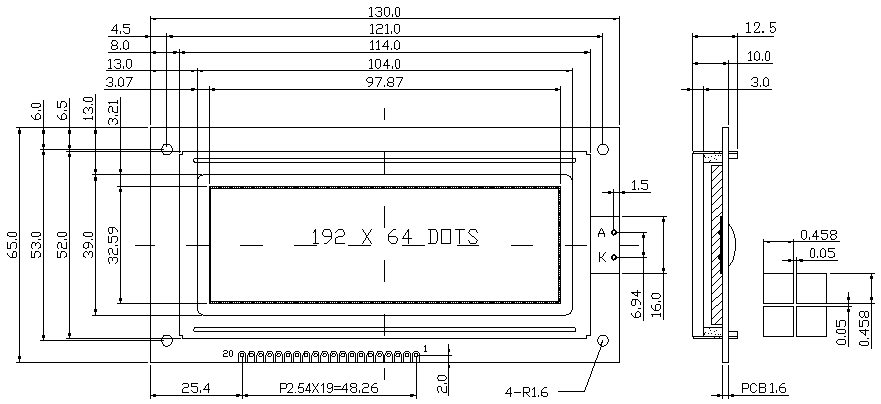

L19264A0-318DPH 192*64 FFSTN black negative transmissive graphic LCD moduleLCM size: 130.0 (L) Size/pitch: 0.458X0.458mm / 0.508X0.508mm Diagonal size: 4.1 inches Display points: 192×64 Power supply: Usually set to 3.3~5.5V Normal operating temperature: -20℃ to +70℃ Storage temperature: -30℃ to +80℃ Controller IC: SBN6400G Interface: 6800/8080-bit parallel viewing directions: 6 O'clock background color: blue/yellow-green/grey/black Backlight: white LED Weight: 100g Custom order: available
