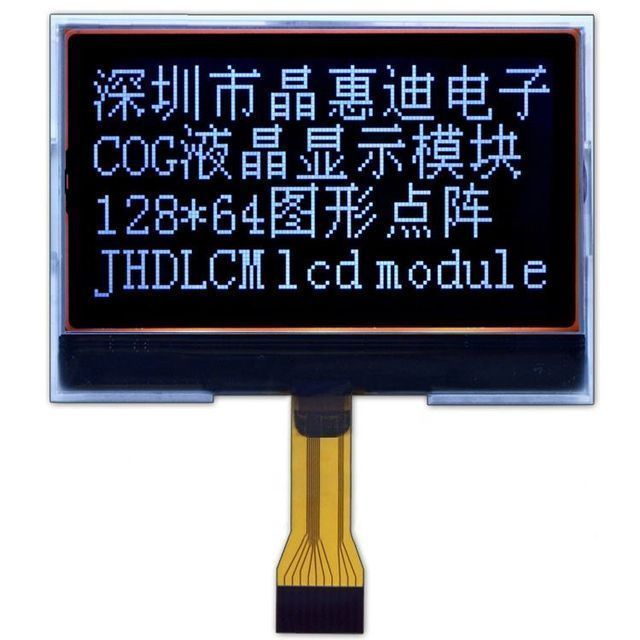

12864 Graphic LCD Module 2.4 Inch LCD 128x64 LCD Monitor JHD12864-G656BSW-BL

Supplier: Shenzhen JHDLCM Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Alice Wang
Price: $2.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Backlight Type:	White 3 LEDs	port:	Shenzhen Yantian Port
Packaging Details:	Carton, cover, pearl cotton, blister tray. Regarding how many products are in a package, it depends on the size of the products.	LCD Display Type:	STN mode
brand:	JHDLCM	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Active area:	54.99(W) X 27.47(H) mm	Display size:	2.4 inches
Supply capacity:	500,000 pieces per month	place of origin; place of origin:	Guangdong, China
Operating temperature:	20-+70	Resolution:	128*64
Storage temperature:	30-+80	Packaging Preview:
product name:	Graphic LCM	Module size:	67.10(W)X45.5(H)X5.5(T)mm
model:	JHD12864-G656BSW-BL	Viewing area:	61.00(W)X 31.40(H)mm
Perspective:	6 o'clock

Product Description

Best viewing angle 128*64 mono LCD panel JHD12864-G656BSW-BL

The main parameters
thing	128*64 mono LCD panel, the best viewing angle
Model Name	JHD12864-G656BSW-BL
color	white words on black background
pixel	8192
Resolution	128*64
brightness	white BL
Dimensions	67.10(W)X45.50(H)X5.50(T)mm
viewing area	61.00(W)X 31.40(H)mm
Drive supply voltage	3.0V/3.3V
perspective	6 o'clock
Operating temperature	-20°C ~ +70°C
Storage temperature	-30°C~ +80°C
display mode	STN, negative, white word on black background
I see	ST7567
Integrated Circuit Packaging	center of gravity

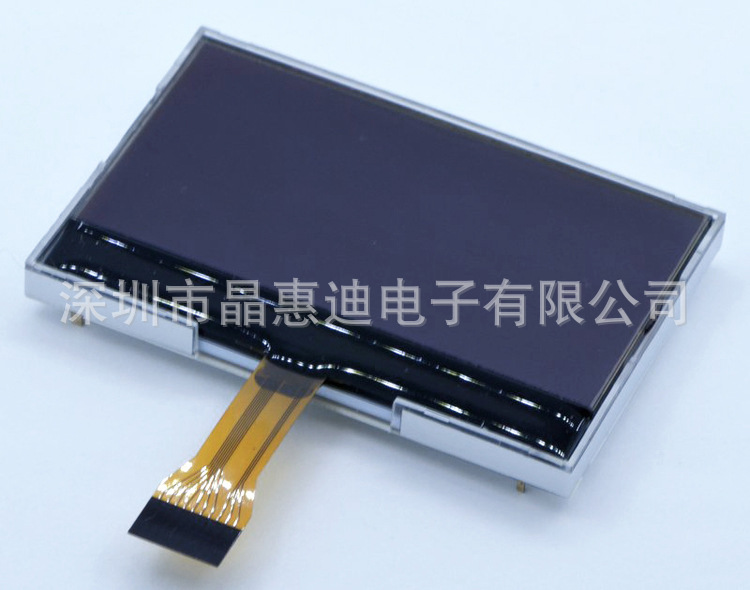

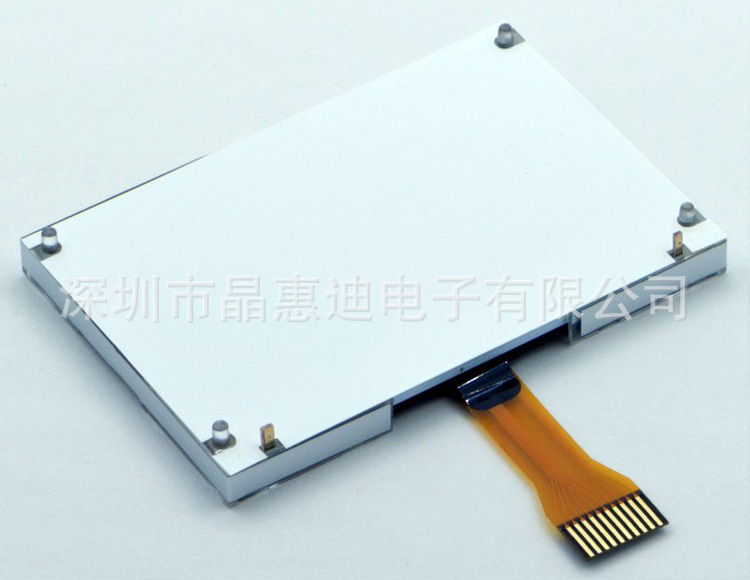

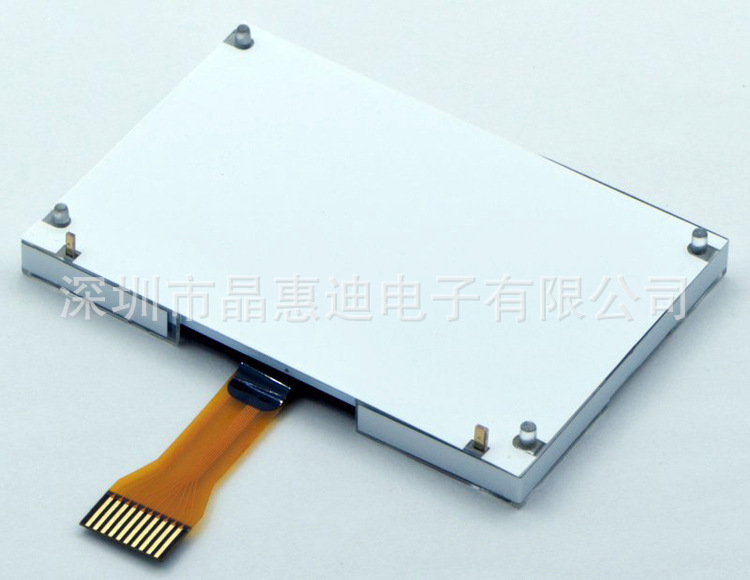

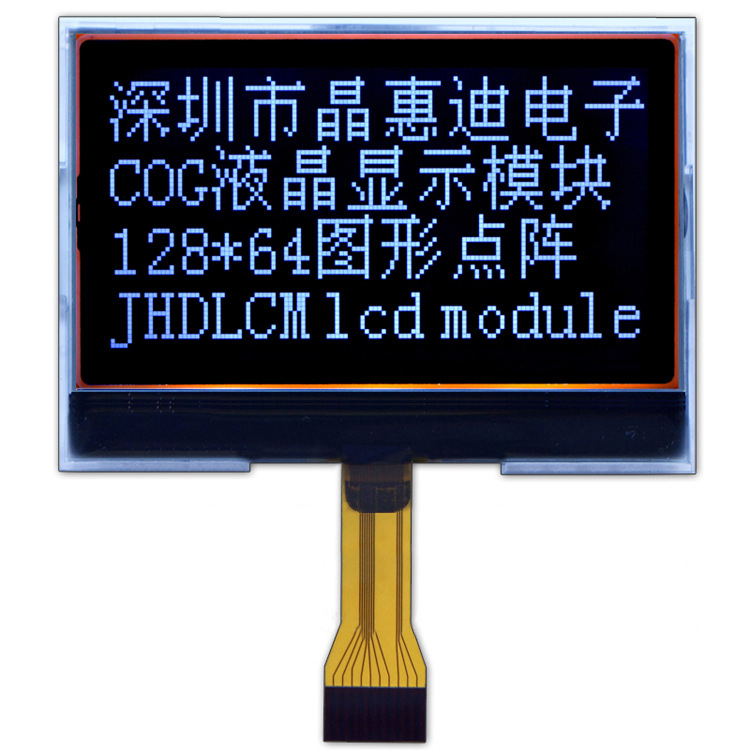

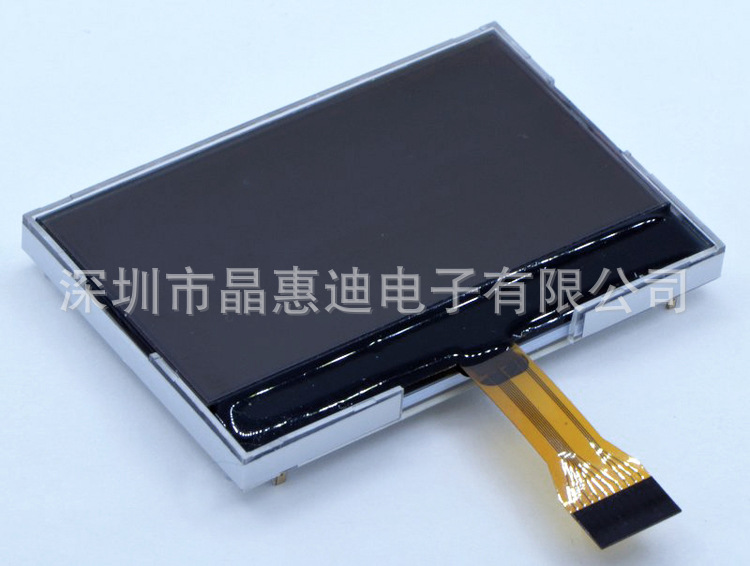

Product display:

Packaging and Shipping

Packaging and Delivery:

1. Packaging details: carton, cover, pearl cotton, blister tray. How many products can be contained in one package depends on the different sizes of the products.

2. Delivery Details: 1 to 30 days. Shipping costs depend on the weight and volume of the product.
