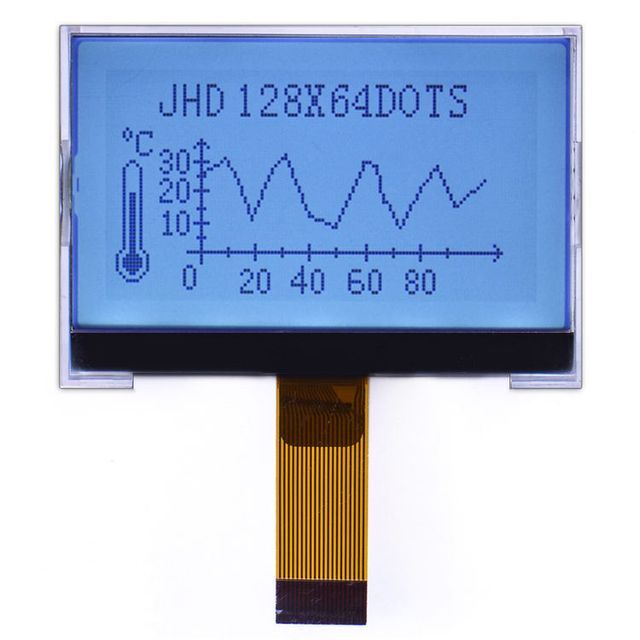

High Quality Graphic LCD Monitor JHD12864-G76BSW-BW

Supplier: Shenzhen JHDLCM Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Alice Wang
Price: $3.00 / 1 - 999 pieces
$1.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Origin:	Guangdong, China	brand:	JHDLCM
Package preview:		payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Activity area:	54.00(W)X 31.00(H)mm	Packaging Details:	Packing: carton, cardboard, pearl cotton, blister tray. Regarding how many products are in one package, it depends on the size of the product.
type:	STN	model:	JHD12864-G76BSW-BW, JHD12864-G76BSW-BW
solve:	128*64	Driving power supply voltage:	3.0V/3.3V
Display size:	2.2	interface:	Serial port, 20PIN 0.5mmPIN gap
port:	Shenzhen Yantian Port	Drive type:	1/64 responsibility, 1/9 prejudice
Backlight:	white	Supply capacity:	500000 pieces per month
color:	Blue word on white background	LCD Display Type:	High-quality graphic LCD display

High Quality Graphic LCD Monitor JHD12864-G76BSW-BW

Packaging and delivery:

1. Packaging details: carton, cardboard, pearl cotton, blister tray. How many items can be contained in a package depends on the size of the item.

2. Delivery details: 1 to 30 days. Delivery charges depend on the weight and volume of the product.

Specification:

1- High quality graphic LCD display

2- High Contrast

3- High resolution

4 interface: serial port

5-Backlight can be replaced

A good quality graphic LCD display isThe details are as follows:

advantage:

1. The backlight can be replaced

2. WLED backlight, with led driver

3. LVDS, MCU

4. Wide viewing angle

5. High quality

6. Produced in our own factory

7. Reasonable price

The main parameters
thing	High-quality graphic LCD display
Model Name	JHD12864-G76BSW-BW
color	Blue word on white background
pixel	8192
solve	128*64
contrast	200:1
brightness	White BL
Dimensions	59.0(W)X41.0(H)X5.0(T)mm
viewing area	54.00(W)X 31.00(H)mm
activity area	47.33(W)X 26.21(H)mm
solve	128*64
point	128*64
asphalt	0.37 mm
Driving power supply voltage	3.0V/3.3V
Viewing angle	6 o'clock
operating temperature	-20°C ~ +70°C
Storage temperature	-30℃~ +80℃
display mode	STN, front, blue word on a white background
FPC length	30mm
Response time	100 milliseconds
I see	ST7565R
IC packaging	center of gravity

backlight

White LED (three)

According to different requirements of customers, tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories, including driver board, LED backlight and LVDS cable.

main application
Telecommunications equipment	Telephone, walkie-talkie, watch, radio, etc.
household appliances	Washing machine, refrigerator, home integrator
industrial control	Coaxial CNC machine tool
Instrumentation	Tester, medical instrument
car digital	MP3, MP4, car air conditioner
mining	My lamp charger, gas tester
ocean	Salinity tester

Accept ODM.

Provide a variety of LCD display modes

Various backlight colors to choose from

Various temperature ranges available

Graphic LCD Display Product Range

1) TN, STN, FSTN LCD panel/module

2) Customized LCD panel/module

3) Small (1.5"-7") TFT LCD

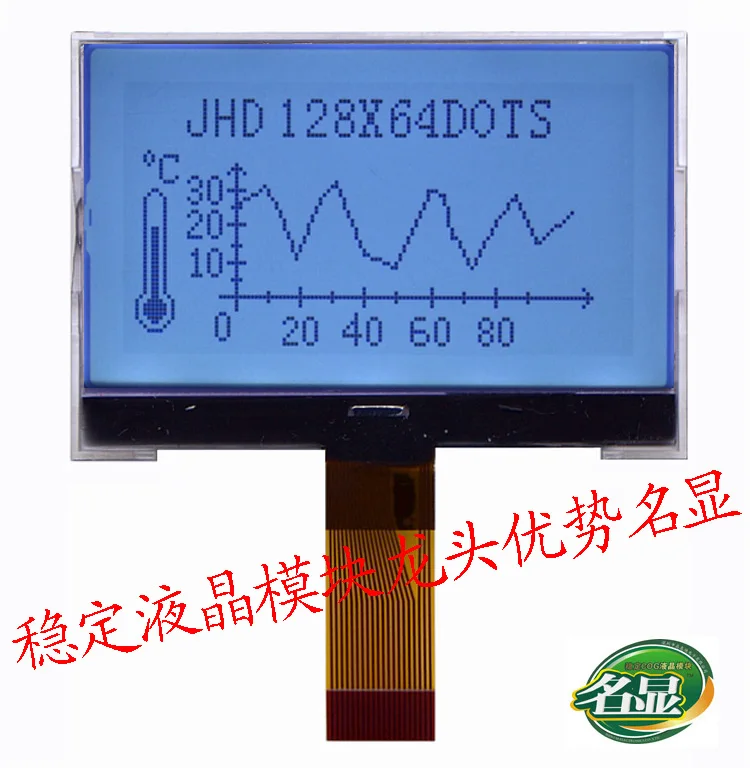

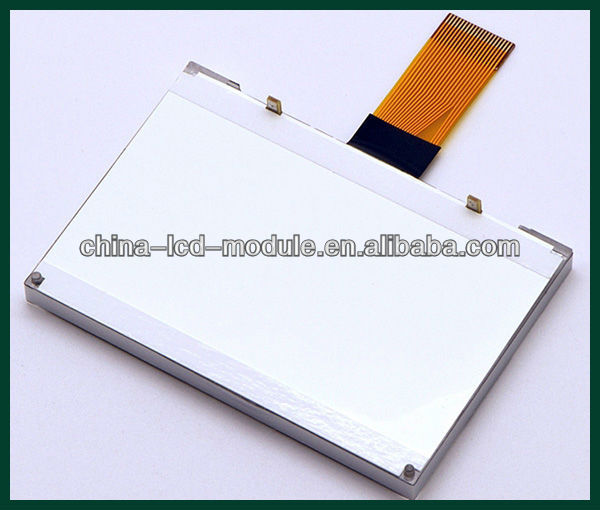

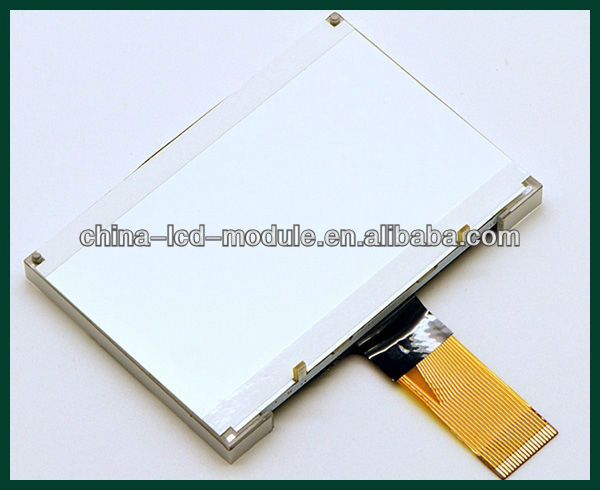

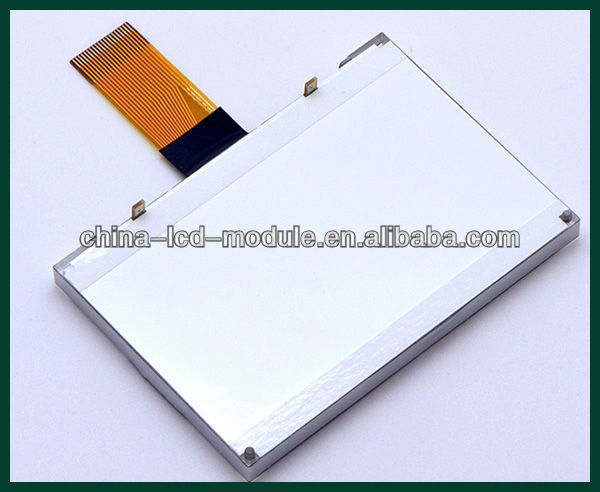

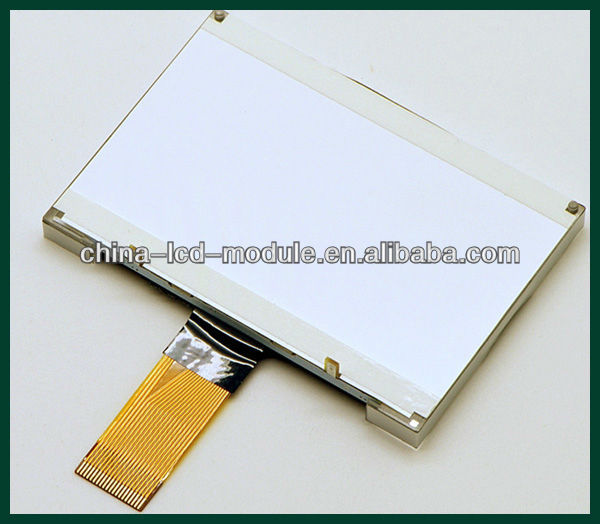

Graphic LCD display product display:

Graphical LCD FPC schematic diagram (SCH):

Graphical liquid crystal display interface table:

20	P/S
19	C86
18	V0
17	V1
16	V2
15	V3
14	V4
13	CAP2-
12	CAP2+
11	CAP1+
10	CAP1-
9	CAP3+
8	The output voltage
7	VSS
6	voltage
5	SDA
4	SCL
3	A0
2	RST
1	CS

High Quality Graphic LCD Monitor JHD12864-G76BSW-BW Production procedure in our factory:

Payment terms: T/T, L/C, etc.

Shipping:You can choose any shipping method, UPS/FEDEX/DHL/EMS.

PS: You have to pay the shipping fee. But we will give you the best shipping price, please don't worry.

List of FSTN LCD modules:

size	FSTN display part number	backlight	interface	solve	pixel	contrast
1.5"	JHD12864-G152BTB-G	2 blue LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	300:1
1.5"	JHD12864-G152BTC-G	2 orange LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	300:1
1.5"	JHD12864-G152BTW-B	2 white LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	200:1
1.5"	JHD12864-G152BTW-BL	2 white LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	300:1
1.5"	JHD12864-G152BTW-Y	2 white LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	200:1
1.5"	JHD12864-G152BTW-BW	2 white LEDs	SPI 12PIN 0.8mm pitch	128X64	8192	200:1

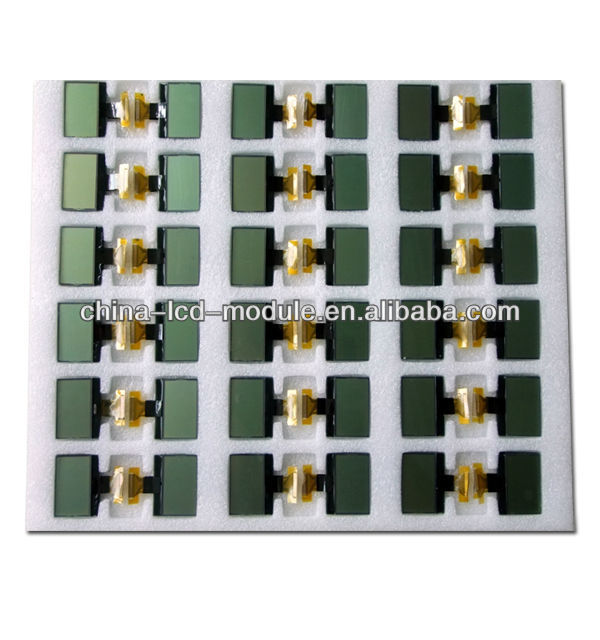

Graphical LCD display pPackaging Details:
