Monochrome Display FSTN LCD 19264 COG Graphic LCD Module JHD19264-G23BSW-G

Click here to contact

Product details

Supply capacity:	500000 pieces per month	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Package preview:		Origin:	Guangdong, China
LCD screen type:	FSTN Forward	Packaging Details:	Carton, cardboard, EPE, blister tray. How many products are in a package, depends on the size of the product.
Operating temperature:	20-+70	Viewing area:	50.00 (W) X 17.50 (H) mm
solve:	192x64	Viewing angle:	6 o'clock
Backlight type:	White 3 LEDs	Display size:	2.0 inches
product name:	Graphic LCD Module	model:	JHD19264-G23BSW-G
brand:	JHDDLCM	Storage temperature:	30-+80
Activity area:	47.98 (W) X 15.98 (H) mm	Module size:	53.60(W)X26.10(H)X3.90(D)mm
port:	Shenzhen Yantian Port

Product Description

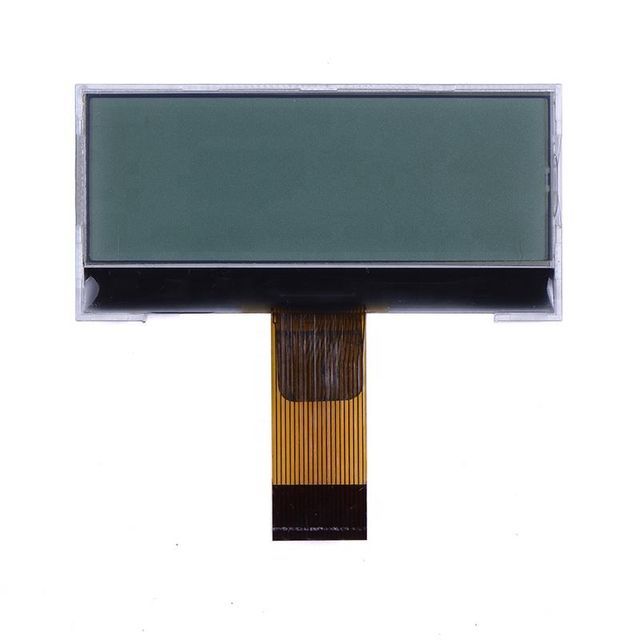

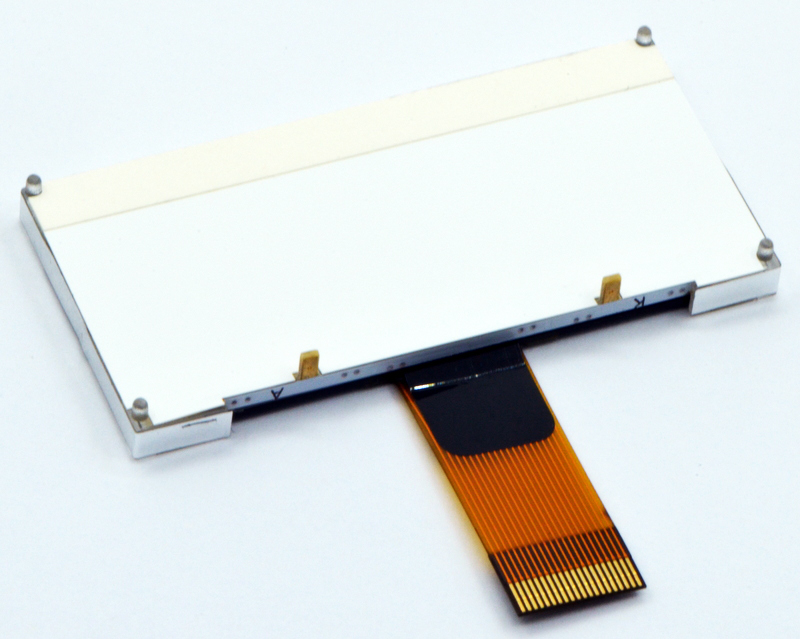

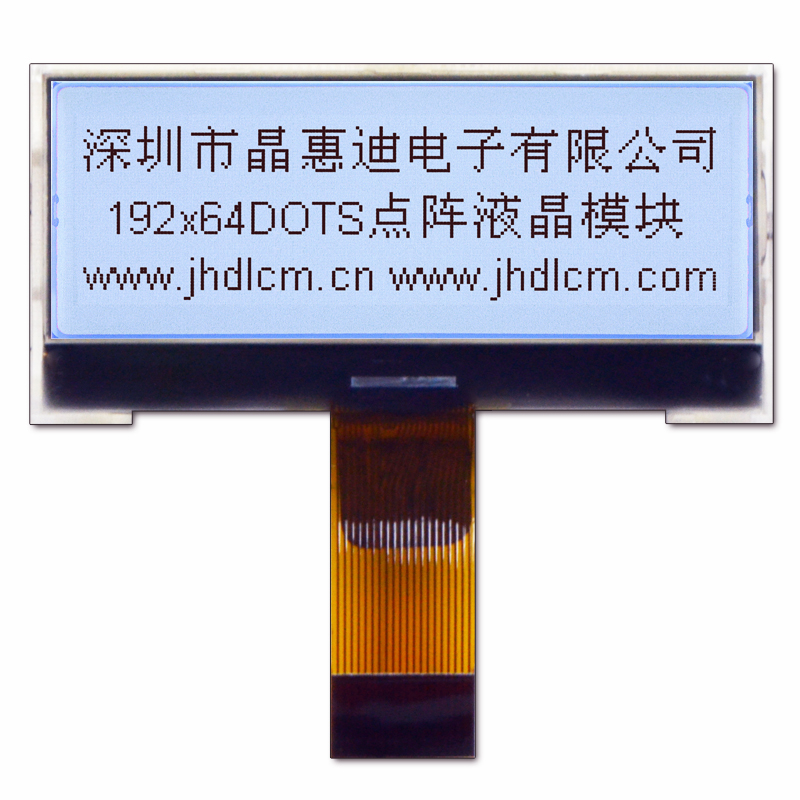

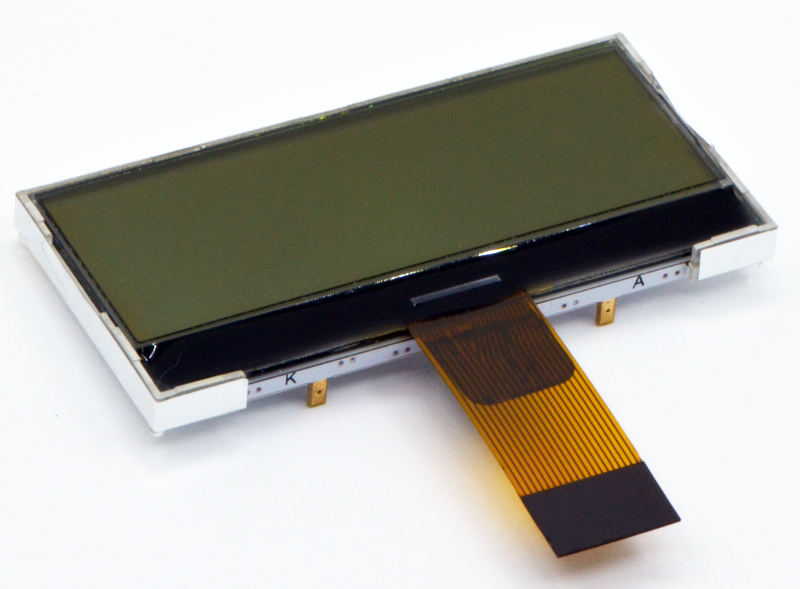

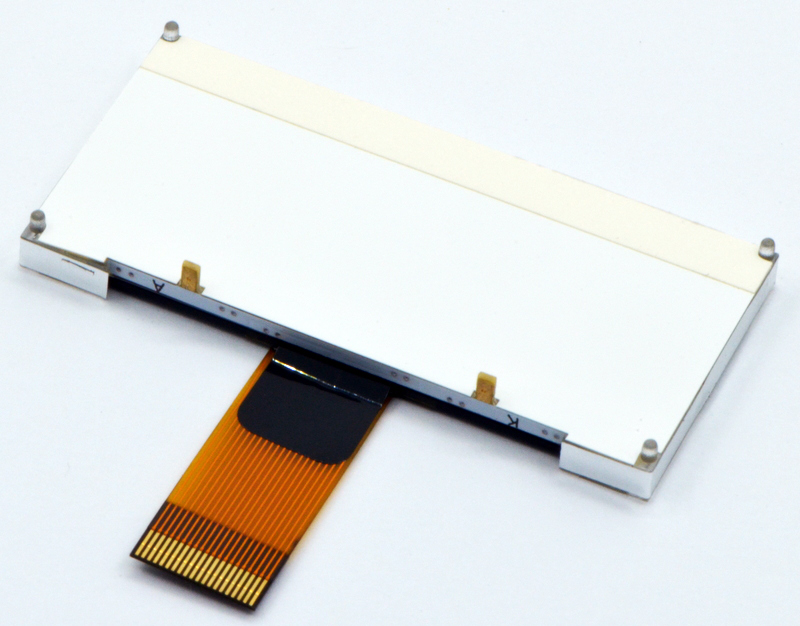

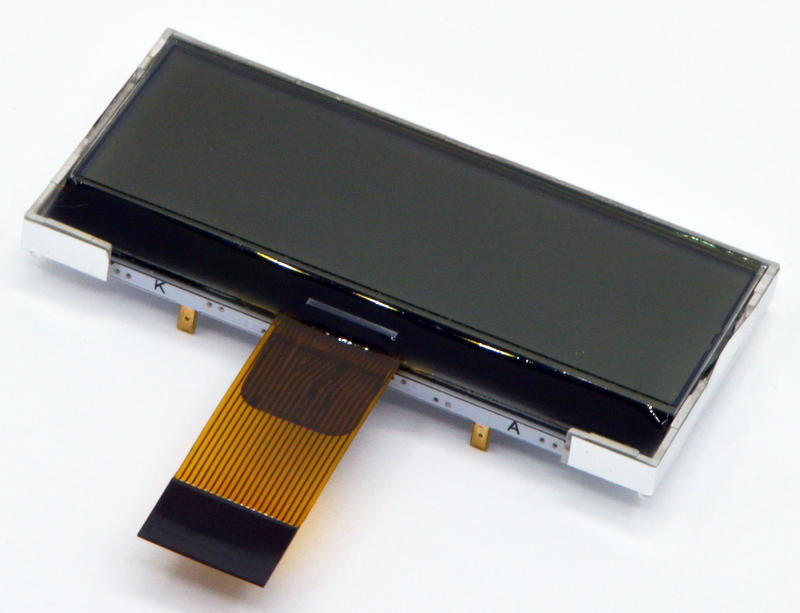

Transflective LCD module JHD19264-G23BSW-G

The main parameters
thing	Transflective LCD Module
Model Name	JHD19264-G23BSW-G
color	black text on white background
pixel	12288
solve	192*64
contrast	300:1
brightness	White BL
Dimensions	53.60(W)X26.10(H)X3.90(D)mm
viewing area	50.00 (W) X 17.50 (H) mm
activity area	47.98 (W) X 15.98 (H) mm
solve	192*64
point	192*64
asphalt	0.23 mm
Driving power supply voltage	3.0V/3.3V
Viewing angle	6 o'clock
Operating temperature	-20℃～+70℃
Storage temperature	-30℃~+80℃
display mode	FSTN, positive black text on a white background
Soft board length	24.20 mm
IC packaging	center of gravity
