Custom 16x2 LCD Display 1602 ST7032I Pin LCD Graphics Module JHD1602-G98ZBTWZ-BL
-
Supplier: Shenzhen JHDLCM Electronics Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Alice Wang -
Price: $1.59 / 1 - 999 pieces
$1.43 / >=1000 pieces -
Min. Order: 1 piece
Product details
| Storage temperature: | 20-+70 | Resolution: | 16x2 |
| model: | JHD1602-G98ZBTWZ-BL | place of origin; place of origin: | Guangdong, China |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Module size: | 56.80(W)X25.30(H)X2.7(T)mm |
| Supply capacity: | 500000 pieces per month | port: | Shenzhen Yantian Port |
| Viewing angle: | 6 o'clock | Packaging Details: | Carton, cardboard, pearl cotton, blister tray. Regarding how many products are in one package, it depends on the size of the product. |
| product name: | LCD module | LCD Display Type: | STN mode |
| Viewing area: | 45.70(W)X 14.30(H)mm | Backlight type: | White 2 LEDs |
| Operating temperature: | 10-+60 | Driver chip: | ST7032I |
| Display size: | 1.8 inches | Package preview: | |
| brand: | JHDLCM |
Product Description
Best viewing angle 16*2 monochrome LCD screen JHD1602-G98ZBTWZ-BL
| The main parameters | |
| thing | 16*2 monochrome LCD panel, the best viewing angle |
| Model Name | JHD1602-G98ZBTWZ-BL |
| color | black and white |
| pixel | 32 |
| resolution | 16*2 |
| brightness | White BL |
| Dimensions | 56.80(W)X25.30(H)X2.7(T)mm |
| viewing area |
45.70(W)X 14.30(H)mm
|
| Driving power supply voltage | 3.0V-5.0V |
| Viewing angle | 6 o'clock |
| Operating temperature | -10°C ~ +60°C |
| Storage temperature | -20℃~+70℃ |
| display mode | STN, negative, white text on black background |
| I see | ST7032I |
| IC packaging | center of gravity |

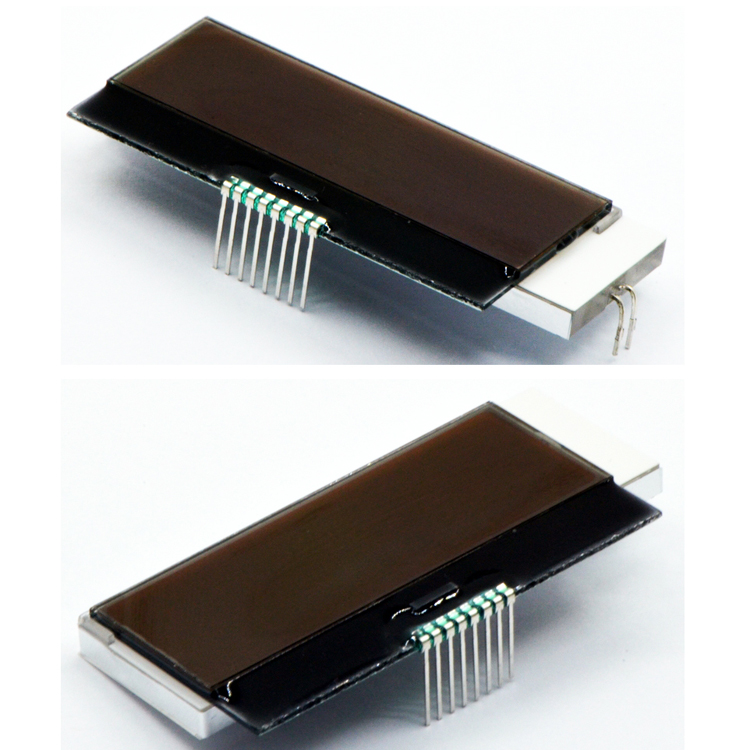

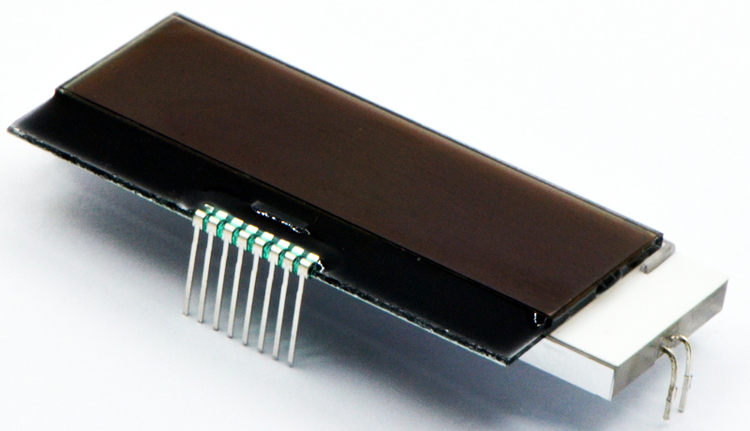

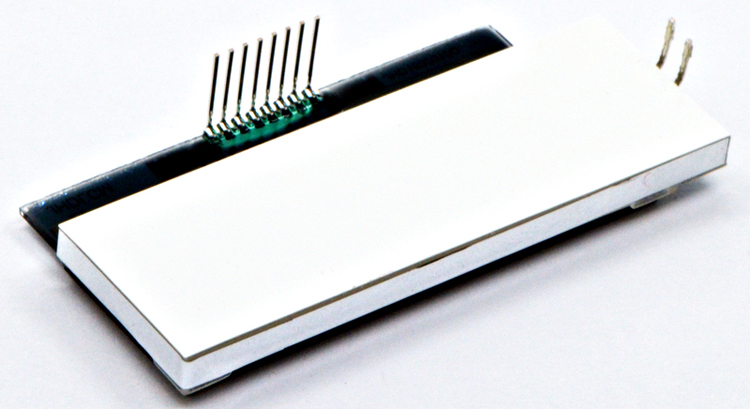

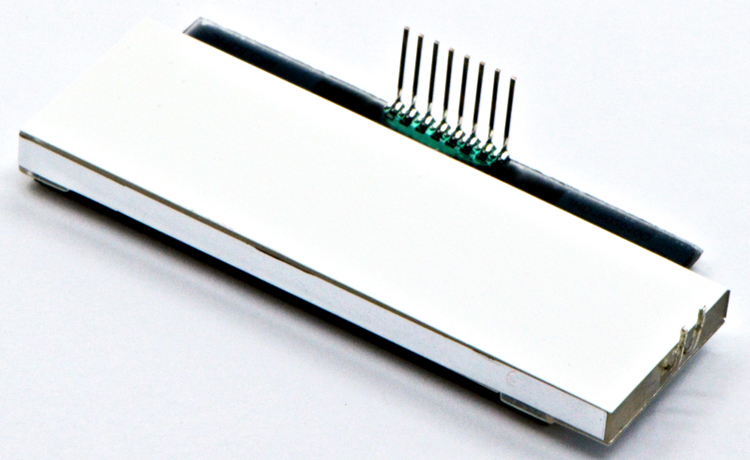

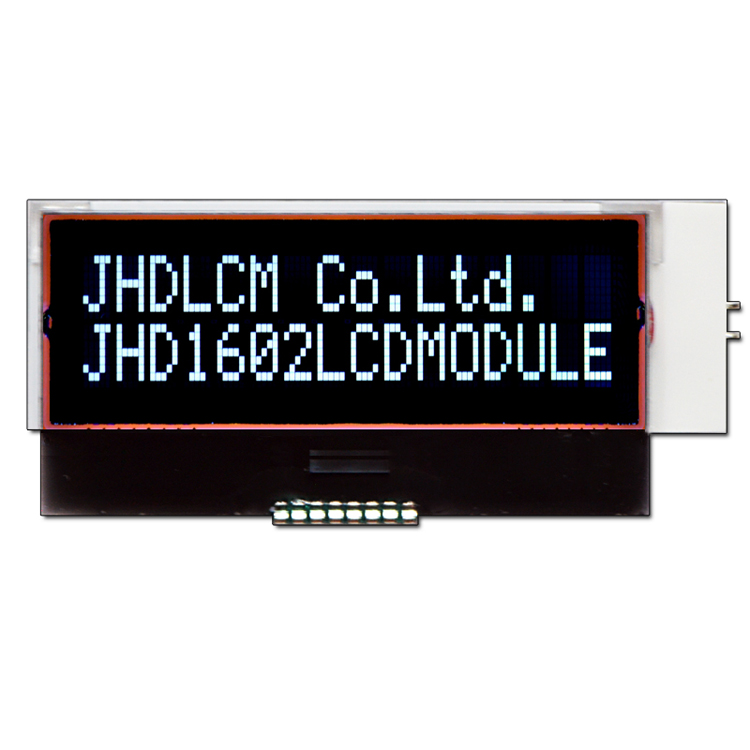

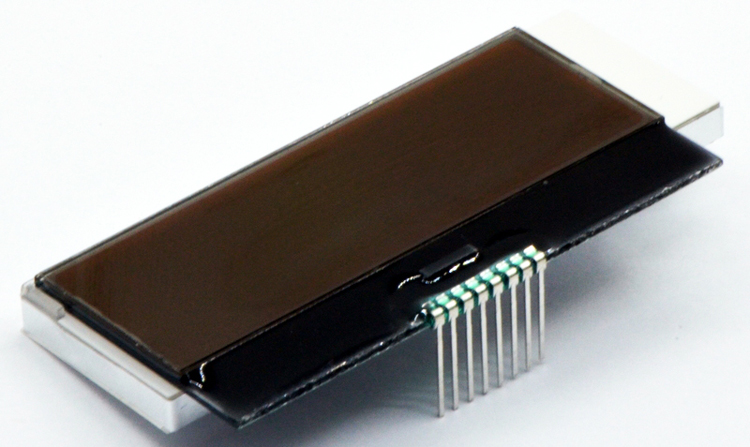

Product display:
Packaging and Shipping
Packaging and delivery:
1. Packaging details: carton, cardboard, pearl cotton, blister tray. How many items can be contained in a package depends on the size of the item.
2. Delivery details: 1 to 30 days. Delivery charges depend on the weight and volume of the product.
our service
16*2 best viewing angle monochrome LCD panel JHD1602-G98ZBTWZ-BL Production procedure in our factory:
