2 years warranty boxl control jewelry gold rhodium nickel chrome plating machine 1000amp

Supplier: Liuyang Honey Gifts Eco Agriculture Development Co., Ltd.
Region: Hunan, China
Contact: Ms. Sindy Zhou
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	T/T,Western Union,Paypal or Ali secure pay;	Packaging Detail:	wooden case;
Product Name:	12V 4000amp surface treatment electroplating power supply rectifier;	Brand Name:	Haney;
Power(W):	12KW;	Power supply:	50/60Hz;
Port:	Shenzhen;	Certification:	ISO9001;
Weight:	50kgs;	Current:	0~30000A adjustable;
Warranty:	24months;	Place of Origin:	Guangdong China (Mainland);
Application:	electroplating,anodizing,electrolysis;	After-sales Service Provided:	Engineers available to service machinery overseas;
Type:	high frequency switch rectifier;	Supply Ability:	1000 Piece/Pieces per Month;
Control mode:	air cooling;	Dimension(LWH):	490450400mm;
G.W.:	50(Kg);	Voltage:	12;
Condition:	New;

Product Description

Welcome OEM

2 years warranty boxl control jewelry gold rhodium nickel chrome plating machine 1000amp

2 years warranty boxl control jewelry gold plating machine:

Input voltage	220V/380V /415v/440v AC± 20% (three phase) 50Hz
Output voltage	DC 0-12/24/36/48V...300V adjustable
Output Current	DC 0-30000A(adjustable)
Output current stability	≤2%
Output voltage stability	≤1%
Efficiency	≥95%
Power factor	≥0.9
Start-up postponing time	≤10s
Inverting frequency	18kHz ± 2kHz
Current limiting value	Io + 10A - 50A (Io is the rated current)
Voltage limiting value	1.01 - 1.03Vo (Vo is the rated voltage)
Product features:	1. Small size, light weight, high efficiency, high control precision.
	2. High –frequency pulse current output, Suitable for plating small sized ferrous metal and alloy work pieces, it has high enetration ability, strong adhesive force, and can effectively enhance the brightness of the plated surface.
	3. Output voltage and current can be adjusted, limiting voltage and current can be adjusted,greatly enhance application flexibility of the product for users.
	4. With complete protection functions, over current, over heat rotection functions. High power factor, less pollution to the electric network, no interference

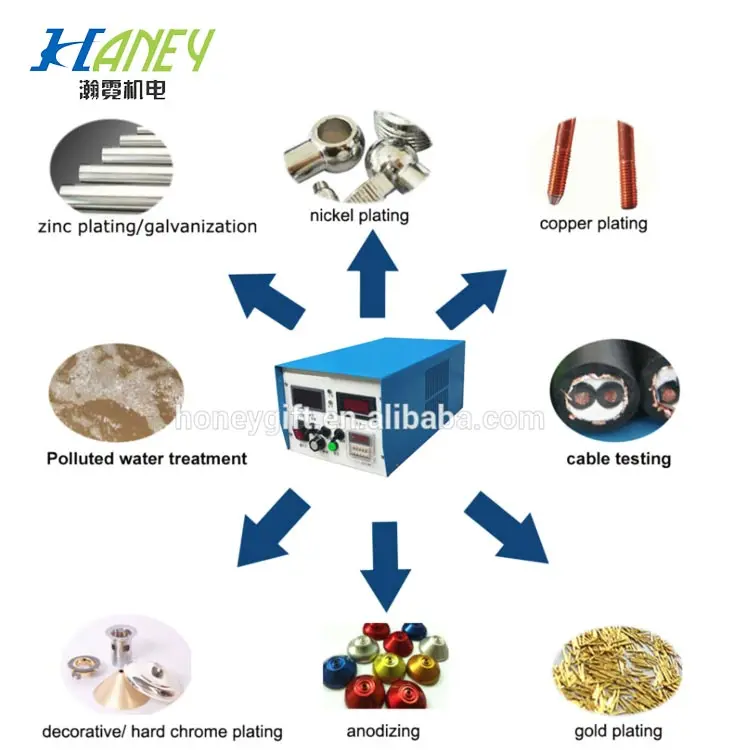

Scope of application	It is suitable for acidic copper, alkaline copper, multi-layer nickel, Chrome ,zinc , gold ,silver , indium,rhodium, electrolysis degreasing , and single or double-clad plated printing process.

Application:

Quality control:

Our advantage:

1.Using high-tech infrared detector to ensure product quality

2.manual or automatic reverse

3.fine internal structure

4.stainless steel pipe fittings

5.24 hours operation at full load

6.independant research and development

7.super GB configuration

8.Experimental power

9.250KVA green aging tests to ensure 20000A within models can be loaded continuously detected.

Hot Sale

Packing.

All the goods will be packed in carton or wooden case or bag carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .

Shipping.

The package will be shipped by DHL, FedEx, UPS,TNT or EMS Please choose one of them, after we shipped the parcel, we'll fill in the tracking number and inform you by E-mail. Pls write the correct address and telephone number when you make orders. So we can delivery the product for you.
