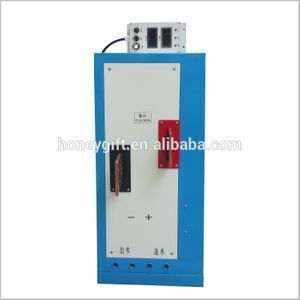

Factory price good quality 3 phase high current anodizing rectifier

Supplier: Liuyang Honey Gifts Eco Agriculture Development Co., Ltd.
Region: Hunan, China
Contact: Ms. Sindy Zhou
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

input:	AC220V/380V/440V;	Package Type:	Surface Mount;
Supply Ability:	1000 Piece/Pieces per Month;	Type:	Three phase;
Place of Origin:	Guangdong China;	Port:	Shenzhen;
Power supply:	50Hz or 60HZ;	communication:	RS485,PLC or touch screen;
Packaging Detail:	wooden case;	Brand Name:	HANEY;
cool method:	water cooled or aid cooled;	Model Number:	HN-6-4000A;
G.W.:	135(Kg);	Payment Terms:	T/T,Western Union,Paypal or Ali secure pay;
Delivery Detail:	4days upon payment receipt;	Product name:	good quality 3 phase high current anodizing rectifier;
Type:	high frequency dc switch power supply;	Shipping Way:	by sea air or express;
Application:	Inverter / Converter;	Dimensions:	5406801060mm;
Mean On-State Current:	4000A;

Factory price good quality 3 phase high current anodizing rectifier

Product Description

24 hours operation at full load;
Fine internal structure;
Using high-tech infrared detector to ensure product quality;
Fast delivery time(3-5days)
OEM service is available1.Using high-tech infrared detector to ensure product quality

2.manual or automatic reverse

3.fine internal structure

4.stainless steel pipe fittings

5.24 hours operation at full load

6.independant research and development

7.super GB configuration

8.Experimental power

9.250KVA green aging tests to ensure 20000A within models can be loaded continuously detected.

Factory price good quality 3 phase high current anodizing rectifier specifications:

AC input voltage	3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz
Output voltage	DC 0-12/24/36/48V...300V adjustable
Output current	DC 0-100/200/300/400/500A/1000A....30000A adjustable
Regulation range	0-100%
Power factor	≥0.9(full load)
Accuracy of output current, voltage	≤0.1%
Efficiency	≥90%(full load)
Protection grade	IP54 for water cooling, IP30 for forced air cooling
Cooling method	Water cooling or forced air cooling
Control mode	CC,CV,PWM Pulse control
Operation mode	Local touch screen, front pannel, remote control box or communication
Communication protocol	RS485, Profibus DP, MODBUS
Working method	Long time full load continuous operation
Protections	Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure.

Factory price good quality 3 phase high current anodizing rectifier optional function:

Standard control box

Timing control box, manual

reverse, automatic reverse

Air or water cooling model

Panel of rectifier remote control box:

	Name	Functions
	ammeter	To show output current
	voltmeter	To show output voltage
	power indication/Fault indication	To indicate power on/off To indicate fault red color led
	Function switch	To select status of constant voltage/constant current
	Output adjustment	To ajust output voltage/current
	on/off button with timer	To turn on/turn off the device

Factory price good quality 3 phase high current anodizing rectifier features:

1. Small size, light weight, electricity-saving, high accuracy

2. The communication interface can be provided

3. Duration control can be provided

4. Touch screen can be provided

5. Control mode: Local control or Remote control(the length of cable is determined by customers)

6. Japan IGBT(the default choice) or Germany IGBT are adopted

7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function

8. Easy to operate and repair

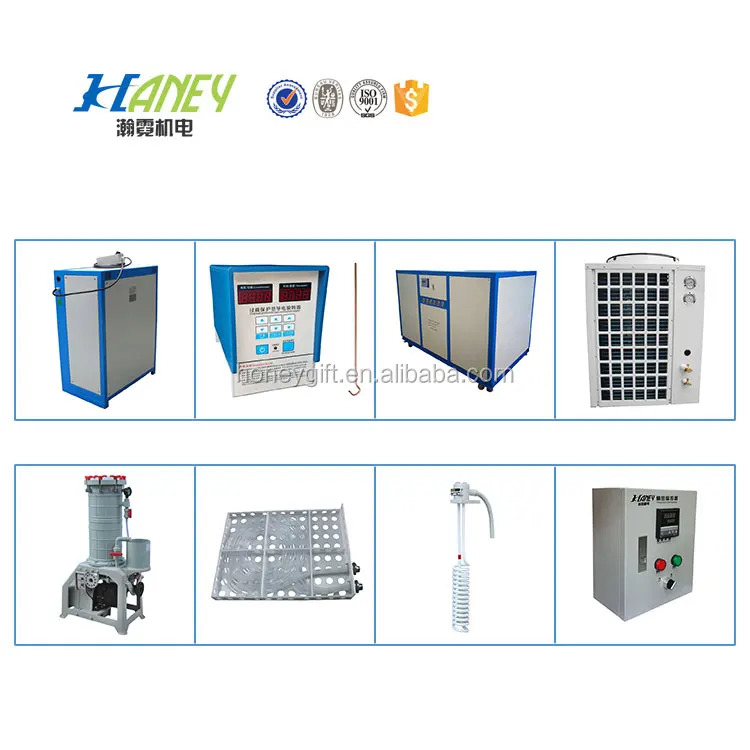

Factory price good quality 3 phase high current anodizing rectifier related products:

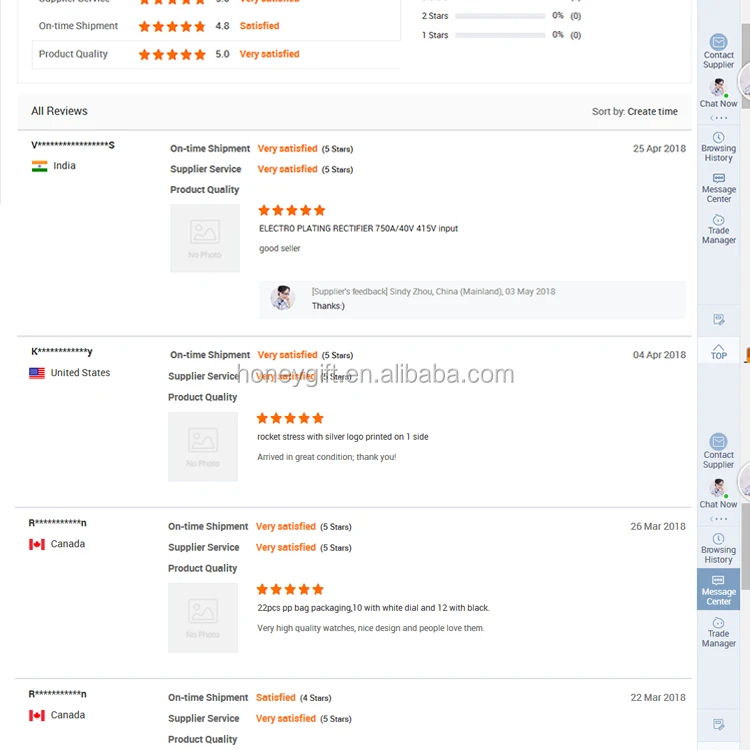

Customer feedback:

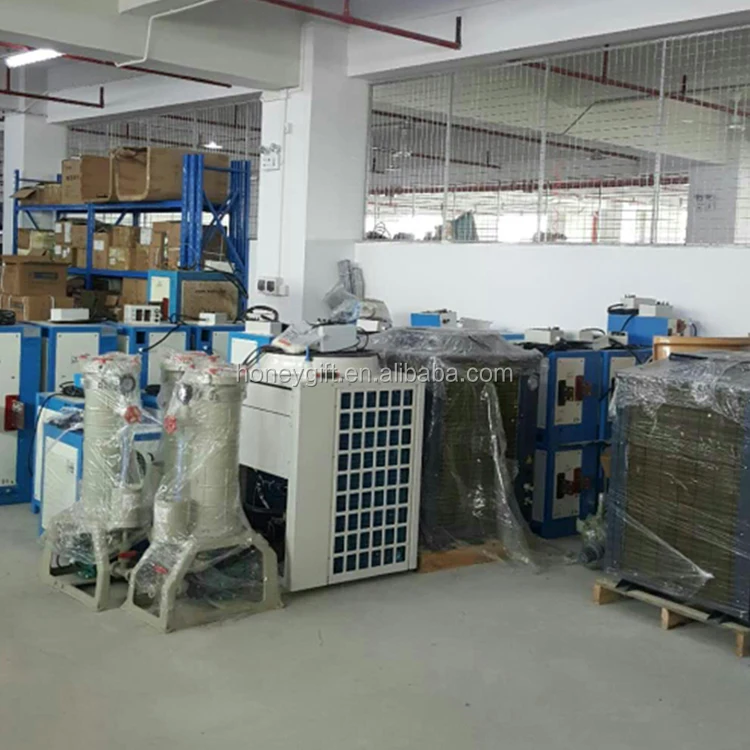

Factory price good quality 3 phase high current anodizing rectifier warehouse:

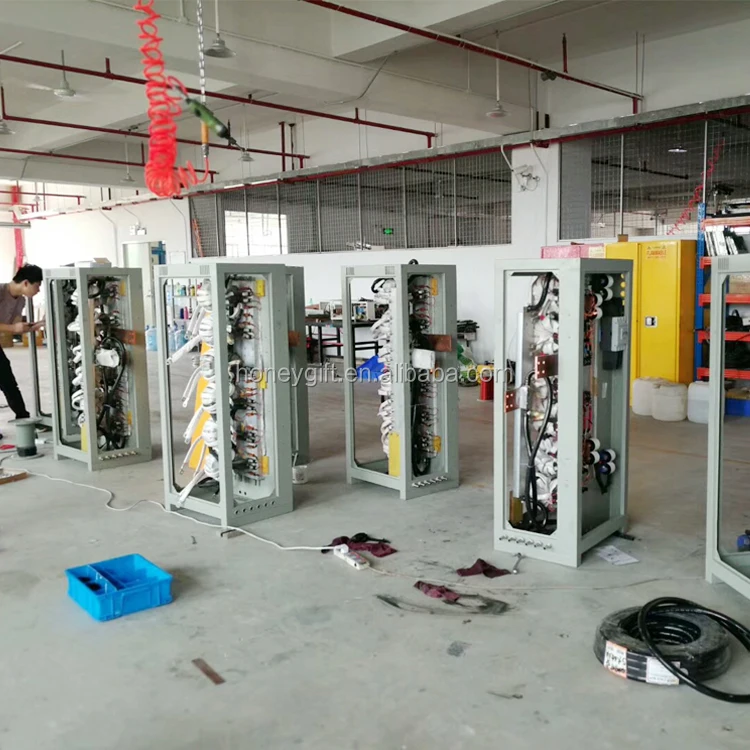

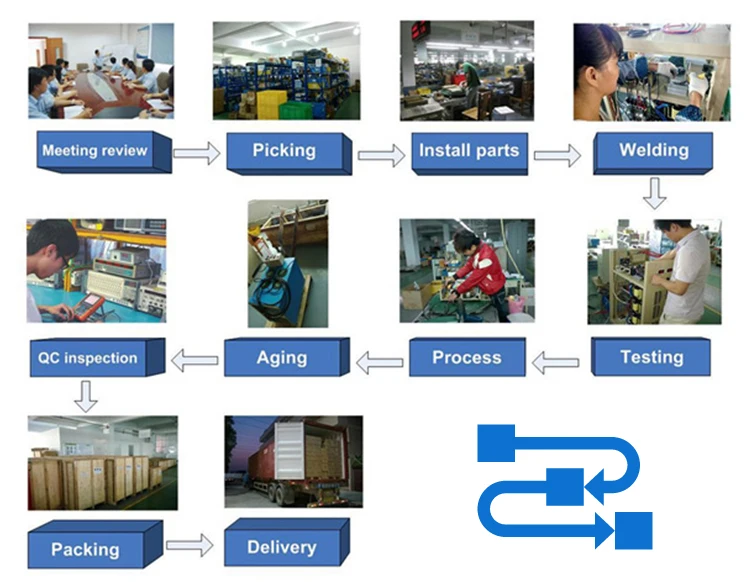

Factory price good quality 3 phase high current anodizing rectifier production process:

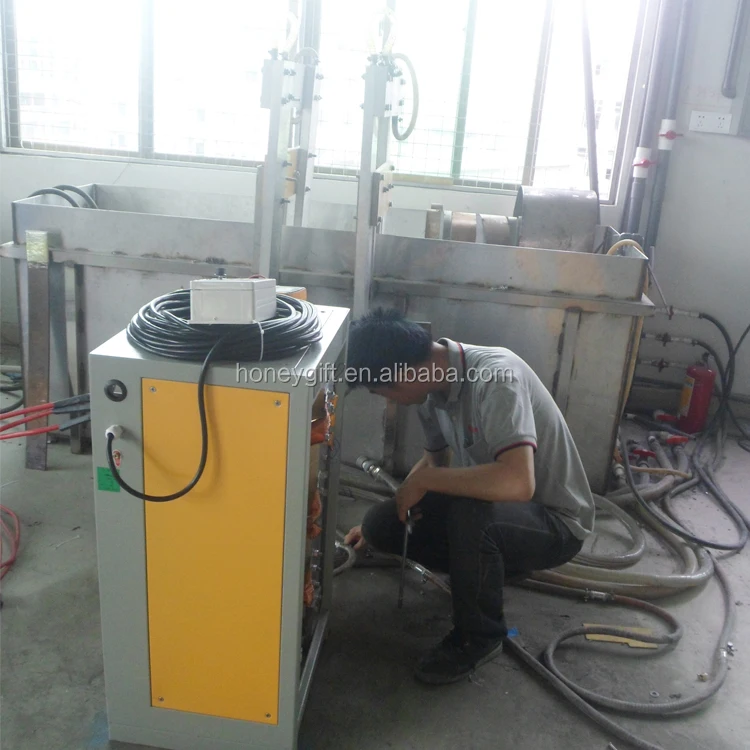

Factory price good quality 3 phase high current anodizing rectifier application

Honey Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.

Factory price good quality 3 phase high current anodizing rectifier trouble shooting:

Problem	possible cause	Solution
Connecting with power supply,when start,the power indition doesn't not blink,no output	a)Three-phase four line doesn't connect with zero line or lack or phase b)working frequency transformer inside the power sully is damaged	a)Check if the powe supply is lack of phase and the zero line is connected; b)change the transformer with the same working frequency on resolve the problems,then restart.
Fault indication blinks when you open the product	a)input power is lack of phase,lack of voltage,and over-load voltage. b)The fan is damaged.	a)exact the input power b)change the fan with the same specification one
no any response when turn on the power and turn off cann't normally turn on/off	Turning on/off button is damaged	Change the turn on/off switches(the switches like the boat shape),solve the problems,and then restart
Cann't adjust current or voltage continously or no any response	Output potentionmeter is damaged	Change the same potentiometer
When turn off the air-break switch,sound explosive,and the same time the air break automatically jump-off,and can't turn off again	a)the air break switch is damaged b)three phase rectification bridge is damaged,so that cause the main line of the rectifier short circuit. c)IGBT is damaged	a)change the air break switch b)change the related three phase rectification bridge c)change the related IGBT
The shell of the rectifier has electric when touch	humidity in the air casues electric inside the power supply	Open the product,use the infrared lamps or blower to make the air dry

About us

Honey International Co.Ltd is mainly in line with surface treatment and industrial safety protection equipment. Products are widely used in hardware, plastics, chemicals,electronics,medical,machinery,military,enviromental protection and other fields. Main products include electroplating equipment: rectifier,rotator machine,heat exchanger,immersion heater,titanium stainless steel products, electroplating anode. We have patent for rectifier,rotator machine,immersion heater,and our goal is to supply high quality products to customer in time.

Factory price good quality 3 phase high current anodizing rectifier testing:

1. All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;

2.Strong technical ability ensures reasonable, professional and safe design;

3.Good quality components are used .

4. Full load testing before shipment ;

5. Complete protections

6. Meet CE requirement .

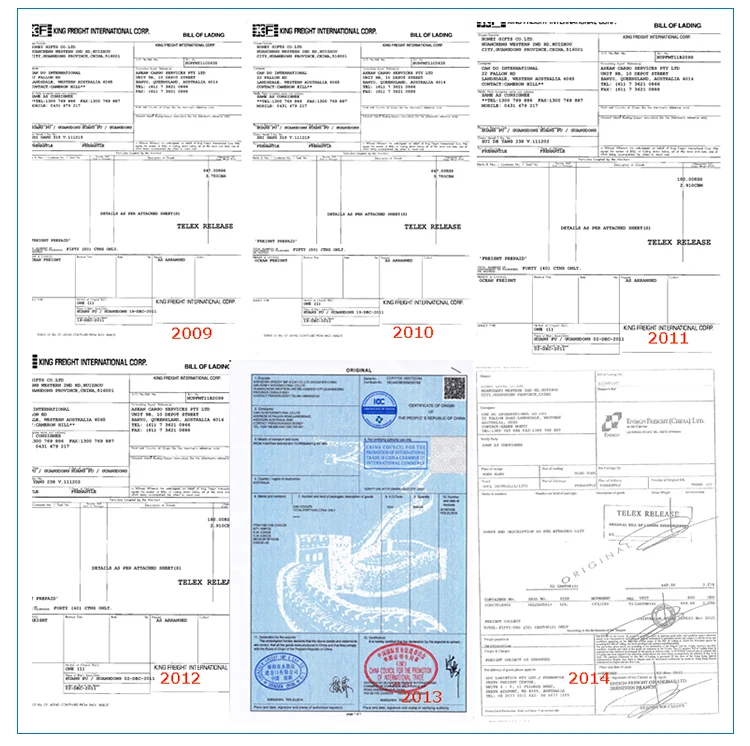

Our export experience:

Factory price good quality 3 phase high current anodizing rectifier packing&shipping

For normal item 500-1000-2000-3000-4500-5000-6000-8000A,we always have stock, for customized requirement,delivery time is 5-7days,wooden case packing,which is secure enough.

FAQ

Q1:What extra function do you have?

Optional:manual or auto reverse,timing control(manual or auto),filtering, temperature control, Ampere accumulative,slow start. Cooling mode:air cooling or water cooling.100~300A with 220V or 380v input voltage,and no remote control. Above 500A with 380v input voltage,standard remote control(5meters signal line)

Q2:.what’s the advantage of your rectifier?

New original accessories, pcb boar made by our factory to control cost,100% full load aging test to ensure the stability of the machine.super allowance to make it can be full load used.250KVA special line aging test to ensure the current within 20000A machine can be tested continuously Quality access to ISO system.

Q3: quality warranty

Quality warranty is 1year,we can send you free accessory for replacement during the warranty time.
