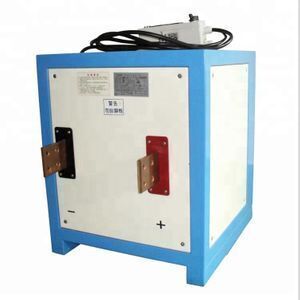

Industrial high frequency 2000A 12V switching metal electroplating plating anodizing rectifier machine
-
Supplier: Liuyang Honey Gifts Eco Agriculture Development Co., Ltd. -
Region: Hunan, China -
Contact: Ms. Sindy Zhou -
Price: $300.00 /set -
Min. Order: 1 set
| Payment Terms: | T/T,Western Union,Paypal or Ali secure pay; | Packaging Detail: | wooden case; |
| Machine Type: | ac dc igbt; | After Warranty Service: | Video technical support,Spare parts; |
| Application: | Zinc,copper electroplating,anodizing; | Condition: | New; |
| communication: | RS485,PLC or touch screen; | Current: | 0~30000A adjustable; |
| Power(W): | 24000w; | Showroom Location: | None; |
| Local Service Location: | None; | Type: | Three phase; |
| Key Selling Points: | Easy to Operate; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| input: | AC220V/380V/440V; | Power supply: | 50Hz or 60HZ; |
| Place of Origin: | Guangdong China; | Supply Ability: | 1000 Piece/Pieces per Month; |
| Shipping Way: | by sea air or express; | Port: | Shenzhen; |
| Brand Name: | Haney; | Certification: | ISO9001; |
| Warranty: | 2 years; | Voltage: | 12v; |
| Name: | 12v 2000amp high frequency electroplating rectifier; | cool method: | air cooled; |
| Dimension(L*W*H): | 510L*500W*600L mm; | Applicable Industries: | Manufacturing Plant,Energy & Mining; |
| Weight: | 70kg; |
Welcome OEM

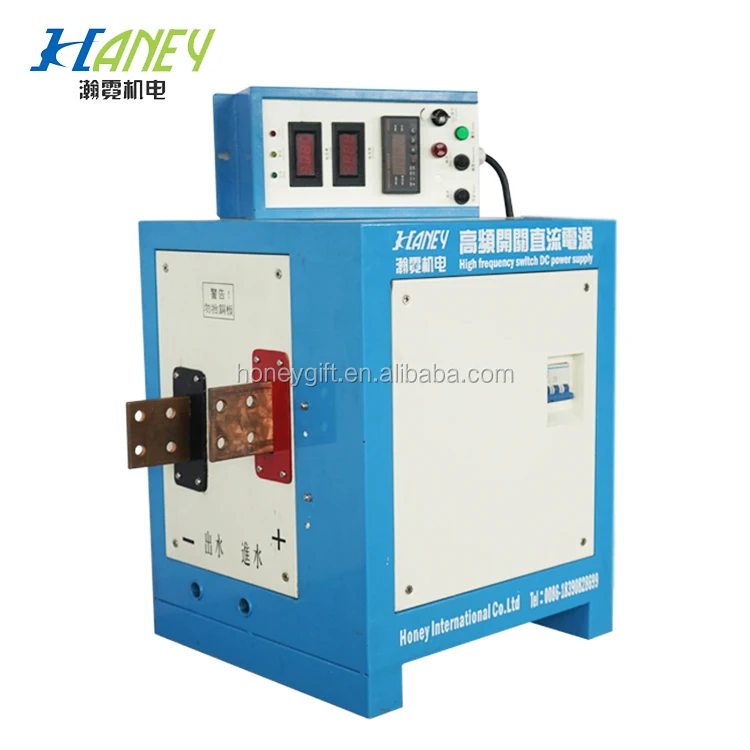

Industrial high frequency 2000A 12V switching metal electroplating plating anodizing rectifier machine
Specifications:
| Items | 2000A high frequency plating rectifier |
| AC input voltage | Three phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-12/24/36/48V...300V adjustable |
| Output current | DC 0-100/200/300/400/500A/1000A....30000A adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
| Related items | electrowinning power supply,anodizing rectifier,electrolysis rectifier,chrome rectifier,IGBT rectifier.... |
Buying Guides:
We are highly appreciate if you can provide the following details.
1. The productivity: xx per hour, xx hours per day.
2. Your application with the machine.
3. The power of your country,output &input voltage, output current, single phase/three phase?
4.See whether you need below optional functions or not?
Optional Function
| Standard control box | Timing control box, manual reverse, automatic reverse | Air or water cooling model |

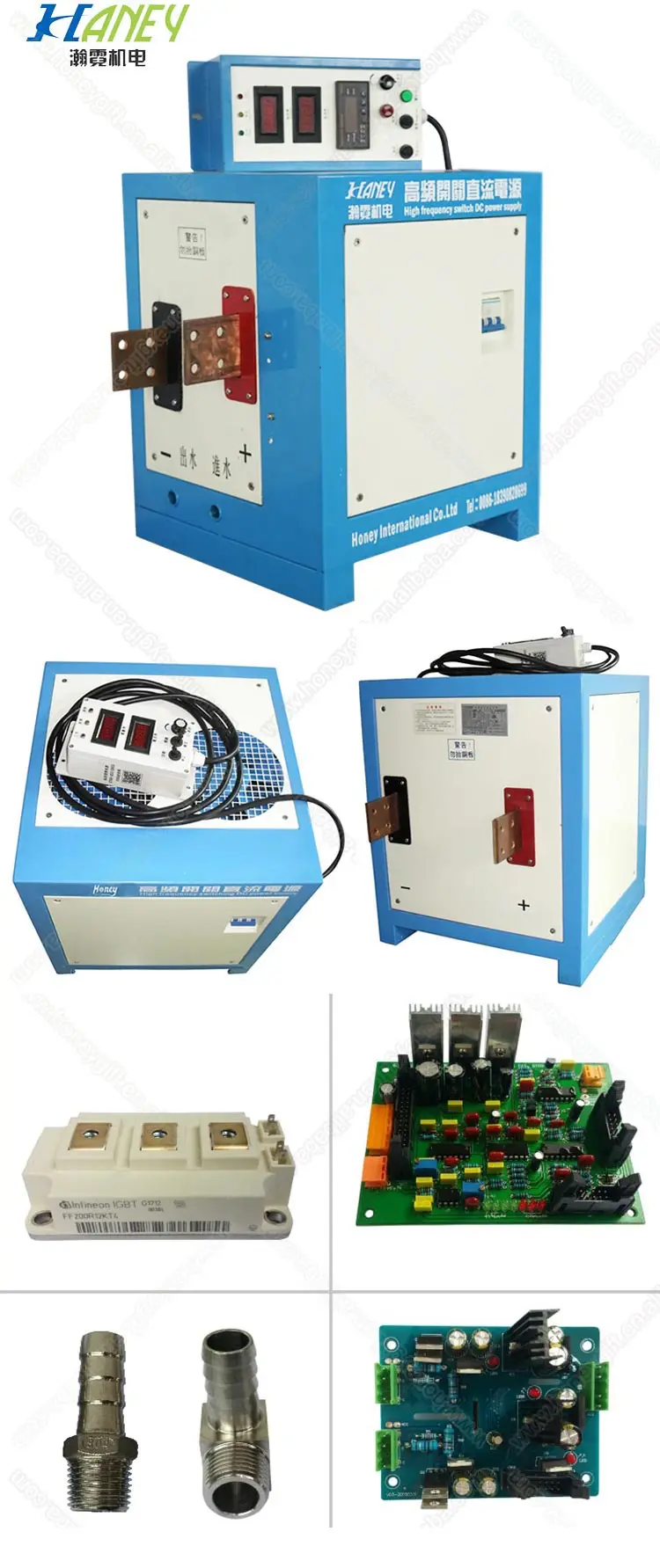

Panel of rectifier remote control box:
 | Name | Functions |
| Ammeter | To show output current | |
| Voltmeter | To show output voltage | |
| Power indication/Fault indication | To indicate power on/off To indicate fault red color led | |
| Function switch | To select status of constant voltage/constant current | |
| Output adjustment | To ajust output voltage/current | |
| On/off button with timer | To turn on/turn off the device |
Features:
1. Small size, light weight, electricity-saving, high accuracy
2. The communication interface can be provided
3. Duration control can be provided
4. Touch screen can be provided
5. Control mode: Local control or Remote control(the length of cable is determined by customers)
6. Japan IGBT(the default choice) or Germany IGBT are adopted
7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
8. Easy to operate and repair
Product Application
Honey Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
Trouble Shooting:
| Problem | Possible Cause | Solution |
| Connecting with power supply,when start,the power indition doesn't not blink,no output | a)Three-phase four line doesn't connect with zero line or lack or phase b)working frequency transformer inside the power sully is damaged | a)Check if the powe supply is lack of phase and the zero line is connected; b)change the transformer with the same working frequency on resolve the problems,then restart. |
| Fault indication blinks when you open the product | a)input power is lack of phase,lack of voltage,and over-load voltage. b)The fan is damaged. | a)exact the input power b)change the fan with the same specification one |
| no any response when turn on the power and turn off cann't normally turn on/off | Turning on/off button is damaged | Change the turn on/off switches(the switches like the boat shape),solve the problems,and then restart |
| Cann't adjust current or voltage continously or no any response | Output potentionmeter is damaged | Change the same potentiometer |
| When turn off the air-break switch,sound explosive,and the same time the air break automatically jump-off,and can't turn off again | a)the air break switch is damaged b)three phase rectification bridge is damaged,so that cause the main line of the rectifier short circuit. c)IGBT is damaged | a)change the air break switch b)change the related three phase rectification bridge c)change the related IGBT |
| The shell of the rectifier has electric when touch | humidity in the air casues electric inside the power supply | Open the product,use the infrared lamps or blower to make the air dry |
1. All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;
2.Strong technical ability ensures reasonable, professional and safe design;
3.Good quality components are used .
4. Full load testing before shipment ;
5. Complete protections
6. Meet CE requirement .
Our Quality Assurance:
1.Long history proved high reliability and high quality by foreign and domestic applications
2.ISO9001:2008 international quality standard, military standard quality control
Strong technical ability ensures reasonable, professional and safe design
3.Good quality components are used
4.Full load testing before shipment
5.Military application proved high reliability
Packing.
All the goods will be packed in carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .
Shipping.
The package will be shipped by DHL, FedEx, UPS,TNT or EMS Please choose one of them, after we shipped the parcel, we'll fill in the tracking number and inform you by E-mail. Pls write the correct address and telephone number when you make orders. So we can delivery the product for you.
-
