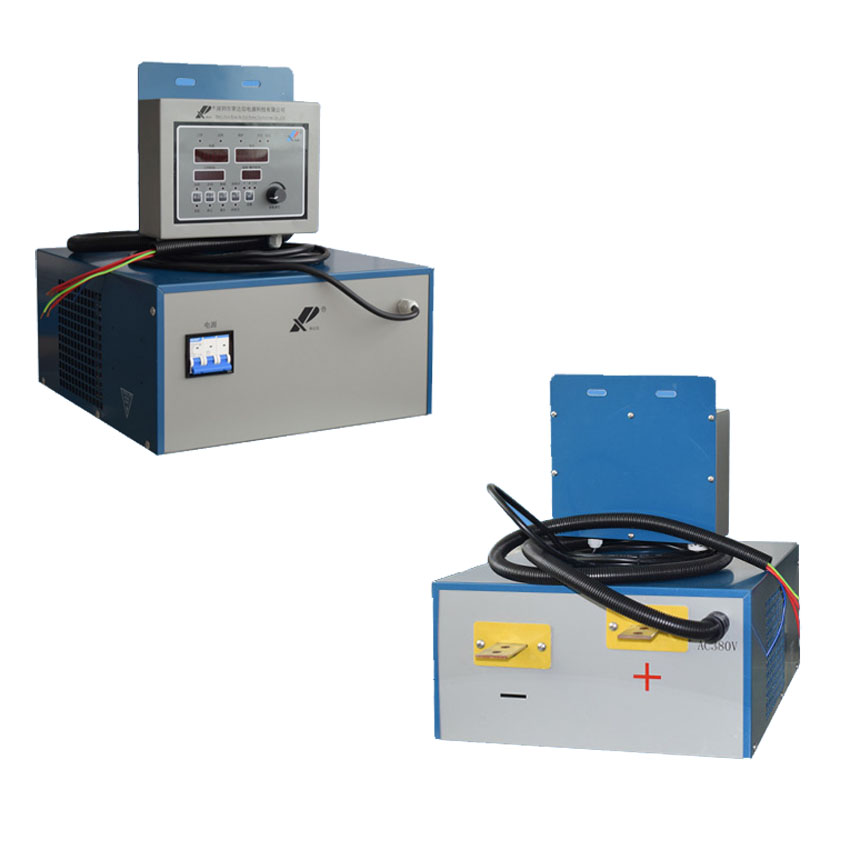

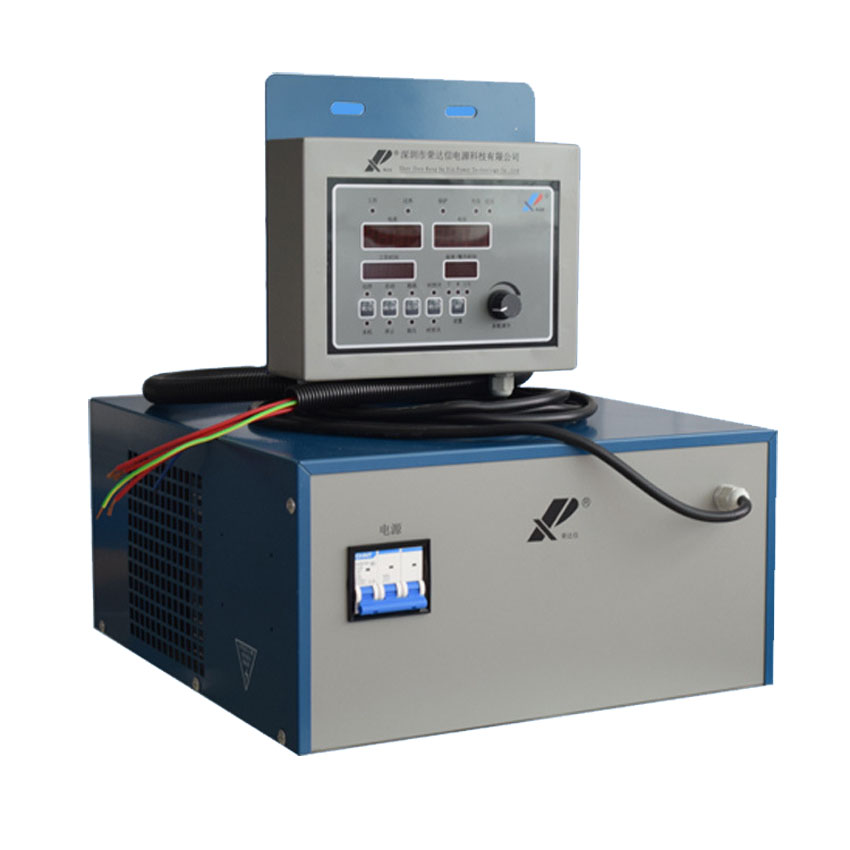

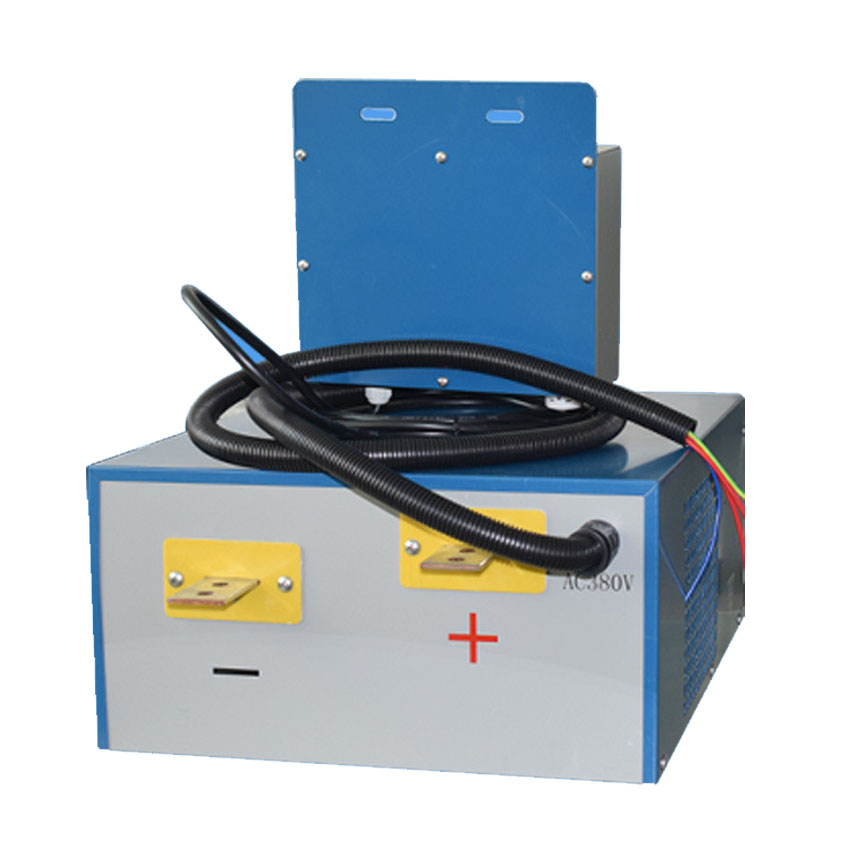

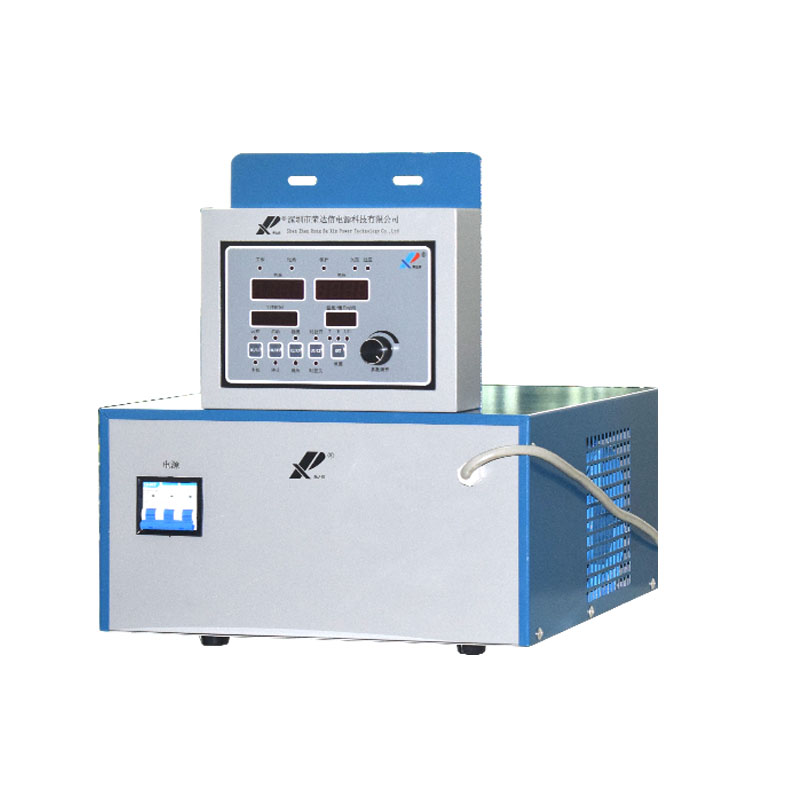

Electroplating hard chrome equipment electroplating machine rectifier air-cooled electrolytic electroplating power supply
- 400.00 1 - 9 pieces
- 380.00 10 - 99 pieces
- 350.00 >=100 pieces
| Video shipment inspection: | if | Dimensions (L*W*H): | 39*38*22CM |
| Health status: | new | The output voltage: | 0-36V |
| Supply capacity: | 100 pieces per day | Voltage: | AC110V-415V |
| Core components: | PLC, engine, bearing, motor, pressure vessel | Input voltage: | Single-phase AC 110V-415V |
| port: | Shekou/Yantian Port | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| place of origin; place of origin: | Guangdong, China | model: | PWH500A-15V-FZ |
| Packaging Details: | 1 piece/package Package size: 340*320*200mm Weight: 9KG | brand: | RDX |
| Output waveform: | 30KHz DC square wave | Adjustment method: | digital step adjustment |
| Applicable industries: | Manufacturing plant, electroplating line | Main selling points: | easy to operate |
| Package preview: | Showroom location: | not any | |
| Mechanical test report: | if | cooling method: | air cooled |
| Core component warranty: | 1 year | Marketing Type: | New Products 2021 |
| strength: | custom made | The output shows: | Digital voltage and current display |
| Stabilized voltage and current accuracy: | ≤±1% High precision control ≤±0.5% | Output current: | 0-300A |
| Warranty: | 1 year | Material: | iron + coating |
| Weight (kg): | 8 | Type of machine: | Plating equipment |
1. The main unit of the power supply is small in size, light in weight, beautiful in appearance, easy to install, safe to use, durable in corrosion protection (patent number: ZL 201930647572.2).
2. The unique heat dissipation isolation structure not only ensures good heat dissipation of the power supply, but also isolates the heat dissipation air duct from the electronic accessories inside the power supply, which has excellent heat dissipation and anti-corrosion effects (patent number: ZL 202021189839.1).
3. The power supply has protection functions such as overheating, overcurrent, short circuit, undervoltage, and overvoltage.
4. High power factor, high efficiency, stable output frequency, high control precision, high voltage and current output stability, which can effectively improve product quality.

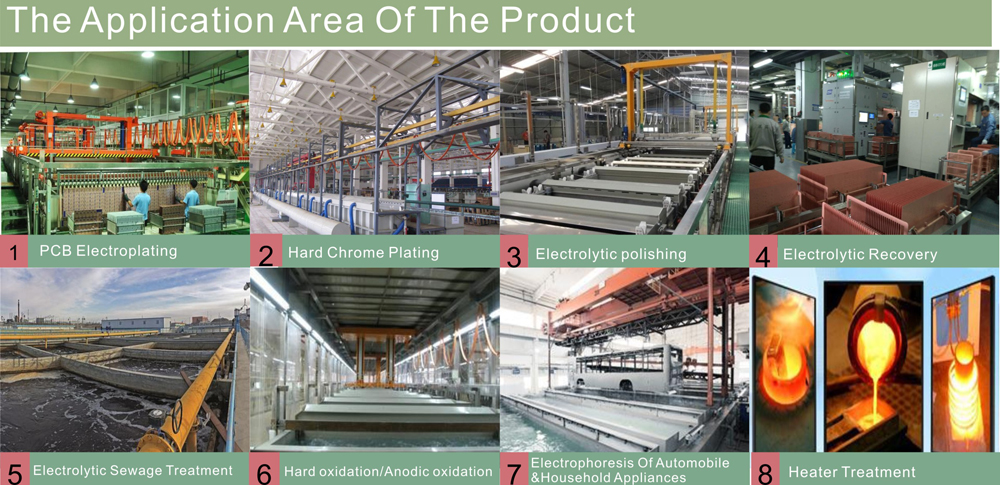

Product Usage
Used in metal and plastic electroplating; PCB electroplating; precious metal precision electroplating;
| Input voltage | Single phase: AC 220V 50/60HZ Customized: AC 110V-415V |
| The output voltage | 0-36V |
| Output current | 0-300A |
| output waveform | 30KHZ DC square wave |
| output display | Digital voltage and current display |
|
Stabilized voltage and current accuracy |
≤±1% High precision control≤±0.5% |
|
Adjustment method |
digital step adjustment |
|
Additional features |
0-20 cycle/temperature control/ammeter/Rs485 communication/ Soft start/multi-line control system |
