HN 4000A CE Electrolysis Nickel Zinc Copper Gold Silver Anodizing Barrel Chrome Plating Equipment Electroplating Machinery
-
Supplier: Liuyang Haney Electromechanical Equipment Co., Ltd. -
Region: Hunan, China -
Contact: Ms Sindy Zhou -
Price: $1500.00 / 1 - 9 pieces
$500.00 / >=10 pieces -
Min. Order: 1 piece
Product details
| Voltage: | 12V; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Plating Process: | Chrome Zinc Nickle Plating; | Place of Origin: | Guangdong China; |
| Equipment type: | Standing plating machine; | After Warranty Service: | Video technical support,Online support; |
| Showroom Location: | None; | Electroplating plating available: | Nickel Zinc Copper Barrel Chrome Plating; |
| Application: | Surface Treatment; | Single gross weight: | 68.0 KG; |
| Marketing Type: | New Product 2020; | Selling Units: | Single item; |
| Power: | 48kw; | Packaging Detail: | wooden packing; |
| Key Selling Points: | High-accuracy; | Surrounding equipments: | Rectifiers, Filter, Tank, Chiller, Heater; |
| Condition: | New; | Local Service Location: | None; |
| Plating style: | Chemical Plating; | Material of tank: | PP PVC; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ; | Certification: | CE; |
| Single package size: | 60X58X70 cm; | Warranty: | 1 Year; |
| Package Preview: | ; | Dimension(L*W*H): | 500*480*1050mm; |
| Machine Type: | Switching power supply; | Suitable for industry: | Plating; |
| Brand Name: | Haney; | Control system: | Remote Control; |
| Metal Electroplating Machinery: | Zinc Electroplating Plant; | Video outgoing-inspection: | Provided; |
| Machinery Test Report: | Provided; | Core Components: | PLC,Motor; |
| Warranty of core components: | 1 Year; |

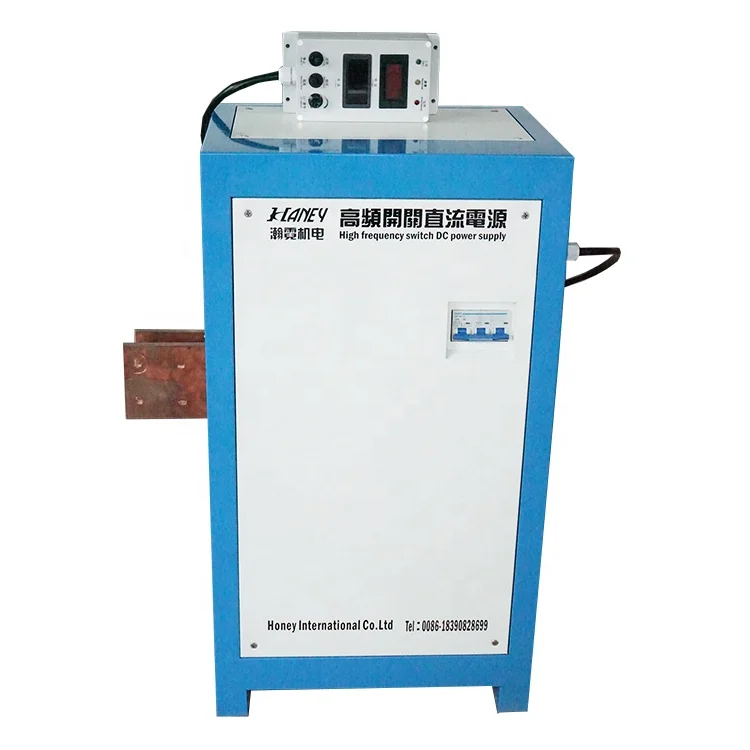

HN 4000A CE Electrolysis Nickel Zinc Copper Gold Silver Anodizing Barrel Chrome Plating Equipment Electroplating Machinery
Products Description
Description | HN 4000A CE Electrolysis Nickel Zinc Copper Gold Silver Anodizing Barrel Chrome Plating Equipment Electroplating Machinery |
Item No. | HN-12-4000 |
AC input voltage | Three phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
Output voltage | DC 0-12/24/36/48V...300V adjustable |
Output current | DC 0-100/200/300/400/500A/1000A....30000A adjustable |
Regulation range | 0-100% |
Power factor | ≥0.9(full load) |
Accuracy of output current, voltage | ≤0.1% |
Efficiency | ≥90%(full load) |
Protection grade | IP54 for water cooling, IP30 for forced air cooling |
Cooling method | Water cooling or forced air cooling |
Control mode | CC,CV,PWM Pulse control |
Operation mode | Local touch screen, front pannel, remote control box or communication |
Communication protocol | RS485, Profibus DP, MODBUS |
Working method | Long time full load continuous operation |
Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Related items | electrowinning power supply,anodizing rectifier,electrolysis rectifier,chrome rectifier,IGBT rectifier.... |
Panel of rectifier remote control box:
Name | Functions |
Ammeter | To show output current |
Voltmeter | To show output voltage |
Power indication/Fault indication | To indicate power on/off To indicate fault red color led |
Function switch | To select status of constant voltage/constant current |
Output adjustment | To ajust output voltage/current |
On/off button with timer | To turn on/turn off the device |
Product packaging

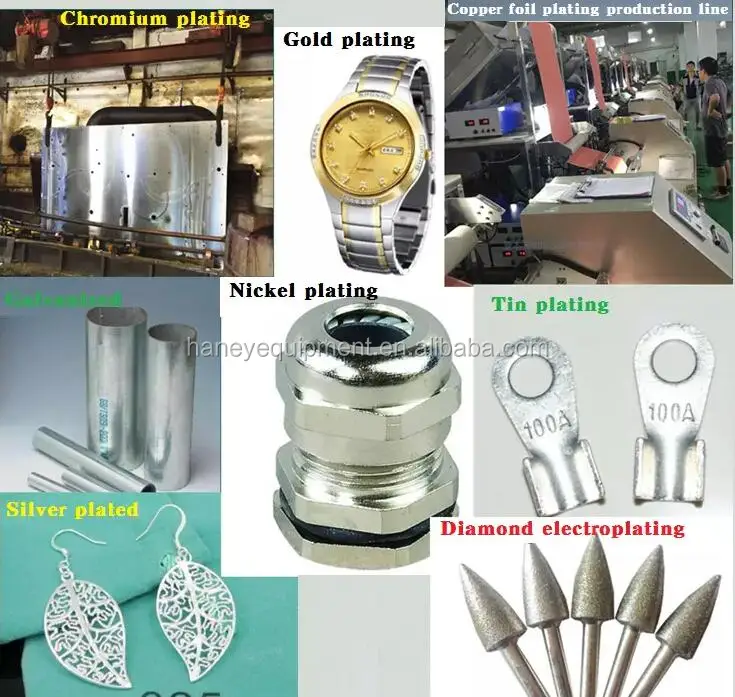

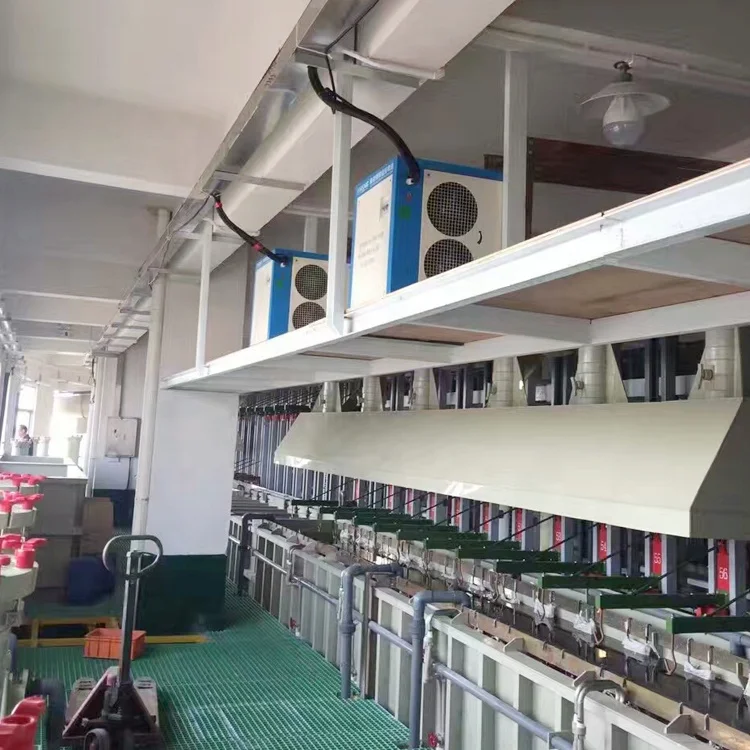

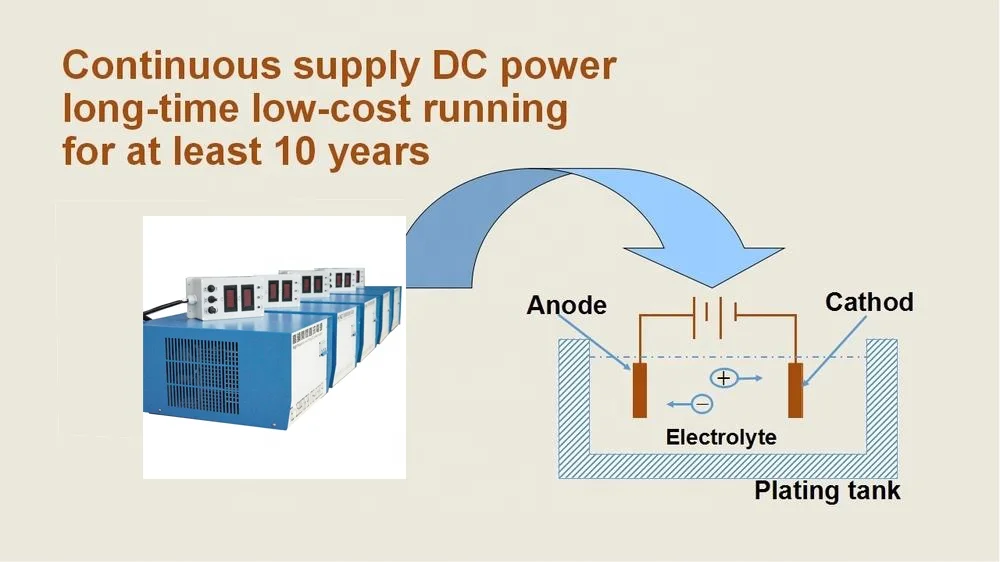

Application
Haney Rectifier is widely used in plating gold, silver, zinc, nickel, copper, chrome, anodizing, electrolysis, electrophoresis etc

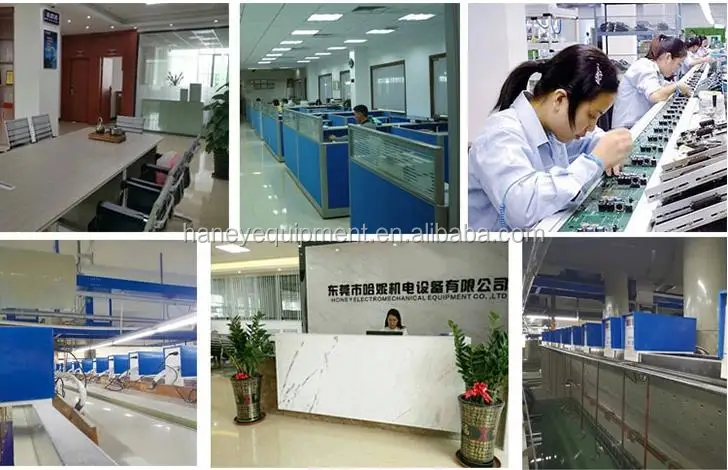

Company Profile
Liuyang Haney Electromechanical Equipment Co., Ltd.
A professional manufacture specializing in surface treatment application equipment , and printing machine.Our main product are rectifier machine, rotator plating machine, immersion heater, industrial chiller , heat exchanger, temperature control box, pump and other products for plating.

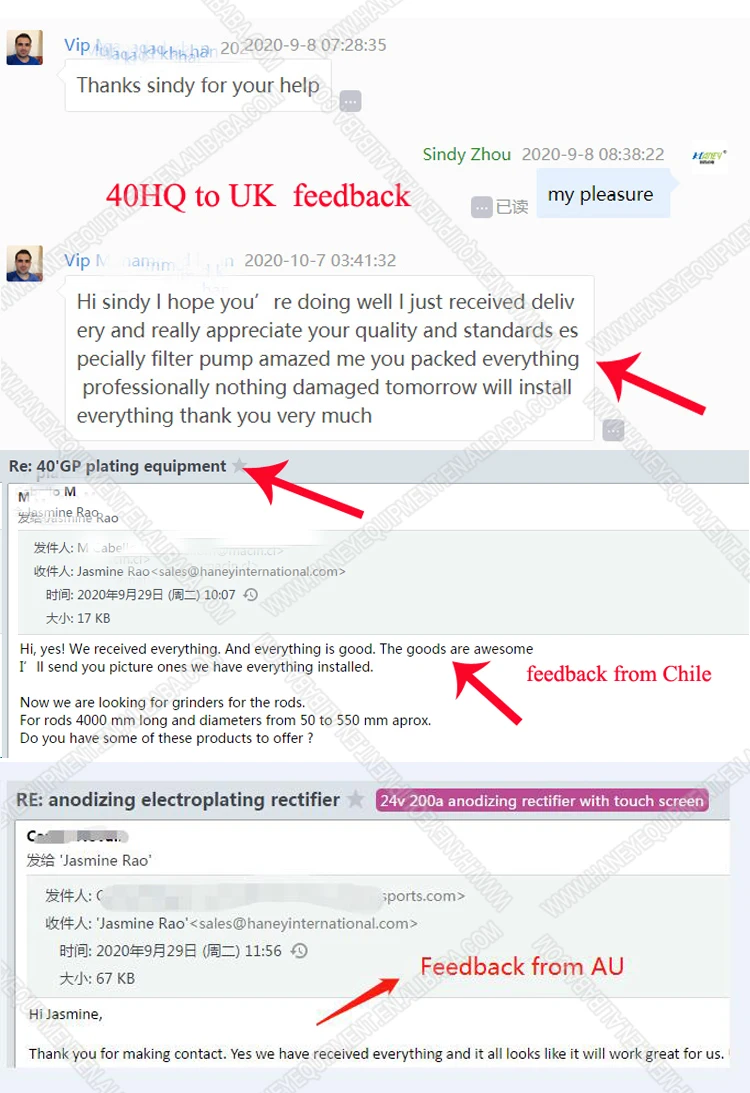

Customer Feedback
Why Choose Us
FAQ
Q: Are you a factory or not?
A: 100% sure we are manufacturer. We have factories based on Dongguan City.
Q: How about your terms and service?
A: Terms: FOB.CIF .CNF, Payment: T/T. or L/C at sight, Delivery time: Within 7days.
Q:What extra function do you have?
A:Optional:manual or auto reverse,timing control(manual or auto),filtering, temperature control,Ampere accumulative,slow start. Cooling mode:air cooling or water cooling.
Q:What’s the advantage of your rectifier?
A:New original accessories, pcb board made by our factory to control cost,100% full load aging test to ensure the stability of the machine.super allowance to make it can be full load used. 250KVA special line aging test to ensure the current within 20000A machine can be tested continuously,Quality access to ISO system.
Q:Do you have existing stock?
A:For normal item500-1000-2000-3000-4500-5000-6000-8000A,we always have stock, for customized requirement,delivery time is 5-7days,wooden case packing,which is secure enough.
Q: Quality warranty
A:Quality warranty is 1year,we can send you free accessory for replacement during the warranty time.
Q: Application
A:Haney Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome,anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
A: 100% sure we are manufacturer. We have factories based on Dongguan City.
Q: How about your terms and service?
A: Terms: FOB.CIF .CNF, Payment: T/T. or L/C at sight, Delivery time: Within 7days.
Q:What extra function do you have?
A:Optional:manual or auto reverse,timing control(manual or auto),filtering, temperature control,Ampere accumulative,slow start. Cooling mode:air cooling or water cooling.
Q:What’s the advantage of your rectifier?
A:New original accessories, pcb board made by our factory to control cost,100% full load aging test to ensure the stability of the machine.super allowance to make it can be full load used. 250KVA special line aging test to ensure the current within 20000A machine can be tested continuously,Quality access to ISO system.
Q:Do you have existing stock?
A:For normal item500-1000-2000-3000-4500-5000-6000-8000A,we always have stock, for customized requirement,delivery time is 5-7days,wooden case packing,which is secure enough.
Q: Quality warranty
A:Quality warranty is 1year,we can send you free accessory for replacement during the warranty time.
Q: Application
A:Haney Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome,anodizing,electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative technologies obtain national patents and users worldwide.
