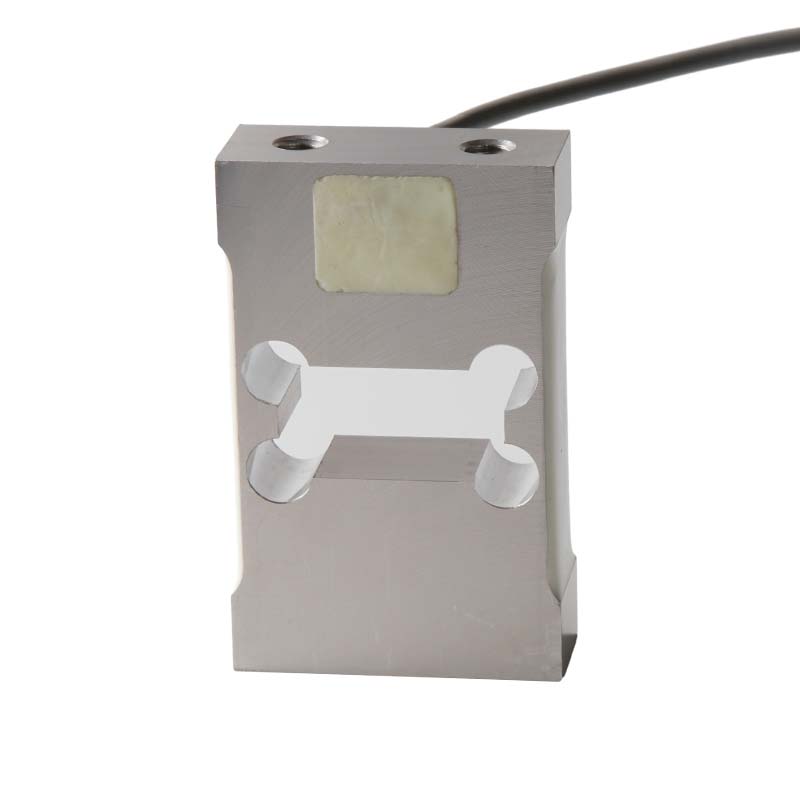

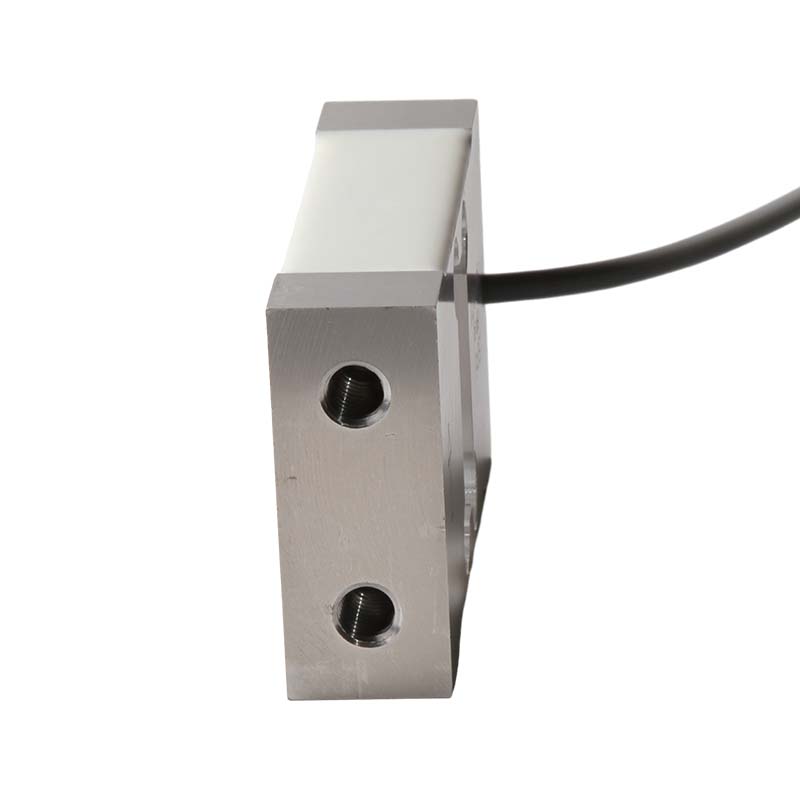

Single-point aluminum sensor load cell PX7 5/6/8kg is suitable for various electronic platform scales and electronic scales
- 45.00 1 - 49 pieces
- 44.00 50 - 99 pieces
- 43.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Package preview: | Place of origin: | Jiangsu, China | |
| describe: | Aluminum materials and load cells for electronic scales | type: | load cell |
| Protection level: | IP65 | Sales unit: | Single product |
| Output: | Analog sensor | Safe overload: | 150% full scale |
| brand: | Silvanus | Input resistance: | 400±50Ω |
| application: | Electronic platform scales and electronic scales | Material: | aluminum |
| capacity: | 100g/200g | Gross weight of single piece: | 4.000kg |
| series: | Single point load cell | Installation type: | Compression load cell |
| Extreme overload: | 200% full scale | model: | PX7 |
| Packaging details: | International packaging or according to customer requirements. | temperature: | -30~+70℃ |
| Single piece packaging size: | 15X5X5 cm | usage: | load cell |
| Output resistance: | 350±5Ω | theory: | Resistive sensor |
| accuracy: | C3 |
Product Description
Emax (maximum capacity) | Kilogram | 5/6/8 | ||
Minimum load cell verification interval (Vmin) | G | 1/1/1 | ||
Sensitivity | millivolt/volt | 2.0±0.2 | ||
level of accuracy | C3 | |||
Maximum number of verification intervals | Maximum current | 3000 | ||
Minimum load cell verification interval | minimum voltage | ≤±0.02 | ||
total error | %full range | ≤±0.0166 | ||
Creep | %FS/30 minutes | ≤±0.0166 | ||
Effect of temperature on sensitivity | %full scale/10℃ | ≤±0.0175 | ||
Effect of temperature on zero | %full scale/10℃ | ≤±0.0175 | ||
zero balance | %full range | ±1.0 | ||
Input resistance | Ω | 350±10Ω | ||
Output resistance | Ω | 350±5Ω | ||
Operating temperature range | ℃ | -30...+70 | ||
Safe overload | %full range | 150 | ||
Extreme overload | %full range | 200 | ||
Recommended excitation voltage | V | 5…15 | ||
Insulation resistance | Megohm/50V | ＞5000 | ||
Protection level | IP65 | |||
Load cell material | aluminum | |||
cable length | mm | 360 | ||
Cable outer diameter | mm | |||

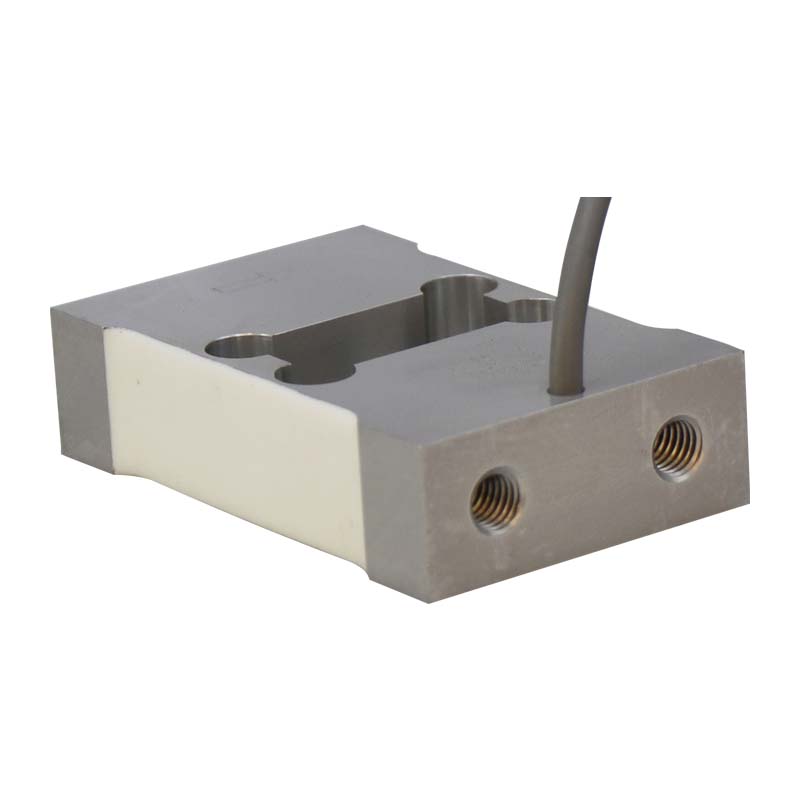

Product display
