Alloy Steel Scale 1-10t Load Cell Compression Weight Sensor (ET-1A)
- 45.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Zhejiang, China | Safe overload: | 300% full scale |
| Input resistance: | 385±15 | describe: | Southern Ocean |
| brand: | Southern Ocean | output: | - |
| Repeatability: | ±0.01% of full scale | payment terms: | L/C, D/P, D/A, T/T |
| type: | load cell | port: | Shanghai |
| theory: | - | Rated output: | 1.20±0.10 |
| model: | ET-1A | Zero balance: | ±1.00% of full scale |
| Packaging Details: | carton | usage: | pressure sensor, weight |
| Output resistance: | 350±5 | Non-linear: | ±0.02% of full scale |
| Creep (30 minutes): | ±0.02% of full scale | Hysteresis: | ±0.02% of full scale |
| Supply capacity: | 35000 sets per month |
Product Description

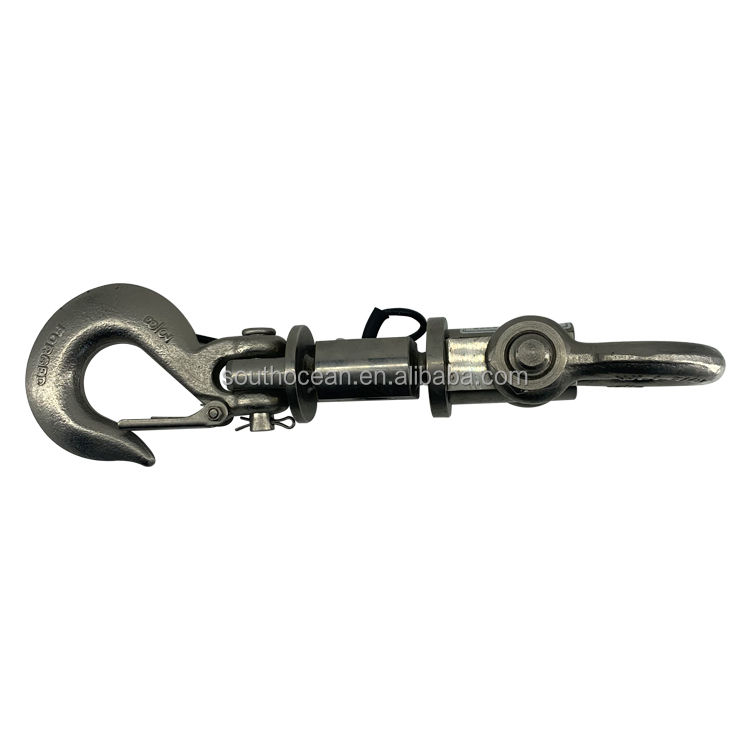

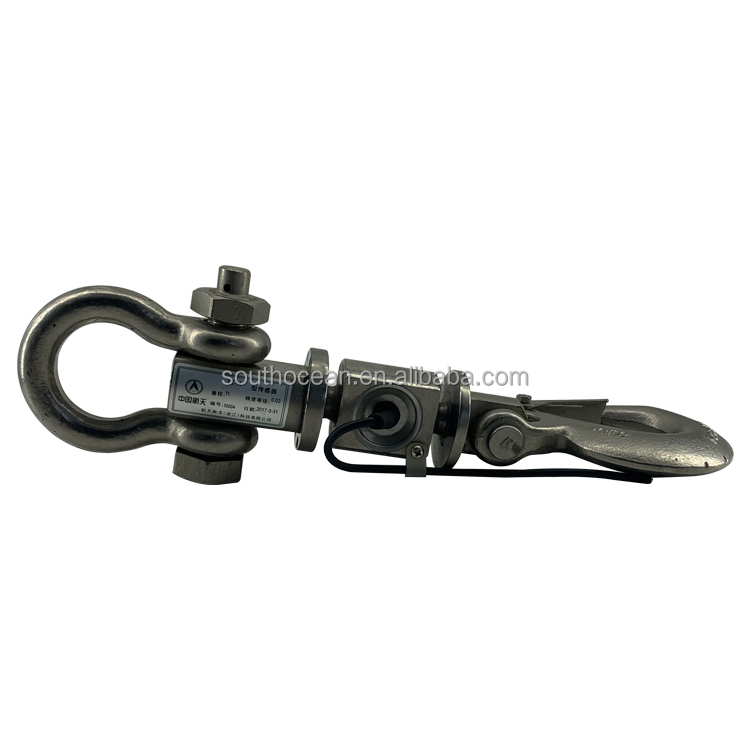

Dedicated load cellcrane scaleThe elastic body is made of integral alloy steel with high precision,Super overload protectionCapability and anti-offset load with special rings and hooks for easy installation
Specification
Material | alloy steel |
Rated output (mv/v) | 1.20±0.10 |
nonlinear | ±0.02% of full scale |
Hysteresis | ±0.02% of full scale |
repeatability | ±0.01% of full scale |
Creep (30 minutes) | ±0.02% of full scale |
zero balance | ±1.00% of full scale |
Effect of Temperature on Zero | ±0.02%FS/10℃ |
Effect of Temperature on Output | ±0.02%FS/10℃ |
Input resistance (Ω) | 385±15 |
Output resistance (Ω) | 350±5 |
IInsulation resistance | ≥5000MΩ |
Excitation voltage | 10v (DC/AC) |
Compensation temperature range | -10℃~+50℃ |
range of working temperature | -20℃~+60℃ |
safety overload | 300% full scale |
cable | φ4*0.5m (1m) |
