Force sensor for measuring injection pressure of injection molding machines
- 100.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| capacity: | 15t, 20t, 34t, 50t, 300KN | model: | TAS6B |
| Protection class: | IP65 | place of origin; place of origin: | Shaanxi, China |
| payment terms: | L/C, T/T, Western Union, PayPal | Lag: | 0.6%FS |
| brand: | High temperature sensor | usage: | Pressure Sensor |
| Nonlinear: | 0.6%FS | Material: | Ally Steel |
| Supply capacity: | 1000 pieces per month | Repeatability: | 0.2%FS |
| theory: | Resistive sensor | Packaging Details: | Inner packing: 1pc/box Outer packing: Standard export carton |
| thing: | force sensor | output: | Analog Sensor, 4-20mA |
| port: | Xi'an, China |
Welcome to HT Sensors

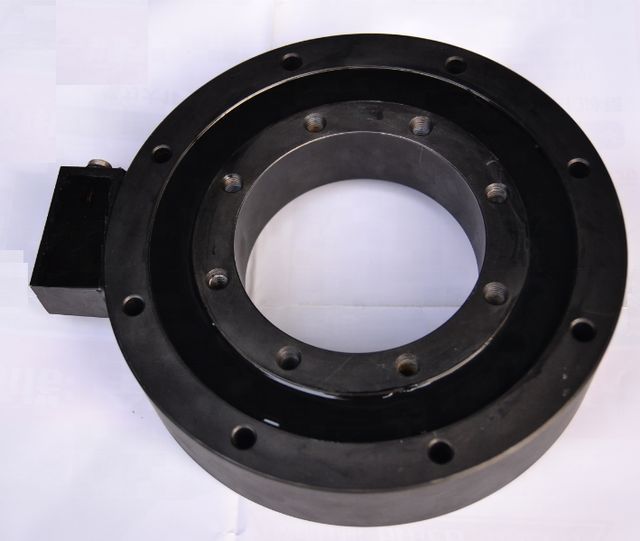

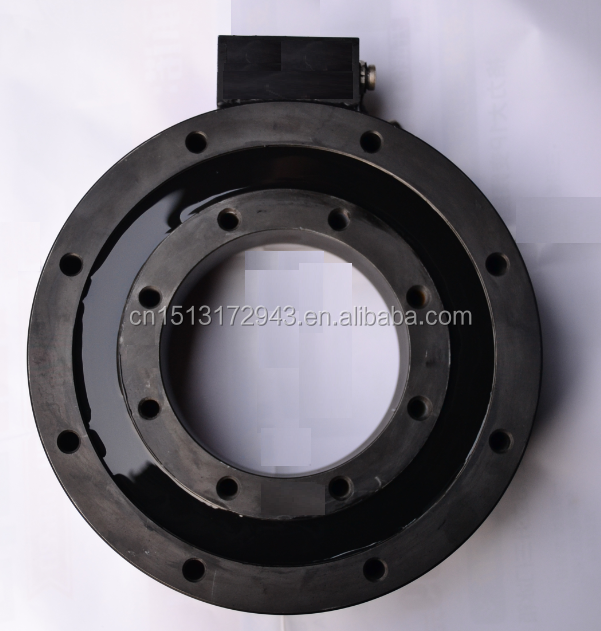

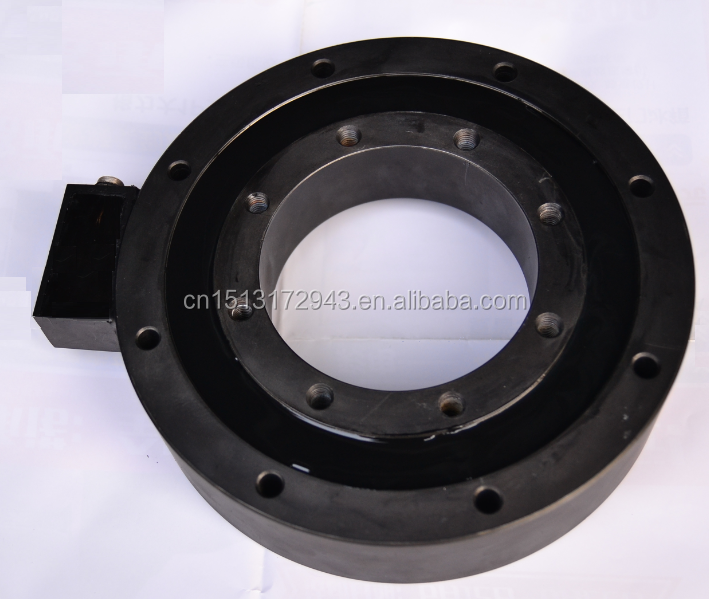

TAS6B force sensor for measuring INJECpressure
◆Capacity: 15Ton, 20Ton, 34Ton, 50Ton, 300KN
◆ Material: alloy steel
◆ Very high linearity and zero stability, high temperature stability
◆ Application: The force sensor can measure the injection pressure of the all-electric injection molding machine behind the mixing screw. The temperature of the sensor is very stable and the consistency of the shot weight is maximized.

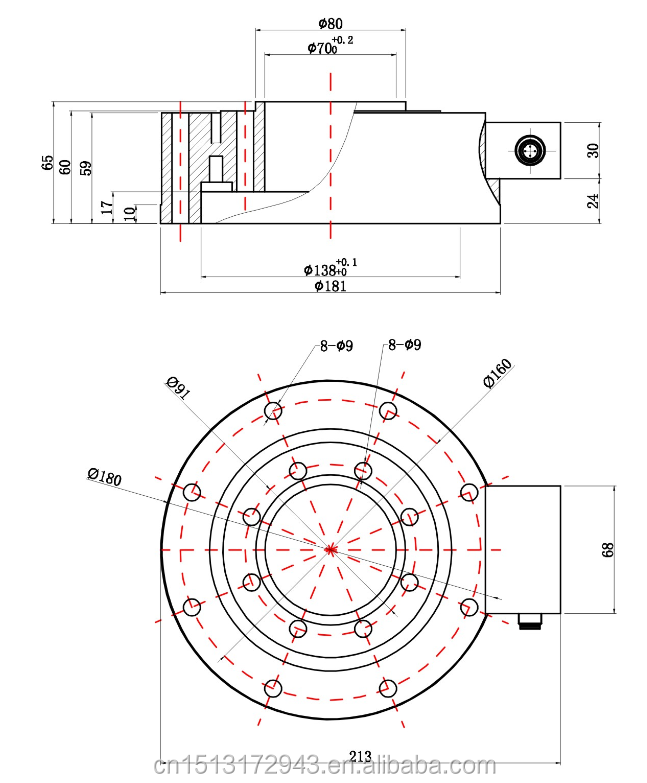

aspect
Capacity: 15 tons

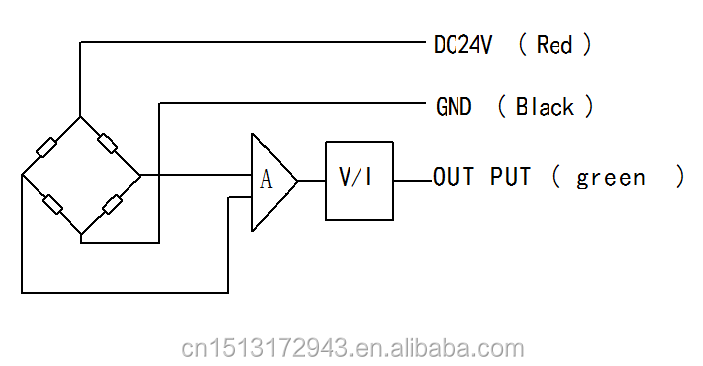

Cables and Connections:
Use shielded 4-conductor cable.
Cable length: 3m
Cable diameter: Φ6.5±0.2mm
Specification
| capacity | | 15 tons, 20 tons, 34 tons, 50 tons, 300KN |
| %FS | 0.6 | |
| %FS | 0.6 | |
| Repeatability | %FS | 0.2 |
| output | (Well) | 4~20 |
| voltage | (five) | 24 (DC) |
| °C | ||
| °C | -10 ~ +70 | |
| %FS/10℃ | 0.15 | |
| The effect of temperature on the output | 0.15 | |
| Safe overload | %FS | 150 |
| %FS | 200 | |
| Protection class | | IP65 |
| Material | | alloy steel |
| Durability | | Rated capacity 10^6 times |
| %FS | ± 0.05 | |
| %FS/10℃ | ± 0.05 | |
| Electrical connections | cable | |
