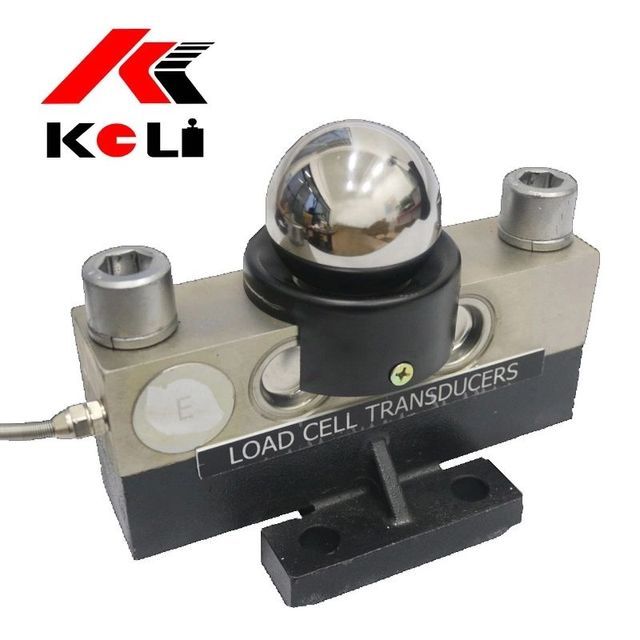

Waterproof alloy steel analog load cell for truck scale 1 ton 100 ton
-
Supplier: Shenzhen Full Sensors Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Jennifer zhang -
Price: $51.50 / >=4 pieces -
Min. Order: 4 pieces
| model: | FSDE6 | payment terms: | T/T, Western Union, MoneyGram, PayPal |
| product name: | Waterproof alloy steel analog load cell for truck scale 1 ton 100 ton | usage: | Pressure Sensor |
| port: | Shenzhen, Ningbo | Supply capacity: | 10000 pieces per month |
| accuracy: | C3 | application: | Truck scales, railway scales, mixing scales, etc. |
| theory: | Resistive sensor | Output resistance: | 703±2Ω |
| Input resistance: | 750±10Ω | Origin: | Guangdong, China |

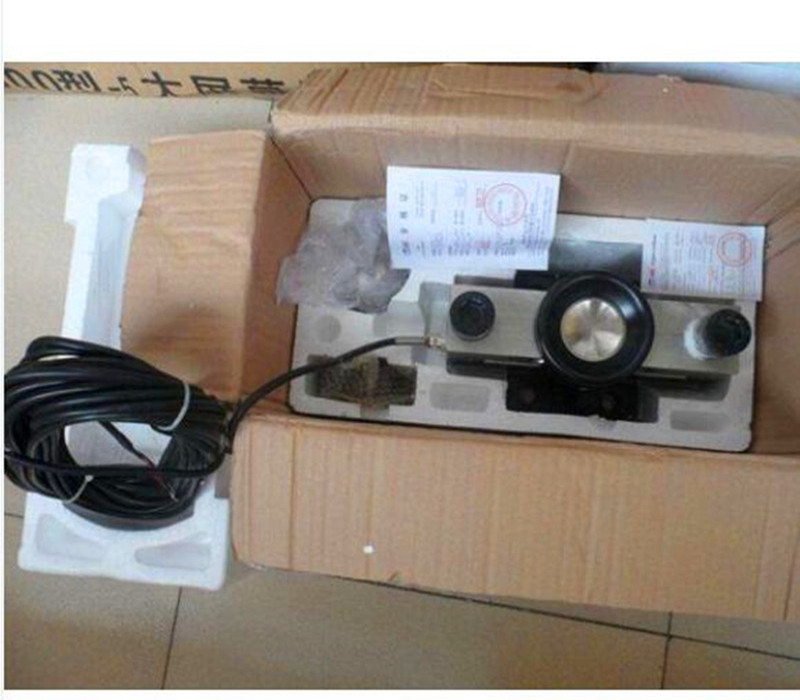

| type: | double ended shear beam | Packaging Details: | The packing method of waterproof alloy steel analog load cell is 1 ton 100 ton truck scale carton with foam pallet to prevent the product from deforming during transportation. |
| Sensitivity: | 2.0±0.002mV/V | output: | analog sensor |
| brand: | full sensor | Material: | stainless steel or alloy steel |
| capacity: | 5 tons, 10 tons, 15 tons, 20 tons, 25 tons, 30 tons, 40 tons, 50 tons | Warranty: | 12 months |
Waterproof alloy steel analog load cell for truck scale 1 ton 100 ton
Features and applications:
- Self-recovery function, easy to install.
- The most widely used bridge load cell.
- Stainless steel or alloy steel materials are available.
- Widely used in truck scales, railway scales, reconciliation control systems, etc.
Technical Parameters:
Rated capacity (Emax) | 5 tons, 10 tons, 15 tons, 20 tons, 25 tons, 30 tons, 40 tons, 50 tons |
Accuracy class | C3 |
| sensitivity | (2.0±0.002)mV/V |
| total cost of ownership | ±0.02% full scale/10°C |
| time span | ±0.02% full scale/10°C |
Creep error (30min) | ±0.02% of full scale |
Working voltage, recommended | 5V~12V (AC or DC) |
zero balance | ±2% of full scale |
input resistance | (750±10)Ω |
output impedance | (703±2)Ω |
Insulation resistance | ≥5000MΩ |
safety overload | 150% full scale |
extreme overload | 300% full scale |
Operating temperature range | (-30~+70)℃ |
Material | alloy steel and stainless steel |
degree of protection | IP68 |

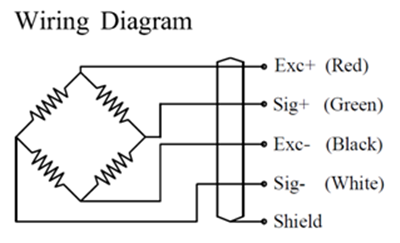

Wiring | Red: Exc+, Black: Exc-, Green: Sig+, White: Sig- |

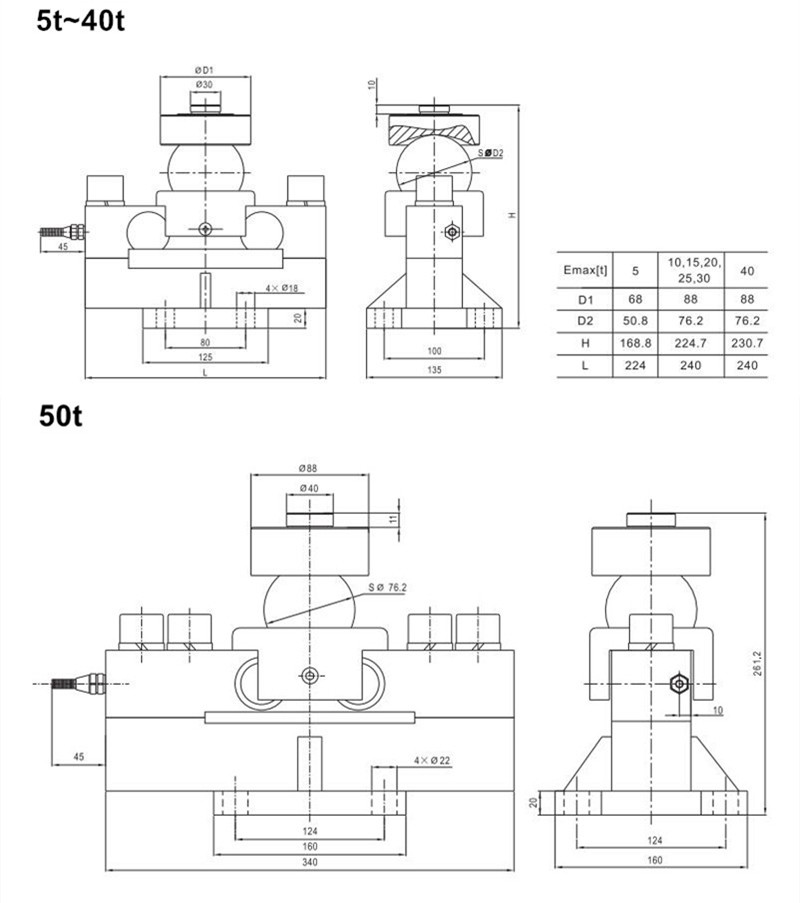

aspect:

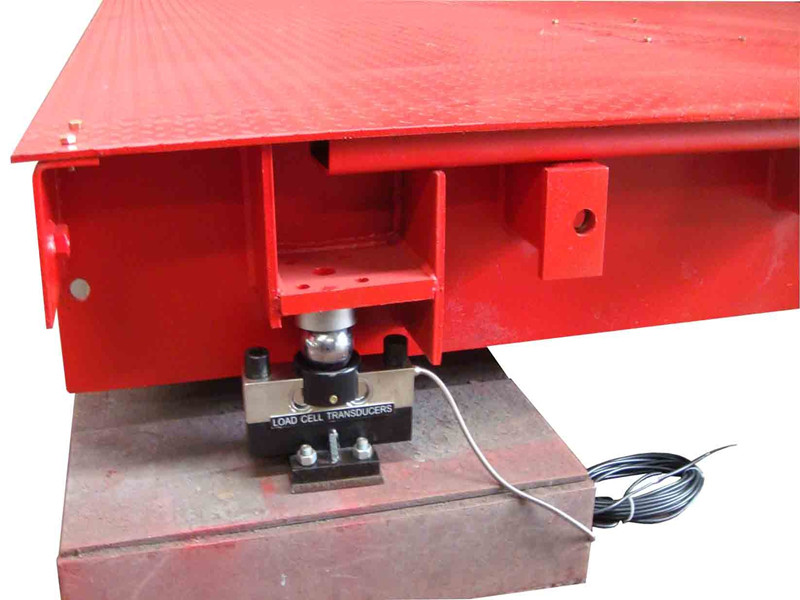

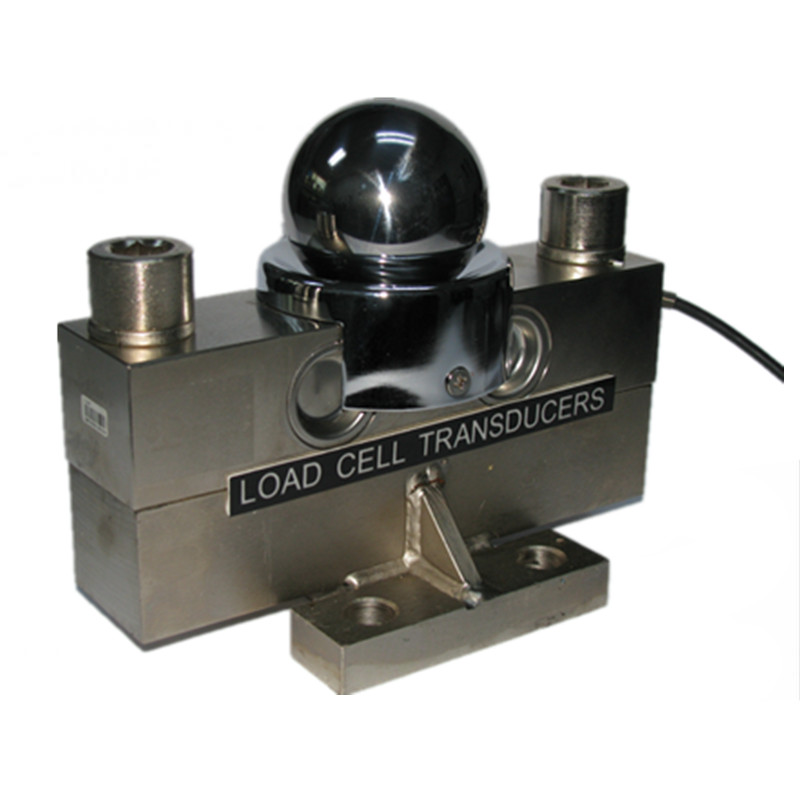

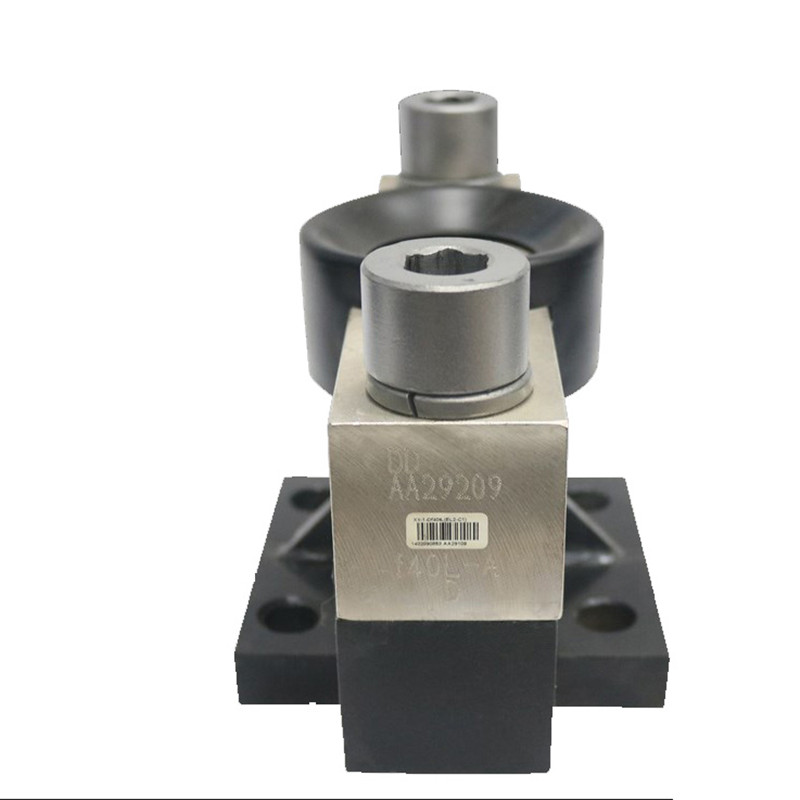

Product display:

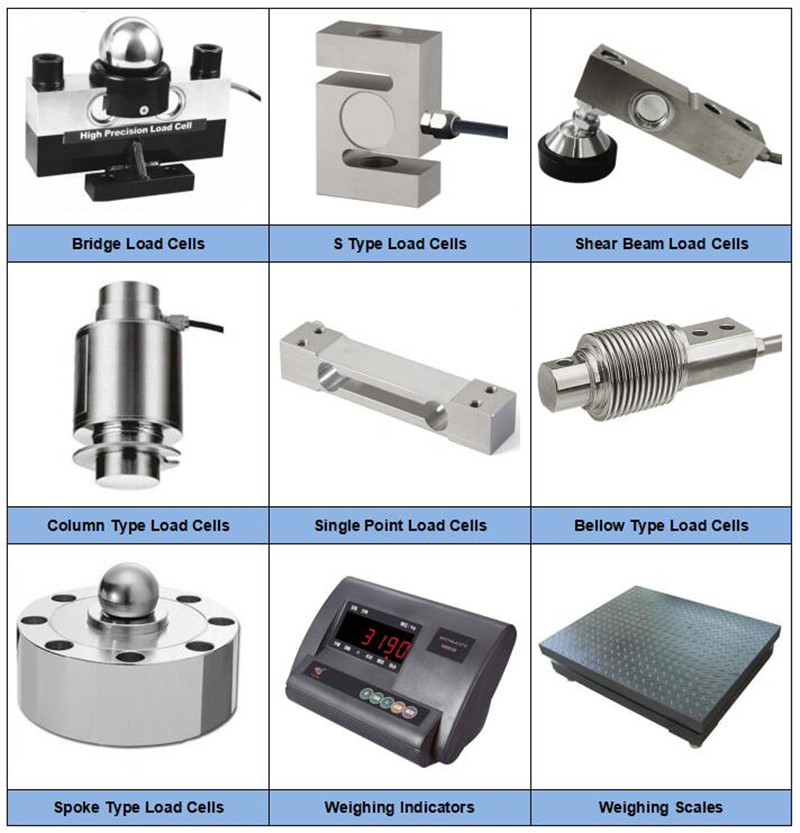

Related Products:

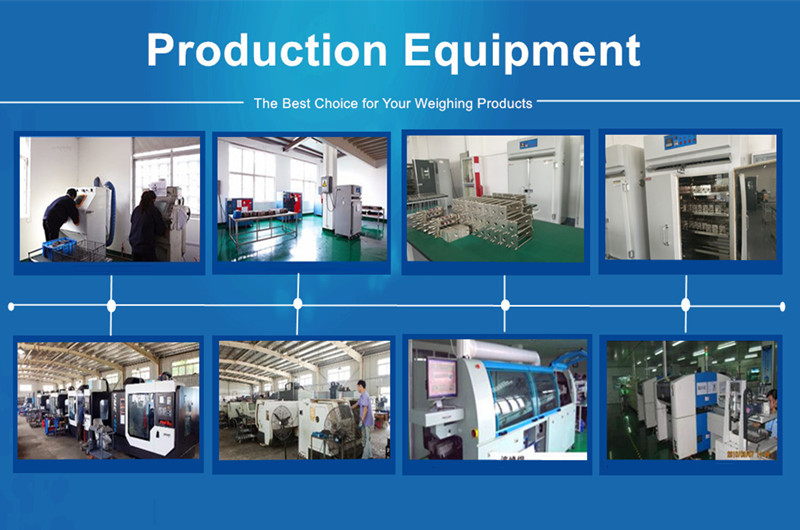

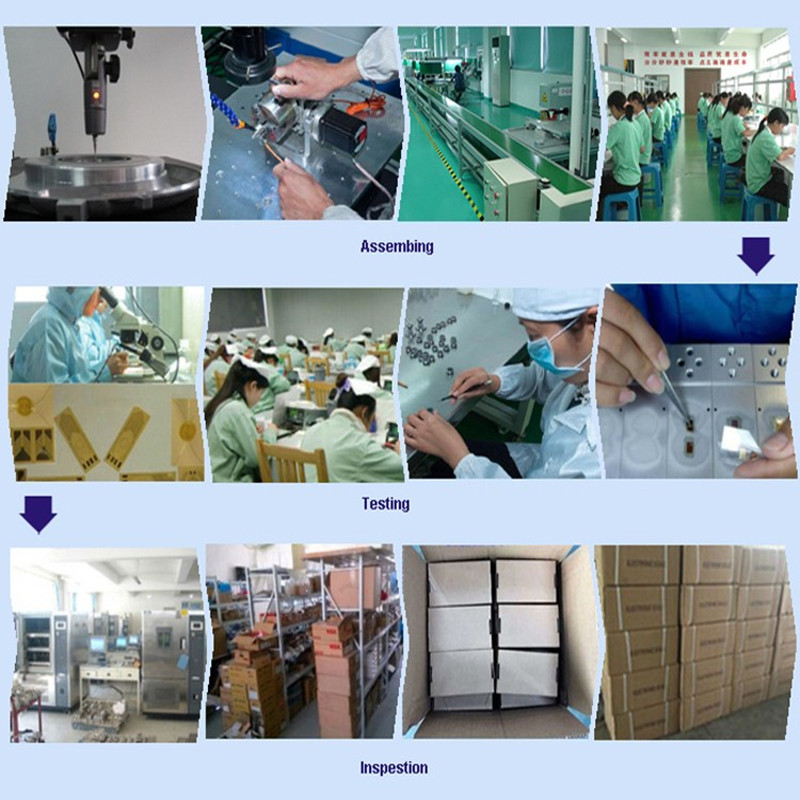

Our factory:
Payment method and shipping method:

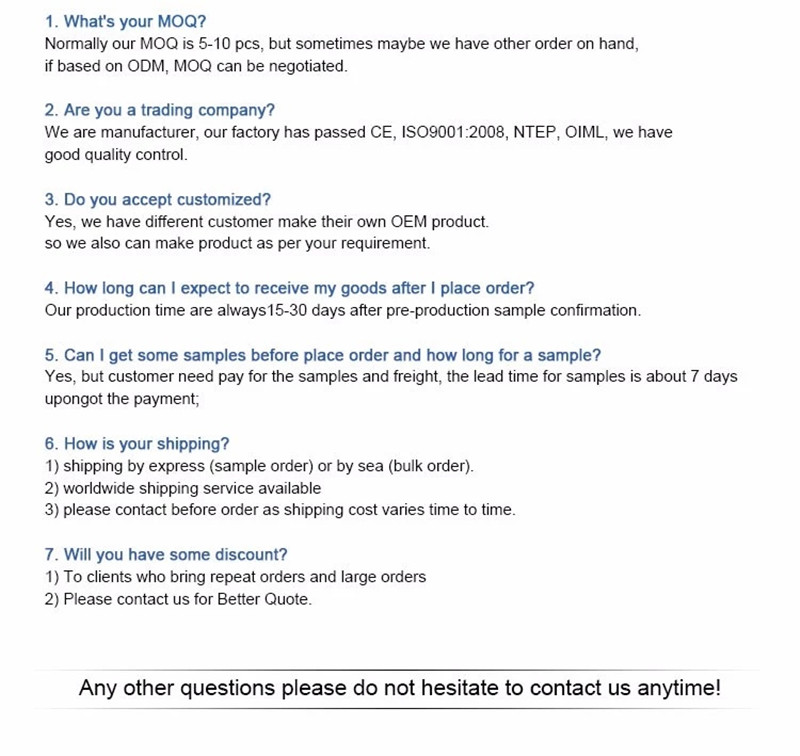

Frequently Asked Questions:
-
