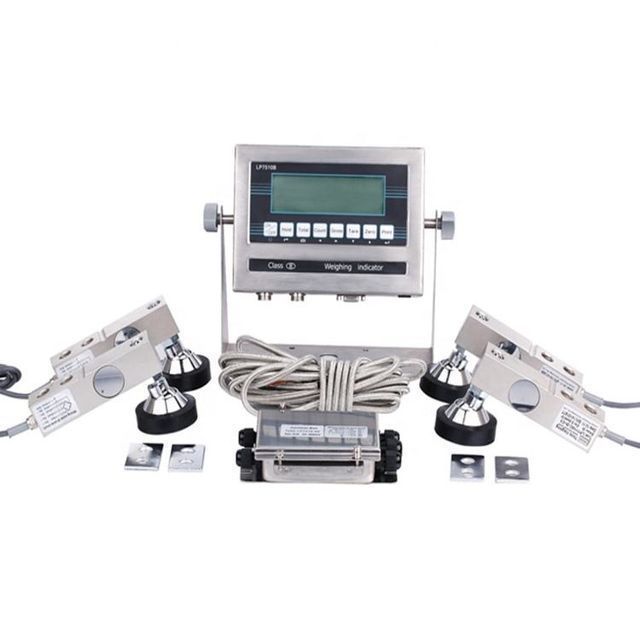

1000kg Scale Load Set Load Cell Price Online
- 140.00 1 - 99 pieces
- 130.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Zhejiang, China | Supply capacity: | 5000 pieces of load cells per month |
| Input Impedance: Load Cell: | 385 ±10 ohms | usage: | weighing kit |
| Package preview: | excitation: | 4~15VDC, maximum 15VDC | |
| application: | Platform scales, pallet scales, weighing modules | describe: | weighing kit |
| Destructive Load: Load Cell: | 200% full scale | Safe Overload: Load Cell: | 150% full scale |
| thing: | LP7910 Load Cell Kit | model: | LP7910 |
| Packaging Details: | Foam goes into inner box then into strong export carton digital load cell | Creep (30 minutes): Load Cell: | ± 0.02% of full scale |
| capacity: | 0.25, 0.5, 1, 2, 2.5, 3, 5, 7.5, 10 tons | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| Output Impedance: Load Cell: | 351 ± 2 ohms | port: | Shanghai, Ningbo |
| brand: | losoko | type: | load cell |
| Non-Linearity: Load Cells: | ± 0.02% of full scale |
hot product
Product Description
Specification:
| Rated Capacity | 0.25/0.5/1/1.5/2/2.5/3/5/7.5/10T | |
| Accuracy class | C3 | |
| Rated output | 2.0±0.002mv/v | |
| nonlinear | ±0.02% of full scale | |
| Creep (30 minutes) | ±0.02% of full scale | |
| input resistance | 385±10Ω | |
| output impedance | 351±2Ω | |
| Operating temperature | -10~+40℃ | |
| safety overload | 150% full scale | |
| destructive load | 200% full scale | |
| Excitation recommendation | 4~12VDC, Max: 15vDC | |
| cable | Length: 2.5~5m | Exc+ (red), Exc- (black), |
| 4 wires with shield | Sig+ (green), Sig- (white) | |
| put up | Alloy steel or stainless steel, IP67 | |
| application | Floor scales, pallet scales, weighing modules, etc. | |
more products
| Which type of sensor is right for you? |
We have different types of sensors ranging from 20kg to 400t, different types of sensors and matching power supplies and junction boxes, etc. There are new explosion-proof products for you to choose from. You can choose to contact us for recommendations, or you can enter our group selection, I wish you a happy shopping .
