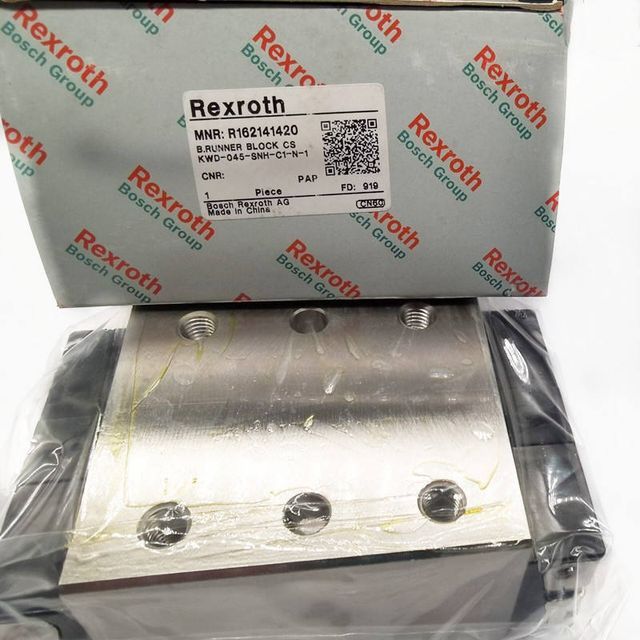

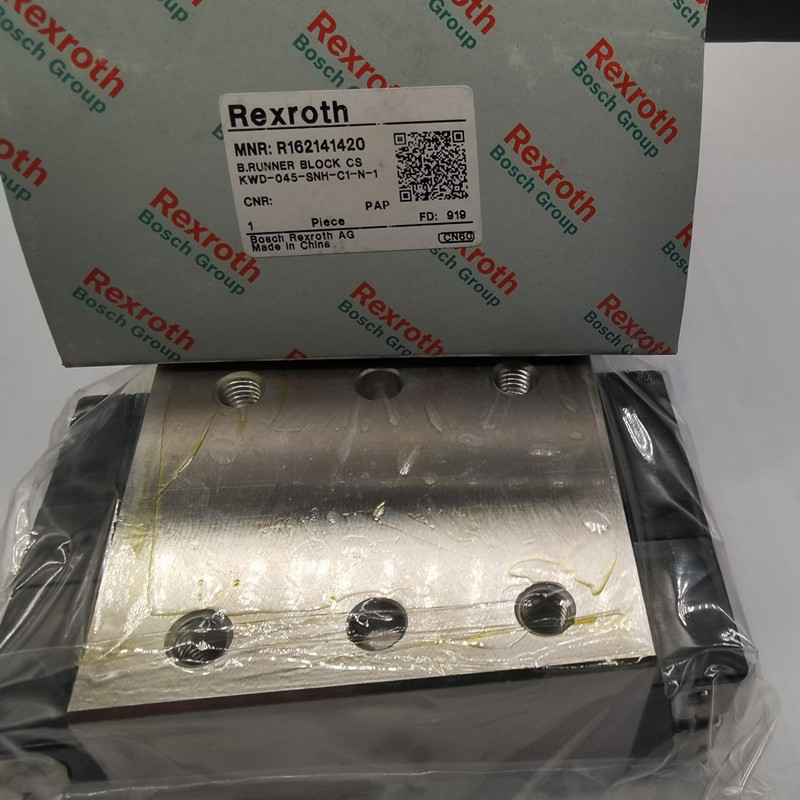

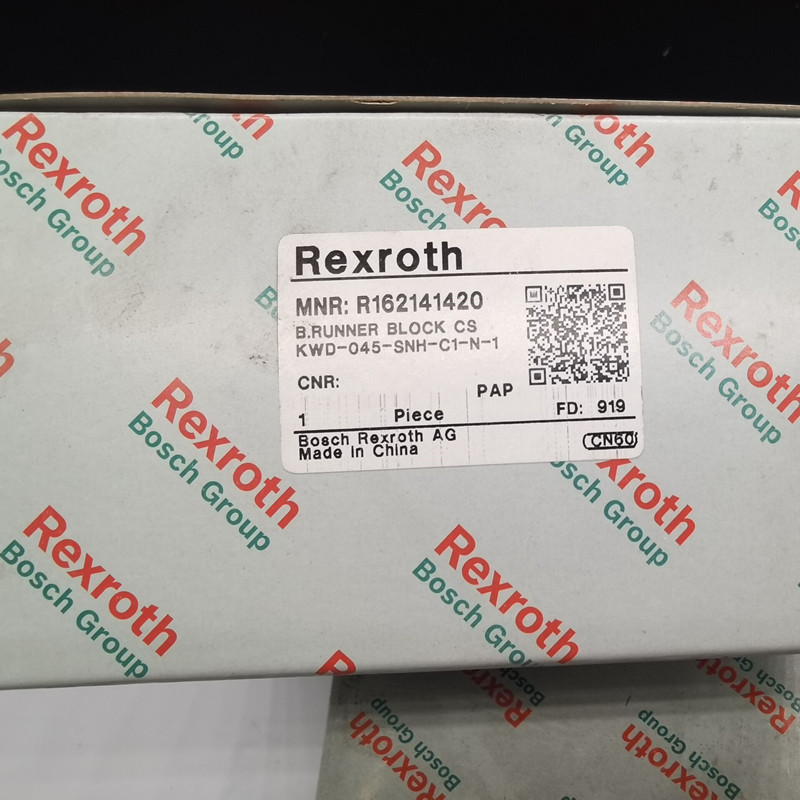

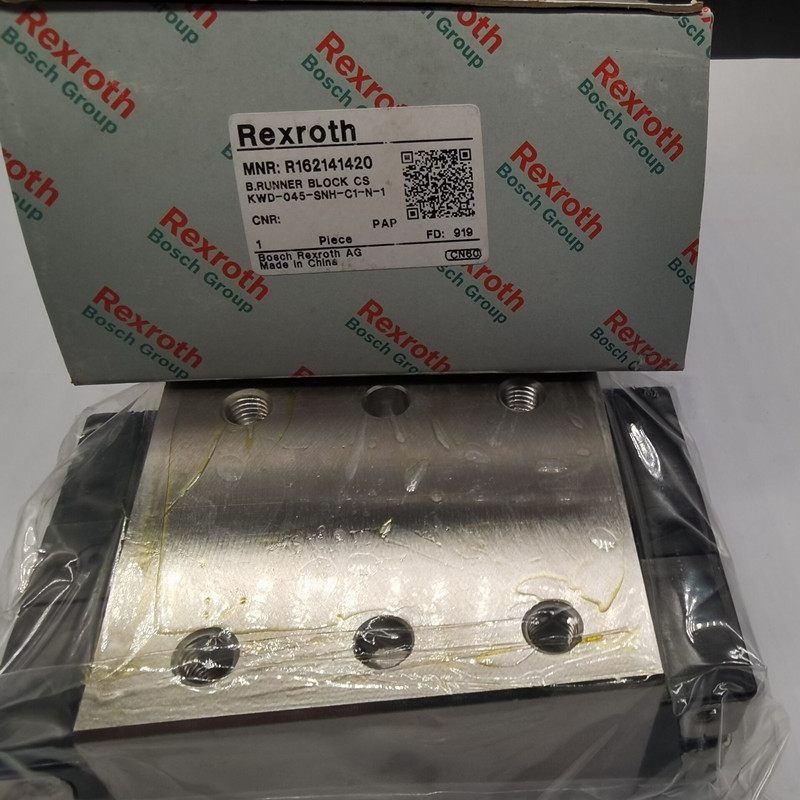

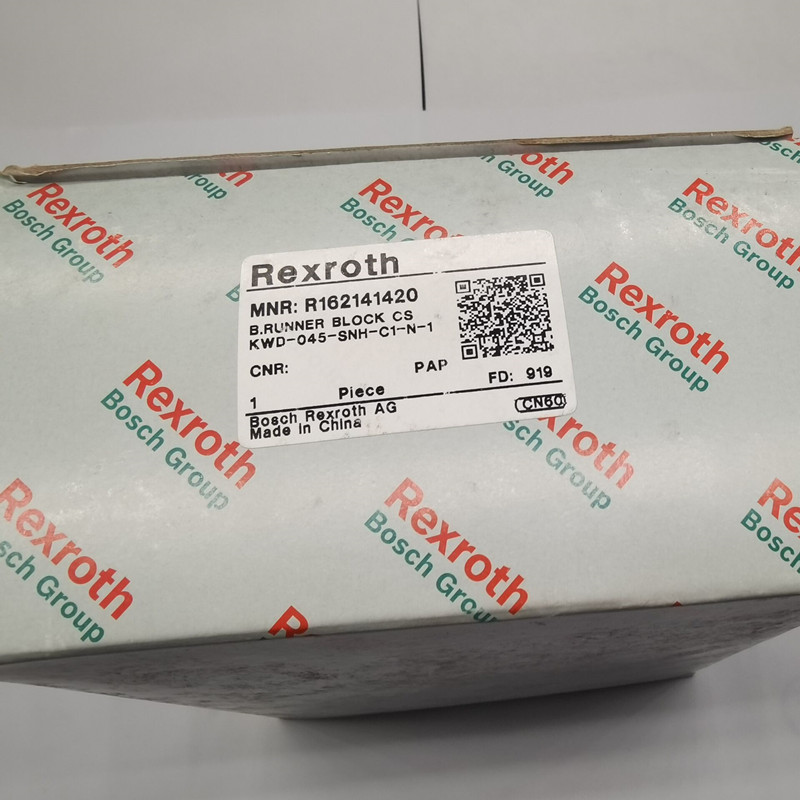

German Rexroth R162141220 R162141320 R162141420 linear guide slider

Supplier: Shandong XRT Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Zhang
Price: $18.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

port:	Qingdao, Guangzhou, Shanghai	Material:	Carbon steel
Supply capacity:	500,000 pieces per month	Block type:	block
application:	Mechanical Parts	Preload level:	C1
Rated dynamic load:	68100N	Mechanical test report:	not available
level of accuracy:	nitrogen	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
feature:	High rigidity; high precision	Packaging details:	original package
Applicable industries:	Manufacturing plants, machine repair shops, household, retail, energy and mining, other	size:	45mm
Video outbound inspection:	not available	brand:	Rexroth
Marketing type:	normal product	Core component warranty:	1 year
Showroom location:	not any	weight:	3kg
Health status:	new	Core components:	Linear guide block
Rated static load:	85700N	Warranty:	1.5 years

German Rexroth R162141220 R162141320 R162141420 linear guide slider

Product Image

Product Details

product name	German Rexroth linear guide ball block R162141220 R162141320 R162141420
brand	Rexroth
Material	Carbon steel
size	45mm
Preload level	C1
level of accuracy	nitrogen

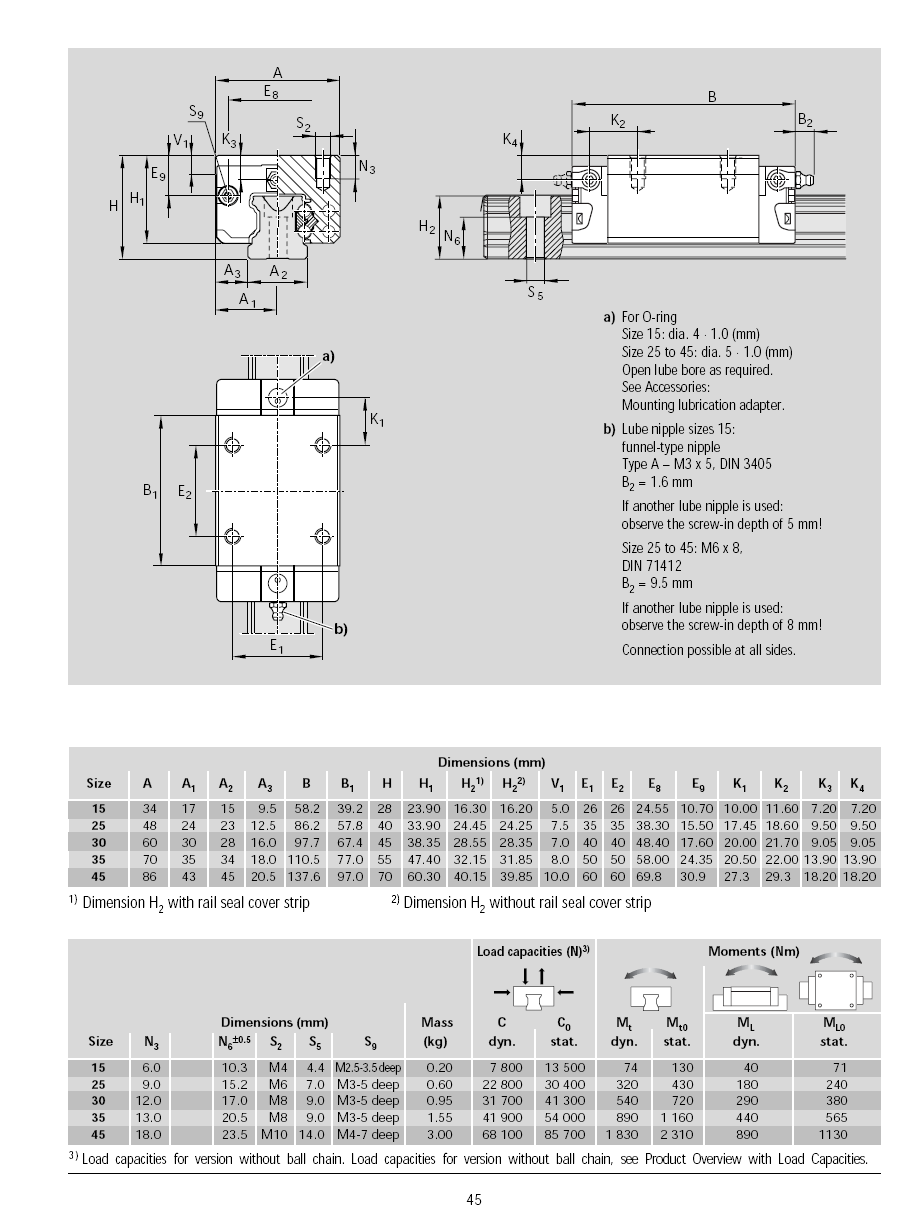

high	70mm
width	86mm
length	137.7mm
Block weight	3kg
Rated dynamic load	68100N
Rated static load	85700N
application	CNC machine tools

feature

Size 45
Format SLH: width = slender, length = long, height = tall
Slider body made of carbon steel CS
Preload level C1: low preload
Accuracy level N: Normal
Without ball and chain
Has initial lubrication and anti-corrosion effects
Bearing grease Dynalub 510
Without accessory elements, left side (reference edge at front)
Without connecting elements, right side (reference edge at front)
Straight lube connection is loose.
Standard slider body
Total slide length = 119.7 mm
Interchangeability: Slides and guide rails can be combined as required within each accuracy class.

Application areas: occasions with limited lateral space and high rigidity requirements
Higher rigidity than SLS
Significantly reduced frictional vibrations and low friction levels, especially under external loads
Maximum accuracy
Patented entry zone increases stroke accuracy six times
High stiffness in all load directions – allows applications using only one slide per rail
High torque load capacity
Unlimited interchangeability, since all ball guide rail systems can be freely combined with all ball runner block versions within every accuracy class.
Long-term lubrication can be achieved for several years
End-face fastening thread for all accessories
Smooth and quiet operation thanks to optimized design of ball return and guide rails
Different preload levels
Excellent dynamic characteristics
Can be used on all SNS/SNO ball guides
Ball runner blocks are pre-lubricated at the factory
