HRW27CRM HRW27CR GK Block Guide Rail HRW27CR1UU+160L 220L THK Linear Guideway HRW27

Supplier: Jinan Baisite Bearing Co., Limited
Region: Shandong, China
Contact: Mr Guoqing Zhang
Price: $29.90 / 2 - 9 pieces
$19.90 / 10 - 99 pieces
$9.90 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

brand:	Taikang	Marketing Type:	normal product
Origin:	Japan	in stock:	rich
product name:	Bearing seat HRW27CR1UU THK linear guide rail HRW27	Core component warranty:	1 year
Health status:	new	Core components:	bearing
Mechanical test report:	not available	Video shipment inspection:	not available
weight:	0.35 kg	Product number:	HRW27 HRW27CRM HRW27CR HRW27CR1UU
Package:	original packaging	quality:	smooth linear motion
Performance:	High speed and high precision	payment terms:	wire transfer, paypal
Shaping mode:	punching die	Warranty:	1.5 years
feature:	longevity	structure:	Slide rail + slider
port:	Qingdao Shanghai Guangzhou	Packaging Details:	single box
Applicable industries:	Manufacturing plants, machinery repair shops, retail, construction, energy and mining	Material:	Chrome steel
Showroom location:	not any	Supply capacity:	500 pieces per month

HRW27CRM HRW27CR GK block guide rail HRW27CR1UU+160L 220L THK linear guide rail HRW27

Product Description

Set/single product	only block	block type	[Standard] CR: Compact
Nominal part number	27	Rail type	broad gauge
Rail width W1(mm)	42	Installation height M(mm)	27
Material	Carbon steel	radial clearance	normal
Accuracy class	Normal grade (best lead time)	volleyball	4 rows, round
retainer	not applicable	lubrication system	not applicable
rolling element	ball	Basic rated load dynamic rating C(N)	14200
Basic load rating static rating Co(N)	21600	Allowable static moment MA(N·m)	166
Allowable static moment MB(N·m)	166	Allowable static moment MC(N m)	423
Block mounting hole distance (width direction) (mm)	46	Block installation hole distance (length direction) (mm)	32
Block mounting hole diameter	6	Rail mounting hole pitch (mm)	60
Rail installation aperture	4.5	dust symbol	UU: end seal
Block size W(mm)	62	Block size L(mm)	72.8
block mounting holes	Threaded hole	Number of block mounting holes (holes)	6
Mounting hole size S(M)	M6	Mounting hole size H(ø)	-
Mounting hole screw depth (mm)	6	Block size L1(mm)	51.8
RoHS Directive	10	-	-

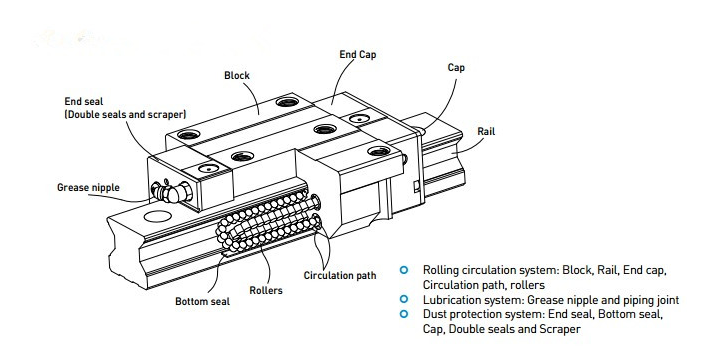

High rigidity linear motion rolling guide evenly supports high load capacity with built-in large diameter balls.

Products with ultra-sealed specifications have excellent dust-proof performance through the combination of integrally ground dedicated slide rails and sliding units with end face seals and special-shaped bottom seals. The special specification of the inner seal further improves the dustproof performance of the ball circulation part against foreign matter from the upper surface of the track guide.

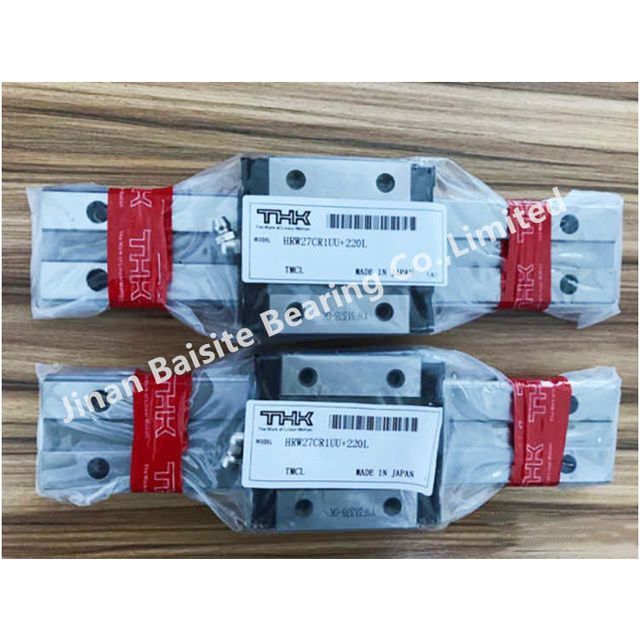

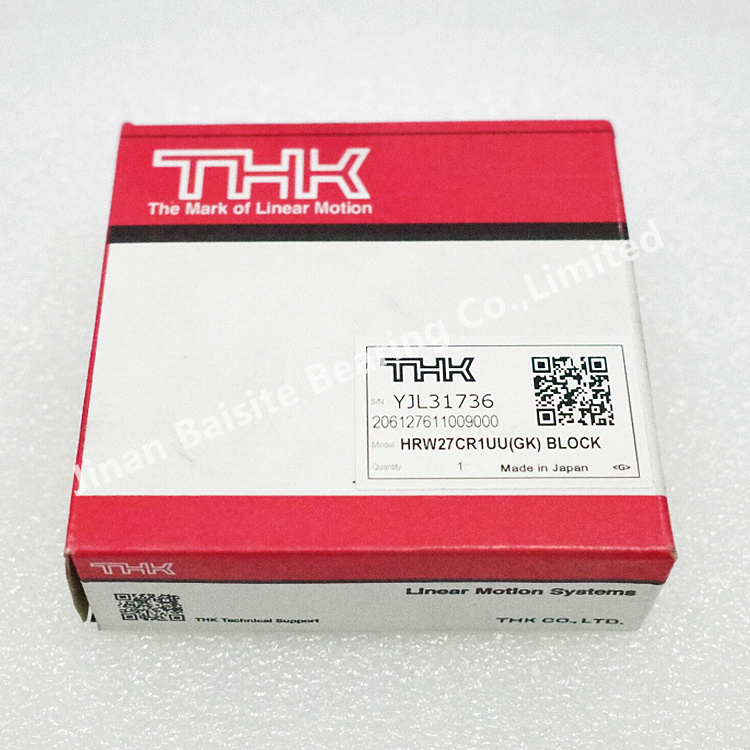

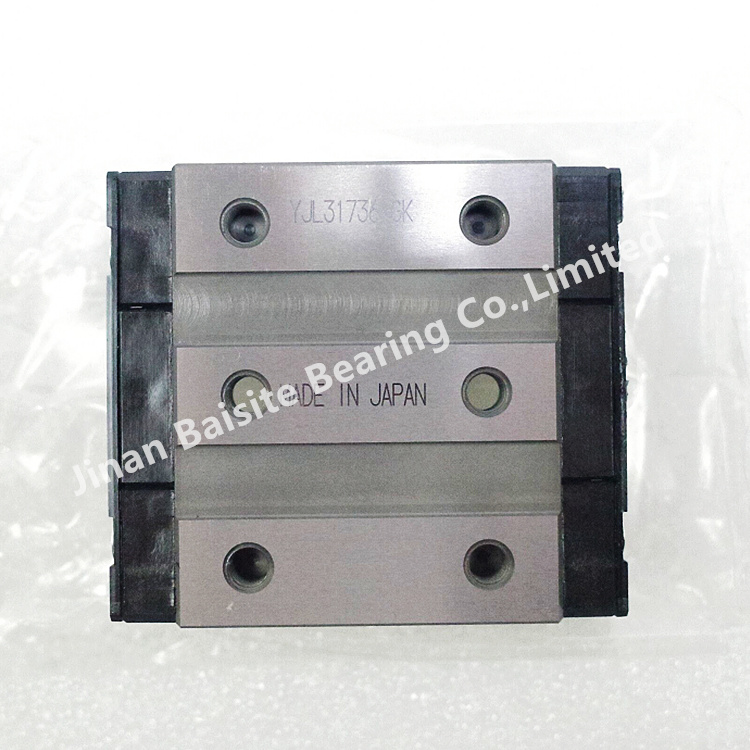

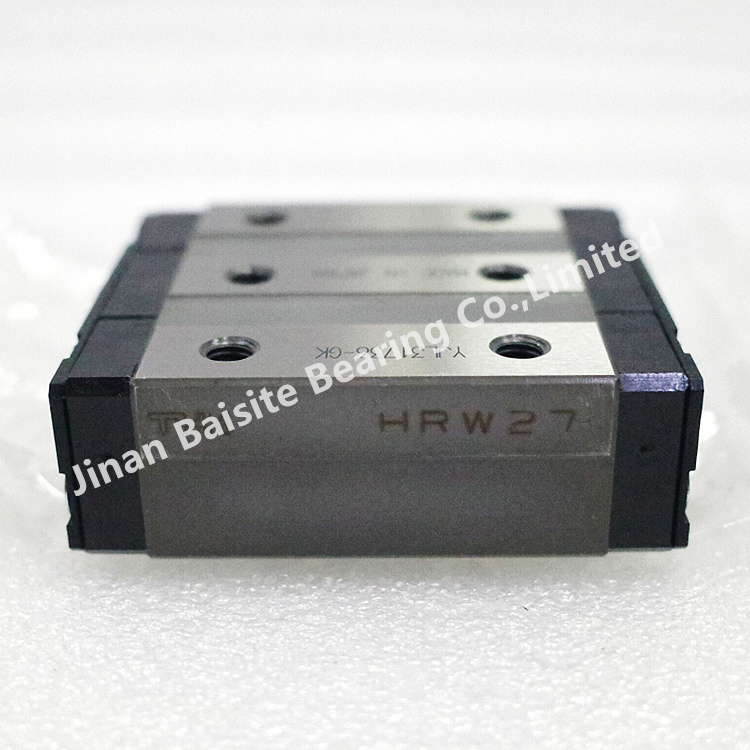

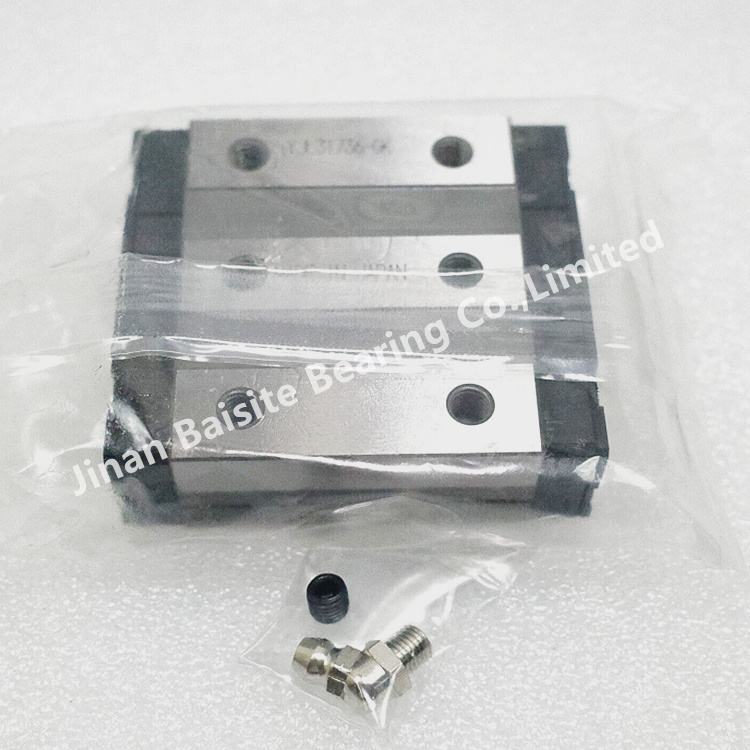

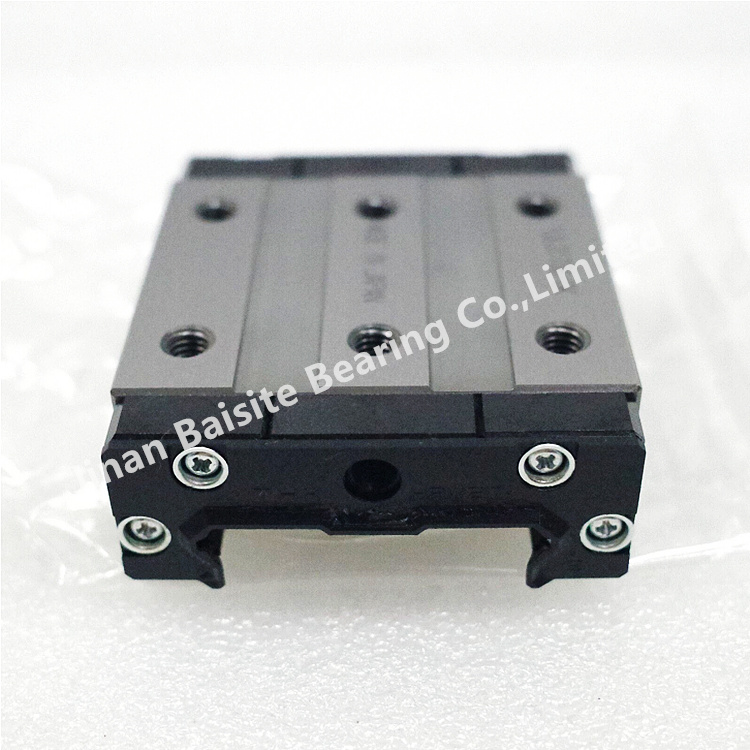

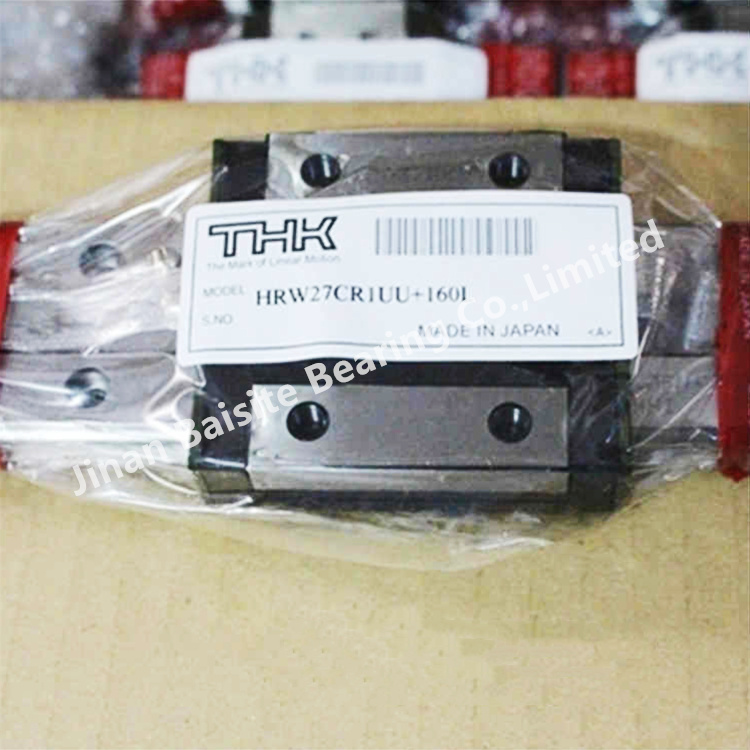

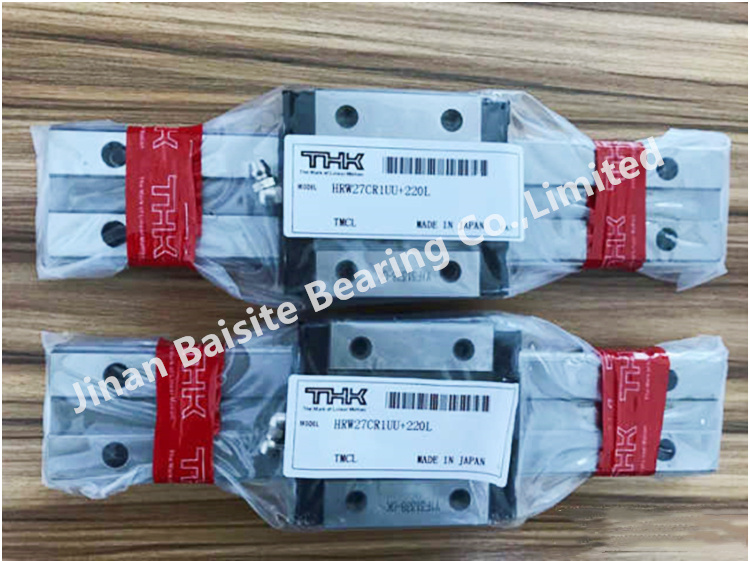

detailed image
