Original Rexroth linear guide rail ball block R165332220 R165332222

Supplier: Shandong XRT Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Zhang
Price: $25.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal	Dynamic load rating:	63600N
Block type:	flange block	Health status:	new
Mechanical test report:	not available	port:	Qingdao, Guangzhi, Shanghai
Marketing Type:	normal product	Accuracy class:	P
feature:	High rigidity; High precision	Core components:	Linear guide block
brand:	Rexroth	Material:	Carbon steel
Rated static load:	108000N	Warranty:	1.5 years
Supply capacity:	500000 pieces per month	Video shipment inspection:	not available
Showroom location:	not any	Packaging Details:	original packaging
Core component warranty:	1 year	Preloaded classes:	C2
Applicable industries:	Manufacturing plants, machinery repair shops, household, retail, energy and mining, other	Ball chain:	no ball chain
size:	35mm	weight:	2.25 kg

Original Rexroth linear guide rail ball block R165332220 R165332222

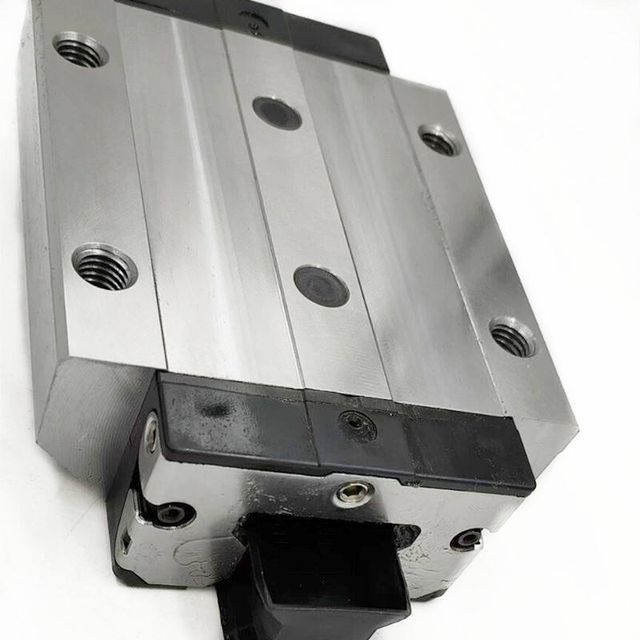

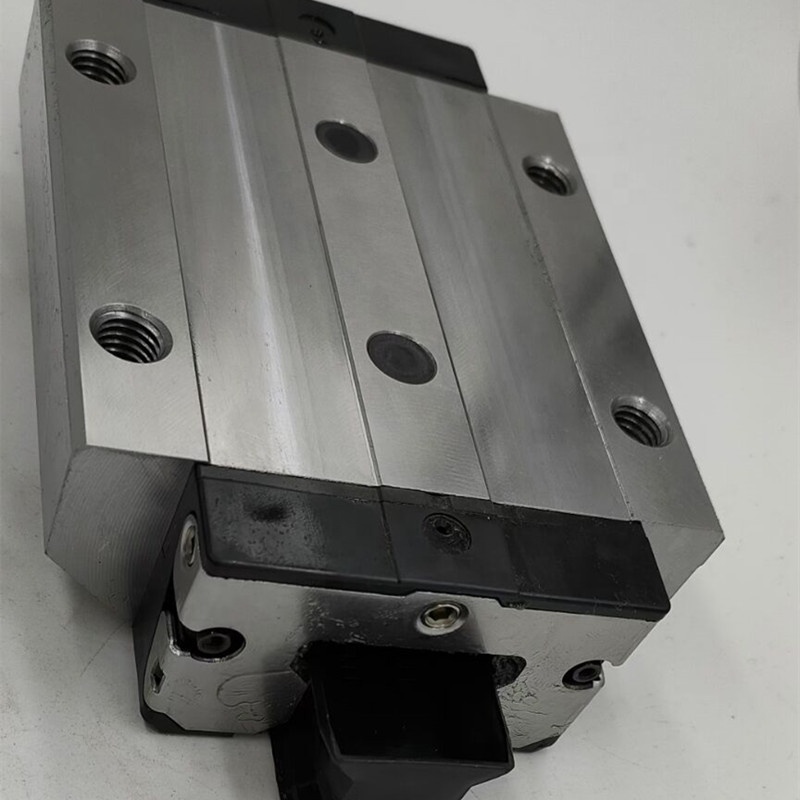

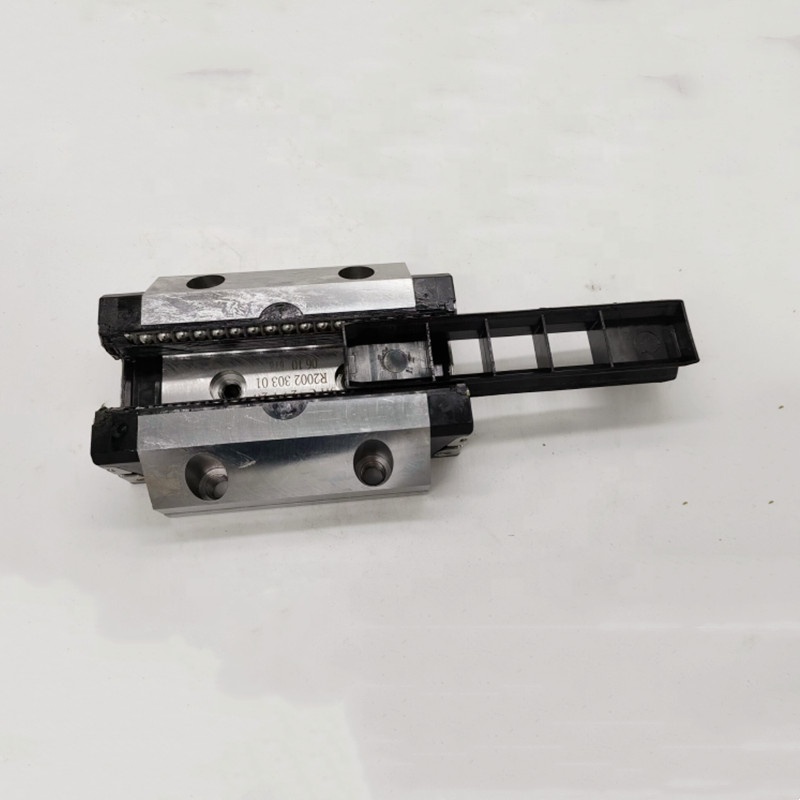

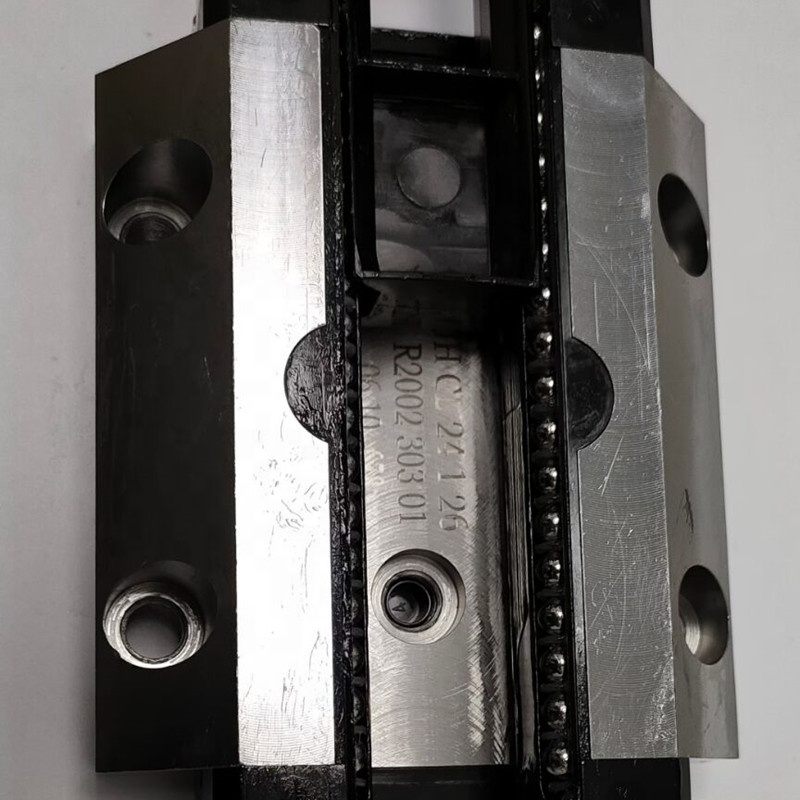

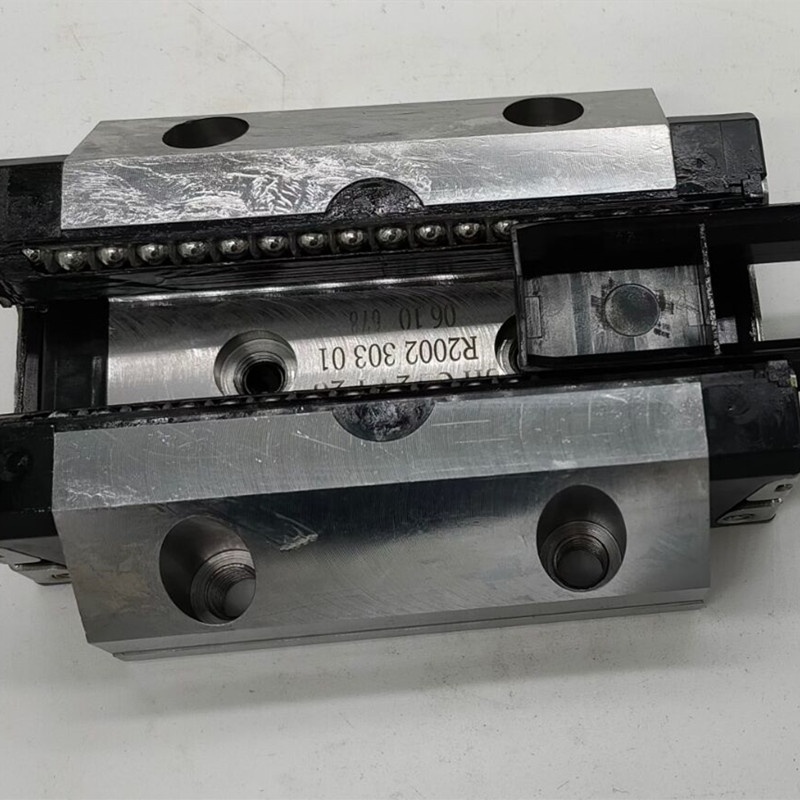

Product Image

Product Details

product name	Original Rexroth linear guide rail ball block R165332220 R165332222
brand	Rexroth
Material	Carbon steel
size	35mm
preloaded classes	C2
Accuracy class	P
high	40.4 mm
width	100mm
length	139mm
block weight	2.25 kg
Rated dynamic load	63600N
Rated static load	108000N
application	CNC machine tool

feature

size 35
Format FLS: width=flange, length=long, height=standard
Non-alloy steel CS slider body
Preload class C2: medium preload
Accuracy class P: Precision
dribbling chain
with initial lubrication and storage
Roller Bearing Grease Dynalub 510
Without connection elements, left (front reference edge)
Without connection elements, right (front reference edge)
Straight lube connection is loose.
Standard Slider Body
Overall slider length = 139.0 mm
Interchangeability: sliders and guide rails can be combined with each other with high precision.

Fields of application: meeting the toughest rigidity requirements
Significantly reduced friction oscillations and low friction levels, especially under external loads
excellent dynamic characteristics
highest precision
Patented entry zone increases travel accuracy six-fold
Long-term lubrication possible for years
Lubricated fittings with metal threads on all sides
Face fastening thread for all accessories
Integrated all-round sealing
High torque load capacity
Different preload levels
Ball chain for low noise and optimum travel performance
High rigidity in all load directions – allows applications with only one carriage per rail
Increased stiffness under lifting and side load conditions due to two additional mounting screw holes in the center of the ball runner block
Preloaded O-ring arrangement for maximum system stiffness
Optional integrated inductive and wear-free measuring system
Accessories on the ball runner block can be mounted from above and below
Ball runner blocks pre-lubricated at the factory
Can be used with all SNS/SNO ball guide rails
Equally high load ratings in all four principal loading directions
