DC plug mold USB connector plug mold mold custom factory Products from Changzhou Yuehai Zanyang Machinery Sales Co., Ltd.

Product Details

Certification:	CE RoHS ISO9001 ISO13485	Video shipment inspection:	if
Marketing Type:	normal product	design software:	customizable
plastic material:	PS ABs PP PVC PMMA PBT PC POM PA66 PBT + GF30%	Mechanical test report:	if
brand:	praise	port:	Shanghai, Shenzhen, Ningbo, etc.
weight:	20 kg	Applicable industries:	Building Materials Store, Manufacturing Plant, Mechanical Repair Shop, Farm, Home, Retail, Construction, Energy & Mining, Other, Advertising Agency
Cavity:	customizable	Mold life:	customizable
Health status:	new	product name:	injection mold
Core component warranty:	not available	Supply capacity:	20 pieces per month
payment terms:	L/C, T/T	Design and programming software:	CAD, CAM, CAE, Pro-E, Solid Works
Showroom location:	Vietnam, India	application:	Household Goods Mold
Core components:	mold	size:	Custom size available
other materials:	Rubber, Silicone Rubber, LSR, Aluminum, Zinc...Metal...etc

Product Description

Welcome to ask for samples and 3D drawings, then we provide corresponding prices. In order to make the mould, we need pin samples and cable samples. plastic molding

1). Accuracy: 0.0001mm

2). Competitive price.

3). Continuous service and support.

4). Customer design and R&D project coordination.

5). International standard

6). Apply expertise.

7). Quality, reliability and long product life.

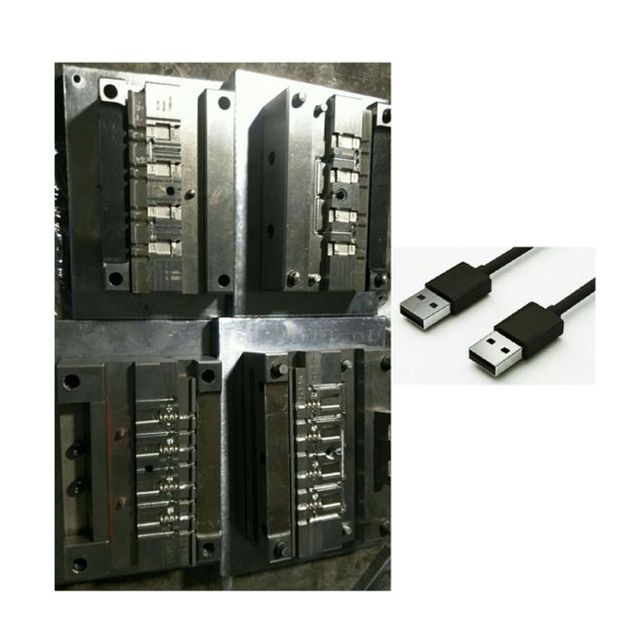

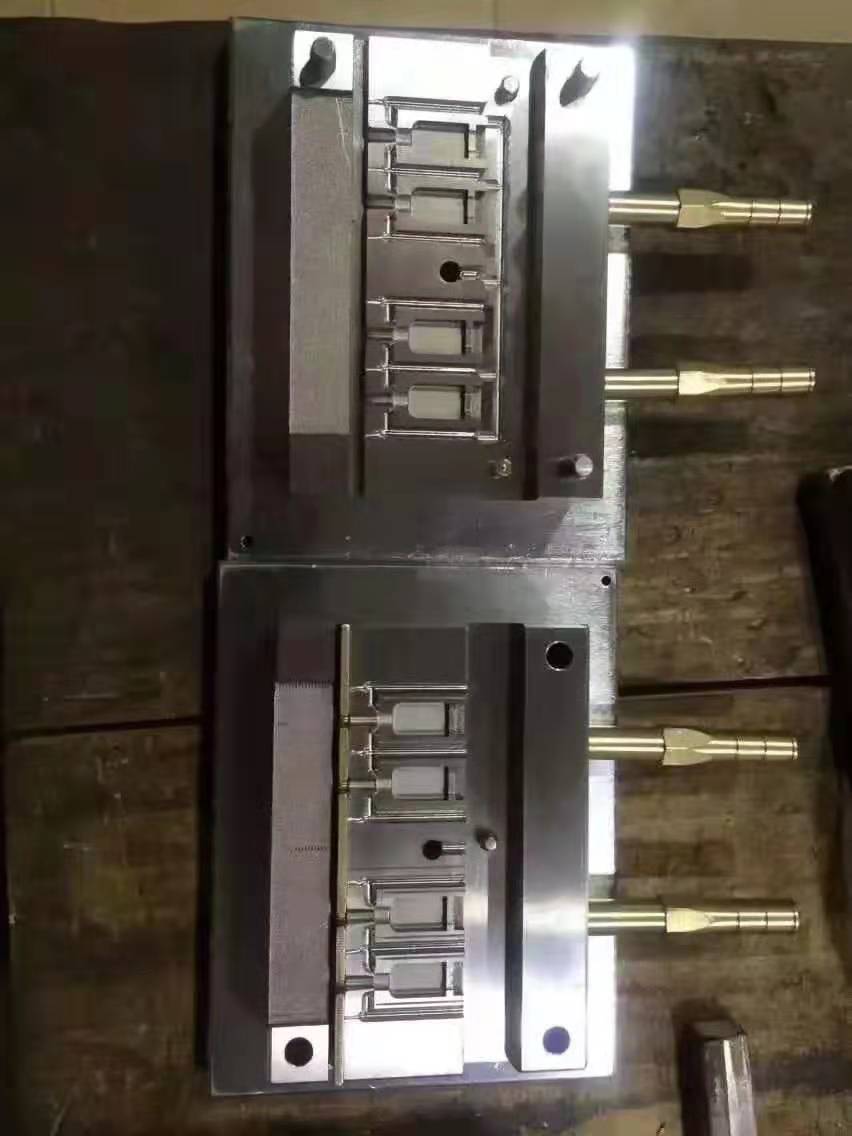

type	USB Connector Plug Mold
brand	Zanyang
Applicable models	Vertical injection molding machine
Number of cavities	1 mold 4 cavities
service life	At least 100k/300k/500k/800k/1000k module times
customizable	Can also design and customize models according to your requirements

Size Information

This design size chart

Dimensions (LWH) in cm	1 mold - 4 cavities, USB connector plug mold parameters	L:215cm	Width: 185cm	Height: 155cm
Weight(KG)	27.5-37.5
Rockwell hardness	Hardness: 58-61

Process introduction

laser scanner

It is the reverse process of design in the usual sense. That is to use a laser scanner to scan the existing model to obtain three-dimensional contour data, then use professional reverse engineering software to rebuild the model, and finally generate a CNC program for CNC processing.

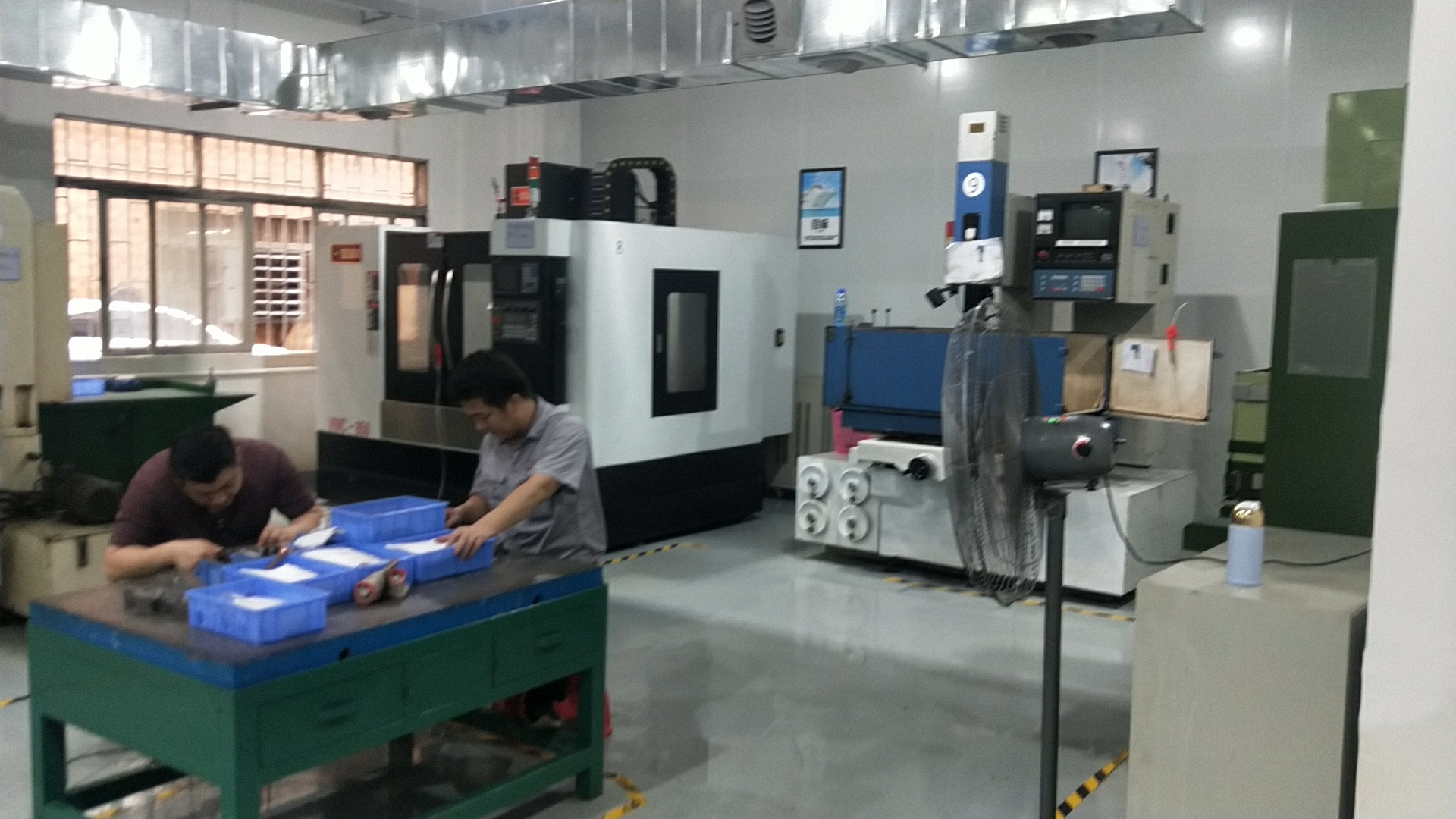

Sparks

EDM is mainly used to form molds and parts with complex-shaped holes and cavities; process various conductive materials such as cemented carbide and hardened steel; process deep air holes, special-shaped holes, deep grooves, narrow seams and cutting plates, etc.; Processing tools such as various forming tools, templates and thread ring gauges

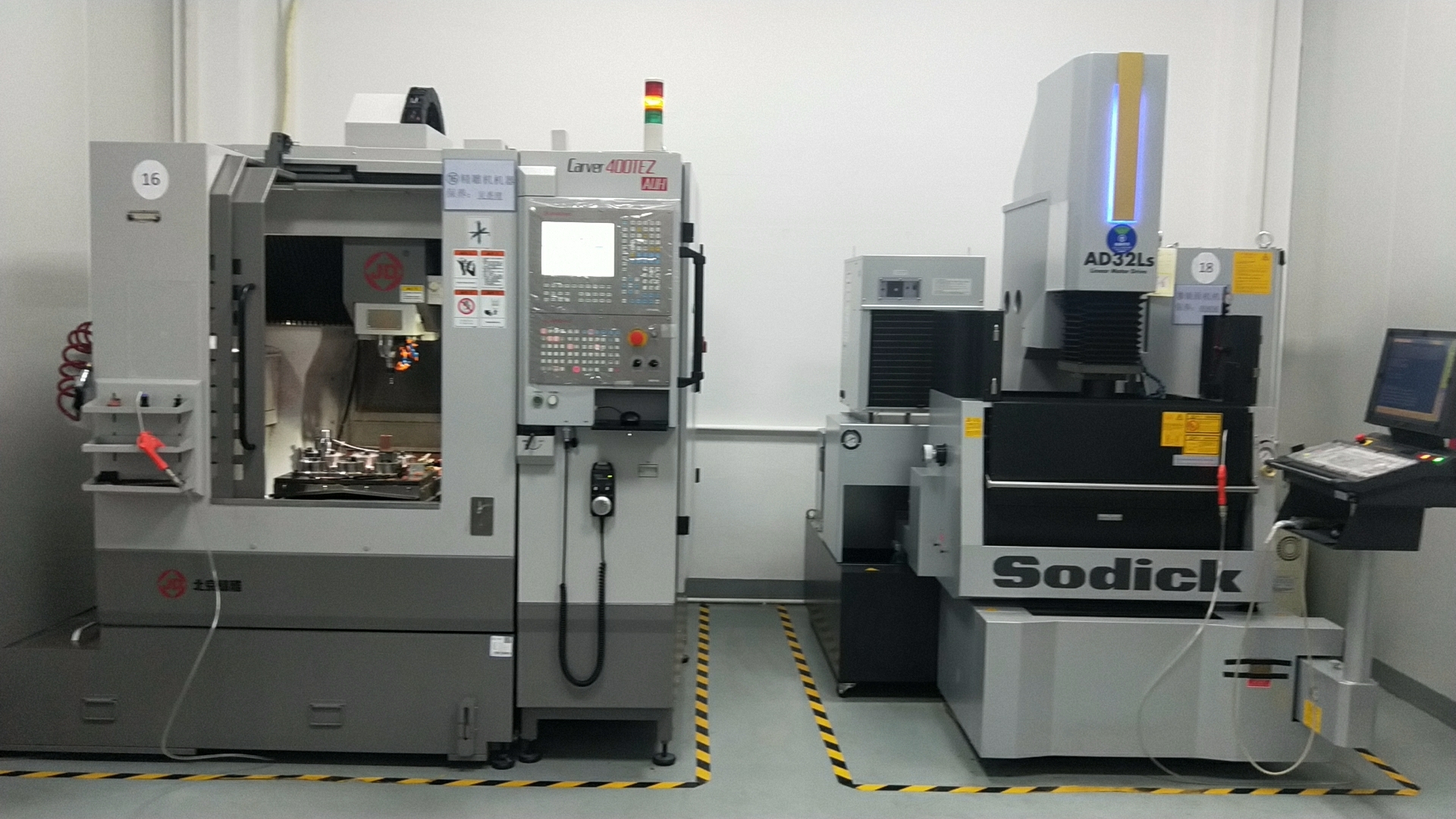

Wire EDM

Using a continuously moving thin wire (called a wire) as an electrode, a pulsed spark discharge is applied to the workpiece to remove metal and cut it into a certain shape. Wedm requires machinery and mechanical energy to cut. It mainly uses electric energy to realize the processing of materials. Therefore, wire cutting technology is not limited by material properties, and can process any material with hardness, strength and brittleness, which occupies an important position in today's mechanical processing.

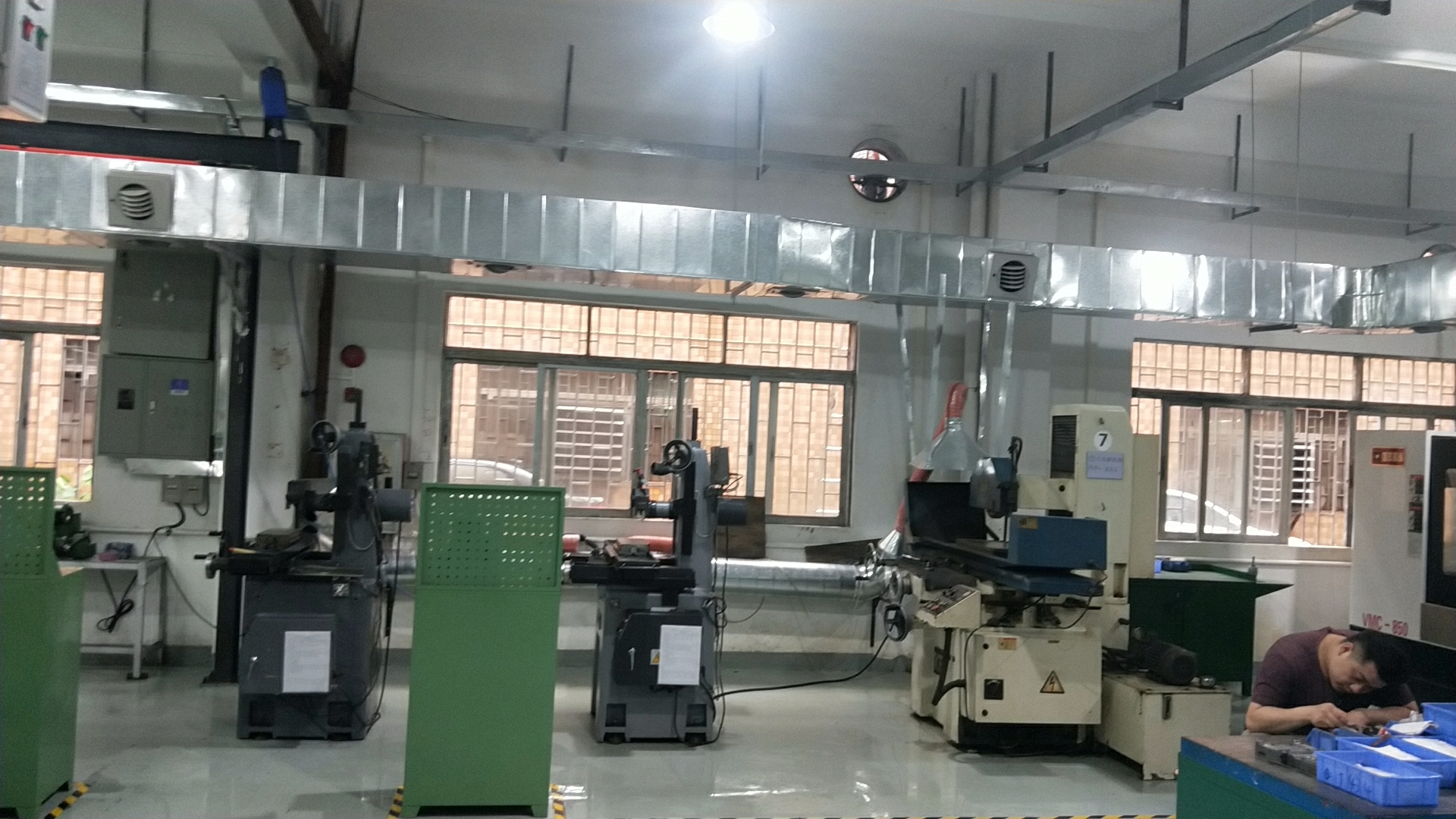

Precision grinder

The whole machine adopts precision wire technology, high-precision detection feedback and control technology, which can realize the processing of plane, spherical and aspheric workpieces made of precision hard materials. With coarse grinding and fine grinding functions. At the same time, develop precision grinding related equipment and technologies, including testing, monitoring, computer-aided manufacturing software, etc.

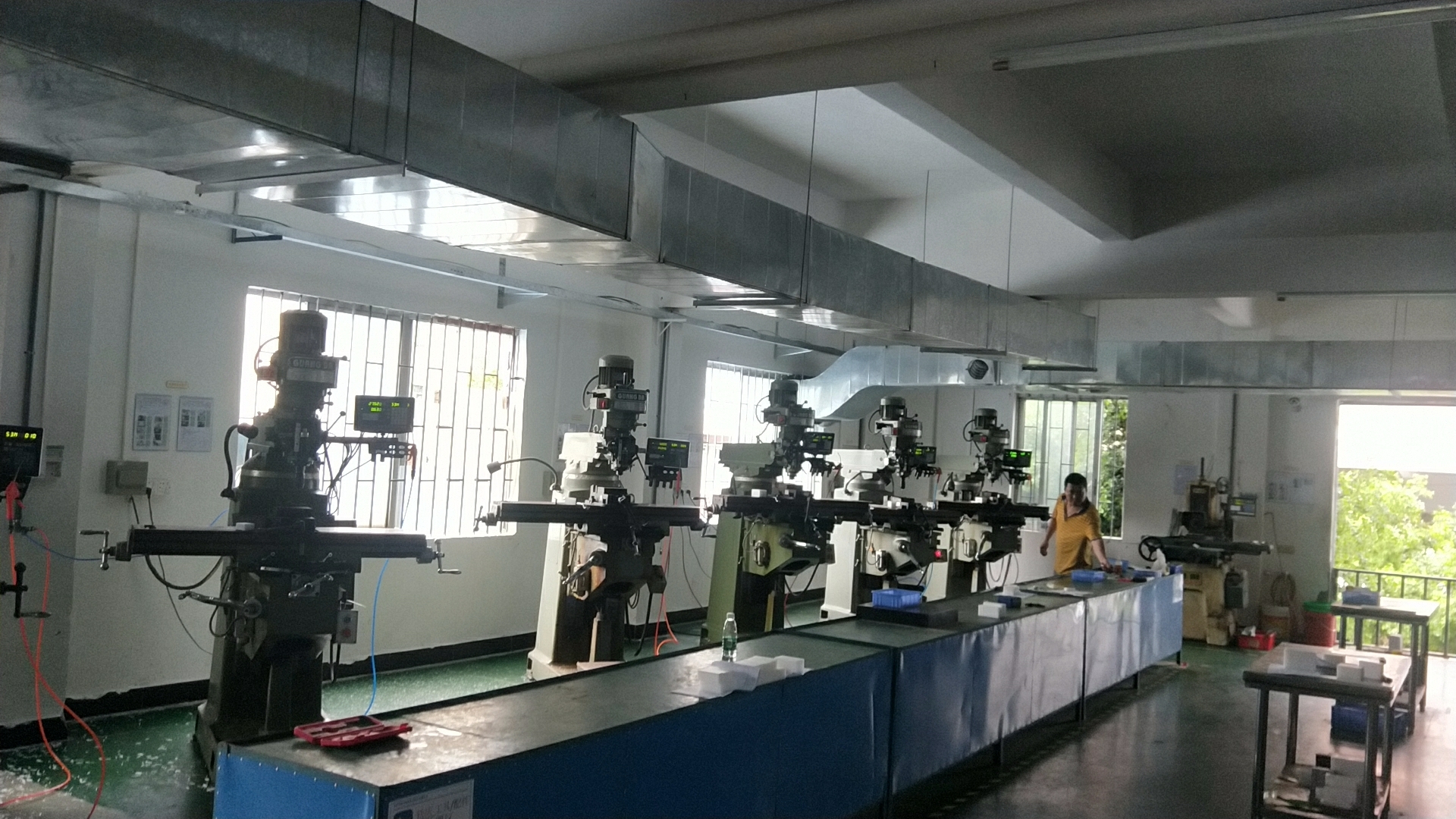

Turret Milling Machine

The workpiece is moved by the table, and the high-speed spindle drives the tool to rotate, cutting out a milling machine similar to the shape of the turret.

Of course, it is impossible for a mold factory to have only these machines and steps. More details are not shown, you are welcome to visit our factory.

detailed steps

Steps before customer mold manufacturing1. The customer provides accurate mold-opening product samples and accurate product drawings 2. Confirm the product design plan for customer reference and confirmation 3. Confirm the product contract after the business negotiation plan 4. Confirm the product price and sign the business contract 5. Confirm the signed business contract , receive the mold deposit 6. Carry out mold manufacturing according to a reasonable mold opening planMold making steps1. Confirm the detailed product drawing and mold structure diagram of the product. 2. Confirm that the selected mold and standard formwork are used according to the correct plan. 3. According to the correct drawing: the processing of the mold and the mold of the mold 4. The production of each electrode and the production of auxiliary materials 5. Confirm whether the initial processing of the mold blank and the mold core meets the standard size tolerance 6. Rockwell hardness heat treatment and mold strip (diening) nitriding treatment 7. Check the tolerance standards of various auxiliary materials and heat treatment hardness (preparation for reprocessing) 8. High-precision mold processing materials for mold blanks and various auxiliary materials 9. Mold processing and slow line processing, fast line Processing 10. Check each cavity and whether the dimensional tolerance of the mold blank is in place (ready for assembly) 11. Assemble the mold core and strip mold into a finished mold 12. Set up the finished mold for the first trial mold and check whether it is qualified 13. The mold is qualified After that, the mold is qualified again. 14. Test the second mold qualified 15. Small batch production of customer product samples 16. Make surface appearance treatment of each part of the mold (such as mold blank electroplating) 17. Pack and ship (such as wooden box packaging)

Optional steel frame structure
