Original ABBA linear guide block BRC30U0 for CNC machine tools

Supplier: Shandong XRT Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Zhang
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	Abba	Rail weight:	5.2 kg/m3
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal	Material:	Carbon steel
Mechanical test report:	not available	Video shipment inspection:	not available
Dynamic load rating:	2850kgf	weight:	0.81 kg
Rated static load:	4800kgf	Core component warranty:	1 year
Marketing Type:	normal product	Supply capacity:	500000 pieces per month
Preloaded classes:	ZF; Z0; Z1	Block type:	box
application:	CNC machine tool	Core components:	Linear guide block
feature:	high rigidity;	Applicable industries:	Manufacturing plants, machinery repair shops, household, retail, energy and mining, other
Warranty:	1.5 years	Showroom location:	not any
Health status:	new	Packaging Details:	original packaging
type:	Linear Guides	port:	Qingdao, Guangzhi, Shanghai

Original ABBA linear guide block BRC30U0 for CNC machine tools

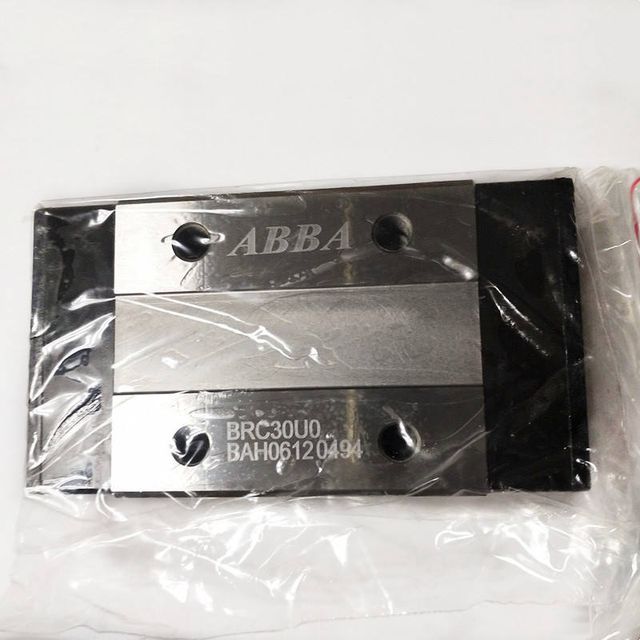

Product Image

Product Details

product name	Original ABBA linear guide block BRC30U0 for CNC machine tools
brand	Abba
Material	Carbon steel
high	42mm
width	60mm
length	109mm
block weight	0.81 kg
Rail weight	5.2 kg/m3
Rated dynamic load	2850kgf
Rated static load	4800kgf
application	CNC machine tool

feature

1. Built-in long-term lubrication (patent)
2. Equivalent bearing capacity in four directions
3. Smooth operation due to new ball recirculation (patented)
4. High rigidity: 4 rows of angular contact
5. International standard size
6. High precision, low friction, low maintenance
7. High speed, low noise
8. One-piece all-round sealing
9. Interchangeability
10. Green production

Advantage

1.Maintence free - no need for frequent periodic lubrication or automatic lubrication system.

2. Extend the maintenance interval.

3. Reduce lubrication costs.

4. No oil leakage concerns, easy to clean.

Related models

BRH15A	BRH25BL	BRC15R0	BRC30U0
BRH20A	BRH30BL	BRC20RO	BRD35UO
BRH25A	BRH35BL	BRC25R0	BRC45UO
BRH30A	BRH45BL	BRC30RO	BRC15SU
BRH35A	BRH20AL	BRD35RO	BRS20BS
BRH45A	BRH25AL	BRD45RO	BRC20SU
BRH15B	BRH30AL	BRC20LA	BRS25BS
BRH20B	BRH35AL	BRC25LA	BRC25SU
BRH25B	BRH45AL	BRC30LA	BRS30BS
BRH30B	BRS15BS	BRD35LA	BRC30SU
BRH35B	BRS20BS	BRD45LA	BRS35BS
BRH45B	BRS25BS	BRC20LR	BRS30SU
BRS15B	BRS30BS	BRC25LR	BRS20BL
BRS20B	BRC15A0	BRD30LR	BRC20LU
BRS25B	BRC20A0	BRD35LR	BRS25BL
BRS30B	BRC25A0	BRD45LR	BRC25LU
BRS35B	BRC30A0	BRC15UO	BRS35BL
BRS45B	BRD35A0	BRC20UO	BRC30LU
BRH20BL	BRD45AO	BRC25U0	BRS30BL
BRS45BL	BRD45LU	BRC30LU	BRS30B

Main product range

1. Deep groove ball bearings (68 series, 69 series, 60 series, 62 series, 63 series, 64 series)
2. Tapered roller bearings (320 series, 322 series, 323 series)
3. Linear bearing
4. Thrust ball bearings (511 series, 512 series, 513 series)
5. Cylindrical roller bearings (NU10 series, NJ2 series, N3 series, NN series)
6. Needle bearings
7. Angular contact ball bearings (70 series, 72 series, 73 series, 74 series)
8. Spherical roller bearings
9. Thrust roller bearing
10. Outer spherical ball bearings (230 series, 222 series, 223 series)
11. Bearing with seat (UCP series, UCF series, UCT series, UCFL series)

Other types of bearings

Packaging and Shipping

pack	1. Laser marking on the bearing; 2. Vacuum packed bearings; 3. Outer color plastic bag + box + carton, industrial standard packaging; 4. According to your requirements.
deliver goods	1-3 days after payment received
port of shipment	Qingdao, Guangzhou, Shanghai
to pay	1.100%TT; 2.30% T/T in advance, 70% against copy of B/L; 3. PayPal.
