Solar pool heating system solar collector panels solar water

Supplier: Dezhou BTE Solar Co., Ltd.
Region: Shandong, China
Contact: Mr BTE Solar Solar
Price: $101.85 / 2 - 149 sets
$86.03 / 150 - 349 sets
$78.36 / >=350 sets
Min. Order: 2 sets

Click here to contact

Product details

Supply capacity:	60,000 sets per month	Packaging details:	Solar panels are 1 piece/carton. Samples are put into wooden boxes and standard packaging cartons are used for sea transportation.
Warranty:	5 years	Movie:	blue/black film
Package preview:		Pipe material:	copper
Place of origin:	China	payment terms:	L/C, Western Union, T/T, MoneyGram
Certificate:	CE&solar key mark	brand:	Sentong&OEM
Work pressure:	0.8MP	Overall dimensions (mm):	1000x2000x80/95/OEM
Cover material:	3.2 Low iron tempered glass	insulation:	Bottom: fiberglass, frame: polyester
Transmittance:	≥92%	port:	Qingdao
frame:	1.0mm aluminum	Back panel:	Colored galvanized sheet, thickness: 0.5mm
Bottom cover:	0.50mm hot-dip galvanized sheet	model:	BTEB-I/0.6-L-2.0
Absorption area (㎡):	1.89

Virtual Reality

Product parameters

Specification	BTEB-I/0.6-L-2.0	BTEF-I/0.6-L-2.0	BTEG-I/0.6-L-2.0
Movie	black film	blue film	German imported blue film
Overall dimensions (mm)	1000x2000x80/95	1000x2000x80/95	1000x2000x80/95
frame	1.0mm aluminum	1.0mm aluminum	1.0mm aluminum
Absorption area(m2)	1.89	1.89	1.89
header	Copper TP2 Φ22x0.8	Copper TP2 Φ22x0.8	Copper TP2 Φ22x0.8
grid tube	Copper TP2 Φ10x0.6	Copper TP2 Φ10x0.6	Copper TP2 Φ10x0.6
cover material	3.2 Low iron tempered glass	3.2 Low iron tempered glass	3.2 Low iron tempered glass
transmittance	≥92%	≥92%	≥92%
bottom cover	0.50mm hot-dip galvanized sheet	0.50mm hot-dip galvanized sheet	0.50mm hot-dip galvanized sheet
insulation	Bottom: fiberglass Frame: Polyester	Bottom: fiberglass Frame: Polyester	Bottom: fiberglass Frame: Polyester
work pressure	0.8MP	0.8MP	0.8MP
Comment	1. Frame: Aluminum 6063-T5; 2. Our fully automatic production line can produce products of different specifications according to your own requirements; 3. We can provide self-cleaning glass to all collectors.

product picture

Working principles:

Flat plate collectors work on a different principle than vacuum tube collectors. Glass flat panel solar collectors consist of a shallow rectangular box with a black flat panel behind a tempered glass cover. The plate is connected to a series of parallel tubes or a serpentine through which water or another liquid (such as antifreeze) is passed. Sunlight passes through the glass and hits the heat-absorbing panel, which heats up and converts the sunlight into heat energy. Heat is transferred to the liquid through pipes connected to the absorber plates. Bontel can provide you with a variety of high-quality absorbing panelswith selective films.

Our advantage

1. The highly weather-resistant selective absorption film of the fully automatic magnetron sputtering production line developed by Bontel;
2. Adopt Bonding heat transfer technology and laser welding technology;
3. High-quality low-iron tempered glass, with surface treatment, high light transmittance and low emissivity;
4. The circulating fluid uses closed copper tubes, no glass tubes. Therefore, the collector has no corrosion and no leakage of circulating fluid;
5. Sturdy built-in heat absorption panels can absorb all solar radiation, improve work efficiency and integrate with the building.
6. We can accept OEM & ODM orders. Solar collectors have high efficiency and long service life.
7. BTE has CE, Solar KeyMark and ISO9001 certifications. Ranked among the top 2 in the photothermal industry.
8. All products are tested 3 times before delivery and are available with a 5-year warranty.
9. Short delivery time, within 2 weeks.

storehouse

Package

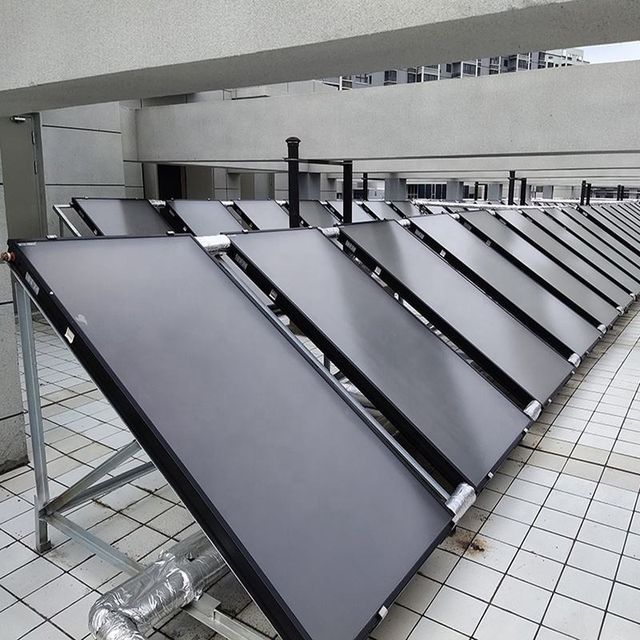

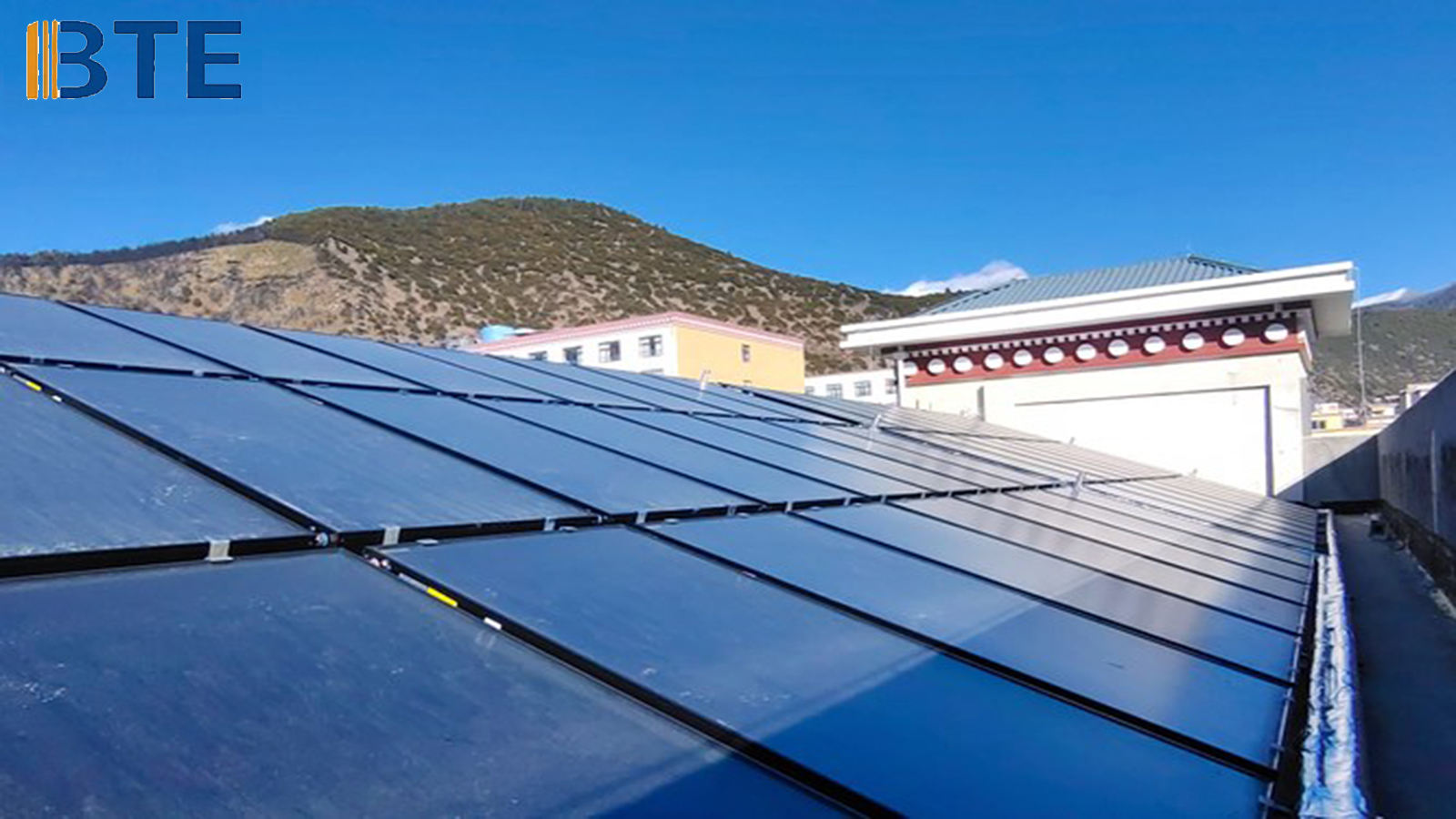

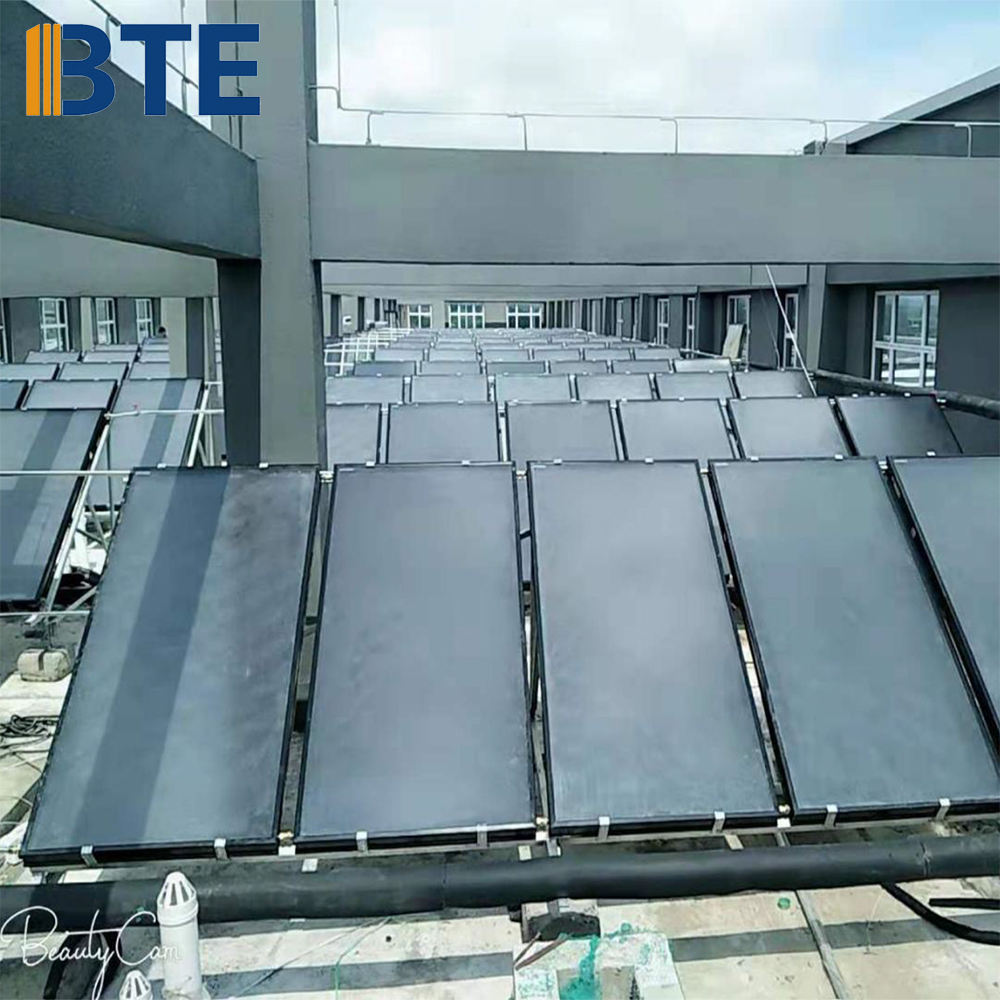

Applications

1. Easy to install and short construction period.

2. Perfectly integrated with the architecture, with high architectural matching.

Goods in high demand

product comparison

Dezhou Better Solar Co., Ltd.Shandong Photothermal Technology Co., Ltd. was established in 2009 and is located in Shandong Province, China. It is an innovative company focusing on solar photothermal applications and has a number of independent intellectual property rights in core technologies. Rely on oThe company has strong technical force and has independently developed fully automatic production lines, with its production efficiency reaching international levels. Based on the concept of Industry 4.0, we create global professional high, medium and low temperature solar thermal systems such as flat plate collectors, U-tube collectors, heat pipe collectors and solar water heaters. Now BTE is not just a manufacturer, but also provides different energy-saving solutions to global partners.

Currently, BTE products have passed Solar Key Mark and CE certification. We have developed various solar collectors for different operating temperatures and environments. Solar thermal products include flat plate collectors, U-tube collectors, heat pipe collectors, sub-collectors, compact pressurized and non-pressurized solar water heaters. We cooperate with many domestic and foreign companiesThe long-term value of the solar system. We have been committed to the research, development and innovation of solar core technology. With the goal of building a global professional flat plate collector production base, we strive to make the world more energy-efficient and beautiful due to a clean environment.
