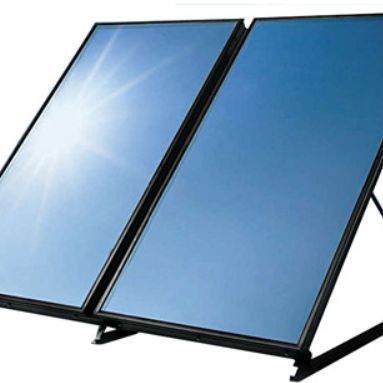

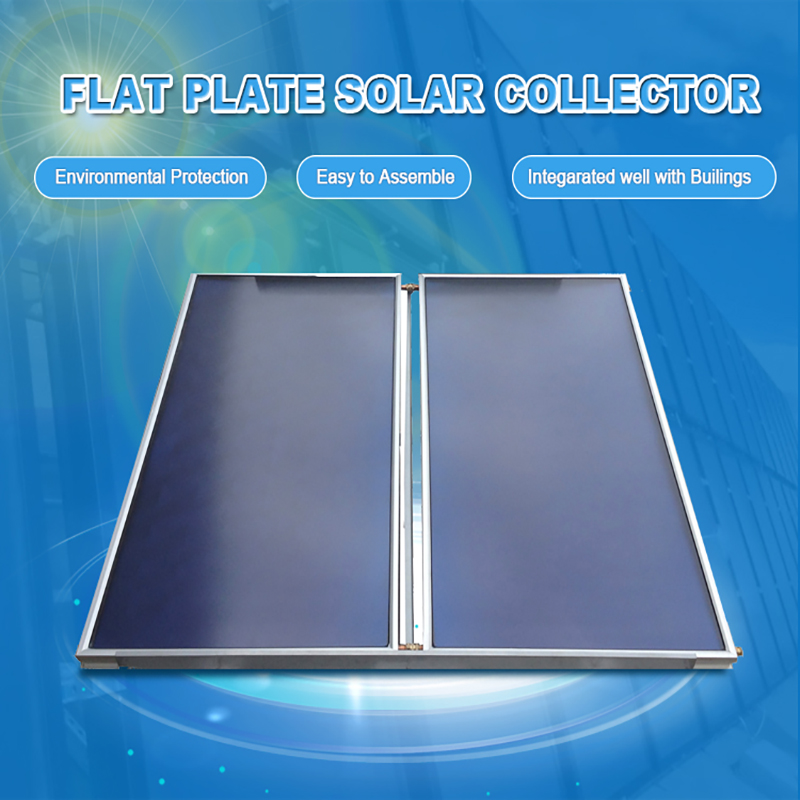

High efficiency blue titanium flat plate solar panel collector for solar water heater system Products from Dezhou BTE Solar Co., Ltd.

Product Details

Packaging Details:	Solar panel is 1 PC/carton. Samples are put into wooden cases, and standard packing cartons are shipped by sea.	place of origin; place of origin:	Shandong China
Movie:	black/blue film	Absorption area (㎡):	1.89
Supply capacity:	20000 sets per month	frame:	1.0mm aluminum
model:	BTEB-I/0.8-L-2.0	Warranty:	5
Bottom cover:	0.50mm hot-dip galvanized sheet	port:	Qingdao, Shanghai
Work pressure:	0.8MP	Dimensions (mm):	1000x2000x80/95
Transmittance:	≥92%	Package preview:
Cover material:	3.2 Low-iron tempered glass	Certificate:	CE certification
Manager:	Copper TP 22*0.6	Pipe material:	copper
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	brand:	BTE&OEM
insulation:	Bottom: Fiberglass, Frame: Polyester

Product parameters

Specification	BTEB-I/0.6-L-2.0	BTEF-I/0.6-L-2.0	BTEG-I/0.6-L-2.0
Movie	black film	blue film	Blue film imported from Germany
Dimensions (mm)	1000x2000x80/95	1000x2000x80/95	1000x2000x80/95
frame	1.0mm aluminum	1.0mm Aluminum	1.0mm Aluminum
Absorption area (m2)	1.89	1.89	1.89
manager	Copper TP2 Φ22x0.8	Copper TP2 Φ22x0.8	Copper TP2 Φ22x0.8
grid pipe	Copper TP2 Φ10x0.6	Copper TP2 Φ10x0.6	Copper TP2 Φ10x0.6
cover material	3.2 Low-iron tempered glass	3.2 Low-iron tempered glass	3.2 Low-iron tempered glass
Transmittance	≥92%	≥92%	≥92%
Bottom cover	0.50mm hot-dip galvanized sheet	0.50mm hot-dip galvanized sheet	0.50mm hot-dip galvanized sheet
insulation	Bottom: Fiberglass Frame: polyester fiber	Bottom: Fiberglass Frame: polyester fiber	Bottom: Fiberglass Frame: polyester fiber
work pressure	0.8MP	0.8MP	0.8MP
Comment	1. Frame: Aluminum 6063-T5; 2. Our fully automatic production line can produce products of different specifications according to your own requirements; 3. We can provide self-cleaning glass for all collectors.

Product drawings

Working principle:

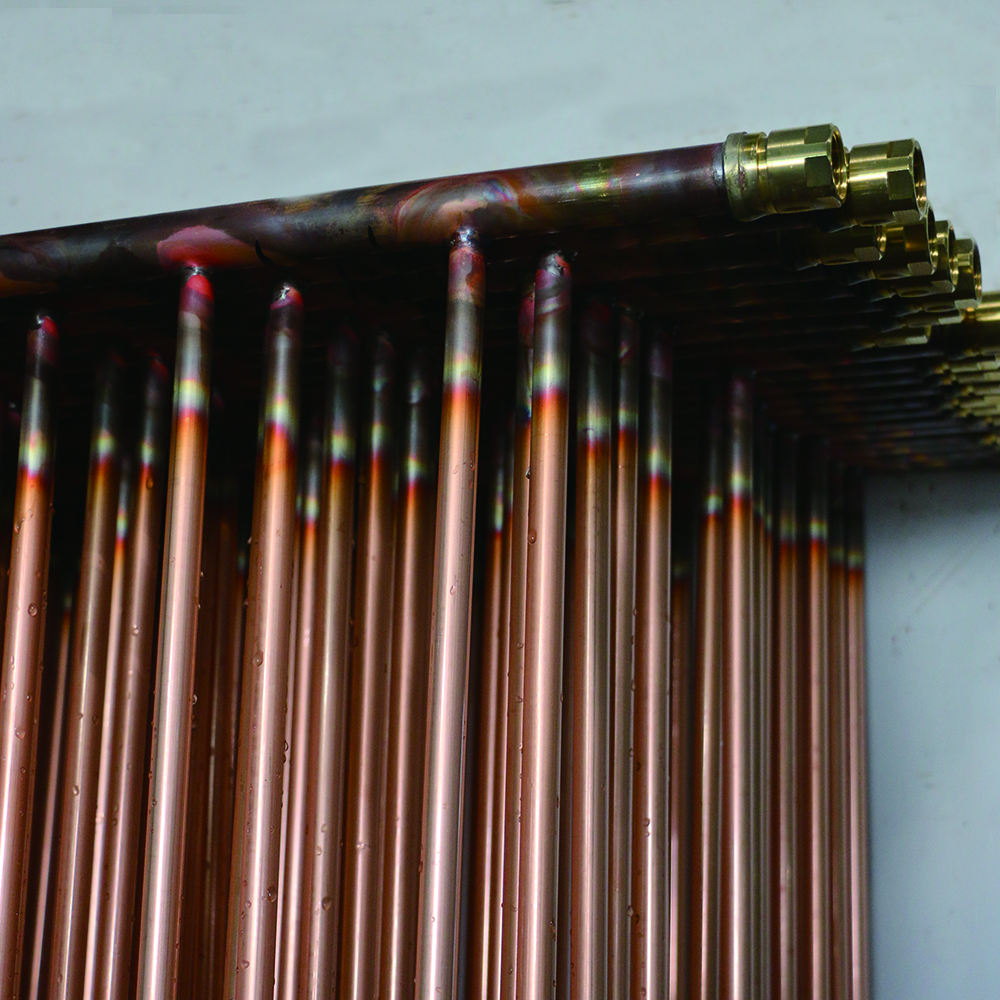

The working principle of the flat plate collector is different from that of the vacuum tube collector. Glass flat panel solar collectors consist of a shallow rectangular box with a black flat panel behind a tempered glass cover. The plate is connected to a series of parallel pipes or a serpentine through which water or another liquid, such as an antifreeze solution, passes. Sunlight passes through the glass and hits the absorber panels, which heat up and convert the sunlight into heat. Heat is transferred to the liquid through pipes connected to the absorbing plate. Bontel can provide you with different kinds of high quality absorbent panelswith selective film.

Our advantage

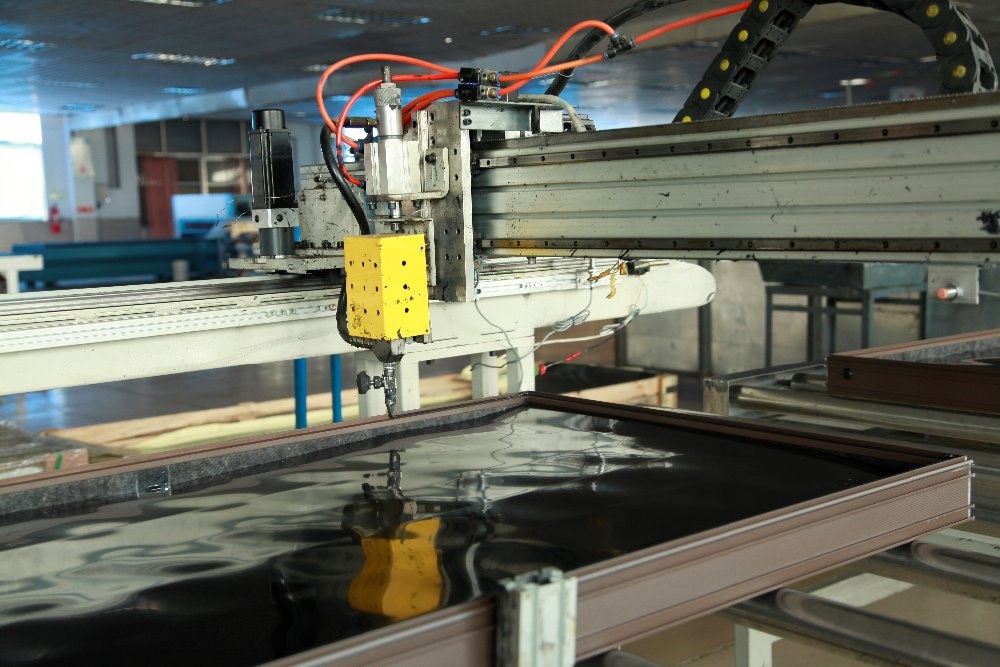

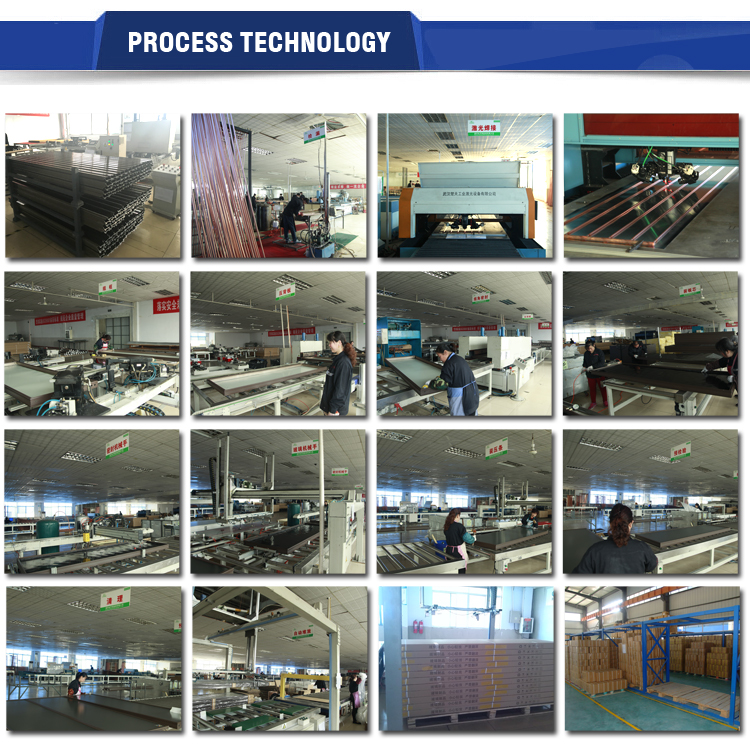

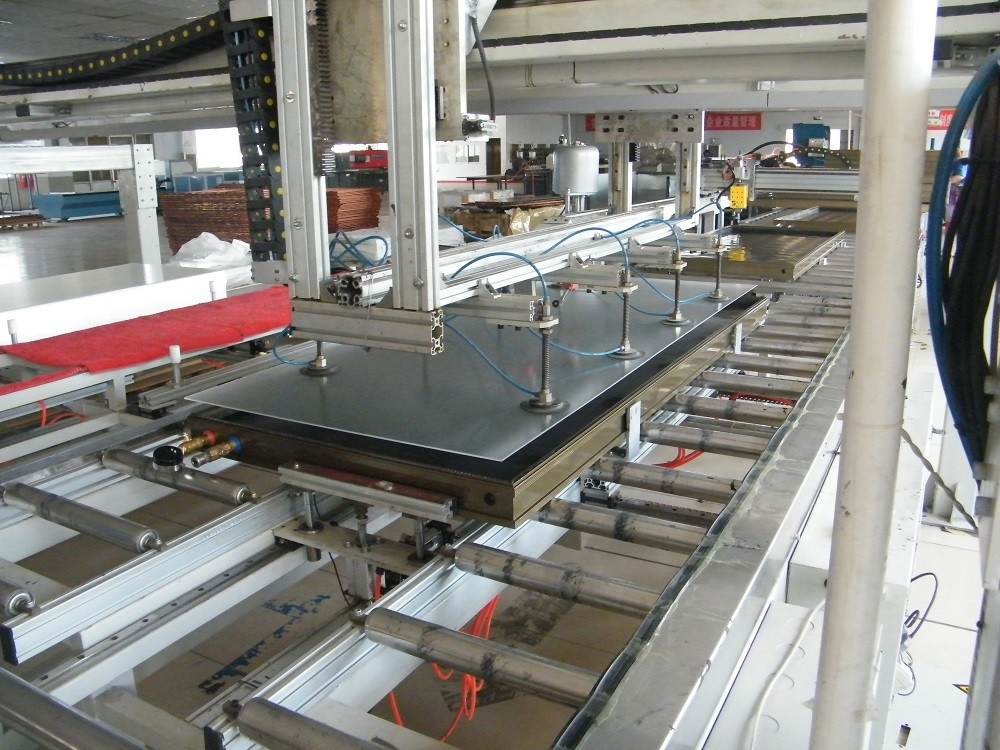

1. The fully automatic magnetron sputtering production line developed by Bontel has high weather resistance selective absorption film;

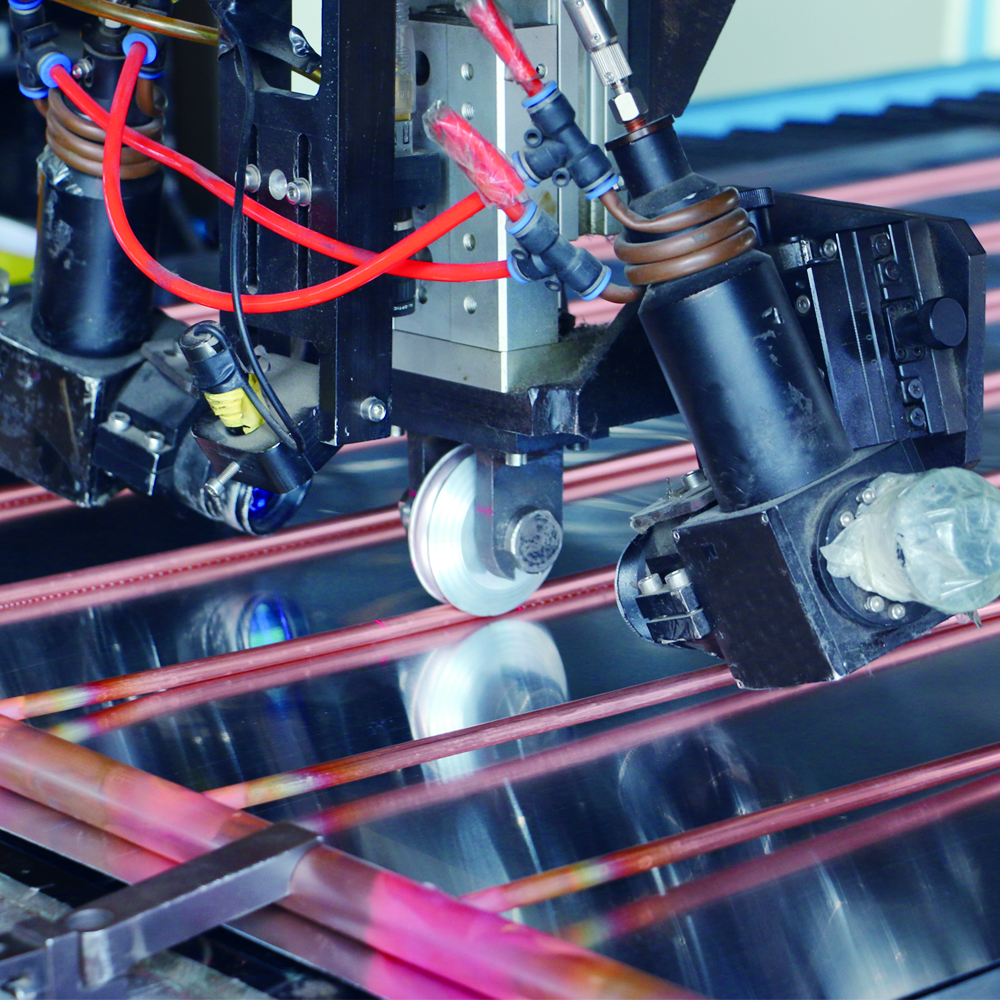

2. Using Bonding heat transfer technology and laser welding technology;

3. High-quality low-iron tempered glass with high light transmittance and low emissivity after surface treatment;

4. The circulating fluid adopts closed copper tube, no glass tube. Therefore, the collector has no corrosion and circulating fluid leakage;

5. Strong built-in absorbing panels can absorb all solar radiation, improve work efficiency, and blend well with the building.

6. We can accept OEM & ODM orders. Solar collectors are highly efficient and have a long service life.

7. BTE has CE, Solar KeyMark and ISO9001 certifications. Ranked TOP 2 in the field of solar thermal utilization.

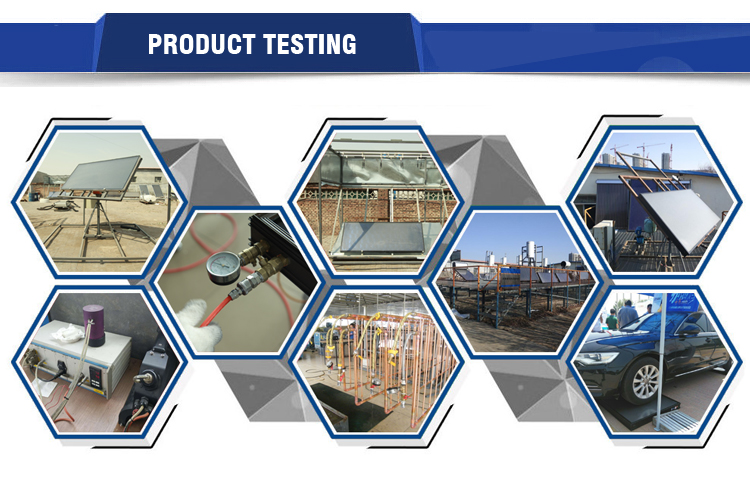

8. All products have been tested 3 times before leaving the factory, and can provide 5 years warranty.

9. Short delivery time, within 2 weeks.

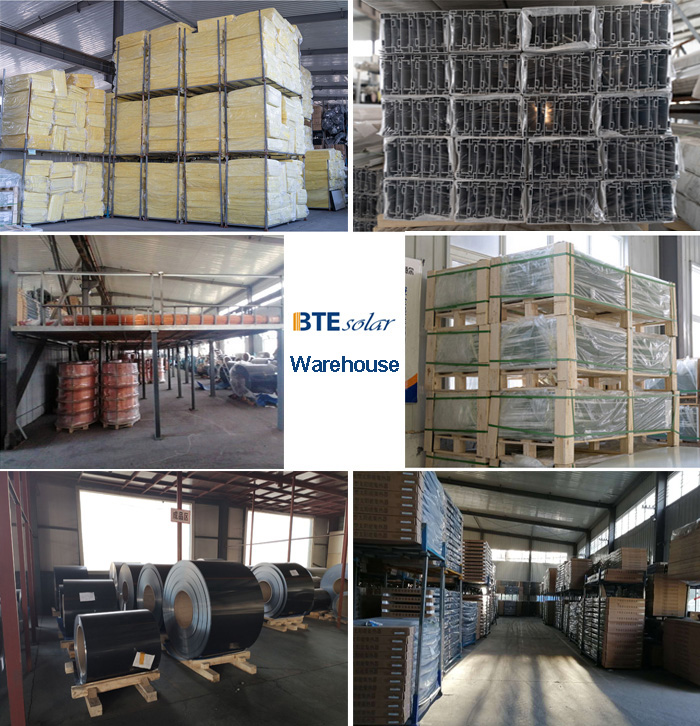

storehouse

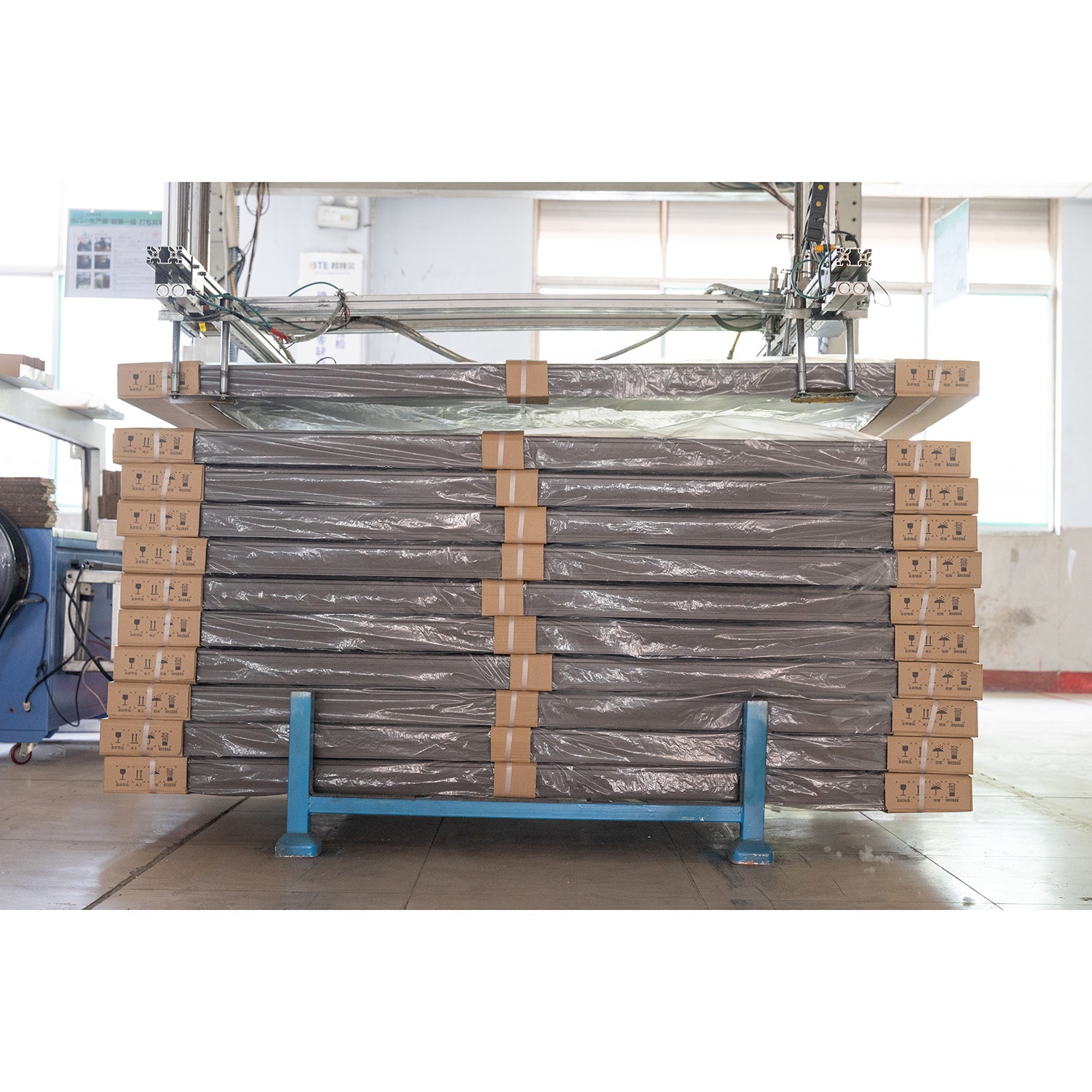

Bale

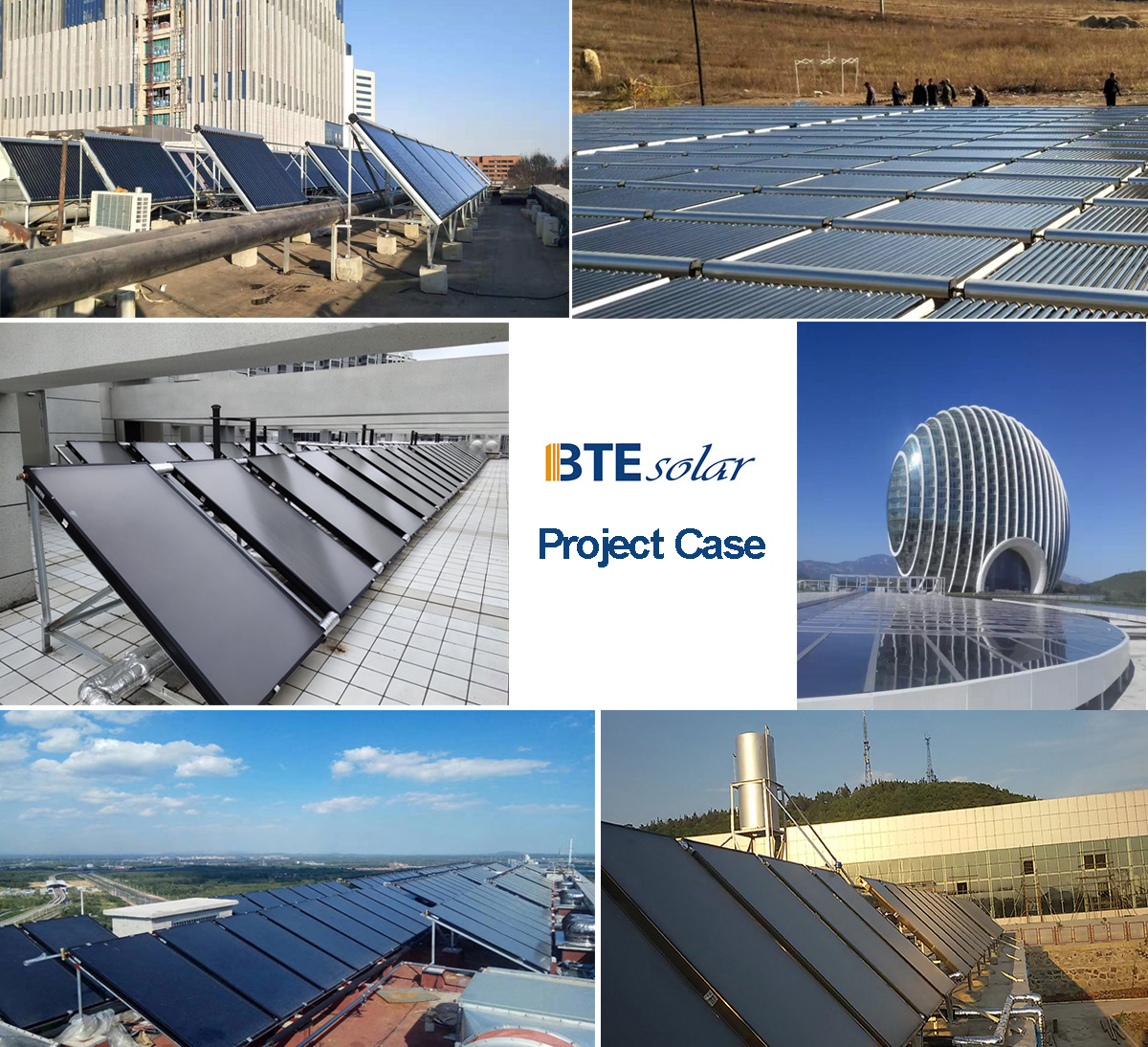

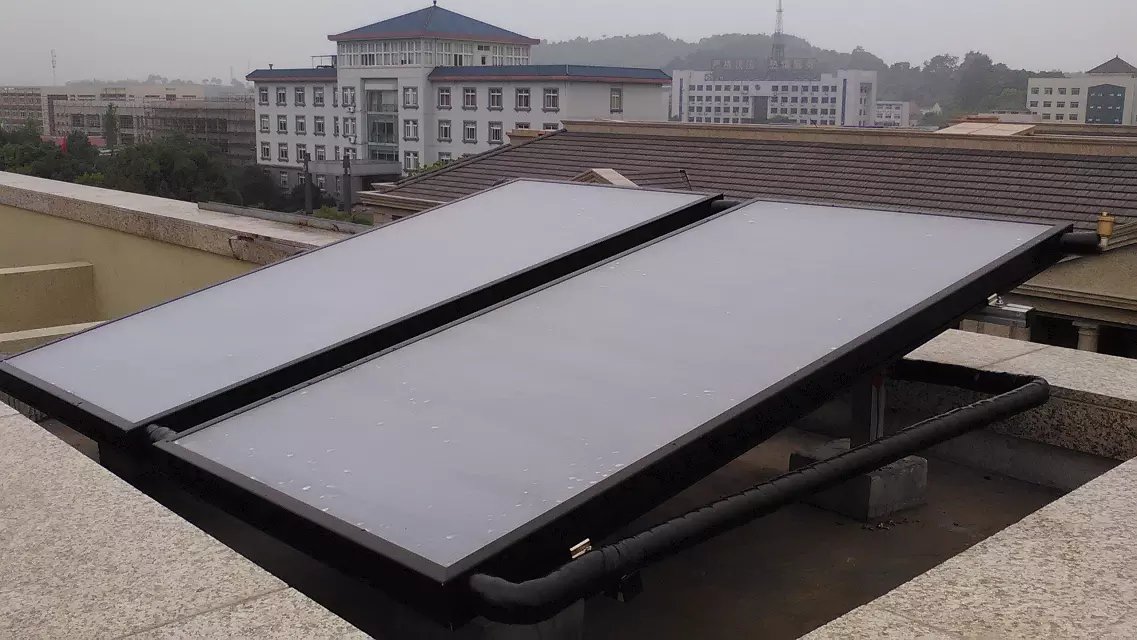

Applications

1. Easy installation and short construction period.

2. It is perfectly combined with the building, and the building has a high degree of matching.

Goods in high demand

product comparison

Dezhou Best Solar Co., Ltd.Founded in 2009 and located in Shandong Province, China, it is an innovative company focusing on the field of solar thermal utilization, with a number of core technologies with independent intellectual property rights. rely on oStrong technical force, self-developed fully automatic production line, the production efficiency has reached the international level. Based on the concept of Industry 4.0, we have created global professional high, medium and low temperature solar heat utilization systems such as flat plate collectors, U-shaped tube collectors, heat pipe collectors, and solar water heaters. Now BTE is not only a manufacturer, but also provides different energy-saving solutions for global partners.
