Optimum Efficiency Superheated Metal Evacuated Tube Solar Collector

Click here to contact

Product details

Building materials:	Stainless steel	Certification:	CE, ISO, EN12975, Solar key mark
Tube:	Super Metal/Glass	Packaging Details:	Solar water heater carton packaging
Circulation type:	Indirect/Closed Loop (Active)	model:	WCD-70
brand:	Zhou Solar	port:	Shanghai
pressure:	Pressurize	Pipe material:	copper
Origin:	Jiangsu, China	application:	water heater
Connection Type:	Split	Install:	Wall-mounted
Supply capacity:	200 sets per day	Shipping Details:	10 days after receiving the advance payment
payment terms:	L/C, T/T	type:	Manifold Collector, Vacuum Tube
Heating system:	Bulk/ICS (passive)

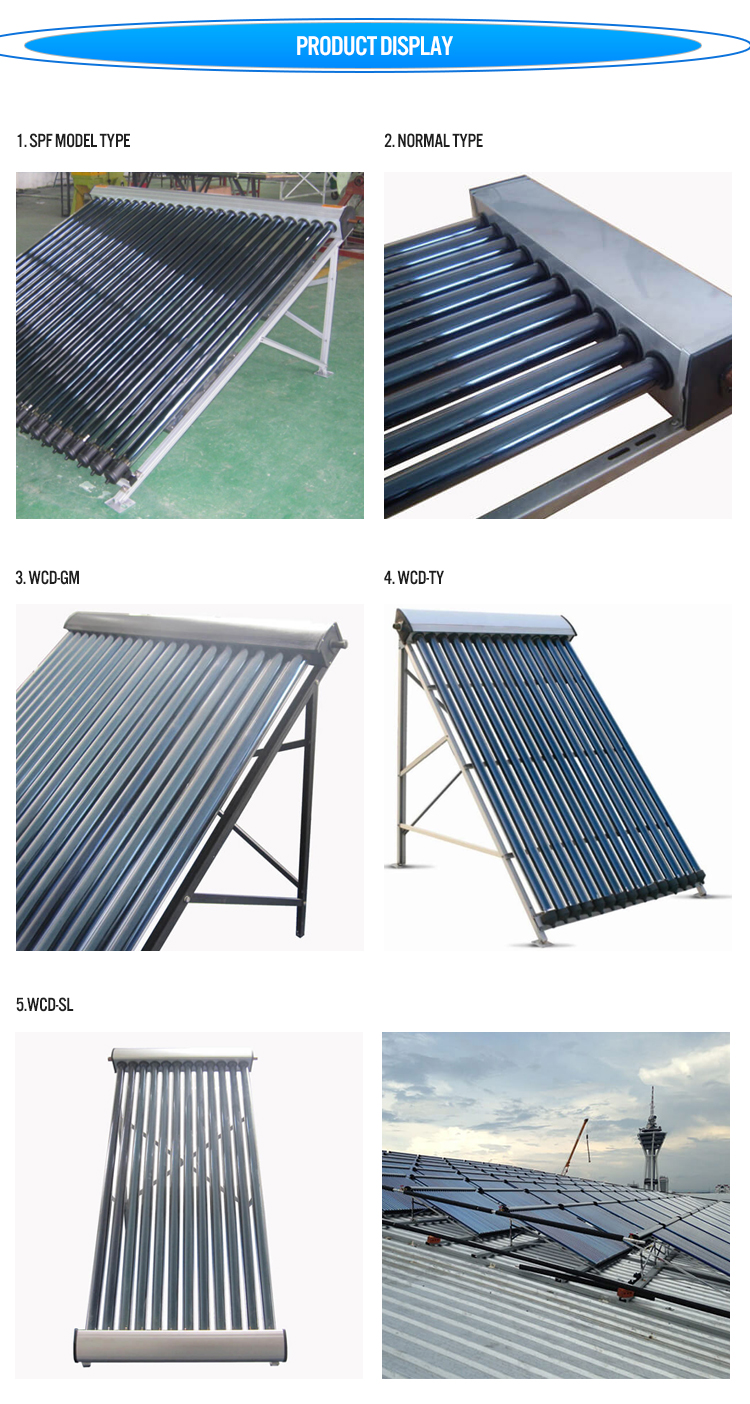

Product Description

feature:

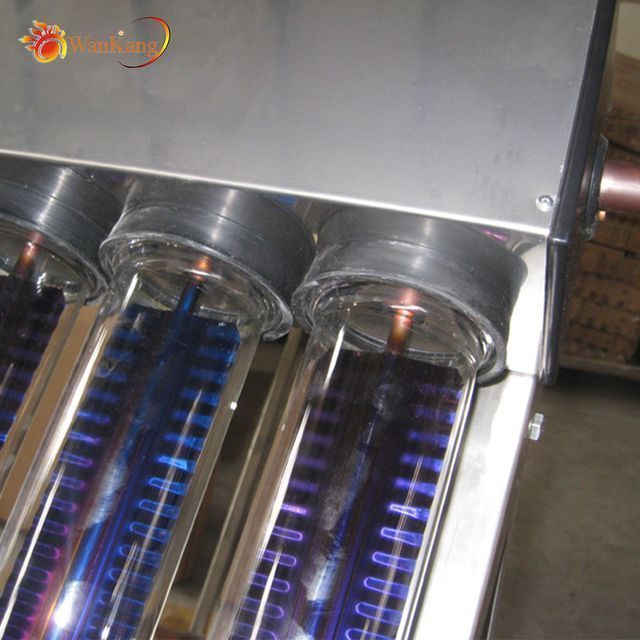

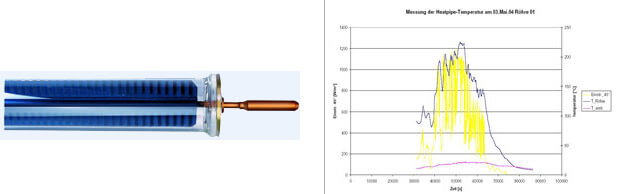

Reliable, efficient, and fast heat transfer super metal heat pipe, no water in the pipe, frost resistance: -35°C, can be used in special cold regions.
Maximum stagnation temperature up to 250°C
Small heat capacity, output power within 5 seconds when the temperature is as high as 25°C

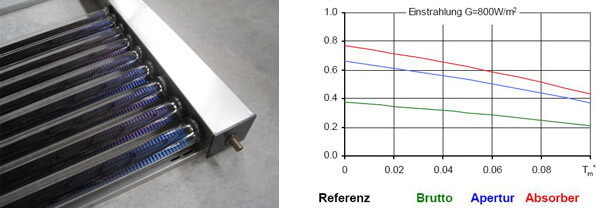

High efficiency, at least 10% higher than ordinary tubes
Simple plugin installation and maintenance.
Suitable for mains pressure water (up to 8 bar/116psi)
Stable solar conversion throughout the day (pipe passively tracks the sun)
The perfect solar collector for home solar water heater systems.
Suitable for large hot water projects such as swimming pools, schools, hotels...

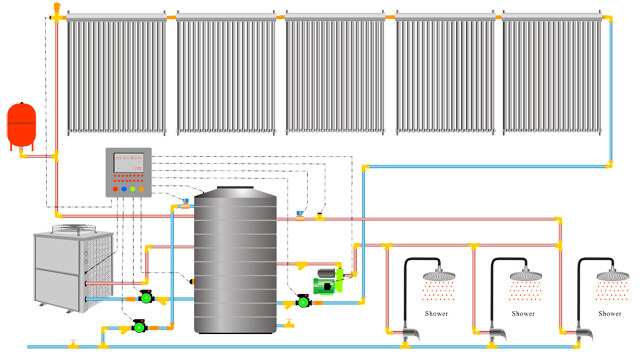

The operation of solar thermal collectors is very simple.

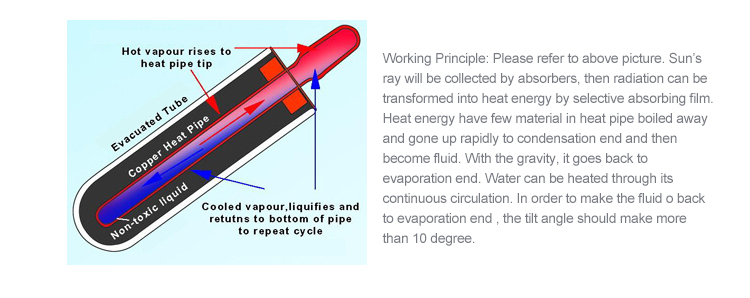

Solar Absorption: Solar radiation is absorbed by the vacuum tube and converted into heat.
Solar heat transfer: Heat pipes conduct heat from inside the solar tubes to the headers.
Solar Storage: Water is circulated through headers by intermittent pumps. Each time the water circulates through the header, the temperature increases by 5-10oC / 9-18oF. Throughout the day, the water in the storage tank is gradually heated.

Specification:

Manifold Material and Thickness	A: Black or silver aluminum alloy, thickness 2.0mm
Manifold Material and Thickness	B: Stainless steel 304 2B, thickness 0.8mm
Main pipe material and thickness	Diameter: 35mm, thickness 1.0mm copper tube
Heat pipe material and thickness	Diameter: 14mm, thickness 0.5mm copper tube
insulation	Polyurethane foam 50mm or rock wool
Test pressure and working pressure	Test pressure 12Bar, working pressure 6Bar to 5Bar
Frame Material and Thickness	A: Aluminum alloy, thickness 2.0mm
Frame Material and Thickness	B: stainless steel, thickness 1.2mm
collector installation	flat roof/pitched roof
entrance and exit	1/2" or 3/4"

Model	absorb Area (m2)	vacuum tube			thermal fluid content (large)	Quantity per 20'/40' container
Model	absorb Area (m2)	diameter	length	No.	thermal fluid content (large)	Quantity per 20'/40' container
WCD-70/1700-A 12	1.242	φ70mm	1700mm	12	2.28	76/161
WCD-70/1700-A 16	1.656	φ70mm	1700mm	15	3.04	57/121
WCD-70/1700-A 18	1.863	φ70mm	1700mm	18	3.42	51/108
WCD-70/1700-A 20	2.07	φ70mm	1700mm	20	3.8	46/97

WCD-70/1900-A 12	1.387	φ70mm	1900mm	12	2.28	69/145
WCD-70/1900-A 16	1.849	φ70mm	1900mm	15	3.04	52/109
WCD-70/1900-A 18	2.08	φ70mm	1900mm	18	3.42	46/97
WCD-70/1900-A 20	2.31	φ70mm	1900mm	20	3.8	42/88
