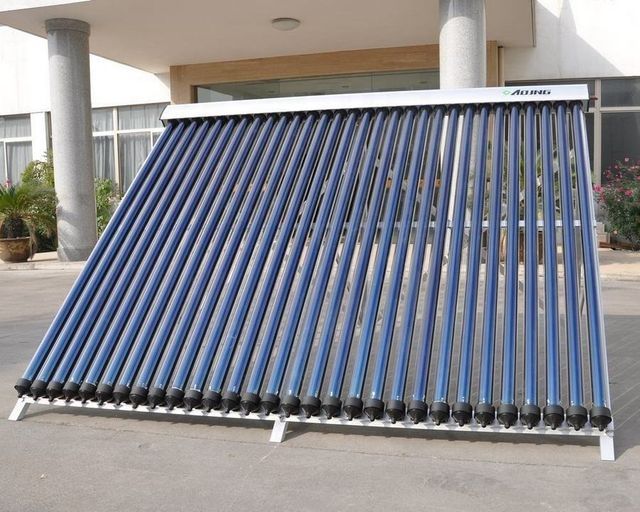

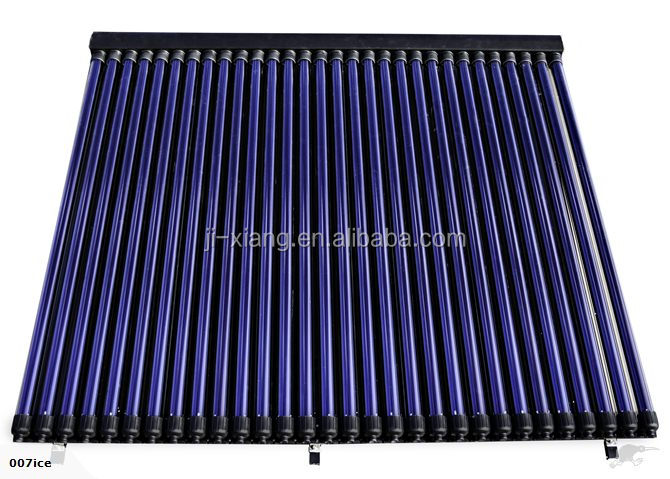

Heat Pipe Solar Collector Panel

Supplier: Haining Jixiang New Material & Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Lucky Solar
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Standard export packing: 1.sample or LCL: special package--packed in cartoon with foam in it, then into plywood box 2.FCL: packed in cartoon with foam.	operating hours:	all day

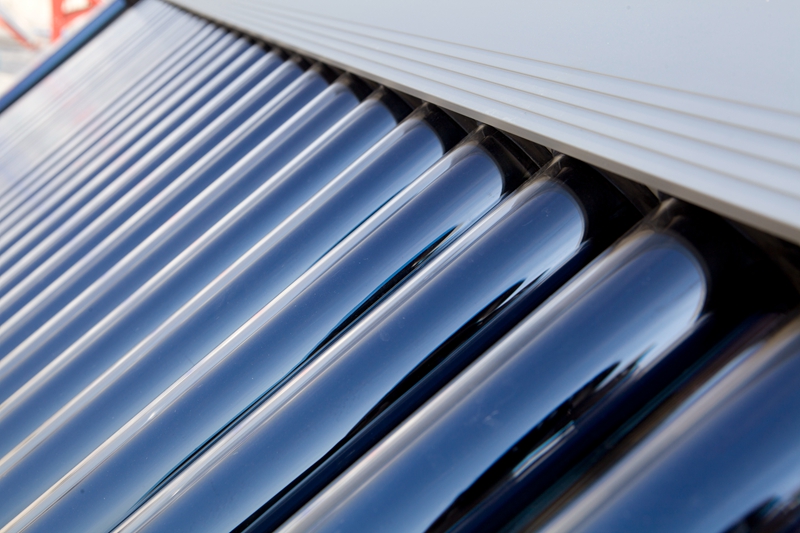

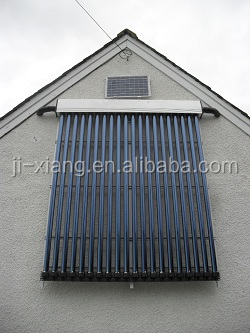

Install:	wall mounted, also free	Tube number:	10/12/15/18/20/25/30/36
Warranty:	5	model:	JXSPC series
Certification:	CE, Solar Keymark, SRCC, CCC, ISO9001	brand:	Lucky or OEM
payment terms:	L/C, D/A, D/P, T/T, Western Union, PAYPAL	Output voltage (V):	110V 220V
Supply capacity:	5000 sets per month	Connection Type:	In-line
describe:	Pressurized heat pipe vacuum tube solar collector	Pipe material:	Glass
port:	Shanghai/Ningbo, China	Bracket angle:	Both pitched and flat roofs are adjustable and usable
Origin:	Zhejiang, China	Certificate:	Key mark, ISO9001

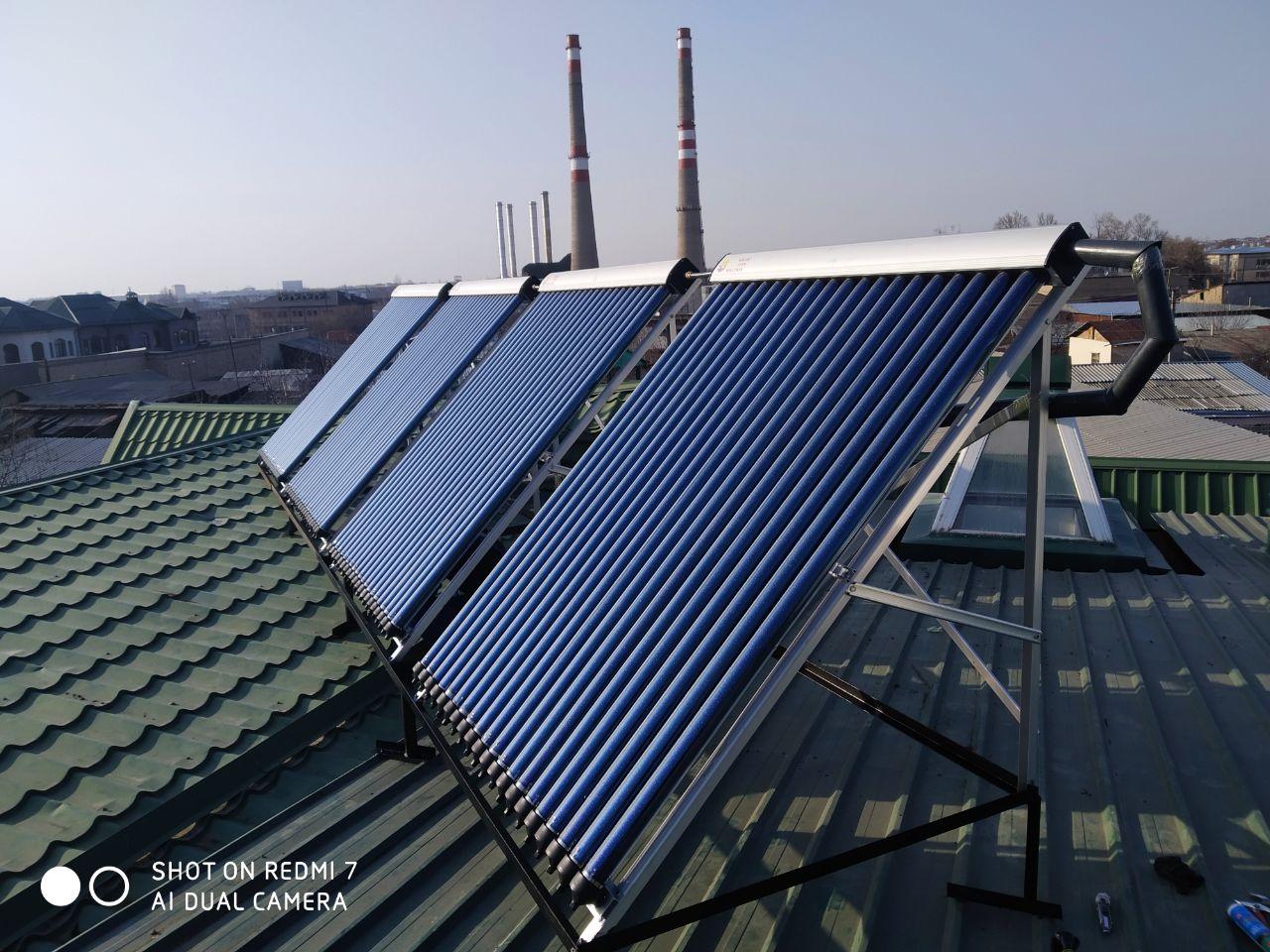

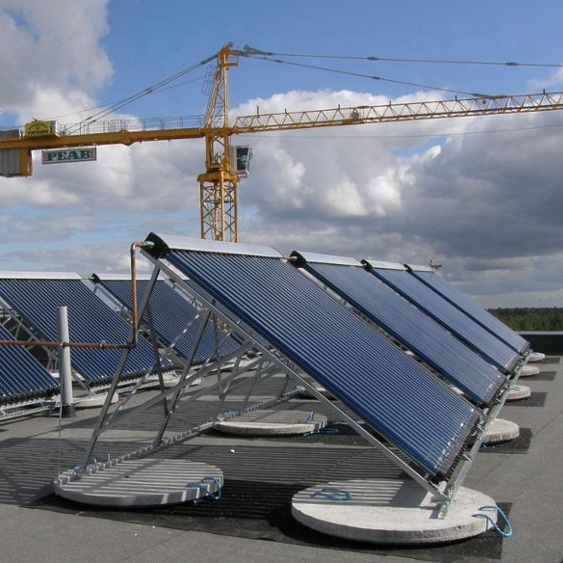

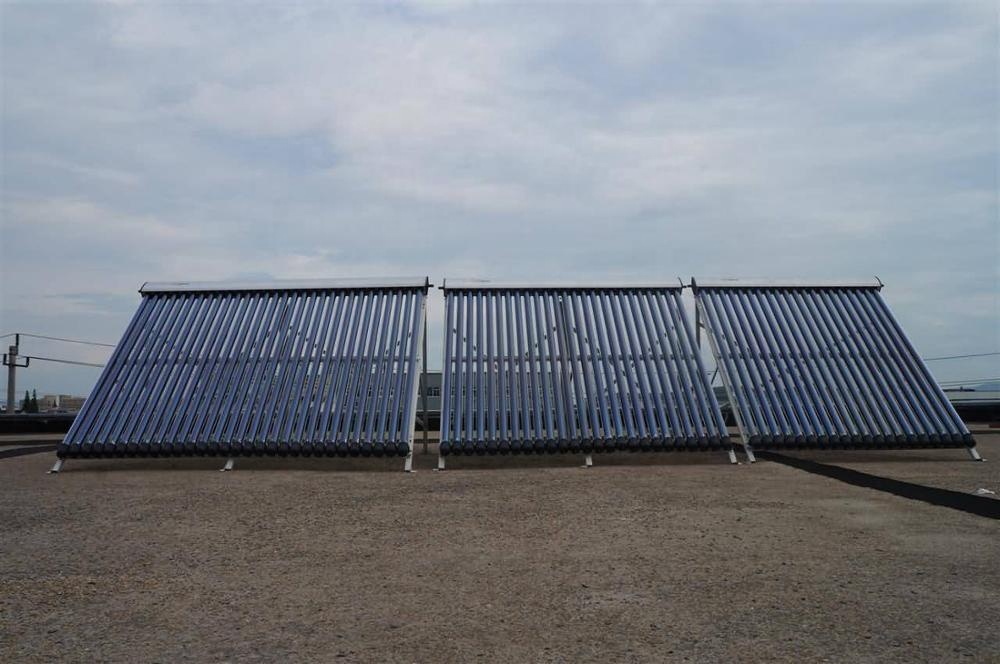

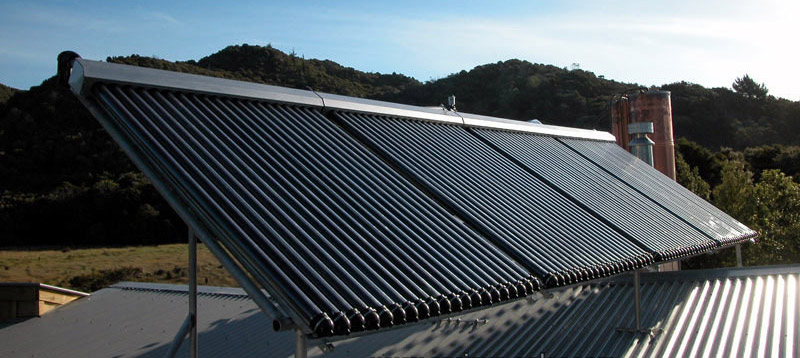

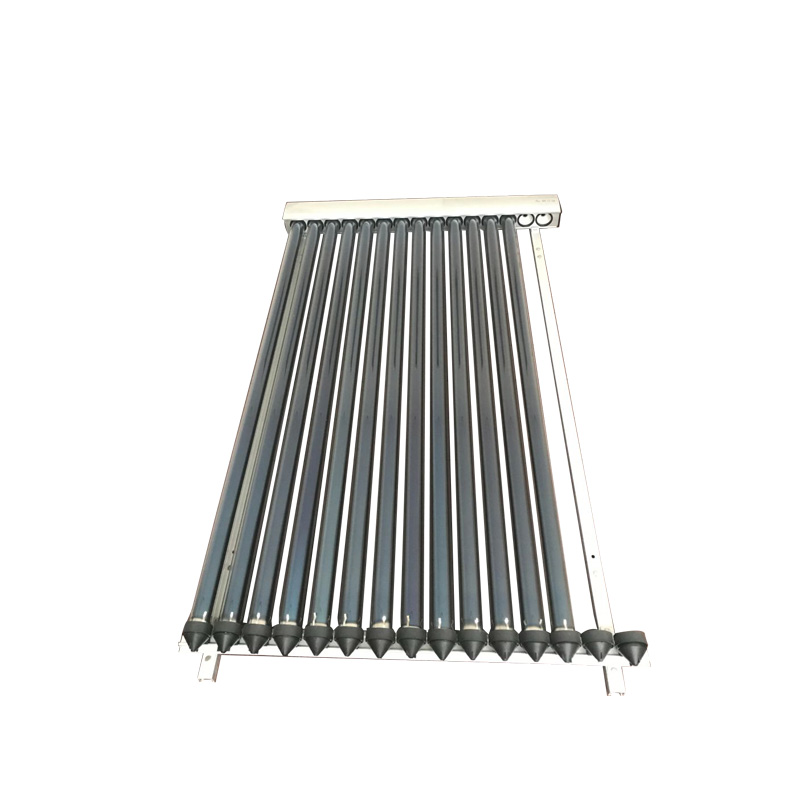

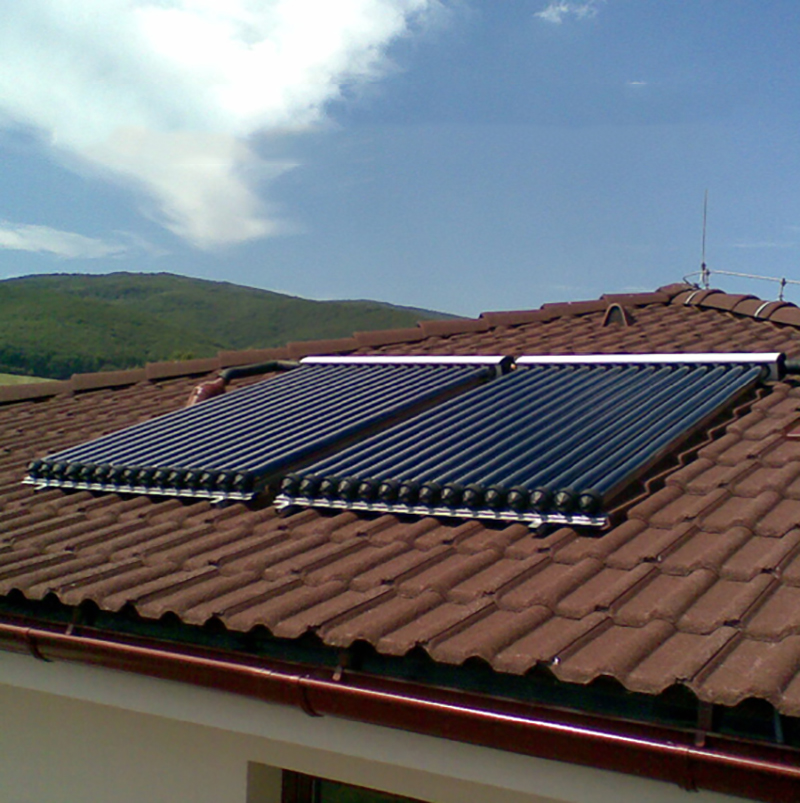

usage:	Home bathing, washing, swimming pool, industrial projects

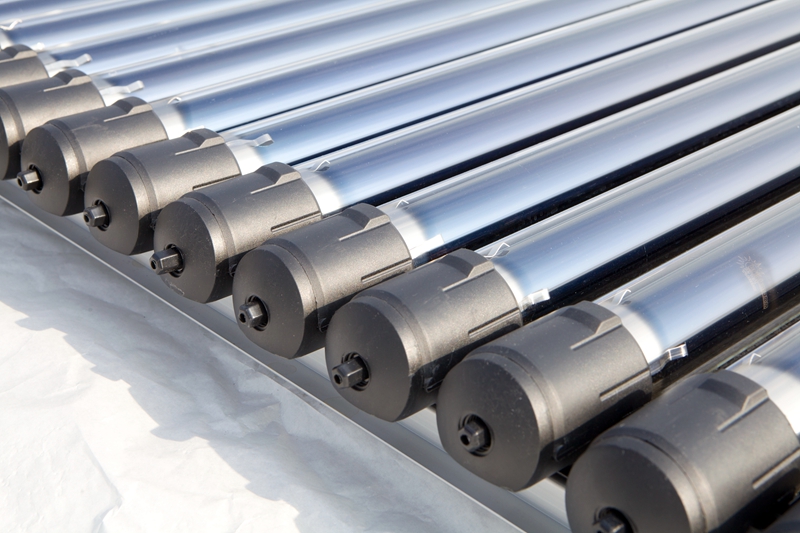

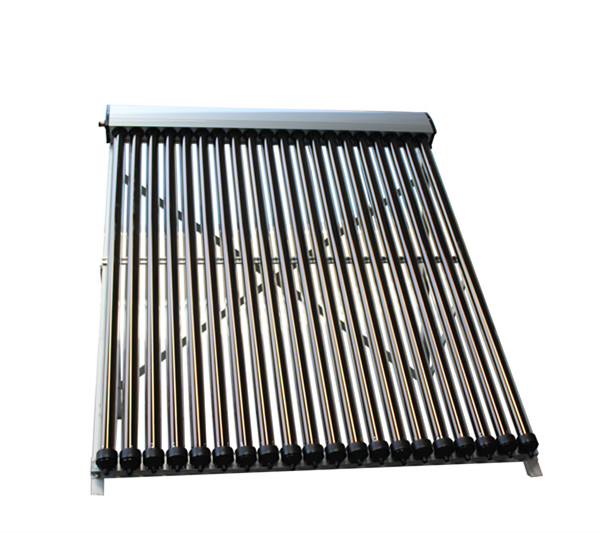

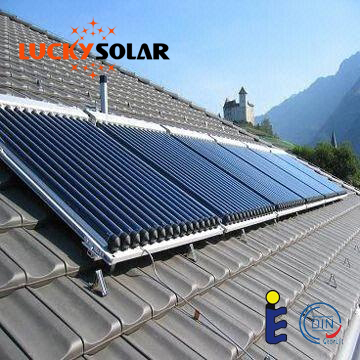

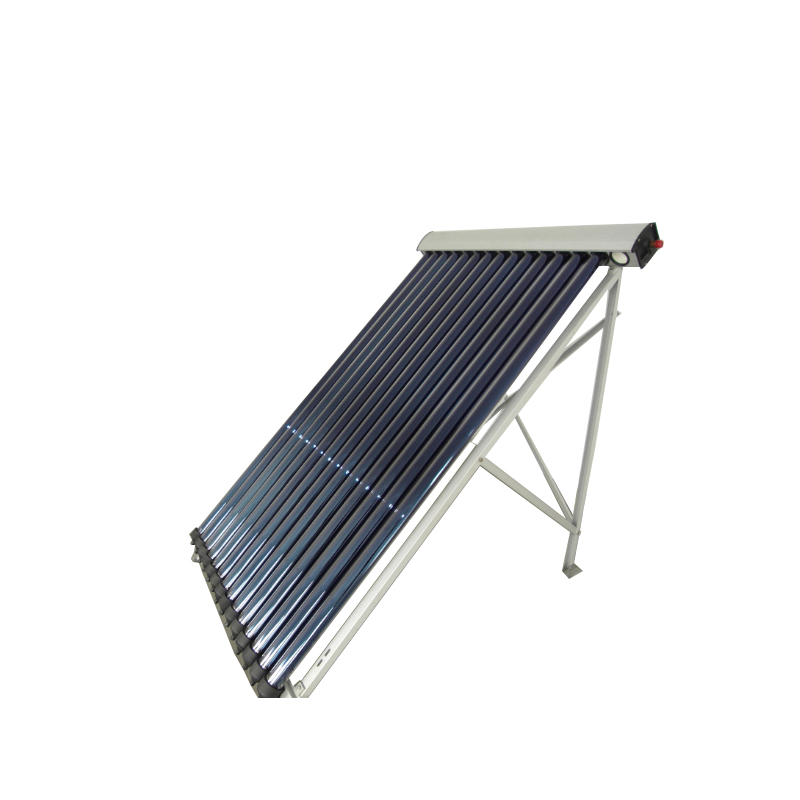

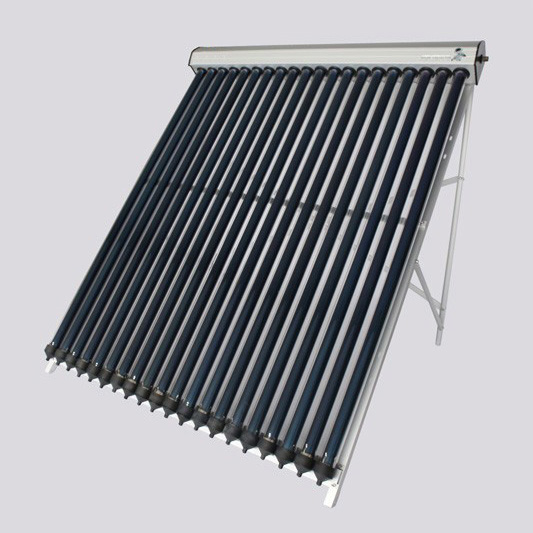

Copper Heat Pipe Solar Collector Panel

1. Working principle:

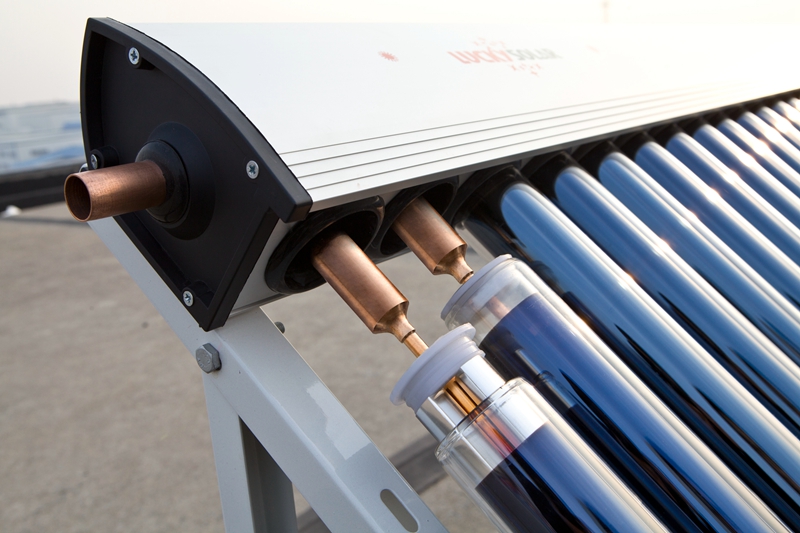

1. As a heat pipe collector, the condensation area of the heat pipe is inserted into the copper sleeve evenly distributed on the water pipe.
2. After the solar energy is absorbed by the vacuum tube, it is transferred to the heat pipe through the aluminum fins. 3. The medium in the heat pipe is heated by heat energy, works, and transfers heat energy to the condensation area.
4. When the water or other medium in the water pipe flows through the copper sleeve, it will bring energy and be heated.
5. The heated water or other medium passes through the coil in the tank to make the water in the tank hotter and hotter.

1. Advantages:

1) Can be combined with existing heating system

2) The copper channel is adopted, which has good heat transfer performance.

3) Copper heat pipes containing low boiling point special medium liquids are used

4) No water in the vacuum tube, no risk of freezing

5) Each heat pipe works independently and efficiently, and the solar water heater can continue to be used even if multiple pipes are broken

6) Work well in all climatic conditions, even in the ambient temperature of -30 degrees Celsius.

7) Anti-hail: 25mm

JXSPC-Serial Premium Heat Pipe Solar Collector Specifications

Three-target vacuum tube performance and specifications:
tubular structure		All-glass double-layer coaxial structure
glass material		High borosilicate 3.3 glass
Outer Tube Diameter and Glass Thickness		Ø58±0.7mm; glass thickness 1.6±0.15mm
Inner Tube Diameter and Glass Thickness		Ø47±0.7mm; glass thickness 1.6±0.15mm
Pipe size		58*1800mm
absorb coating property	coating material	CU/SS-ALN(H)/SS-ALN(L)/ALN
	Precipitation	Three target magnetron sputtering plating
	Absorption rate	α =0.92~0.96 (AM1.5)
	Emission ratio	Emission: ε=0.04~0.06(80℃±5℃)
Vacuum		P≤5.0X10^-3(Pennsylvania)
stagnation temperature (Temperature inside empty vacuum tube)		260~300℃
average heat loss		ULT 0.4~0.6 W/(m2 *°C)
Anti-hail		Ø25mm

24mmHigh-quality heat pipe performance and specifications:
Heat pipe material	Oxygen-free copper (TU1), Cu=Ag>99.99% (o_2<16ppm)
condenser size	Top: Ø24mm 65mm, Body: Ø80.6mm. Length: 1750±10mm Nickel-plated heat pipe (14mm, 24mm) optional, will be quoted upon request
Thermal fins	0.3mm/0.0098'' thick aluminum fin set, 1630mm
startup speed	30s
maximum. operating pressure	6 bar
maximum. Test pressure	12 bar
stagnation temperature	236°C

Manifold Performance and Specifications:
manifold header	TU2 Copper
Manifold casing	Anodized aluminum alloy (6063-T5/T6)
Insulation	Compressed rock wool.

Bracket performance and specifications:

brackets

Iron spray

(Aluminum alloy, stainless steel, optional, will be quoted upon request)

vertical installation angle

20-70⁰

Other component performance and specifications:
Diameter 58 dust-proof rubber ring	Isopropyl Styrene Silicone Rubber(110)
Diameter 58 heat pipe white inner plug	Isopropyl Styrene Silicone Rubber(110)
Diameter 58 pipe rack	Nylon 1013-(B)
Diameter 58 pipe rack cover	Nylon 1013-(B)
Manifold end cap	Nylon 1013-(B)
left sealing ring	Silicone Rubber(110)
