u pipe heat pipe solar collector with evacuated tubes

  • Supplier: Dezhou BTE Solar Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr BTE Solar Solar
  • Price: $210.00 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Vacuum tube size:58*1800mm;Model Number:THCUG-5818-25;
Header pipe (red copper):CopperTP2 15x0.6;Warranty:3 years;
Pipe Material:Polyurethane;Certificate:CE, Solar Keymark;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Product name:u pipe heat pipe solar collector with evacuated tubes;
Frame:1.0mmAluminum alloy;Working Pressure:0.8MP;
Overall size(mm):165x2090x1945;Port:TIANJIN PORT/QINGDAO PORT;
Supply Ability:100000 Piece/Pieces per Month u pipe heat pipe solar collector with evacuated tubes;Packaging Detail:water tank is 1 PC/Carton, solar collector is 1 PC/Carton. Sample put in wooden case, Standard package carton for sea delivery.;
Vacuum tube Qty(pcs):25;Brand Name:BTE&OEM;
Place of Origin:Shandong China;Package Preview:;
Aluminum fin(mm):1620;Material:Polypropylene;
Installation:Balcony Wall Mounted;
Product Description



 Technical data:

Specification

THCUG-5818-20

THCUG-5818-25

THCUG-5818-30

Frame

1.0mmAluminum alloy

1.0mmAluminum alloy

1.0mmAluminum alloy

Overall size(mm)

165x1690x1945

165x2090x1945

165x2490x1945

Vacuum tube
Qty(pcs)

20

25

30

Vacuum tube size:

58*1800mm

58*1800mm

58*1800mm

Header pipe (red copper)

CopperTP2 Φ15x0.6

CopperTP2 Φ15x0.6

CopperTP2 Φ15x0.6

Header pipe (red copper)

CopperTP2 Φ8x0.5

CopperTP2 Φ8x0.5

CopperTP2 Φ8x0.5

Aluminum  fin(mm)

   1620

   1620

   1620

Working Pressure

0.8MP

0.8MP

0.8MP

Remark

1. Frame: Aluminum 6063-T5;

2. Our full automatic production line can produce different specification products according to your own requirements;

3. We can supply Self-cleaning Glass for all collectors.

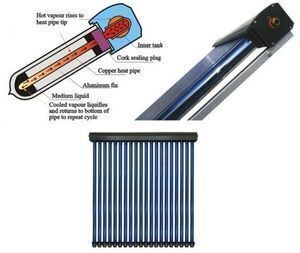

Working principle:

In evacuated tubes, there is copper pipe folded into a U-shape with aluminum thermal conductors to transfer the solar energy from the inside wall of the evacuated tubes to the circulation fluid in it. Then the circulation fluid take the heat energy into collectors manifold.







Bontel Advantages:
1.Evacuated tubes with triple layer selective absorber coating, vacuum degree≥5.2x10-4Pa, absorbing efficiency≥92.5%;
2.Applied advanced leaking test technology to ensure the whole system working stably and reliably;
3.With effective heat energy transferring Aluminum fins, U pipe collectors get higher temperature in short time;
4.High and constant pressure polyurethane foaming technology ensure the outstanding insulation quality;
5.Optimal and innovative design make collectors integrated into different buildings;
6.Circulation fluid in closed copper pipes(U Pipe), no water in vacuum tubes. There is no corrosion, no leaking , no scaling, no occasional tube breakages in collectors;
7.Working life ≥20 years.



Product Pictures







Application





Company Information



BTE Solar Co.,Ltd (BTE) is one of the leading manufacturer of solar hot water systems and photovoltaic system in China and around the world. With many years' experiences and Research, BTE team has developed different kinds of solar collectors for different working temperature and circumstance. The solar thermal products including Vacuum tubes, Flat panel collector(High /low temperature), U pipe and Heat pipe collector, Linear concentrating collector, Steam Collector, Solar Water Heater and commercial system. The solar photovoltaic products including solar panels, solar lamps, power generating system and solar pumps. Sentoc automatic production line and strict quality management system can supply you high quality & long working life products.

The board of chairman Mr. Rongtao,Han is one totally technical guy, he has been do the research of solar key technology from year 2000,With his good technical background and ten years research, Sentoc founded in 2009.

Now,BTE and Aoxin Holdings cooperated developed innovative industry integrated model and successfully build Hebei Aochang Industrial Park, Henan Xuchang Industrial Park, Shandong Jining Industrial Park, Total investment more than USD 20,000,000. The Second production base of Sentoc which located in Hebei Aochang Industrial Park has been finished. On the base of professional technology experiences and cooperation with researching institutes and universities, Sentoc has developed high weather-proof selective absorbing film from full-automatic magnetron sputtering production line. Averagely 1.5min/p can delivery your order in short time. The quick measuring instrument from Germany can do function test on production line which ensure each absorber plate meet our high quality requirements.

In 2014, Sentoc successfully developed the new flat panel collector with "Bonding" technology. Its efficiency is 10% higher than normal blue film collector.

In addition, BTE is the core member of Solar Cooling Equipment Joint Research Center and supply heat collecting design for solar cooling system.

Now, Sentoc not only supply energy saving products to global market, we also supply different energy saving solutions to realize your "Micro-Emission" requirements.
