Non-standard custom-made heavy-duty large-module alloy steel segmented cast herringbone double helical cylindrical large ring gear

Click here to contact
Product details
Warranty:6 monthsVideo outbound inspection:if
port:Main ports in China: Shanghai Port, Qingdao Port, etc.weight:Maximum 50T per piece
Certificate:ISO9001Weight (kg):1500
Health status:newapplication:Rotary kiln, ball mill, etc.
Applicable industries:Manufacturing plants, machine repair shops, food and beverage plants, retail, construction and engineering, energy and mining, othersStandard or non-standard:Non-standard
Processing:Precision castingCore components:gear
Core component warranty:6 monthsexamine:aw material inspection, UT, physical performance testing, dimensional inspection
OEM:Customer requirementsMarketing type:New products for 2022
brand:yogiSupply capacity:45 pieces per month
Heat treatment:ConditioningTooth shape:Spur gear/helical gear/herringbone gear
Module:Up to 200Package preview:
product name:ring gearFree samples:No
Showroom location:not anyPackaging details:plywood
feature:large moduleMechanical test report:if
payment terms:L/C, Western Union, T/T, MoneyGramMaterial:steel
pressure angle:20°shape:ring gear
Place of origin:China, Luoyang
Product Description

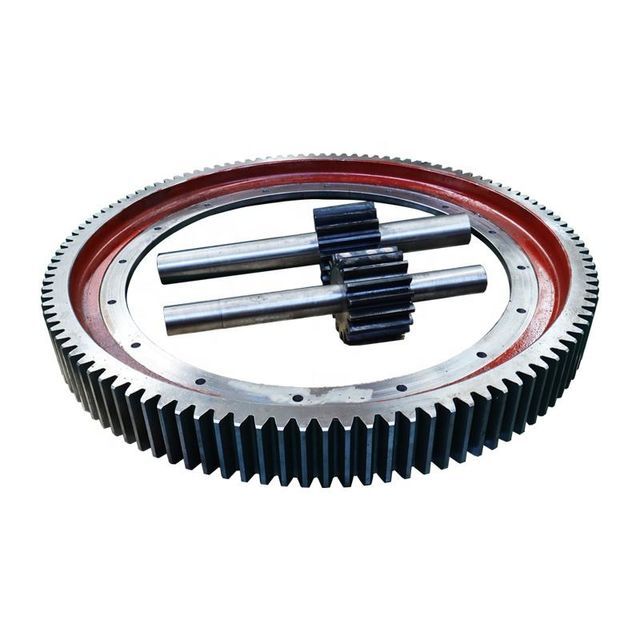

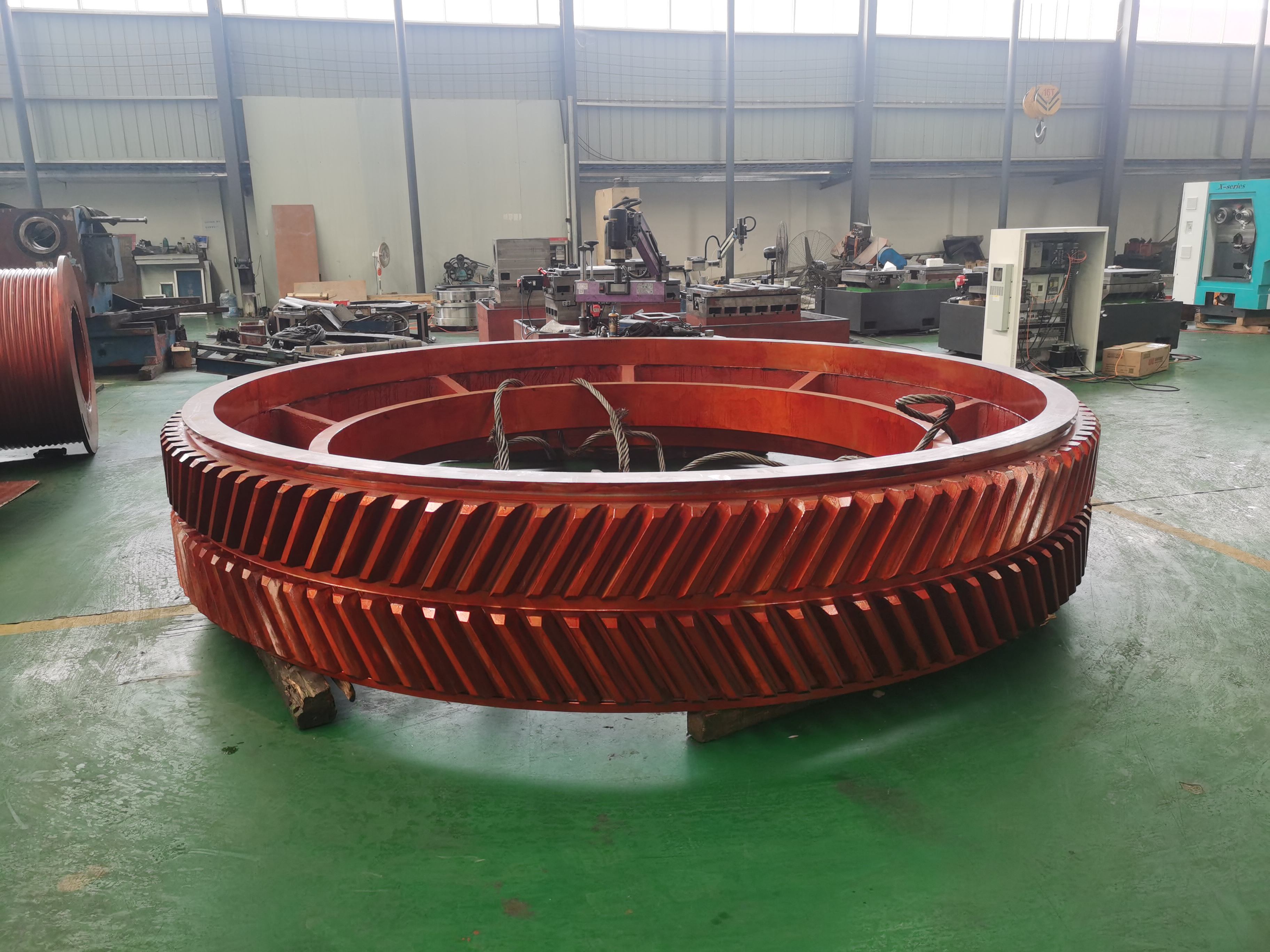

Non-standard custom-made heavy-duty large-module alloy steel segmented cast herringbone double helical cylindrical large ring gear
Gears, ring gears and sector ring gears often used in mechanical transmissions are usually made of high-quality high-strength alloy steel with forged or cast structures, and are surface carburized or hardened. The gear has a high load-bearing capacity and is durable. In practical applications, it is widely used in high-speed and heavy-load machinery because of its smooth transmission, small impact, small vibration, and low noise. Our company can produce spur gears, helical gears, herringbone gears, ring gears and other different types of ring gears and gears according to customer requirements. According to customer's drawings and requirements, if you have any questions, please feel free to contact us
Material
Carbon steel, alloy steel, 42CrMo, 35CrMo, 34CrNiMo6
weight
Maximum 1T per piece
structure
forging, casting
Gear type
Spur gear, double helical gear, helical gear, herringbone gear
heat treatment
Quenching and tempering
process
Forging, rough machining, QT, finishing
Major equipment
6m.4m CNC gantry milling machine, VMC850, 5m CNC vertical lathe, 6m CNC horizontal boring machine, etc.
module
Gundam M150
Gear accuracy
Grinding ISO Class 5-7 and Hobbing ISO Class 8-9
examine
Raw material inspection, UT, physical performance testing, dimensional inspection

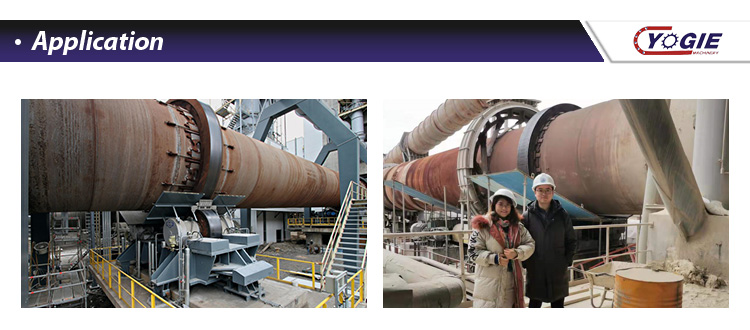

application
Ball mill, rotary kiln

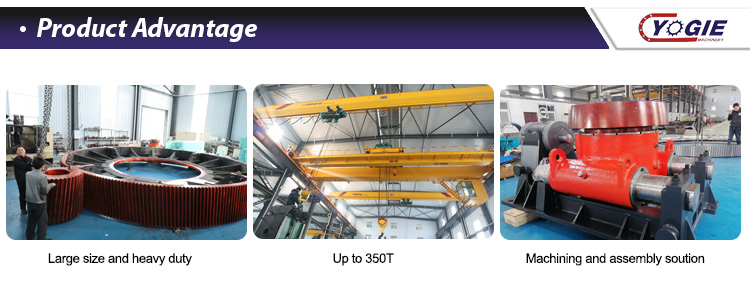

Our advantageLarge sugar factory gears

1.Large load capacity and long life.

2. High precision
3. Prompt delivery
Large gear shaft Large gear shaft Large gear shaftClick here to get a quote
Click here for technical support
about Us
Luoyang Yujie Industry and Trade Co., Ltd. was established in 2004. It is mainly engaged in the design and manufacturing of large mechanical parts and non-standard mechanical parts, including shafts, gears, sprockets, mining machinery parts, welding, bearings, and main product applications. In mining, petroleum, cement, steel plants, power plants, sugar factories and other fields.
large spur gearlarge spur gearLarge spur gear Large spur gearLarge spur gear Large spur gearLarge spur gear Large spur gear
QC
Click here for more details
All tests comply with ISO 9001 quality management system certification standards and support third-party inspections entrusted by customers.
Large spur gearLarge spur gearLarge spur gearLarge spur gearLarge spur gearLarge spur gearLarge spur gear

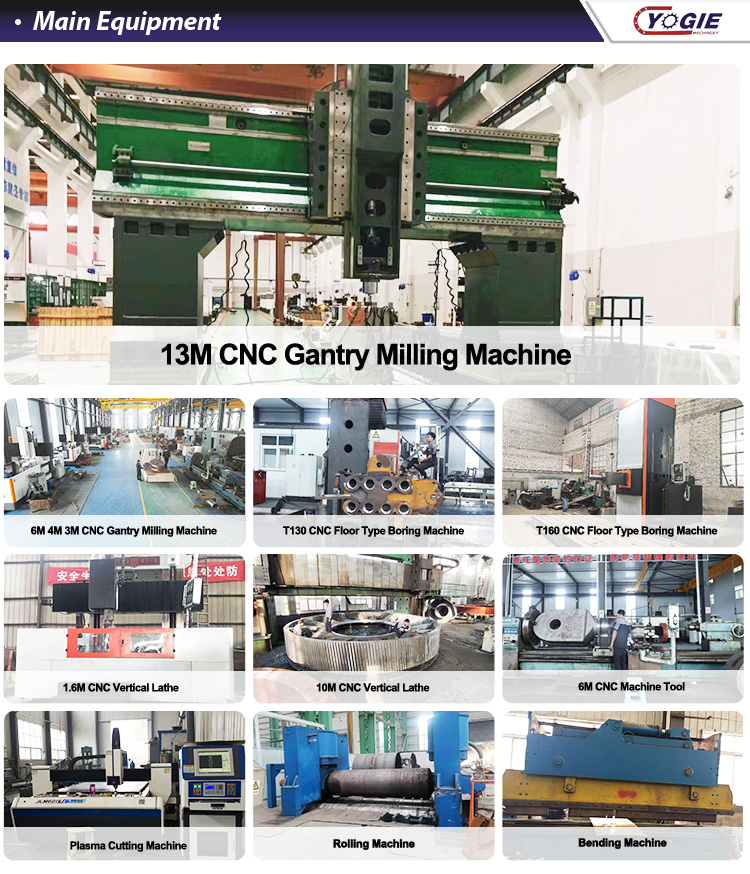

our equipment
Our equipment all uses advanced CNC machine tools, especially large-scale CNC gantry milling and boring machines and CNC floor-standing boring machines.
CNC gantry milling and boring machines, CNC machining centers equipped with fourth axis, CNC floor boring machines equipped with fourth axis and rotary table can realize five-axis machining. The workpiece is not limited by size and is suitable for processing large modules, large-size gears, boxes, and large non-standard parts.
Our company has a series of advanced equipment such as XV6032, HXV4032, HXV3017, HXV2017 CNC gantry boring and milling machine, TX130 CNC floor boring machine, DVT-500, HK1600 CNC vertical lathe, CK6136 CNC horizontal lathe, etc., ensuring the high precision and stable performance of the products. . product.
