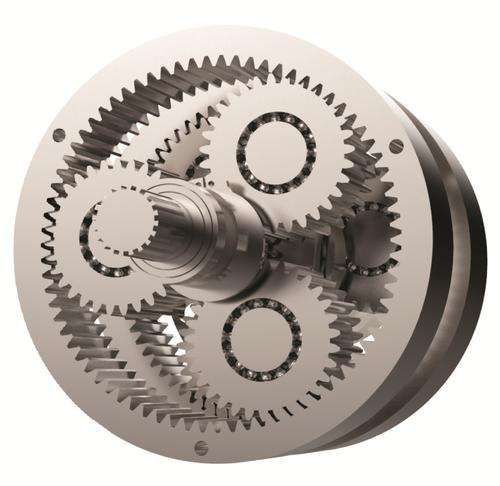

High-quality suppliers Small machining planetary gear sets Steel power transmission parts Ordinary products

Click here to contact

Product details

Mechanical test report:	if	Video shipment inspection:	if
shape:	ring gear	Core components:	gear
port:	Shanghai or Qingdao port	QC:	Non-destructive testing (UT/MT/RT/PT)
Standard or non-standard:	Non-standard	size:	customer drawing
Supply capacity:	50000 pieces per year	Processing:	rolling/milling/planing,planing
Health status:	new	Showroom location:	not any
Material:	steel	Blank:	Forged or cast according to drawing.
Certificate:	ISO9001	Tooth profile:	helical gear
Marketing Type:	Hot Products 2023	pressure angle:	20 degrees
application:	Industrial/Gearbox/Transmission Components	payment terms:	L/C, T/T
Core component warranty:	1 year	Packaging Details:	1. Fumigation wooden box 2. Tarpaulin wooden frame
Surface treatment:	Polishing/grinding/painting/anti-rust oil	Warranty:	1.5 years
standard:	Standard/national standard/AISI	heat treatment:	QT/Quenching/Carburizing
Origin:	Henan, China	brand:	Deyu
Applicable industries:	Manufacturing plants, machinery repair shops, energy and mining	product name:	Customized forged steel large internal tooth ring gear
Weight (kg):	1

Product Description

1. Type:1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50.

2. Standard: Standard; National standard, GOST, AISI, etc.

3. Certification: ISO9001, Form E, Form A, CO

4. Report: Material report; Hardness report; UT/MT report; Dimensional inspection report; Mechanical property test report

product name	gear
elegant	Spur gears, helical gears, herringbone gears, spiral bevel gears, bevel gears, planetary gears
Material	Medium carbon steel: 35#, 45# Carburizing steel: 20CrMnTi, 20CrMnMo Alloy steel: 40Cr, 35CrMo, 42CrMo, 40CrNiMo Cast iron: HT250, QT400
standard	DIN GB ISO JIS BA ANSI
module	hobbing to 40 Gear milling up to 50
heat treatment	Quenching and tempering, surface hardening, Overall quenching, carburizing and quenching, tempering, Normalizing, nitriding
application	Widely used in various transmission, variable speed, rotation and Other civilian or military equipment.
