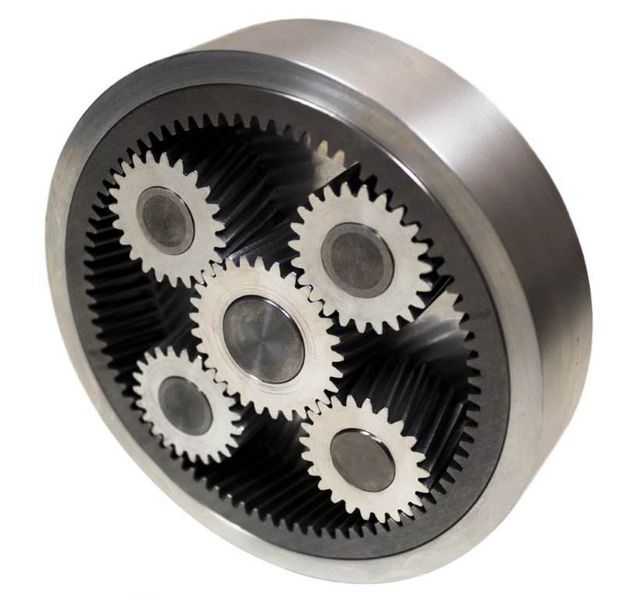

Customized high-precision reducer ring gear and pinion planetary gear set
- 10.00 1 - 9 pieces
- 9.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Showroom location: | not any | Warranty: | 1.5 years |
| Core components: | gear | Processing: | Hobbing/Milling/Turning,Turning |
| Weight (kg): | 1 | payment terms: | L/C, T/T |
| port: | Shanghai or Qingdao port | Health status: | new |
| Tooth shape: | helical gear | size: | customer drawing |
| QC: | Non-destructive testing (UT/MT/RT/PT) | Blank: | Forged or cast according to drawing. |
| brand: | Deyu | shape: | ring gear |
| application: | Industrial/Gearbox/Transmission Parts | Mechanical test report: | if |
| standard: | DIN/GB/AISI | Marketing Type: | Hot Products of 2023 |
| Applicable industries: | Manufacturing plants, machinery repair shops, energy and mining | Core component warranty: | 1 year |
| Packaging Details: | 1. Fumigation wooden box 2. Tarpaulin wooden frame | pressure angle: | 20 degrees |
| Surface treatment: | Polishing/grinding/painting/anti-rust oil | Certificate: | ISO9001 |
| Origin: | Henan, China | heat treatment: | QT/Quenching/Carburizing |
| product name: | Customized forged steel large internal tooth ring gear | Supply capacity: | 50000 pieces per year |
| Standard or non-standard: | Non-standard | Video outbound inspection: | if |
| Material: | steel |
Product Description
1. Type:1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 32, 40, 50.
2. Standard: DIN; GB, GOST, AISI, etc.
3. Certification: ISO9001, Form E, Form A, CO
4. Report: Material report; Hardness report; UT/MT report; Dimensional inspection report; Mechanical property test report
product name | gear |
Classification | Spur gears, helical gears, herringbone gears, spiral bevel gears, bevel gears, planetary gears |
Material | Medium carbon steel: 35#, 45# Carburizing steel: 20CrMnTi, 20CrMnMo Alloy steel: 40Cr, 35CrMo, 42CrMo, 40CrNiMo Cast iron: HT250, QT400 |
standard | DIN GB ISO JIS BA ANSI |
module | Hobbing up to 40 Gear milling up to 50 |
heat treatment | Quenching and tempering, surface hardening, Overall quenching, carburizing and quenching, tempering, Normalizing, nitriding |
application | Widely used in various transmission, variable speed, rotation and Other civilian or military equipment. |
