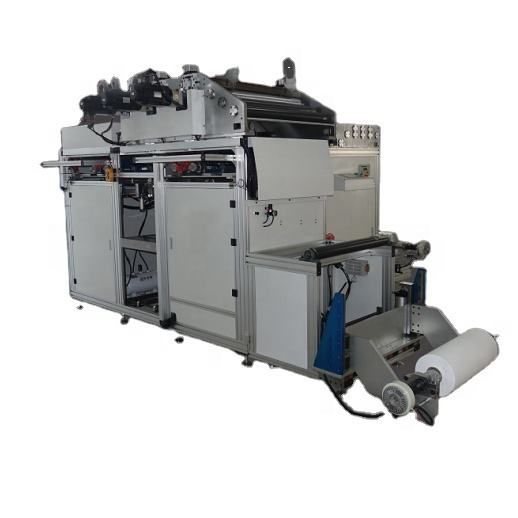

Fully automatic origami production line with clapboard
- 105000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Shanghai | Packaging Details: | wooden box |
| Origin: | Anhui, China | Total power: | one year |
| payment terms: | wire transfer | Package preview: | |
| Mechanical Capabilities: | 15 pleats | Year: | May 20, 2022 |
| brand: | Tongcheng | Supply capacity: | 10 groups per day |
| Product Category: | Paper Cups, Paper Bags, Napkins, Paper Tubes, Paper Absorbent Tubes, Diapers, Egg Trays, Envelopes, Kleenex, Paper Bags, Paper Bowls | Key machines: | Origami machine, paper bag machine, paper core machine, die cutting machine, paper cutter, slitter rewinder, HEPA air filter pleating machine |
| Automatic level: | automatic | Health status: | new |
| weight: | 500 kg |
Product Description
product name | 350 type corrugating machine | |
Aluminum Foil Requirements | semi-hard, flat | |
aluminum rolling diameter | 700 mm | |
Maximum width of aluminum | 350 mm | |
Aluminum foil thickness | 0.04±0.005mm aluminum foil finished corrugated flange width 3mm-10mm | |
free control fixed length | ||
Production speed (maximum) | 0-40 tablets/min | |
50Hz, 380V power requirements | ||
compressed air required | 0.6 cubic meters per minute | |
Dimensions (length x width x height) | 3400mm×730mm×1130mm | |
configuration list
Motor configuration: Three-phase motor Mechanical part: Hard chrome plating on the shaft, other decorations are blackened by Novo. Host machine: , paint rack, tension control system, filter material tensioning shaft, aluminum foil flanging of the machine, corrugated forming, sizing and shearing, continuous automatic operation of discharging, high product length and sizing precision 7 standard instrument components configuration: each The instrument is properly installed and easy to disassemble;
Use and process
This equipment is mainly used for the production of aluminum foil and paper separators. The frame adopts baking varnish frame, which is beautiful and easy to ensure precision and easy to adjust. Ergonomic design makes roll changing, adjustment and operation more convenient and faster. It avoids the disadvantage of high working surface of traditional models. The process is: roll aluminum foil (paper) → winding → tension unwinding → tension feeding → flanging → corrugated pressing (heat setting) → automatic sizing and cutting → automatic discharge
