High-speed hydraulic paper plate machine production line

  • Supplier: Bobo Machine Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Sotu zhu
  • Price: $100000.00 /set
  • Min. Order: 1 set
Product details
After Warranty Service:Video technical supportAuto grade:automatic
Dimensions (L*W*H):3700*1200*1900brand:Bobo
Packaging Preview:Key machines:Die-cutting machine, paper plate machine, paper embossing machine
Mechanical Capability:80-140/minweight:1400kg
Packaging Details:Ordinary packaging is wooden box, special items can be adjusted according to specific project requirements.application:Production
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramHealth status:new
port:Shanghai port export high-speed hydraulic paper plate machine production linemodel:Bobo
place of origin; place of origin:Jiangsu, ChinaName:paper plate making machine
Supply capacity:100 sets per quarterVoltage:custom made
High-speed hydraulic paper plate machine production line

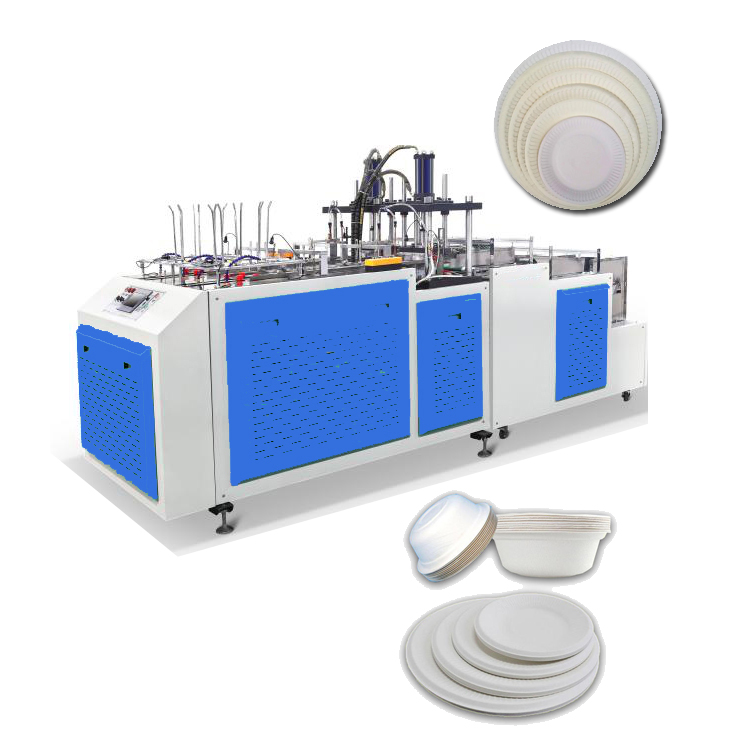

paper plate making machine
The machine adopts mechanical transmission, hydraulic forming and pneumatic paper blowing, and has the advantages of stable performance, convenient operation and maintenance, etc. The electrical part, PLC, photoelectric tracking, automatic intelligent safety manufacturing, can directly support the production line.

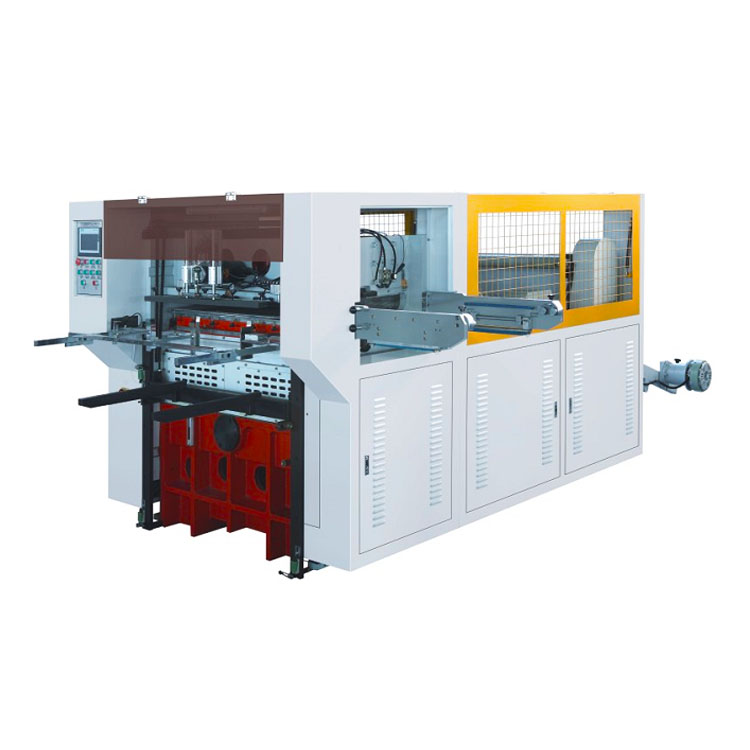

Automatic die cutting machine
Roll paper high-speed automatic die-cutting machine is a professional equipment for cutting all kinds of paper. , Thin oil centralized lubrication, automatic hydraulic loading and unloading, automatic timing oil filling, overload protection and unique rotating mechanism, to achieve paper return, smooth paper feeding, accurate positioning, orderly feeding of paper, all key parts of the machine and control system use imported products and Precise assembly ensures stable working pressure, accurate positioning, smooth movement, and safe and reliable machine.

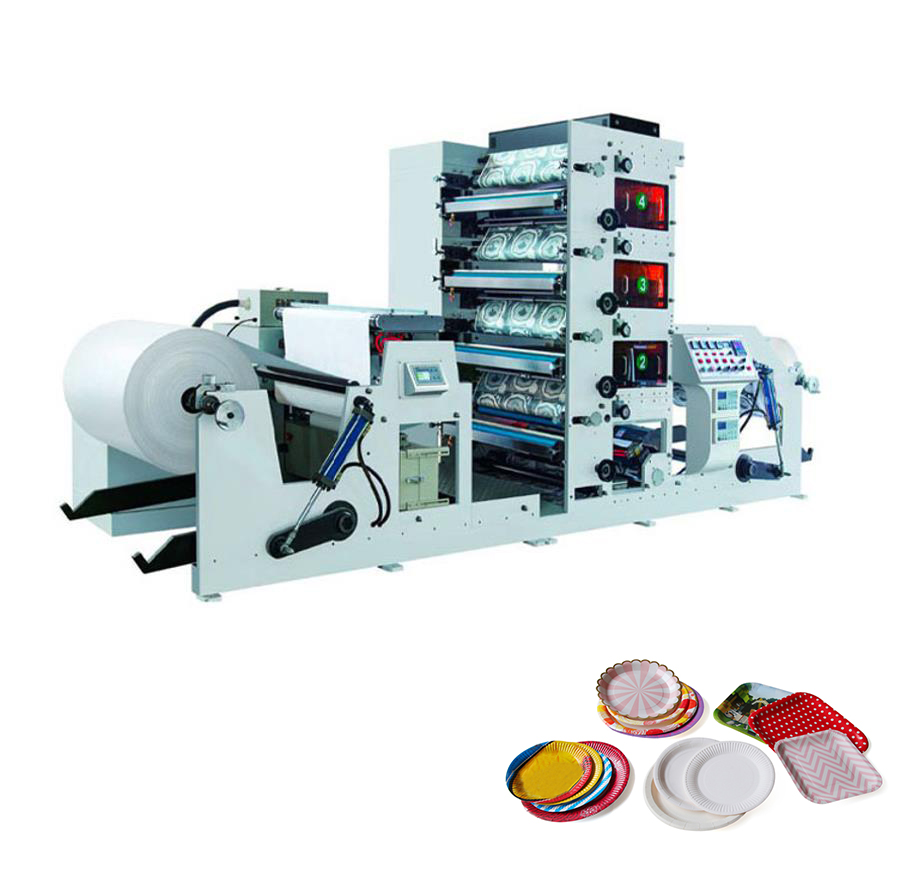

flexo printing press
Flexo printing machine from paper feeding, printing, automatic infrared (UV) drying in one operation. Can be equipped with UV oven drying device. Ideal machine for supermarket labels and monochrome self-adhesive labels.

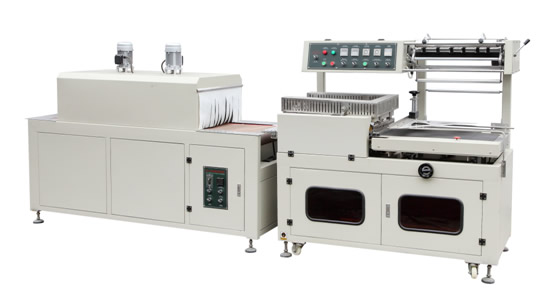

Automatic packaging machine
Heat shrink packaging machine, also known as heat shrink machine, is one of the most advanced packaging methods on the market. In addition to its unique properties, it also reduces the likelihood of the product being disassembled or stolen. Mainly used for dense packing and pallet packing of multiple items. There is also a tableware heat shrinking machine (tableware packaging machine), which is mainly used for the heat shrinking of tableware. Cutlery retractors are ideal for the cutlery, software, printing, snack, pharmaceutical, china, beverage and flooring industries. Forming and packaging of high volume heat shrinkable films.
Tray size
4-15”
paper grams
100-800g/m2
paper material
Base paper, white board paper, white cardboard, aluminum foil paper, etc.
capacity
Double station 80-140pcs/min
Power Requirements
380V 50HZ
total power
8KW
weight
1400kg
Specification
3700×1200×1900mm
Gas supply requirements
0.4Mpa, 0.3 cubic meters per minute
Other considerations
custom made
Cylinder
ML-63-150-5T-X
Cylinder stroke
150mm
1. Q: What is the power supply of the machine? A: The standard power supply in China is 380V, 3P, 50Hz. We can also customize accordingly. 2. Q: What information do customers need to provide to get an accurate quote from us? A: Customers need to provide relevant technical requirements, drawings, pictures, industrial voltage, planned output, etc. 3. Q: What is the payment term A: The payment term is 30% down payment, 70% before delivery (T/T mode), we also Accept other payment methods such as L/C, DA, D/P, etc. 4. Q: What is the delivery time? A: Usually the delivery time of the machine is 30 days after receiving the deposit. 5. Q: How long is the warranty period of the machine? A: The warranty period is one year from the date of the bill of lading.
