RYHM Royal Packaging Fully Automatic A4 Paper Production Line

Supplier: Hangzhou Royal Packing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Shelly Cao
Price: $165000.00 /set
Min. Order: 1 set

Click here to contact

Product details

model:	rhythm	Packaging Details:	export grade packaging
Diameter of paper core:	3"(76.2mm) or 6"(152.4mm) or according to customer requirements	Compressed air consumption:	300NL/min
Voltage:	380v 50hz	Order quantity:	Up to 500 sheets Height: 45-55mm
Supply capacity:	15 sets per month	year:	2022
Paper Weight:	60-100g/m2	Cut the numbers:	2 Cuts - A4 210mm (W)
Mechanical Capability:	12-16 reams/min	port:	Tianjin
weight:	5000kg	Product Category:	A4 paper
Key machines:	Paper Cutter, Packing Machine, Paper Cutting Line, Fully Automatic A4 Paper Production Line, RoyalPacking	Health status:	new
Auto grade:	automatic	Packaging Preview:
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Packaging sheet grade:	High-grade copy paper, high-grade office, etc.
Paper width:	Overall width 850mm, net width 840mm	Production speed:	Maximum 0-300m/min
brand:	royal packaging	place of origin; place of origin:	Zhejiang, China
Sheet length:	297mm	maximum. Number of cuts:	Max 1010/min

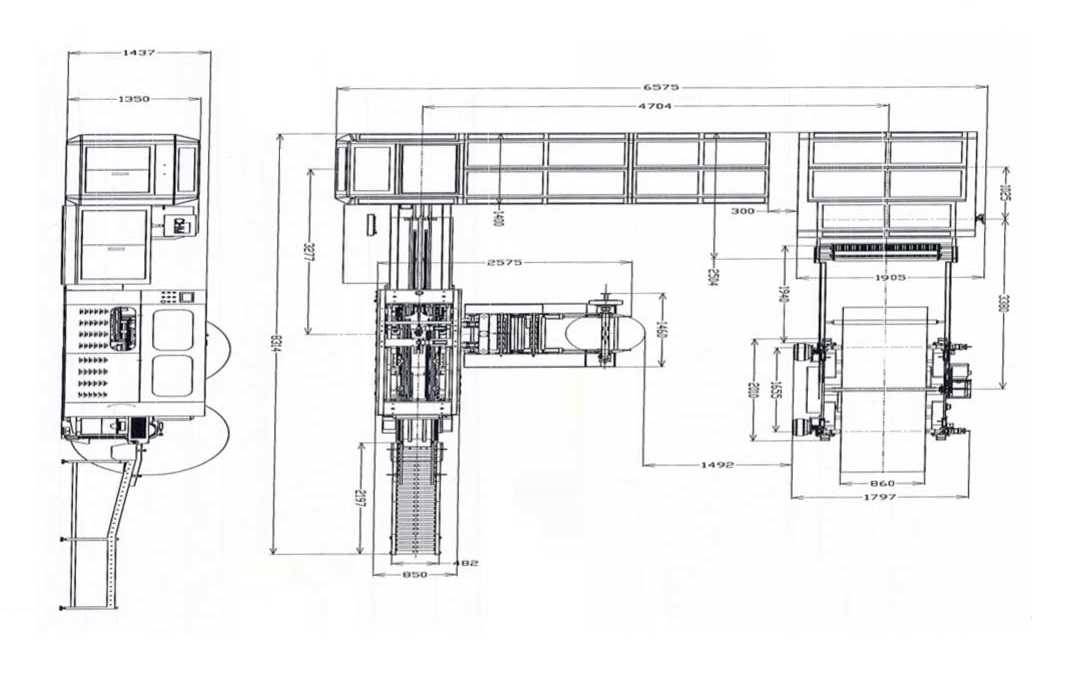

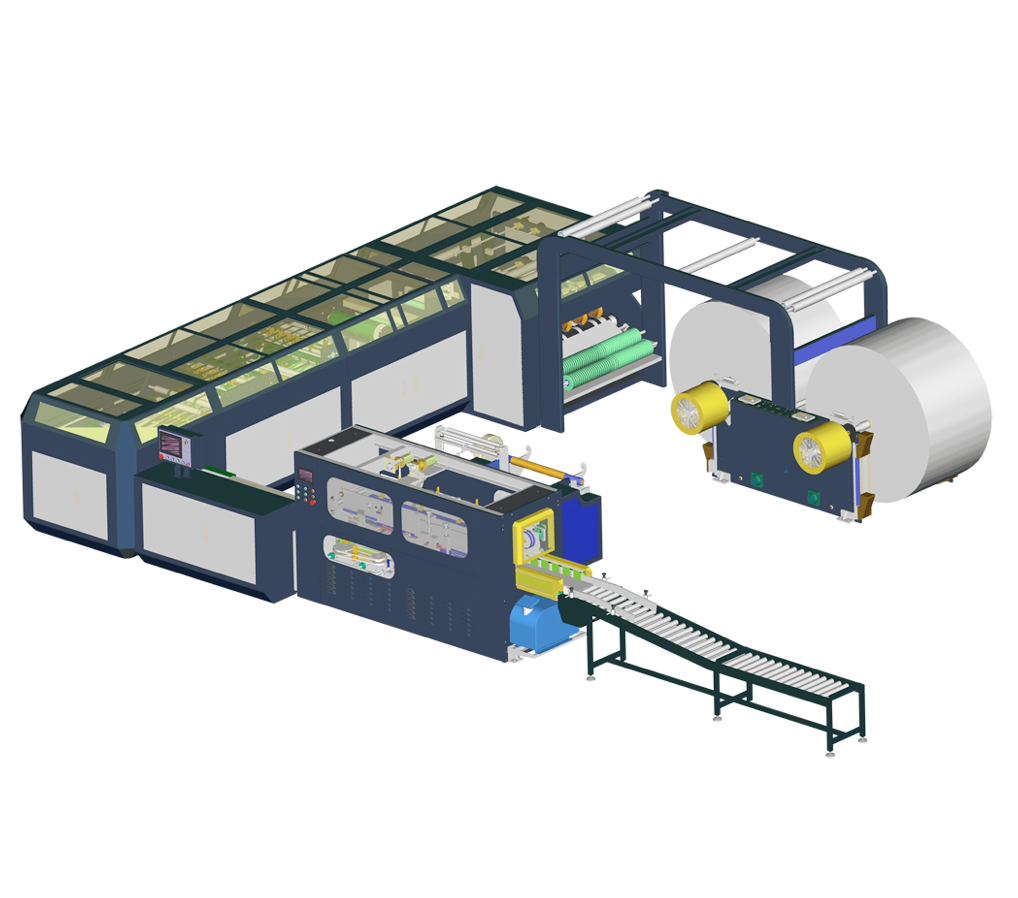

RYHM-2-A4 automatic A4 paper production line

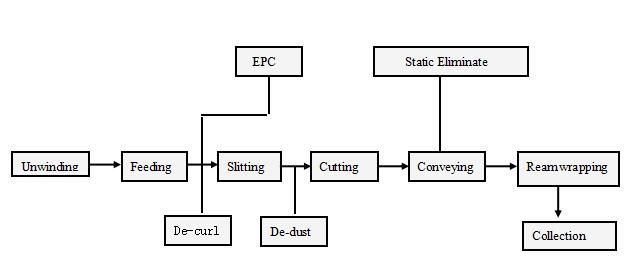

As the process of our machine, hereby explain the related functions and work flow of paper products: unwinding → cutting → conveying → ream packaging → collection

paper width	Overall width 850mm, net width 840mm
cut numbers	2 Cuts - A4 210mm (W)

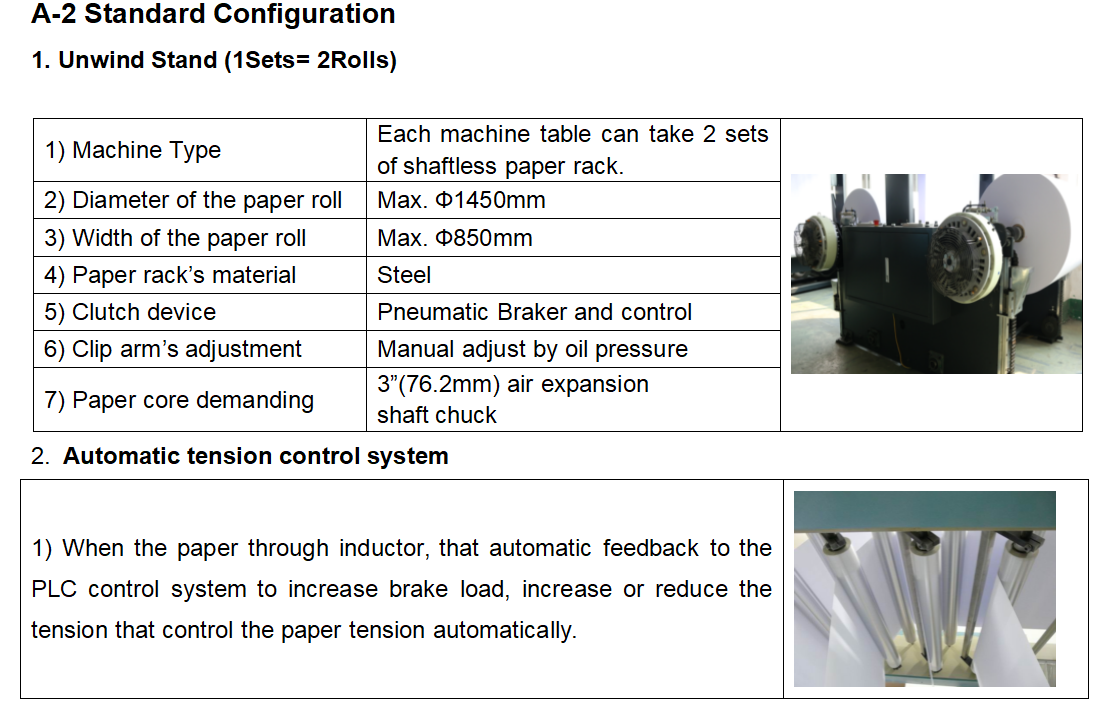

Paper roll diameter	Maximum Ф1450mm. Minimum Ф600mm
Core diameter	3"(76.2mm) or 6"(152.4mm) or according to customer requirements
wrapping paper grade	High-grade copy paper; High-grade office paper; High-grade free wood paper, etc.
paper weight	60-100g/m2
Sheet length	297mm (designed for A4 paper, the cutting length is 297mm)
order quantity	Up to 500 sheets Height: 45-55mm
Production speed	Maximum 0-300m/min (depending on different paper quality)
maximum. Number of cuts	Max 1010/min
the output of the command	About 12-16 reams/minute
cutting load	100g/m2 (2×100g/m2)

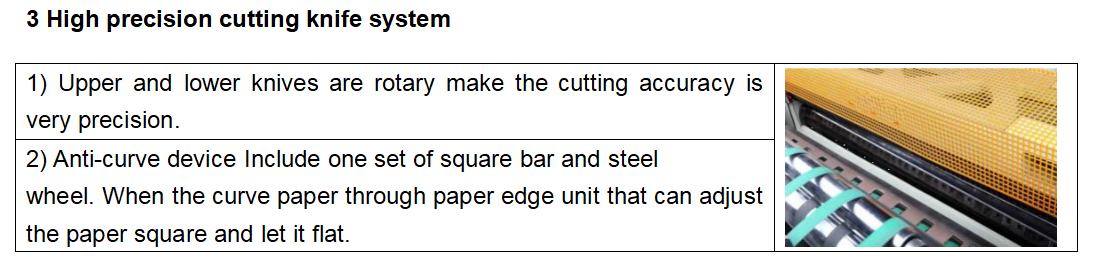

Cutting accuracy	±0.2mm
Cutting conditions	No change in speed, no interruption, cut all paper at once, qualified paper is required.
main power	3*380V/50HZ
Voltage	220V AC/24V DC
strength	23KW
Air consumption	200NL/min
air pressure	6 bar
trimming	5～15mm×2
safety standard	Designed according to Chinese safety standards

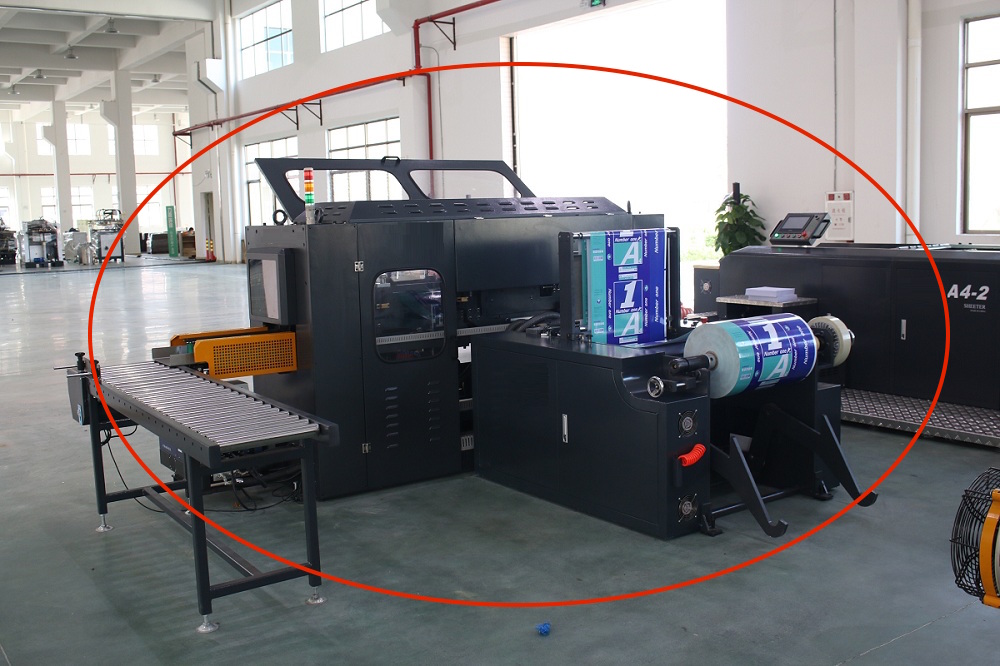

paper width	Gross width: 310mm; Net width: 297mm
make the packaging high	55mm maximum; 45mm minimum
Packaging Roller Diameter	Max 1000mm; Min 200mm
Wrapping Roll Width	560mm
wrapping paper weight	70-100g/m2
Packaging sheet grade	High-grade copy paper, high-grade office paper, high-grade offset paper, etc.
Design speed	40 reams/min max
running speed	Up to 35 reams/min
packing condition	No speed changes, no interruptions, cut all paper and qualified wrapping paper at once.
drive	AC Servo Precision Control
main power	3*380V /50HZ (or as needed)
Voltage	220V AC /24V DC (or as required)
strength	18KW
Compressed air consumption	300NL/min
air pressure	6bar

✦How to operate the machine?
We will provide English manual and video to you with the machine. If you still need our help, please contact us.

✦ Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to make you satisfied.

✦Can you help me arrange the shipment?
We can arrange sea or air freight for our clients. Trade terms FOB, CIF, EXW available.
