MJSGL-1 single-sided two-layer corrugated cardboard production line
-
Supplier: Hangzhou Royal Packing Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Shelly Cao -
Price: $65200.00 /set -
Min. Order: 1 set
Product details
| Package preview: | Origin: | China | |
| Key machines: | Roll stand, single facer, cardboard cutter and stacker, cardboard winder | Automatic level: | automatic |
| Health status: | new | Packaging Details: | Export grade packaging. |
| payment terms: | wire transfer | port: | Tianjin |
| Mechanical Capabilities: | 80m/min | Product Category: | corrugated cardboard |
| Supply capacity: | 15 sets per month | weight: | 6000 kg |
Product Description
introduce:

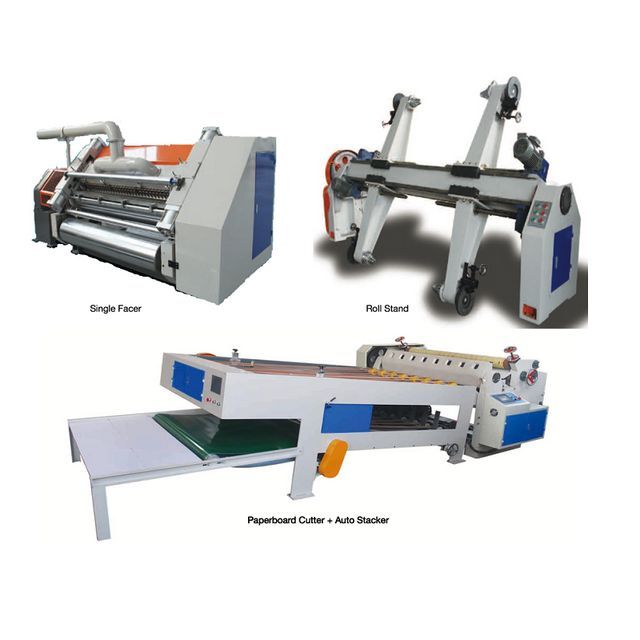

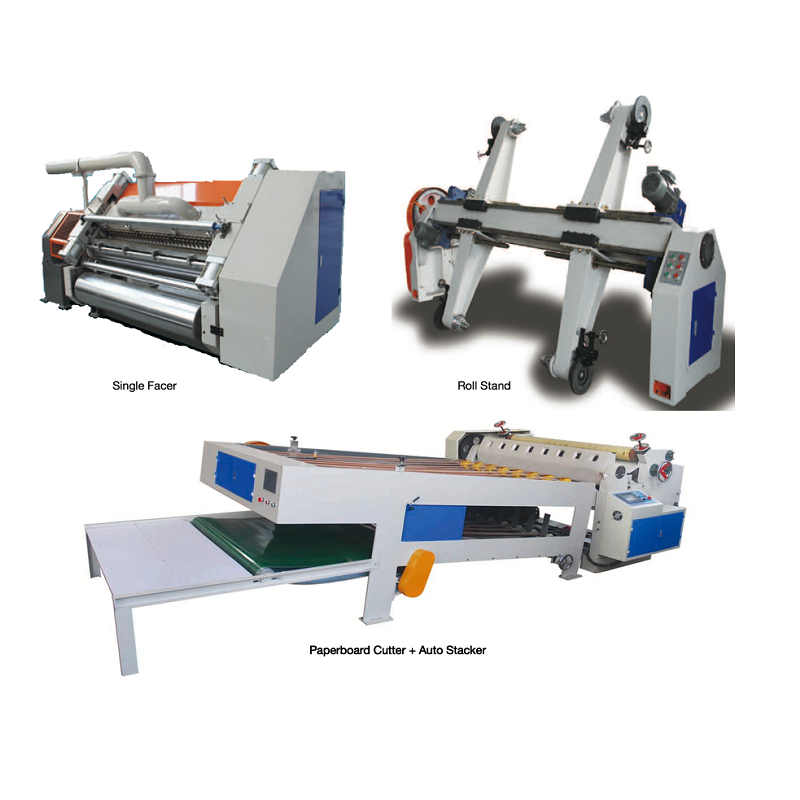

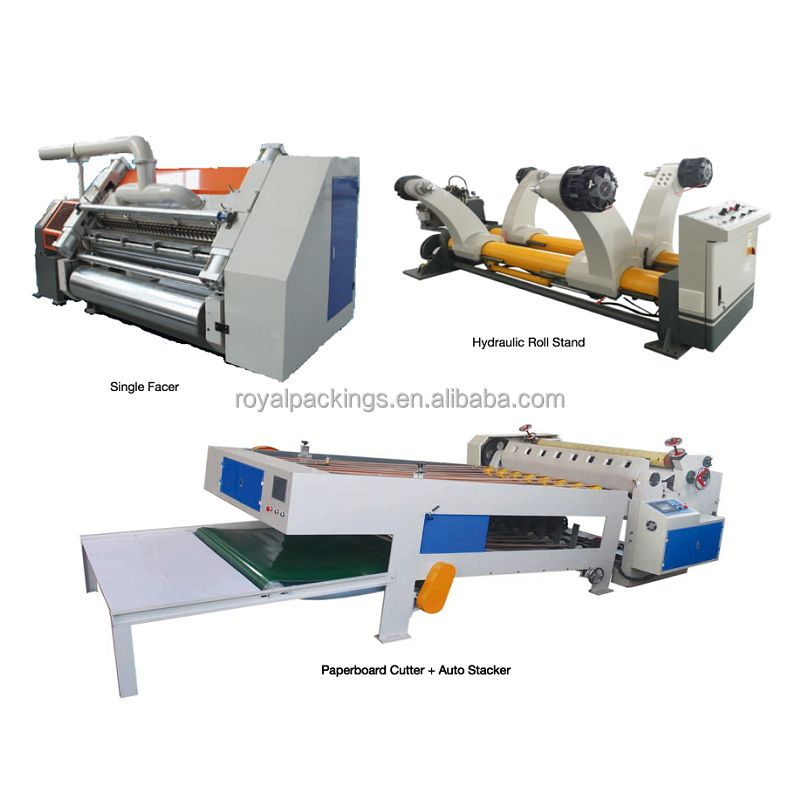

Single-face corrugated board production line is also called two-layer corrugated board production line. The single-sided machine production line is composed of paper roll frame, single-sided machine and rotary paper cutter. Single-sided machine production line for roll paper materials is used to produce and cut single-sided corrugated paper into required sizes to form corrugated boards that do not need to be dried. The unit has reasonable structure, advanced technology, high production quality, high efficiency, less working hours and convenient operation and maintenance. This is the first choice equipment for cardboard corrugated board production
factory.
factory.
Specification
Machine introduction:
-- Design speed: 100m/min
-- Corrugated roller: φ280mm

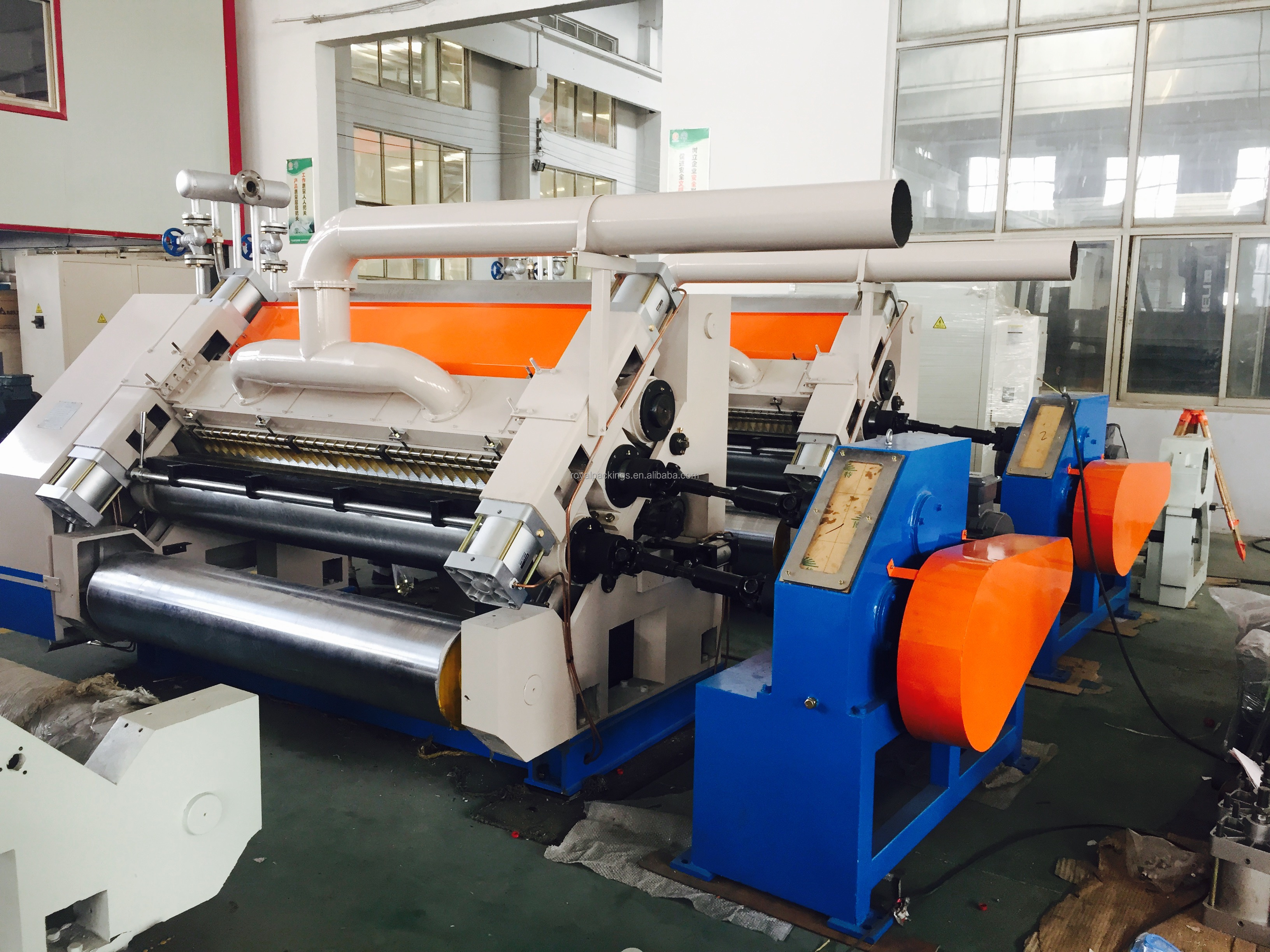

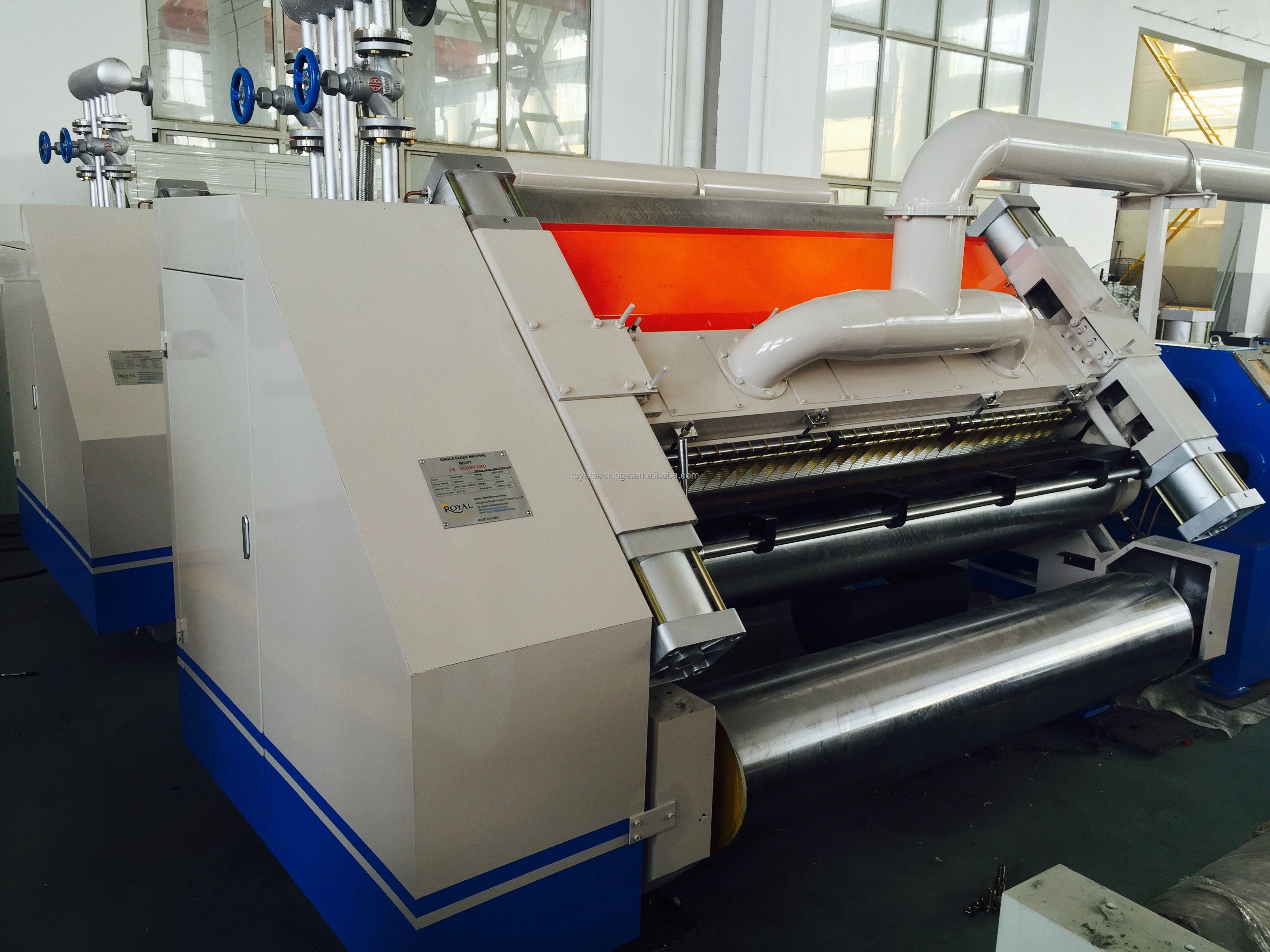

--Fingerless vacuum suction single facer, the upper and lower corrugating rollers are made of 48CrMo alloy steel, with hard
After treatment, the hardness reaches above HRC58-60 degrees. The surface is polished and chrome-plated.
-- The gluing section is a unit assembly, and the whole gluing section can be moved by rails, saving maintenance time.
-- It adopts glue width electric cutting, which matches the paper width. The gluing roller idling motor prevents the glue from drying.
The gap between the glue roller and the scraping roller can be adjusted electrically or manually, and the gap is digitally displayed
Rubber roller and scraper roller are optional.
-- Corrugating rollers, pressure rollers and glue rollers are adjusted by pneumatic system.
-- With bottom paper preheater and middle paper steam spraying device
-- Corrugated roller: φ280mm
--Fingerless vacuum suction single facer, the upper and lower corrugating rollers are made of 48CrMo alloy steel, with hard
After treatment, the hardness reaches above HRC58-60 degrees. The surface is polished and chrome-plated.
-- The gluing section is a unit assembly, and the whole gluing section can be moved by rails, saving maintenance time.
-- It adopts glue width electric cutting, which matches the paper width. The gluing roller idling motor prevents the glue from drying.
The gap between the glue roller and the scraping roller can be adjusted electrically or manually, and the gap is digitally displayed
Rubber roller and scraper roller are optional.
-- Corrugating rollers, pressure rollers and glue rollers are adjusted by pneumatic system.
-- With bottom paper preheater and middle paper steam spraying device
Machine introduction:

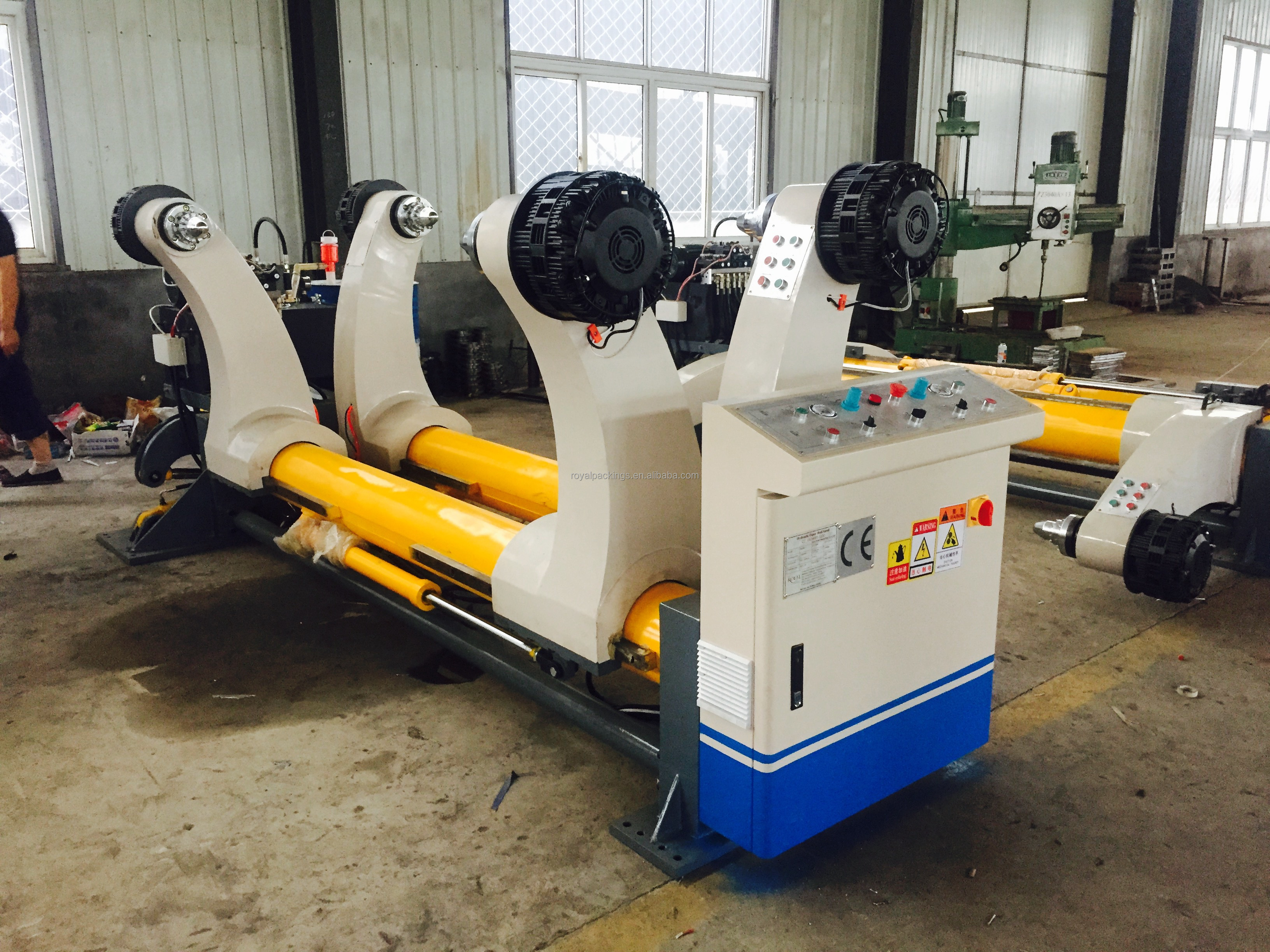

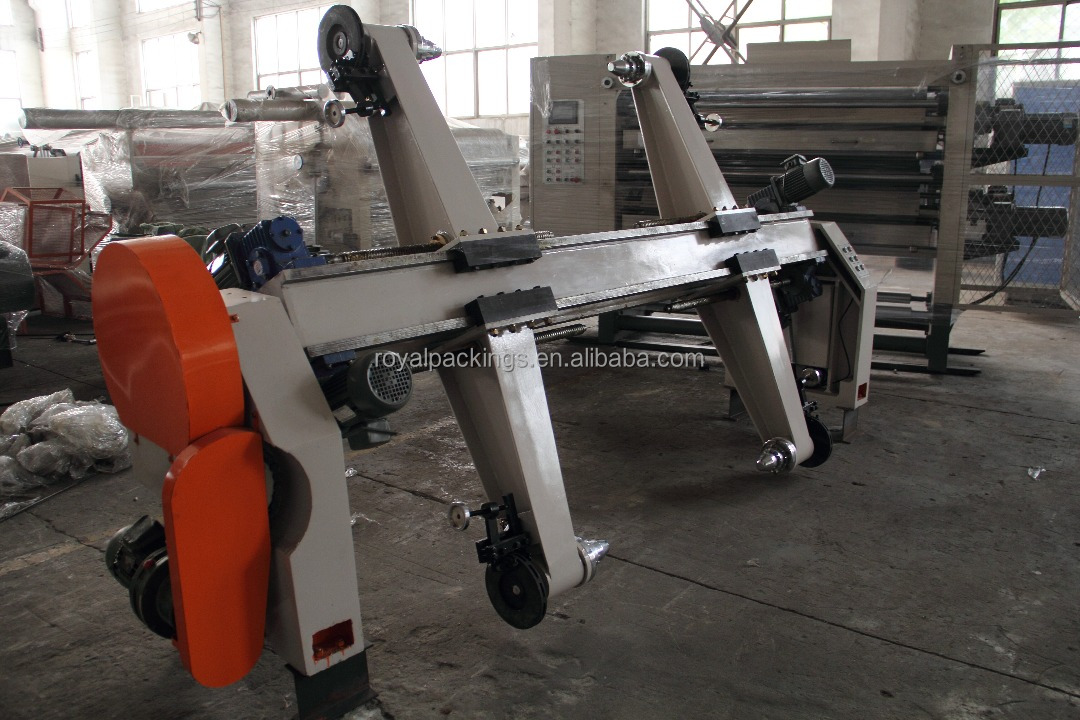

* Swing style.
*Maximum. Paper roll diameter: 1500mm
Length: 800-1400mm
*Hydraulic operation is adopted for clamping paper roll, moving left and right, arm up and down, and paper roll rotation.
*Support two paper rolls at the same time, one is working and the other is standby.
* Adopt "spring clutch".
* Paper tension is controlled by pneumatic disc brake, easy to set the tension.
*Maximum. Paper roll diameter: 1500mm
Length: 800-1400mm
*Hydraulic operation is adopted for clamping paper roll, moving left and right, arm up and down, and paper roll rotation.
*Support two paper rolls at the same time, one is working and the other is standby.
* Adopt "spring clutch".
* Paper tension is controlled by pneumatic disc brake, easy to set the tension.

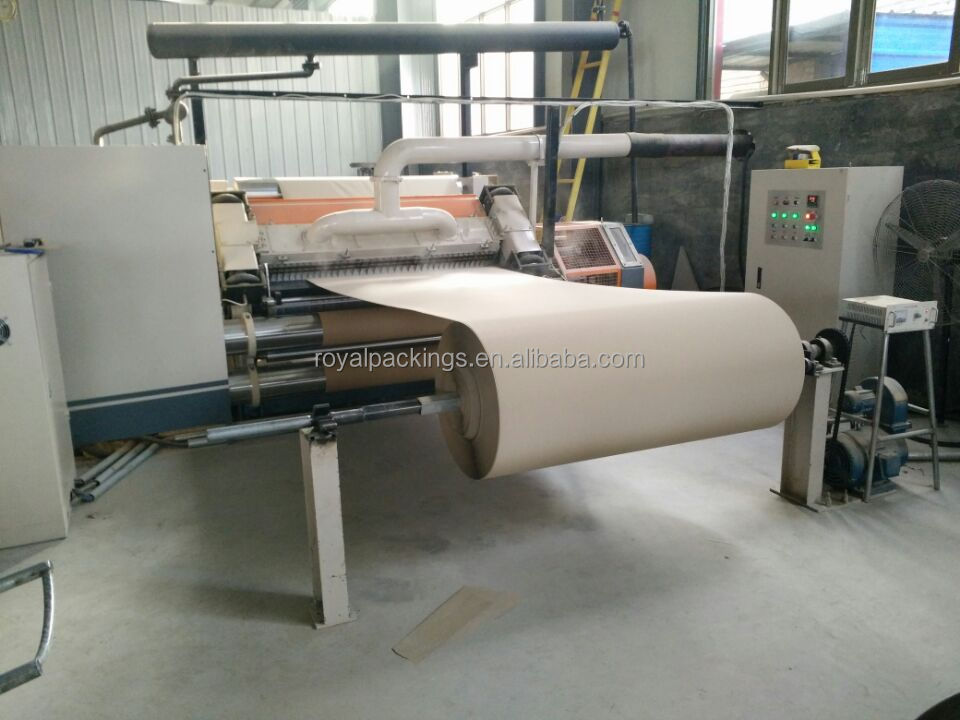

Single-sided cardboard roller machine
The machine takes up less space and saves labor, and is the best choice for low-speed machines.

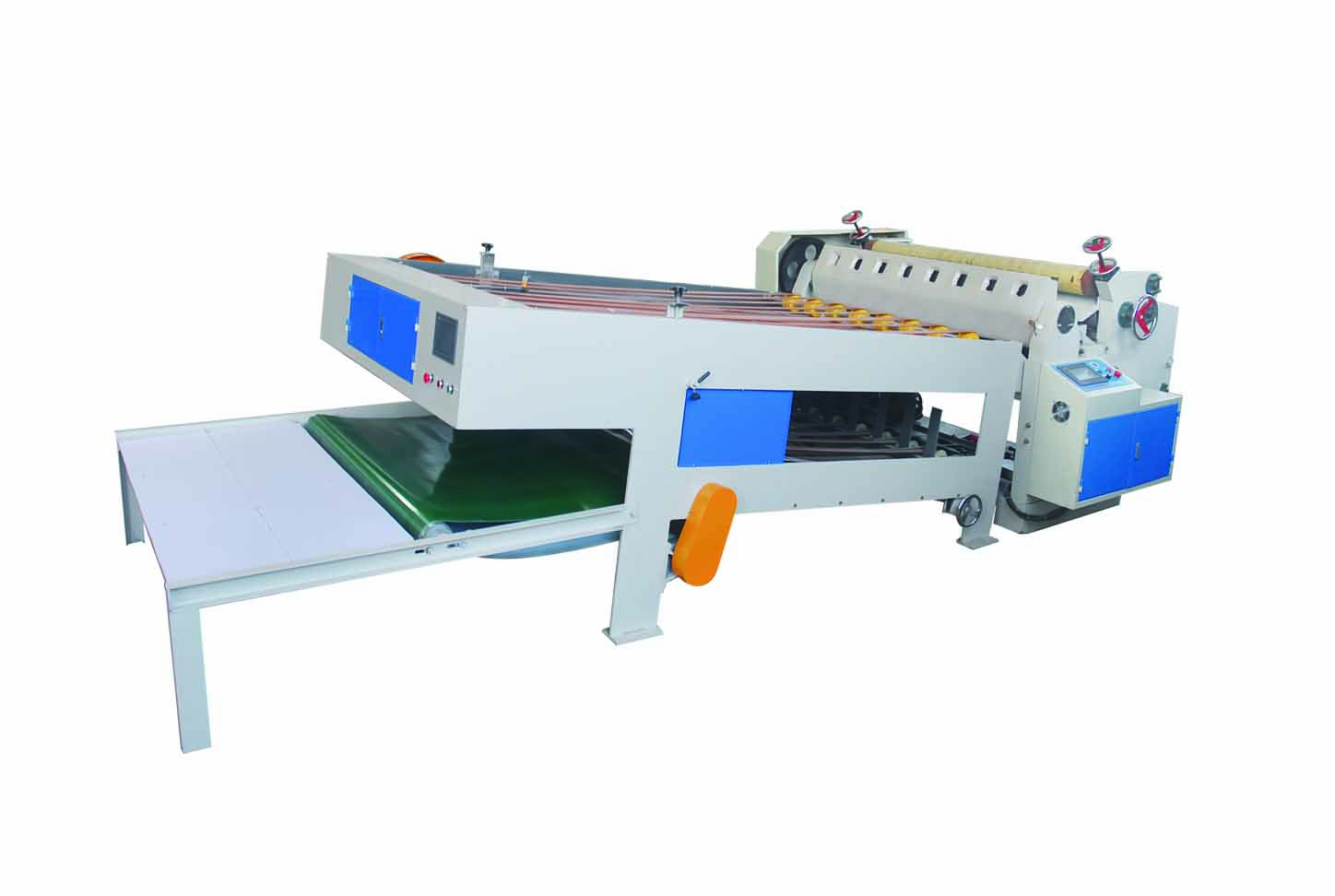

CNC single-sided cardboard cutting machine and automatic stacker
1. It can save more than 200 sets of orders, can change the cutting size accurately and continuously in a short time, and can be connected to a computer
system, which makes the production well managed.
2. High precision transmission system.
3. The quality of the tool is excellent and stable, and the service life is long.
4. The paper guide roller is covered with non-slip material, which is more wear-resistant and has the correct size.
5. Servo control motor drive, 5.7-inch color touch screen, you can check each item clearly.
6. The machine can automatically count, stack, and separate colors without stopping.
7. The machine occupies a small space and saves labor, and is the best choice for low-speed machines.
system, which makes the production well managed.
2. High precision transmission system.
3. The quality of the tool is excellent and stable, and the service life is long.
4. The paper guide roller is covered with non-slip material, which is more wear-resistant and has the correct size.
5. Servo control motor drive, 5.7-inch color touch screen, you can check each item clearly.
6. The machine can automatically count, stack, and separate colors without stopping.
7. The machine occupies a small space and saves labor, and is the best choice for low-speed machines.
thing | value |
Health status | new |
weight | 6000 kg |
birthplace | China |
automatic grading | automatic |
mechanical ability | 80m/min |
key machine | Roll stand, single facer, cardboard cutter and stacker, cardboard winder |
Product Category | corrugated cardboard |
