High Quality Small Business Ideas Napkin Packaging Machine Easy To Operate Toilet Paper Production Line

Supplier: Guangdong Imako Intelligent Equipment Co.,Ltd
Region: Guangdong, China
Contact: Ms Wendy Tang
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Origin:	Guangdong, China	Year:	2022
Key machines:	Composite machine, napkin machine	Scope of application:	N Origami Towels, Napkins
Voltage:	380V	model:	TP-35C
strength:	10KW	Dimensions (LWH):	L3000W1800H1850
Machine capacity:	30 sets/month	Paper towel length:	200-300mm
brand:	Imako	Automatic level:	automatic
weight:	3600 kg	Supply capacity:	30 sets per month
Packaging style:	3D (three-dimensional)	Health status:	new
port:	Shantou/Shenzhen	Certification:	CE certification
Tissue Width:	120-250mm	Production speed:	Up to 30 packs/min
Optional equipment:	Inkjet Printers	Materials used for packaging:	PE prefabricated bags or PE rolls with gussets
Package preview:		Tissue height:	65-110mm
Product Category:	paper napkin	payment terms:	L/C, Western Union, T/T
Packaging Details:	wooden box	After-sales service provided:	On-site installation, commissioning and training

maximum. Speed of work:35 bags/min

Packing range (mm):
Length(150~300)/Width(110~250)/Height(70~115)

Product Description

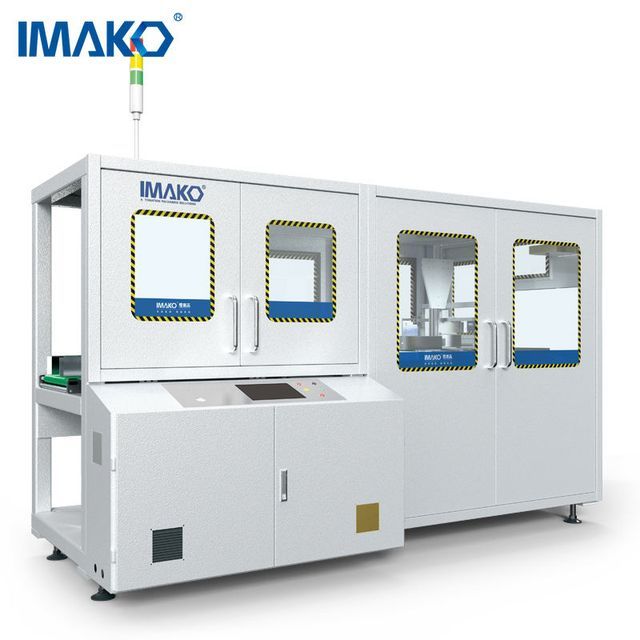

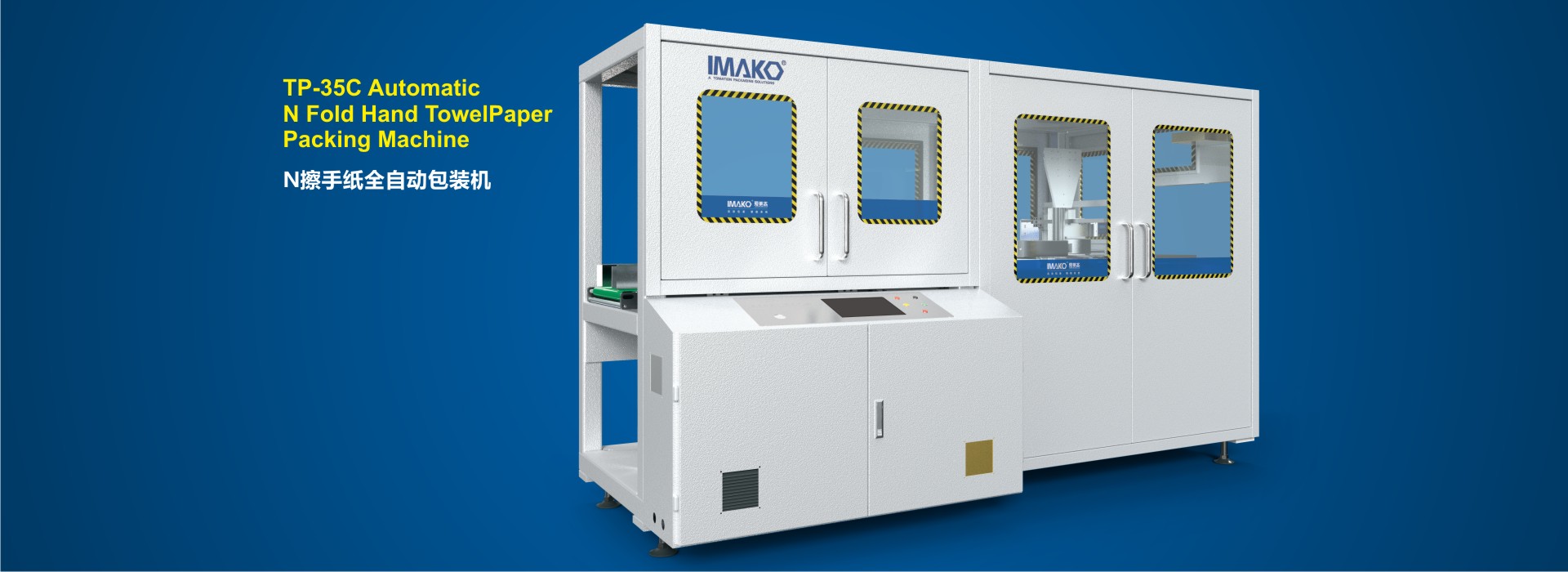

★TP-T35C series automatic packaging machine is suitable for automatic packagingN/Z Fold Tissueandpaper napkinPacking Machine.
★ The sorting, feeding, filling, traction, conveying and sealing of paper towels are all controlled by servo motors. Simple operation and convenient maintenance.
★Adopt prefabricated roll film, which can be pre-installed with thermal transfer printer, ink wheel coding machine and ribbon coding machine.

Paper towel packaging machine technical parameters
scope of application	N fold hand towel	feeding method	Automatic feeding
Speed of work	35 packs/min	Roll Film Correction	automatic correction
tissue length	150-300 mm	tissue width	110-250 mm
Tissue height	70-115mm	Packaging material installation structure	ventilation shaft
Machine size	L3000W1800H1850mm	Wrapping film type	Pre-made bag roll film
Machine weight(KG)	3600	power supply	380V/50Hz
Film roll diameter(mm)	≤600	Compressed air (mpa)	Air source ≥ 0.5, air volume ≥ 300L/min
Bag cutting method	Insert cutting	Total power (KW)	10
pronghorn shape	Forming mold	options	Printers, punching devices

detailed image

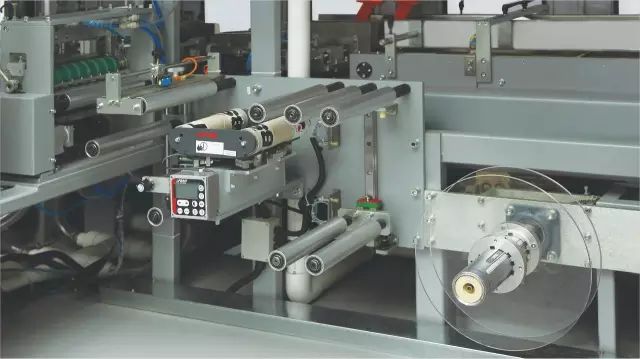

Paper Sorting and Feeding

Servo Control

The machine is easy to operate and maintain.

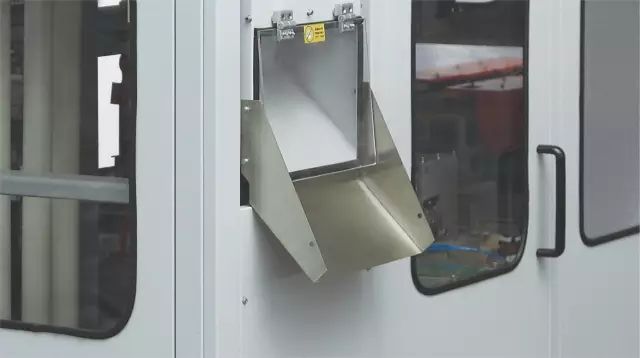

Packing paper into bags, feeding bags, conveying bags, opening bags

It has the functions of bag position detection, garbage bag automatic removal, air source management, fault alarm display, servo overload protection, etc.

Seals

It adopts intelligent sealing system, AC control, independent temperature control from top to bottom, and can adapt to different packaging materials to ensure beautiful sealing and stable operation.

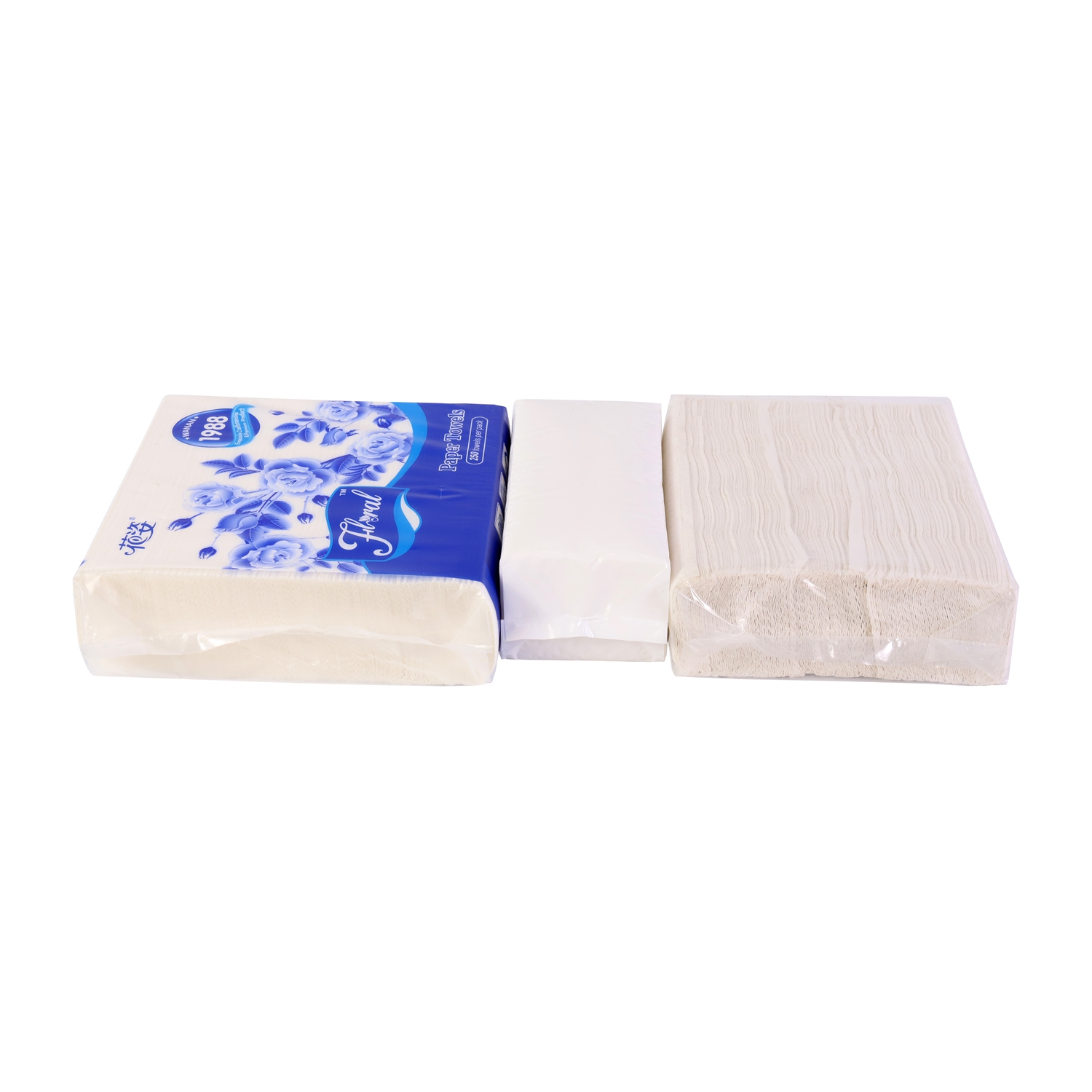

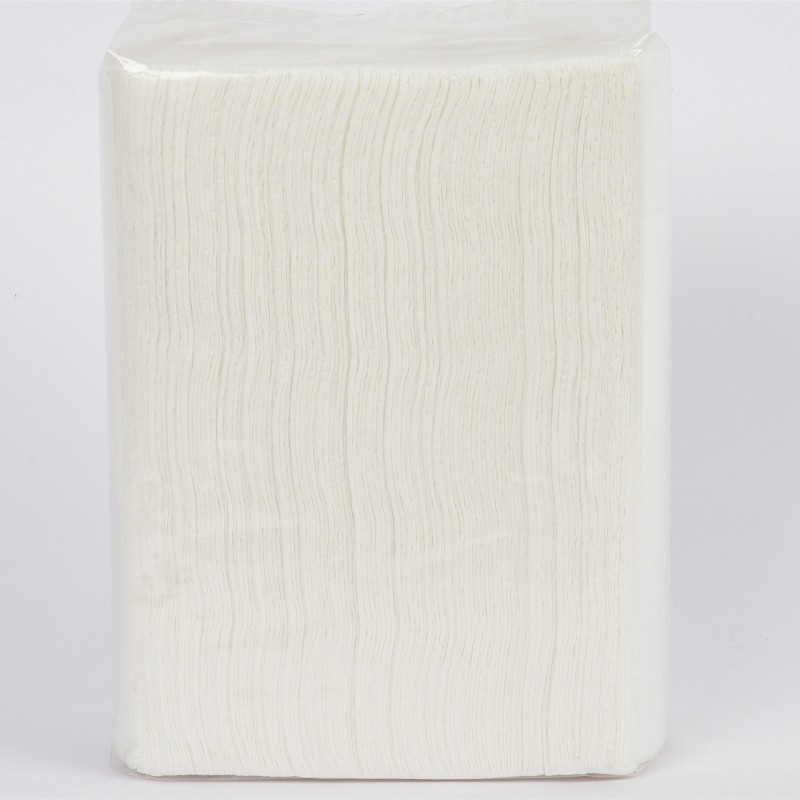

Finished product packaging

Using film tube rolls as packaging materials can alsoInstall thermos transfer printer, ink printer, ribbon printer.
