Flexo Label Printing Machine, High Quality Flexo Printing Machine, 8 Color Flexo Printing Machine

Product details
Health status:newLocal service locations:Canada
After Warranty Service:On-site maintenance and repair servicesstructure:other
Origin:ChinaCore components:engine
After-sales service provided:Engineers available to repair machinery overseasVoltage:380V
Plate type:flexo printingShowroom location:Australia
Core component warranty:1 yearPackaging Details:wooden box
Mechanical test report:ifColors and Pages:Polychromatic
Applicable industries:Food and Beverage FactoryAutomatic level:automatic
Warranty:1 yearpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:1 set per monthtype:Flexographic printing machine
Main selling points:high productivityDimensions (L*W*H):8000*2100*2500(mm)
Video outbound inspection:ifweight:About KG
Marketing Type:2020 New Productsport:Ningbo/Shanghai
usage:Receipt Printer, Label Printer, Paper Printerbrand:Crane Xiang

Flexo label printing machine, high quality flexo printing machine, 8-color flexo printing machine

Factory direct sales

8-color flexo printing machine station:

1. One placement machine

2. One anilox roller for each group (optional specification)

3. Three sets of printing rollers (3*8=24)

4. Simultaneous printing on both sides (with rotary bar)

5. With lamination station

6. One set of unwinding tension controller (Mitsubishi, Japan)

7. Winding tension controller 1

8. One rotary die-cutting station

9. Each station is equipped with an infrared dryer



The main technical parameters:

Model

RY320-8B

printing speed

60m/min

printing color

8 colors

maximum. Width

320 mm

maximum. print width

310 mm

maximum. Unwinding diameter

600mm

maximum. Rewinding diameter

550 mm

printing perimeter

175-320 mm

Registration accuracy

±0.10mm

aspect

8000*2100*2500(mm)

machine weight

about 4500 kg



feature:

  1. Anilox roller is used to transfer ink.
  2. Unwinding and rewinding are controlled by magnetic brake and clutch. (Or use the Japanese Mitsubishi automatic tension controller).
  3. The printing unit adopts 360° registration.
  4. Each printing unit has an infrared drying unit.
  5. The rubber roller can be automatically disengaged when parking and driving at low speed, so as to prevent the water from turning black and drying.
  6. The main motor adopts imported frequency conversion stepless adjustment.
  7. Unwinding, printing, varnishing, infrared drying, lamination, and rewinding can be completed in one operation. This printing machine is most suitable for various printing companies to print on self-adhesive paper labels and other commercial labels.
sample

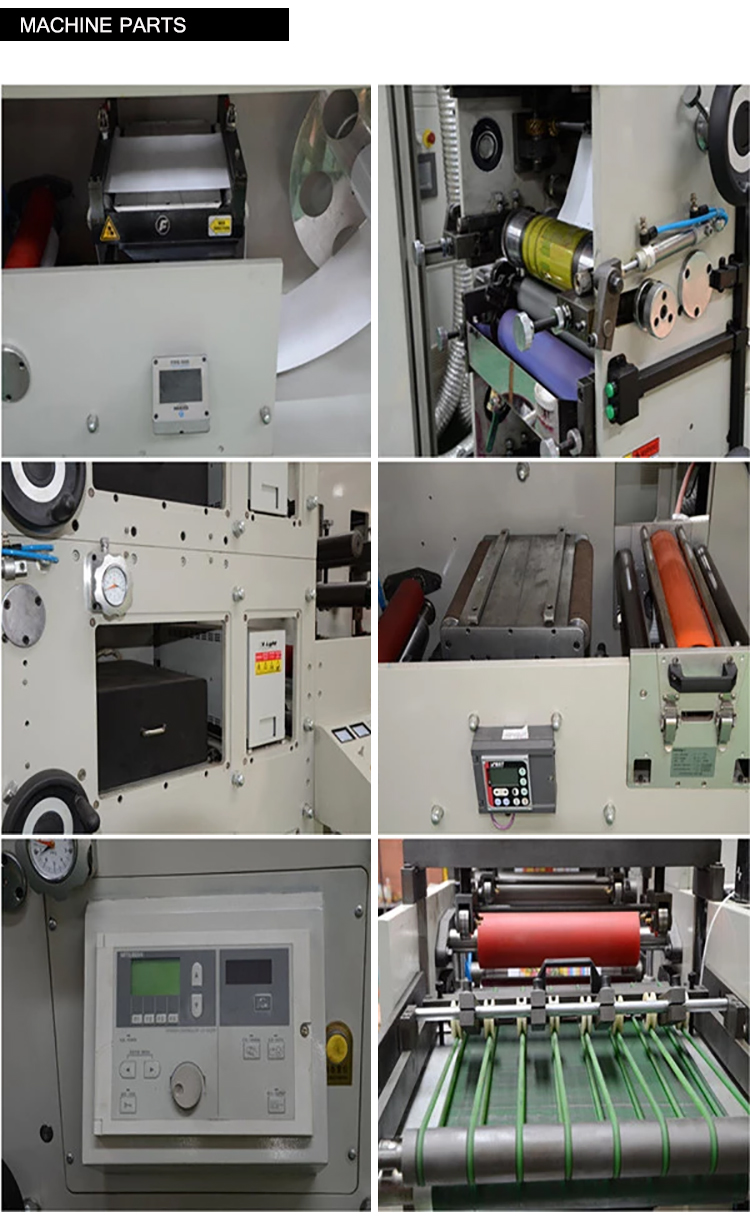

Mechanical Parts
