Film bag water bag printing machine

Product details
payment terms:letter of credit, wire transferHealth status:new
Voltage:220/380/415Vtype:flexo printing press
Applicable industries:Mechanical Repair Shops, Printing Shops, Food and Beverage ShopsCore components:motor, engine
Plate thickness:1.9 mm 2.28 mm 3.9 mmCore Components Warranty:1 year
place of origin; place of origin:ChinaMain selling point:long lasting
usage:paper printer, label printerweight:1900KGS
Anilox roller:Ceramic Anilox RollDimensions (L*W*H):3.6X1.2X1.5
port:NingboPlate type:Toppan Printing
Auto grade:automaticprinting speed:30-80m/min
Key words:flexo printing pressPrinting Color:1 - 6 colors
Video external inspection:ifColors and Pages:Polychromatic
Packaging Preview:Marketing Type:Hot Products of 2019
brand:LihaoSupply capacity:10 sets per month
Local service location:Egypt, Peru, MexicoCertification:ce
product name:flexo printing pressAfter Warranty Service:Video technical support, online support, spare parts
Packaging Details:Wooden case and stretch film packagingWarranty:1 year
Mechanical test report:ifShowroom location:Egypt
printing material:plastic filmAfter-sales service provided:Online support, free spare parts, on-site installation and commissioning training, video technical support

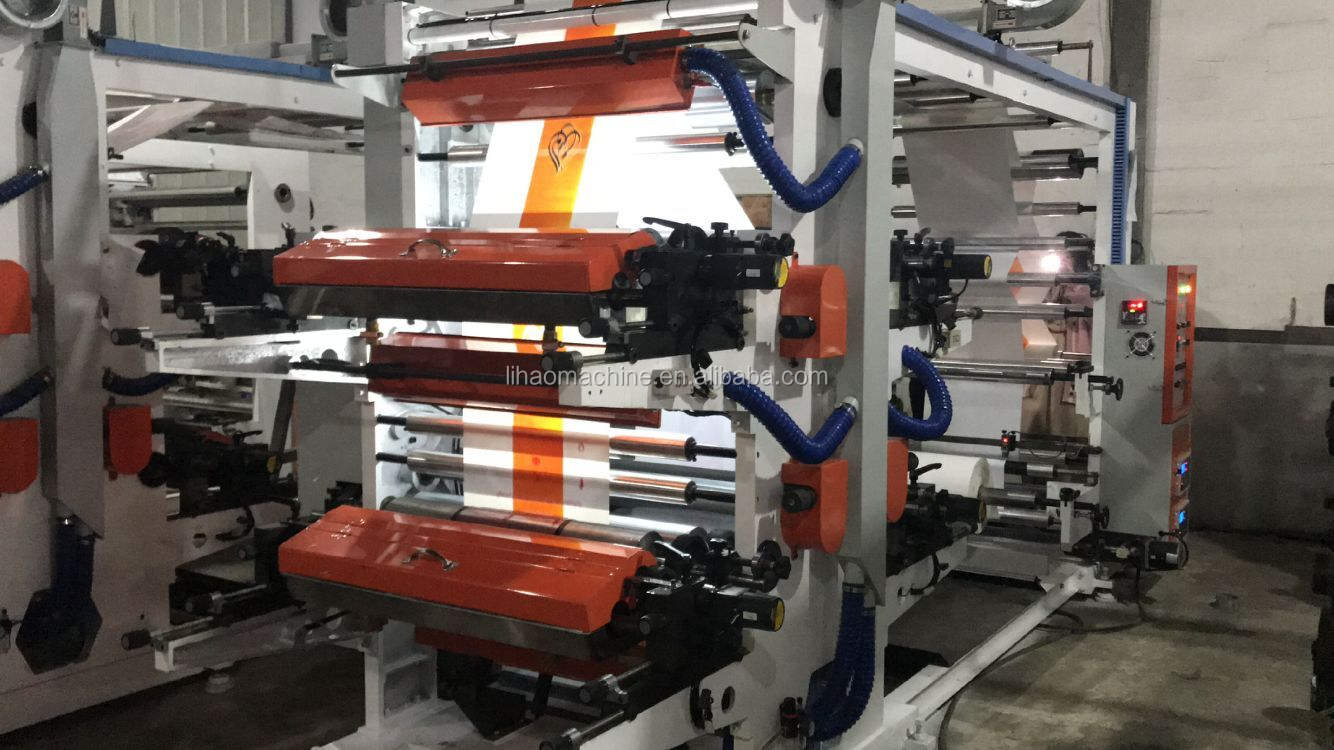

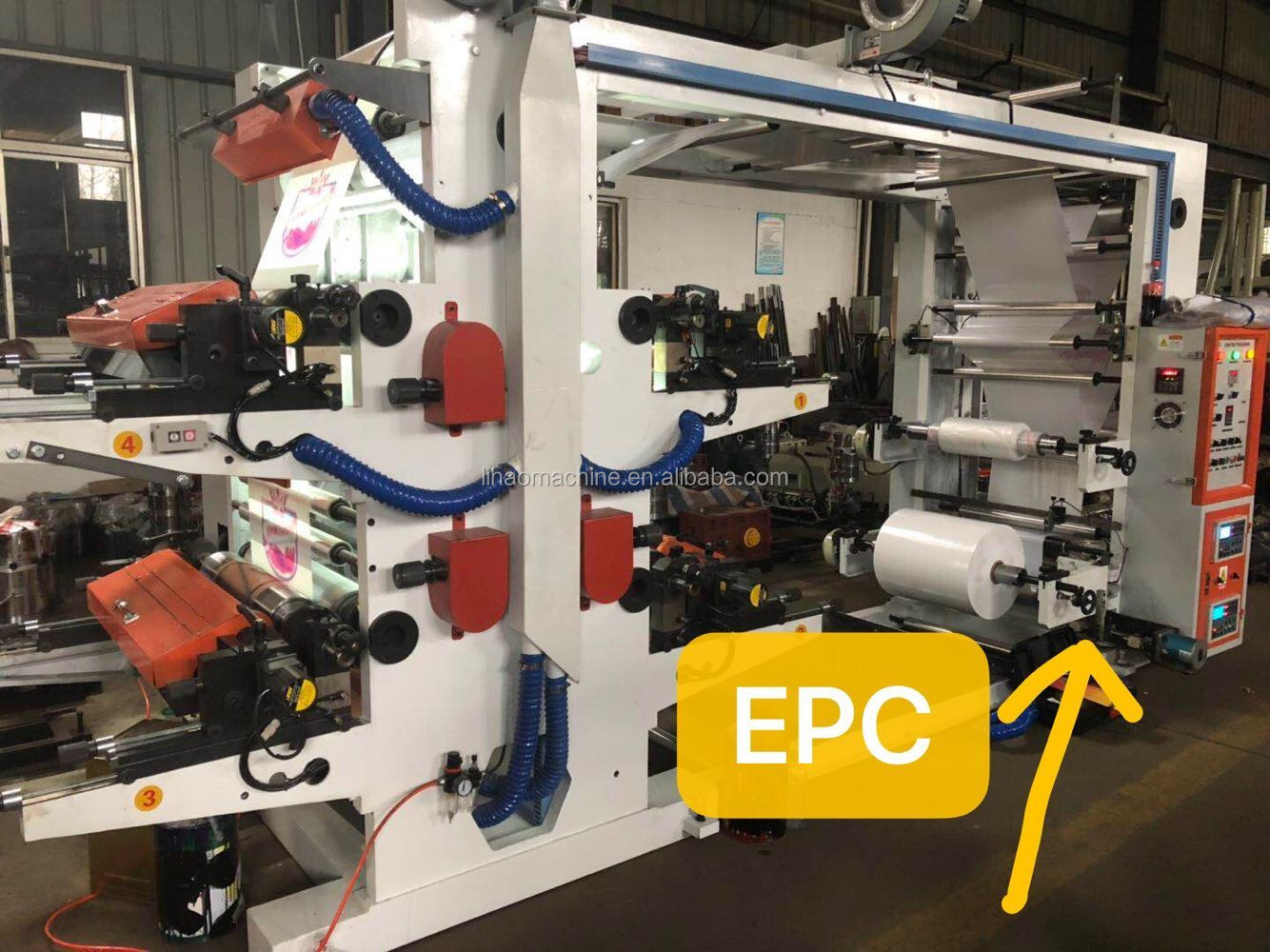

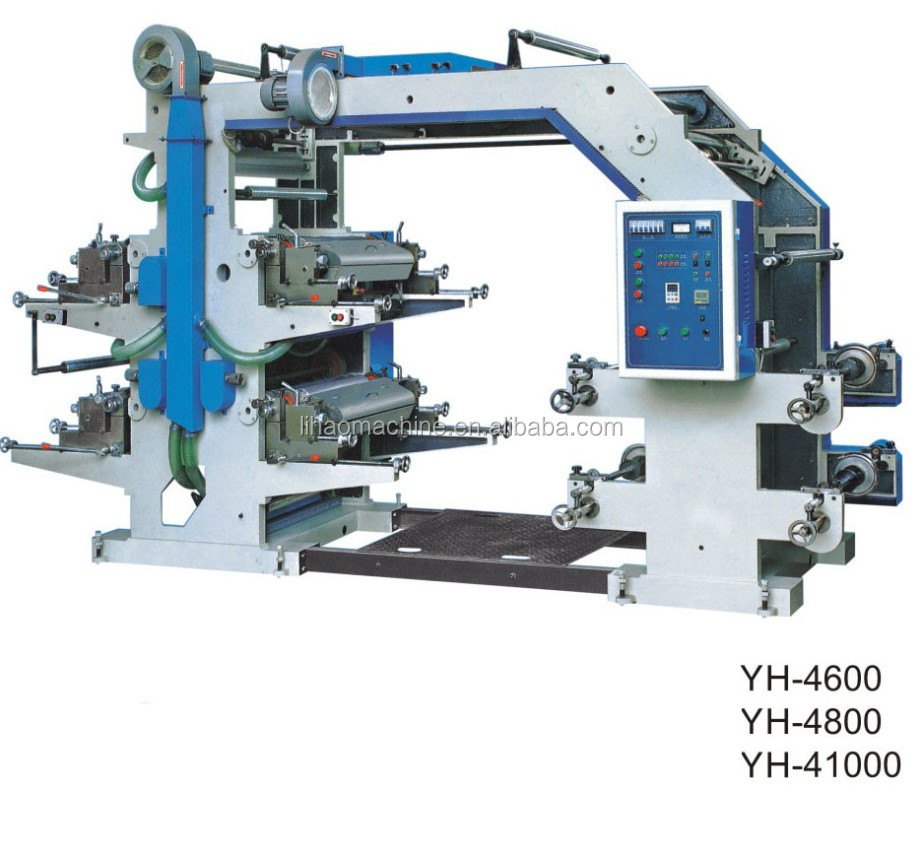

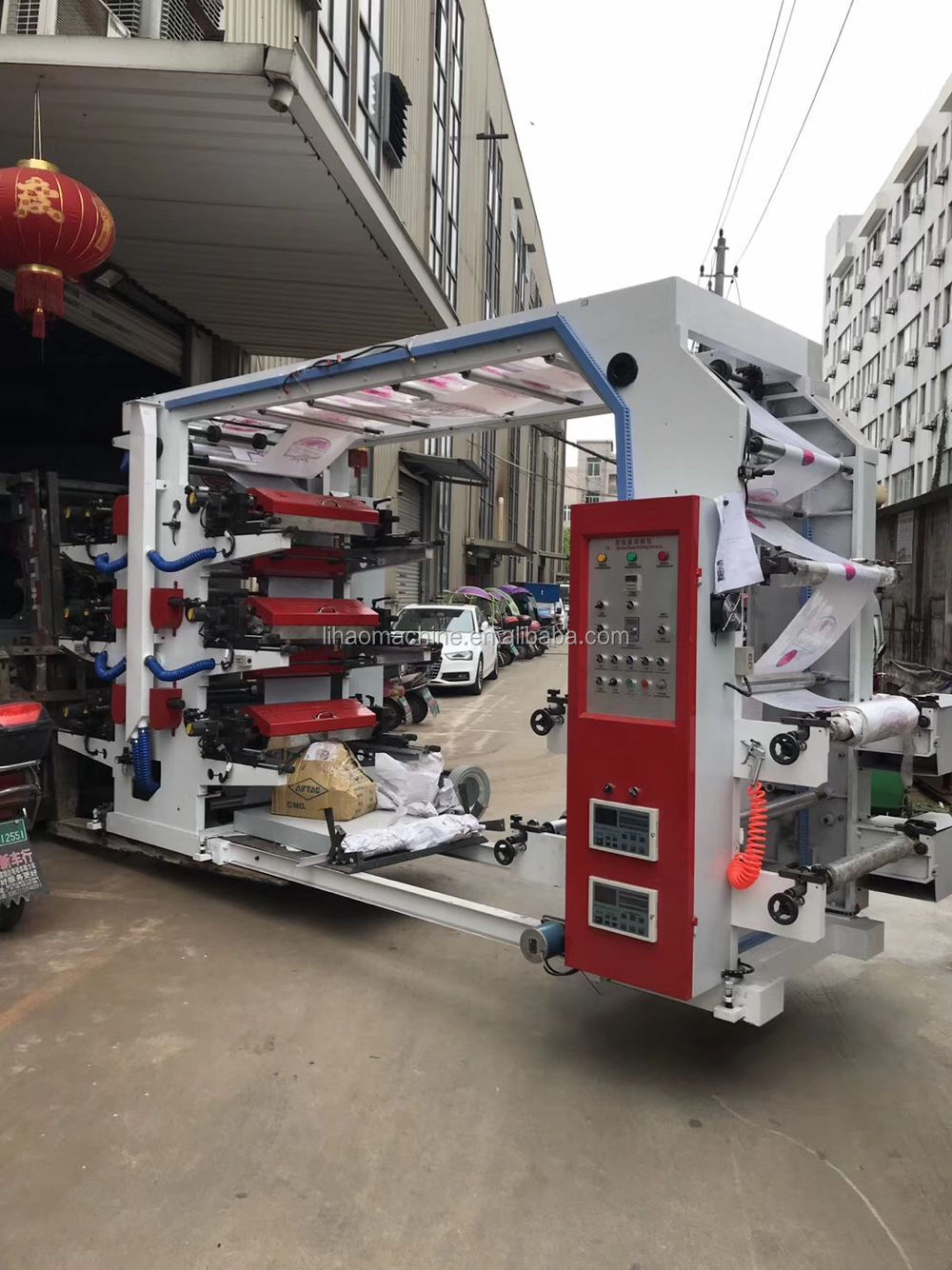

1-6 colors plastic/paper/non-woven flexo printing machine

feature:

1. The combination type, single and double-sided multi-color printing can be completed on time continuously.

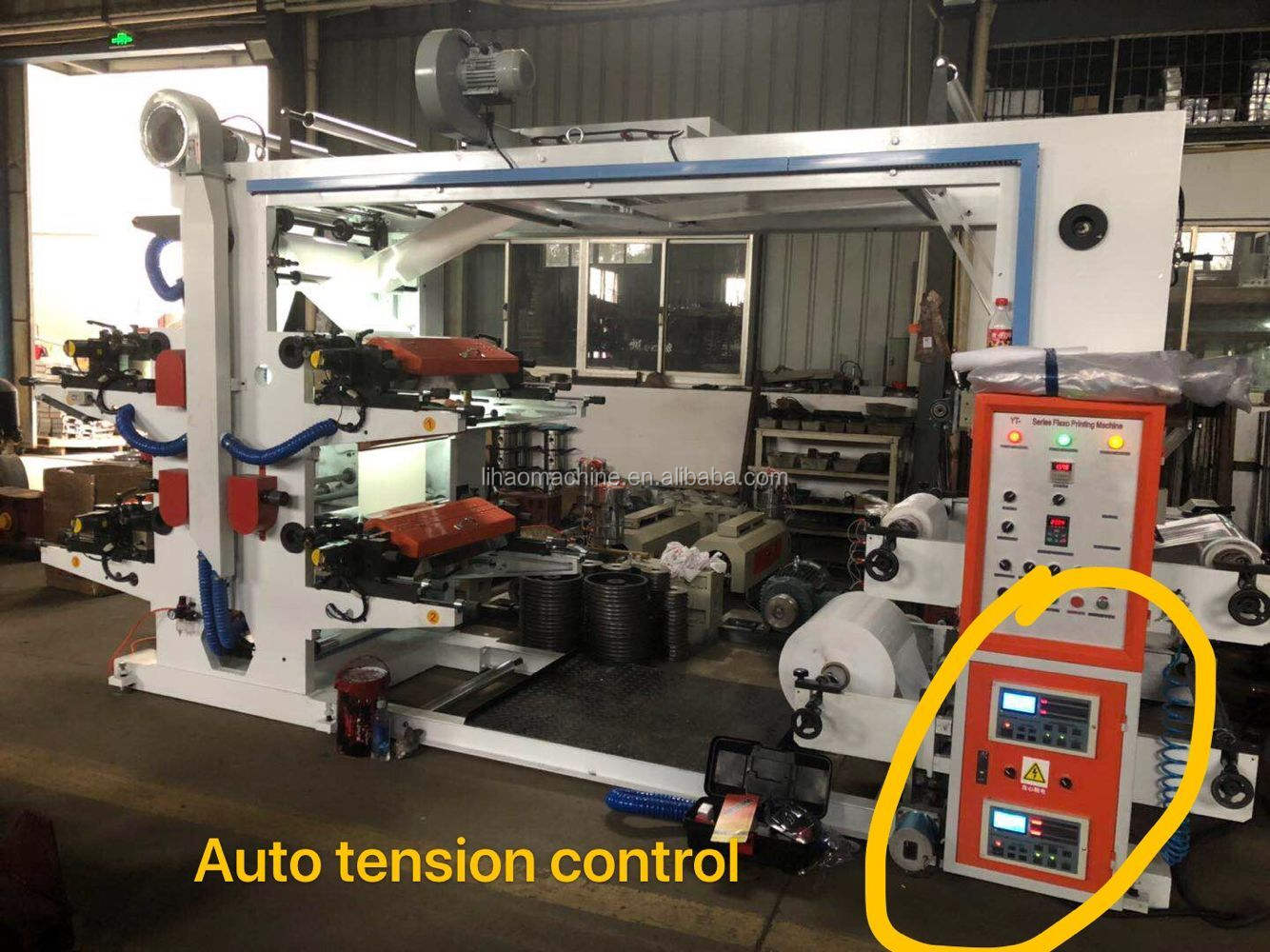

2. Rewinding and unwinding tension magnetic control system. Ink circulates automatically.

3. The drying film adopts far-infrared heating and single drying channel drying.

4. The differential gear is adopted, and the disc can be adjusted freely in 360 degrees.

5. The pressure height and parallelism of the squeegee can be adjusted at will, and it can also reciprocate laterally with the host.

6. It adopts a double-station rewinding and unwinding structure, and the material receiving and changing materials do not stop.



Main technical specifications

machine type

LHYT-2600

LHYT-4800

Unwind width

600mm

800mm

color number

2 colours

4 colors

unit

2 units

4 units

printing width

560mm

760mm

printing speed

50m/min

50m/min

Version accuracy

±0.25mm

±0.25mm

print length

200-1000mm

200-1000mm

Unwinding diameter

600mm

600mm

pressure

0.6Mpa

0.6Mpa

fan power

0.19kw/unit

0.19kw/unit

heating power

7kW

11kW

total power

12kW

18kW

aspect

3500×2000×2000mm

5200×2000×2000mm
