Digital label printing machine ZBRY-480

Product details
Supply capacity:25 sets per monthAfter-sales service provided:Engineers available to service machinery overseas
weight:2000 kgCertification:CE certification
port:Ningbo Portplace of origin; place of origin:Zhejiang, China
Total power:11 kWColors and Pages:Polychromatic
Plate type:TypographyAutomatic level:semi-automatic
brand:ZhenbangPackaging Details:Export standard wooden box
usage:Receipt printer, label printer, paper printerDimensions (L*W*H):2.5m*1.5m*2.6m
State of health:newpayment terms:L/C, T/T, Western Union
Types of:Flexographic printing machineShipping Details:25 days

Flexographic printing machine


1. The main motor adopts imported stepless frequency conversion speed regulation.
2. The feeding and discharging device is controlled by magnetic powder brake and clutch (Mitsbish automatic tension controller from Japan).
3. Ceramic mesh cloth is used to distribute the screen roller, which is durable, wear-resistant and corrosion-resistant, which is beneficial to reduce the replacement frequency of the screen roller and improve printing efficiency.
4. The printing unit can be registered at 360 degrees; each printing unit can engage with the cylinder to improve printing efficiency.
5. Each printing unit is equipped with a group of infrared dryers.
6. The reddening discharge device adopts an inflatable mandrel.
7. The ink roller falls off automatically when the machine stops, and rotates at a low speed to prevent the ink from drying.
8. Roll feeding, printing, polishing, automatic infrared drying, laminating and winding can be completed at one time.

9. Wide application range, no pollution of ink, high economic benefit, fast printing speed, it is an ideal printing equipment for commercial bills, paper cards, and high-end self-adhesive labels.


Machine parameters


printing speed
printing color
6 (color)
Maximum Width
printing width
feed diameter
Maximum winding diameter
Precision perimeter
Overprint accuracy
Dimensions (L*W*H)
machine weight
(approximately) 3000kg

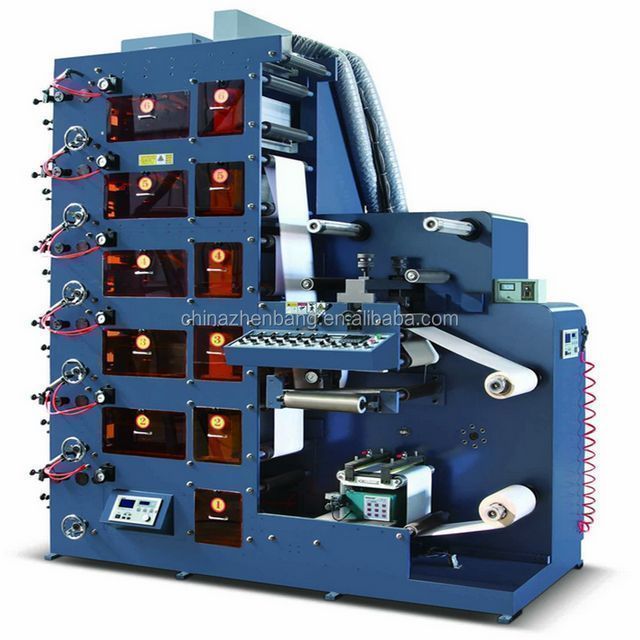

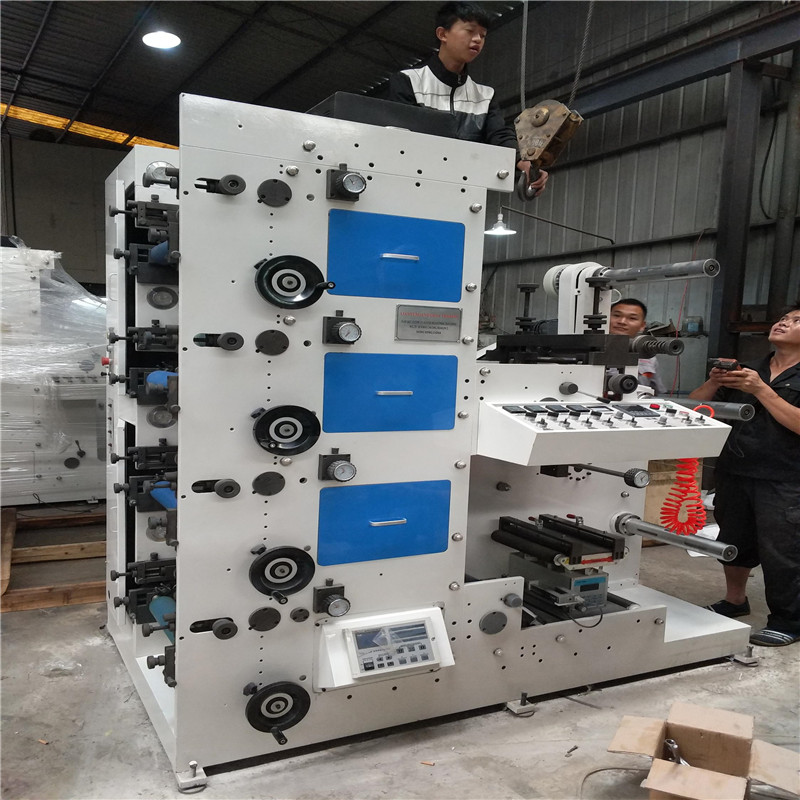

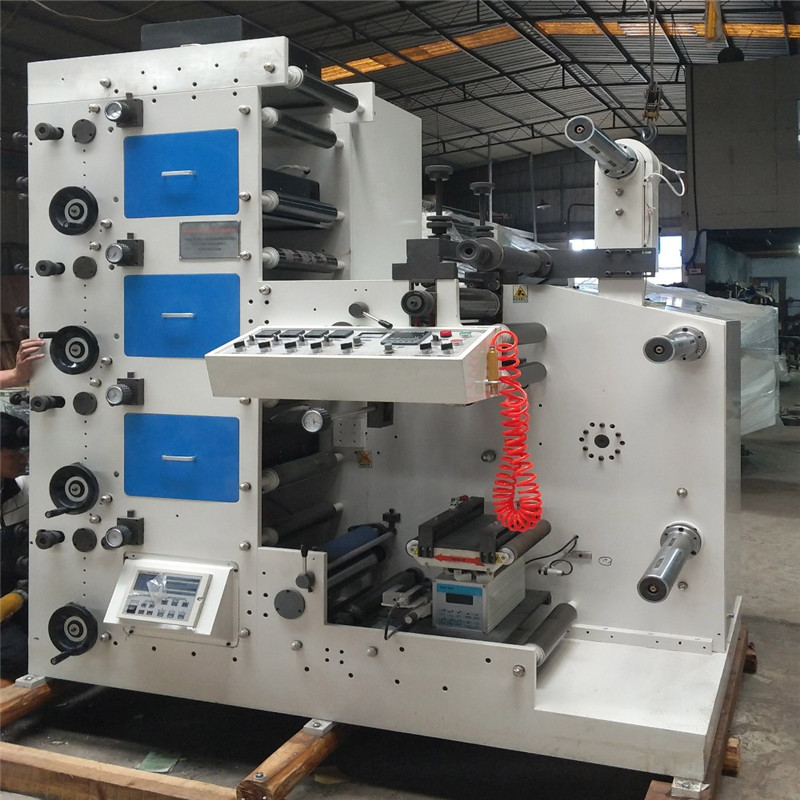

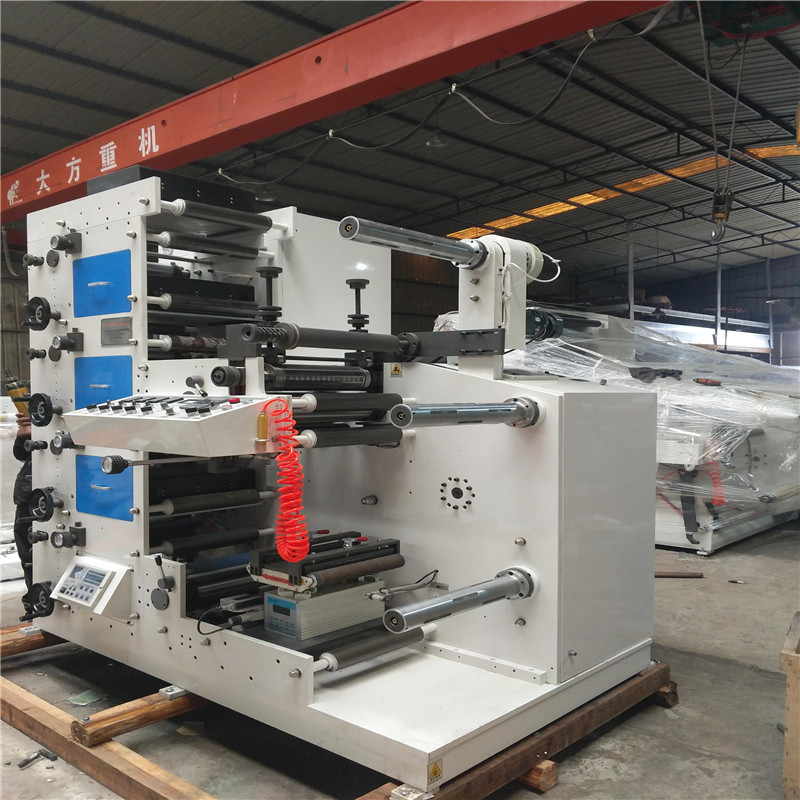

Machine display:
