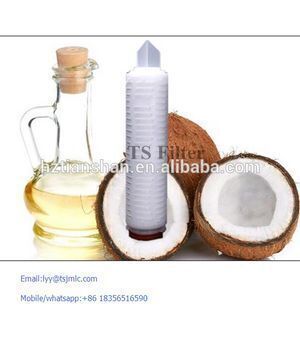

Best VCO machine with coconut oil filter for Organic Extra Virgin Coconut Oil

Supplier: Hangzhou Tianshan Precision Filter Material Co., Ltd.
Region: Zhejiang, China
Contact: Ms Fiona Li
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	Shipped in 3 days after payment;	Production Capacity:	100%;
Usage:	coconut oil;	Application:	Virgin coconut oil;
Payment Terms:	L/C,T/T,Western Union,Payapl;	Model Number:	Coconut oil filter;
Certification:	CE ISO;	Voltage:	220V/380V;
Supply Ability:	10000 Piece/Pieces per Month;	Cartridge adapter:	226, 222, 220, etc;
Automatic Grade:	Automatic;	Length:	10/20/30/40Inch;
Weight:	10kg;	Type 1:	Coconut oil filter;
Power(W):	5.5kw;	Type:	Micron filter for removing particles from coconut oil;
Dimension(LWH):	Customized;	Filter Material:	SS304, SS316L;
Round:	1, 3, 5, 8,......100;	Packaging Detail:	Stainless Steel Water Filter Housing in Wooden/MDF panel carton;
Operating Pressure:	6.0-10.0bar;	Certificate:	FDA;SGS,etc.;
Advantage:	Professinal and rich experience;	Type 2:	VCO machine;
Condition:	New;	Port:	Shanghai or Ningbo;
Place of Origin:	Zhejiang China (Mainland);	Brand Name:	TS filter;
After-sales Service Provided:	Engineers available to service machinery overseas;

Best VCO machine with coconut oil filter for Organic Extra Virgin Coconut Oil

Product Description

This series is special for coconut oil industry .

We specialized in coconut oil etc industry for more than 15 year ,with rich fitlration experience .

Welcome to inquiry more professional plan .

Sales engineer : Nina

Email: lyy#tsjmlc.com

Skype: andrea.liu54

Comprehensive presentation

Specifications

Complete Stainless Steel Construction

Reduces bacterial/particle adhesion and no dead

space

Excellent corrosion resistance

Easy To Install/Easy to Clean

Easy To Install Design With Sanitary Connections,

Easy to Clean

Requires minimum floor space and quickly

dismantles for easy cleaning

Housings Accommodate

Suitable for small to large batch sizes and flow

rates

High pressure & high temperature designs are

available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications

Ideal filtration equipment for food&beverage,

pharmaceutical, biotechnology,

chemical and other industries

Technical Specification

Designed Pressure: 7.2bar(104psi)with in

30mins.

Max.operating pressure: 6.0bar(87psi)

6.0bar(87psi): Electro polished, Ra≤0.2um

Designed flow rate: 0.2-100 t/h

Cartridges		Body Closure		Dimensions(mm)
Nos.	Length		d (outlet/inlet)	D	B	H1	H
1	5"	Ferrule clamp	1inch	102	180	120	570
	10"						690
	20"						940
	30"						1190
3	10"	Stud bolts	1 1/4 inch	184	240	180	720
	20"						980
	30"						1210
5	10"	Stud bolts	1.5 inch	219	280	200	130
	20"						990
	30"						1220
	40"						1460
7	20"	Stud bolts	1 3/4 inch	273	420	210	1060
	30"						1290
	40"						1530
9	20"	Stud bolts	2 inch	325	460	210	1080
	30"						1310
	40"						1550
12	20"	Stud bolts	2 1/4 inch	350	480	240	1150
	30"						1380
	40"						1620
18	20"	Stud bolts	3 inch	400	500	260	1160
	30"						1390
	40"						1630
21	20"	Stud bolts	3.5 inch	450	600	280	1190
	30"						1420
	40"						1660

ORDER INFORMATION

PRODUCT	MATERIAL	CARTRIDGE NOS.	ADAPTER	LENGTH	How to Order?- Example
BJH	304-SUS304	01 - Single	AA-DOE	10" - 10	Material: SUS304
	316-SUS316L	03 - Three	CN-226/FIN	20" - 20	Cartridge Nos.: Single
		05 - Five	BN-222/FIN	30" - 30	Cartridge adapter:DOE
		07 - Seven	AF-220/FLAT SEAL	40" - 40	Cartridge length: 10"
		09 - Nine	BF-222/FLAT SEAL	5" - 05
		10 - Ten	CF-226/FLAT SEAL	Other - XX	Selection Code is: BJH30401AA10
		12 - Twelve
		18 - Eighteen
		21 - Twenty One
