Mustard, soybean, sunflower seed oil press, 200-300kg/h, mustard oil press / circulating oil press

advantage

1. More than 30 years of experience in manufacturing oil presses.

2. 7 patents for oil press technology.

3. Fully inspected before leaving the factory, the quality pass rate is over 98%.

4. More than 300 professional workers. 10% of them are mechanical engineer technicians.

5. Widely used in our life, has been exported to more than 70 countries.

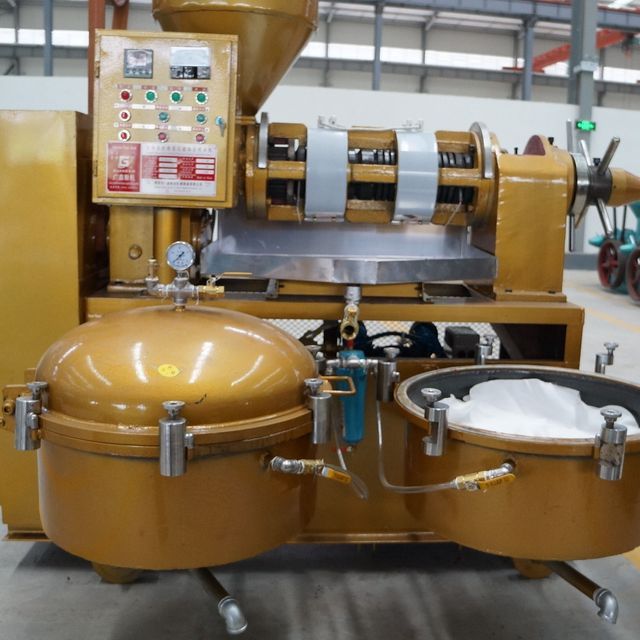

Mustard Oil Press Machine

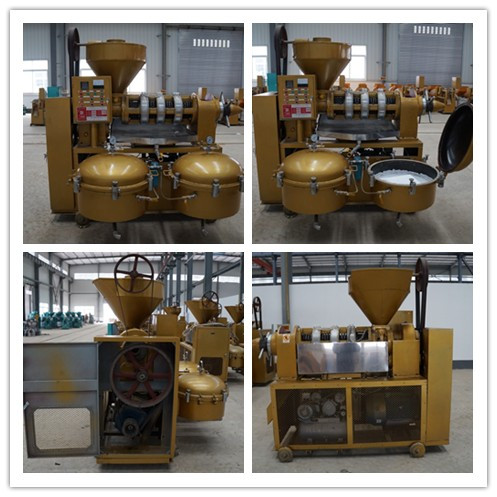

Product display details:

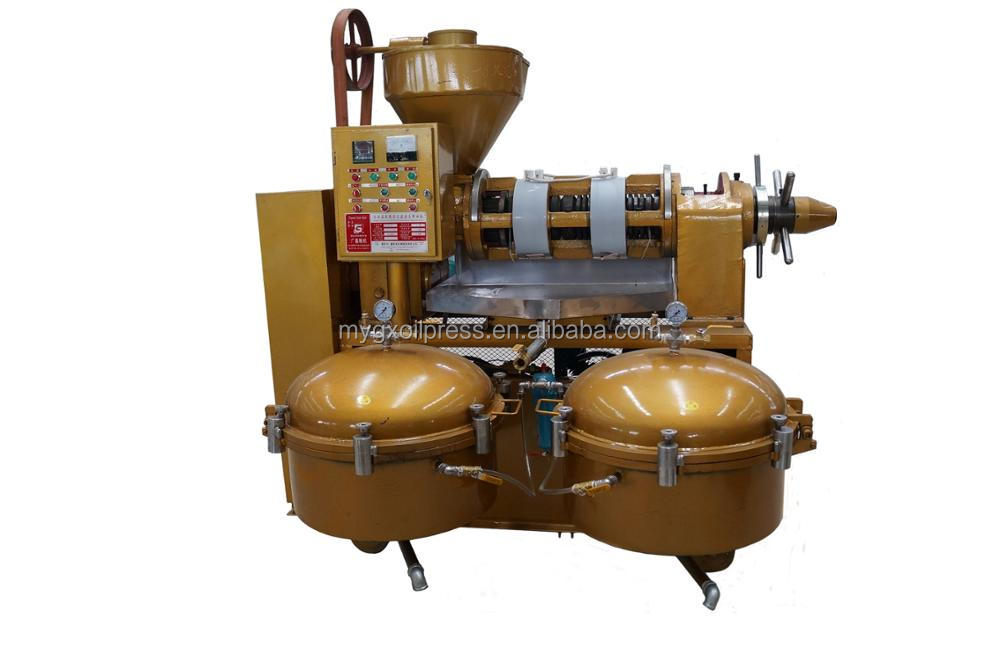

YZLXQ120 (-8, -9) series automatic temperature control precision filtration combined oil press is a new product developed on the basis of a single machine to meet market demand. The automatic heating function of the press cage replaces the traditional way of pressing the slag cake, which shortens the preparation work, reduces energy consumption and machine wear. This system maintains temperature when extrusion is paused. At the same time, the machine has added a filtering function. Crude oil flowing from the press cage will be directly filtered through the air pressure filter. Air pressure filter is a new type of filter equipment. It uses compressed air as the filtering force. strong ability. It overcomes the deficiency of the vacuum filter with small filtering force and can achieve precise results. The oil press has a compact structure and a small footprint, saving labor input. It is an ideal equipment for small and medium refineries and enterprises to process edible oil.

1.work rules

After being transmitted by a V-belt and decelerated by a reducer, the screw is driven by a motor. The oil material falls into the first section of the screw through the feed, and advances toward the cake outlet with the rotating extrusion screw. As the space between the extrusion screws becomes smaller and smaller, the oil is squeezed and the pressure inside the press cage increases. The oils are separated from each other as well as the spiral and squeeze rings. During this process, the oil plant is crushed and generates a lot of heat, the tissue cells are destroyed, the oil is separated from the oil plant, and is discharged from the oil groove on the pressing bar and the oil pressing ring. That's the whole pressing process. After the oil is extracted from the circular gap between the cake adjuster and the cake outlet ring and discharged in thin sheets, it is a low oil cake. The oil extracted from the oil plant flows into the vat through the oil pipe, cover the lid and tighten the clamp, tighten the bolt on the clamp, then close the exhaust valve, turn on the air compressor and open the intake valve. The pressure in the cylinder increases. The oil is filtered through the filter cloth under the action of air pressure and discharged from the bottom of the cylinder; the residue is separated on the filter cloth. Use the two vats alternately to ensure continuous work.

Guangxin YZLXQ120 series oil press machine is suitable for extracting rapeseed, cottonseed, soybean, peanut kernel, linseed, tung oil seed, sunflower seed, palm kernel and other vegetable oils.

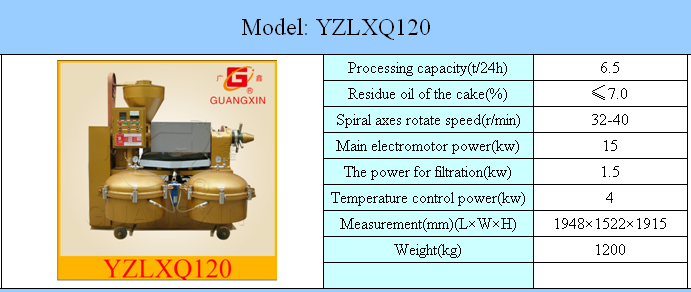

Main technical features

The product conforms to JB/T9793·1-1999 "Technical Standards for Agricultural Screw Presses" of the People's Republic of China.

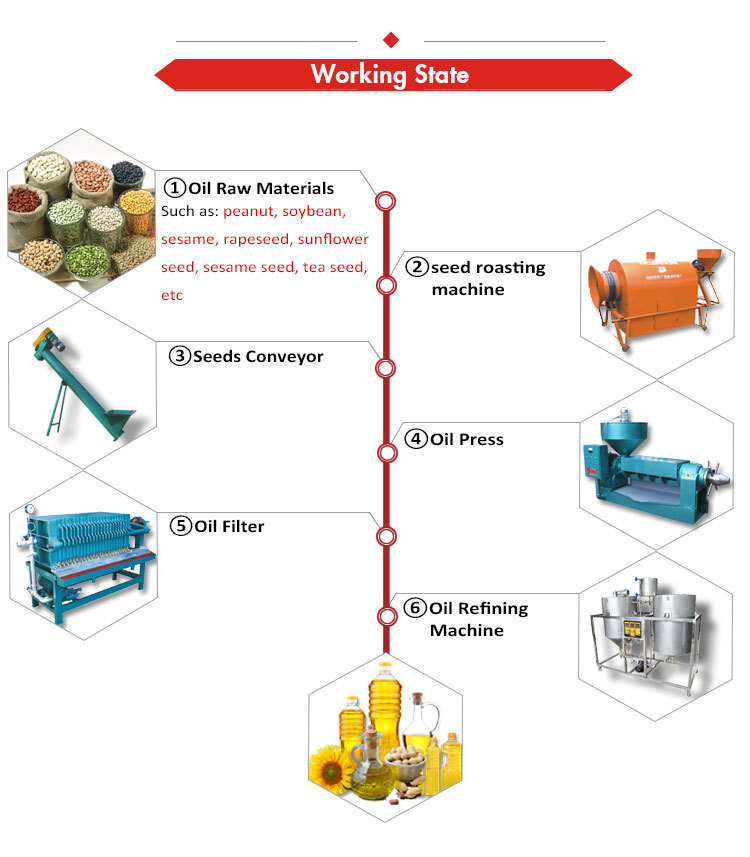

working status
